◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#78177) — 55 parça

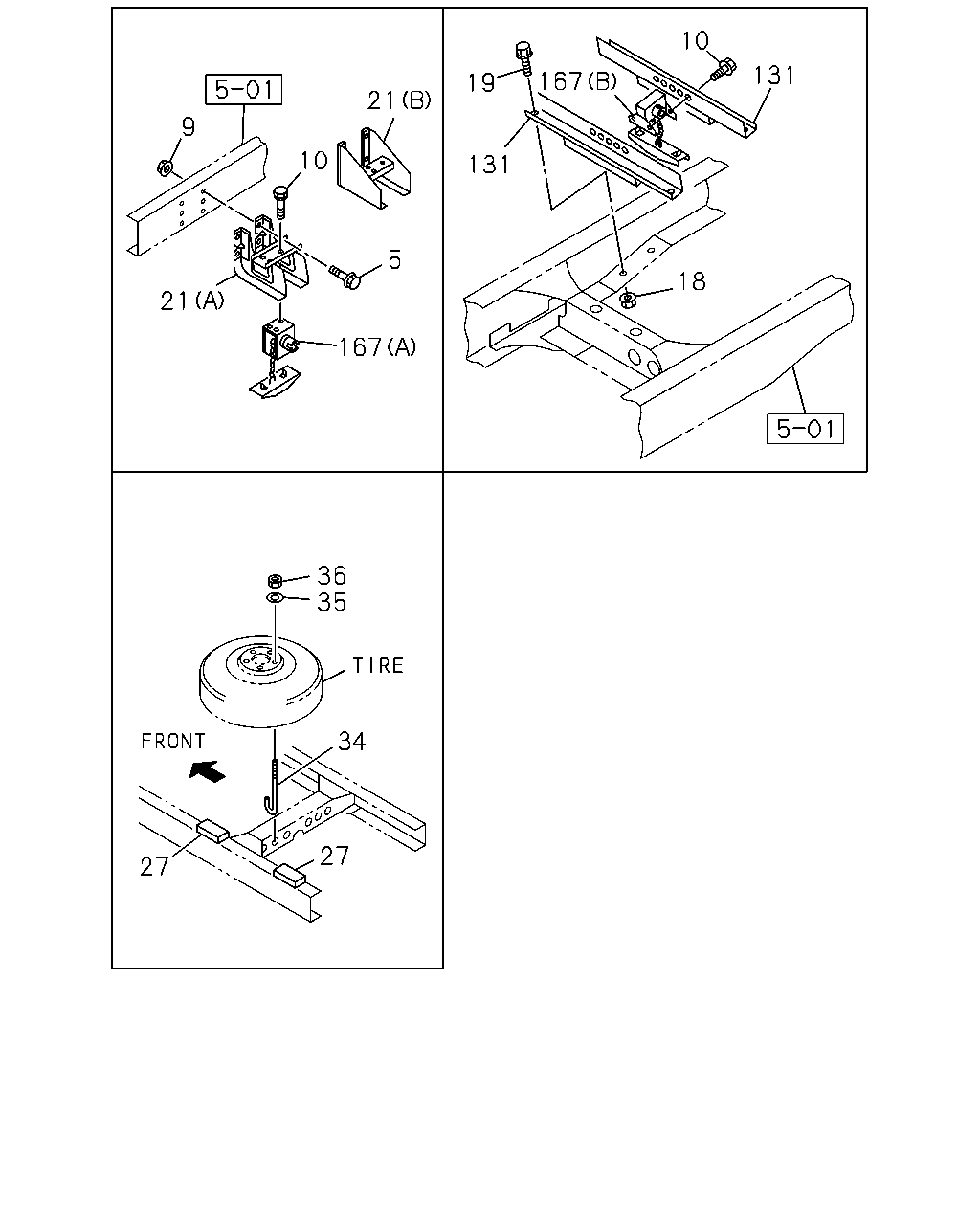

çizim 125736
131 10 167 19 131 18 21 10 9 5 21 167 36 35 34 27 27
BalonParca AdiParca NoAdetTipApplied Date A B
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1309-1510 ●
5 07.632 BOLT; BRKT TO FRAME
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL /NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE WHEEL CARRIER<P10> 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1309-1510 ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1511- ●
5 07.632 BOLT; BRKT TO FRAME
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL /NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1511- ●
5 07.632 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1511- ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1009-1308 ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1009-1308 ●
5 07.632 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER<P10> 09.171 M10X25 FLANGE 		0-28051-025-0 02 1 1009-1308 ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1309- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1510 ●
9 07.633 NUT; BRKT TO FRAME
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL /NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE 		0-91180-110-0 03 1 1309-1510 ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1511- ●
9 07.633 NUT; BRKT TO FRAME
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL /NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1511- ●
9 07.633 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1511- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE 		0-91180-110-0 03 1 1009-1308 ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1009-1308 ●
9 07.633 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE 		0-91180-110-0 03 1 1009-1308 ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1009-1308 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1009-1308 ●
10 07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1009-1308 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1309-1402 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1309-1402 ●
10 07.632 BOLT; TIRE HANGER
REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1309-1402 ●
10 07.632 BOLT; TIRE HANGER
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1309-1402 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1403- ●
10 07.632 BOLT; TIRE HANGER
SPARE WHEEL CARRIER<P10> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1403- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1009-1402 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1403- ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1009- ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1009- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B) 		8-98223-839-0 01 1 1309- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98036-085-2 01 1 1009-1308 ●
21 07.629 BRACKET; SPARE TIRE HANGER
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL /NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (A) 		8-98036-085-2 01 1 1309- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B) 		8-98141-569-0 01 1 1009-1308 ●
21 07.629 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER<P10> (B) 		8-98141-569-0 01 1 1009-1308 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (B) 		8-98141-569-0 01 1 1309- ●
21 07.629 BRACKET; SPARE TIRE HANGER
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL /NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE WHEEL CARRIER<P10> EXC. REAR WIDE TREAD(V4T) (B) 		8-98141-569-0 01 1 1309- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10 		8-94341-284-0 03 1 1009- ● ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305 		8-94441-189-0 01 1 1009-1209 ● ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330 		8-98226-501-0 01 1 1210- ● ●
35 07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 1009- ● ●
36 07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12 		0-91110-512-0 01 1 1009- ● ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98035-825-3 02 1 1009- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-94382-875-1 01 1 1009-1308 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,REAR WIDE TREAD(V4T) (A) 		8-94382-875-1 01 1 1009-1308 ●
167 07.629 HANGER; TIRE
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-94382-875-1 01 1 1009-1308 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-94382-875-1 01 1 1309-1402 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,REAR WIDE TREAD(V4T) (A) 		8-94382-875-1 01 1 1309-1402 ●
167 07.629 HANGER; TIRE
REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-94382-875-1 01 1 1309-1402 ●
167 07.629 HANGER; TIRE
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,REAR WIDE TREAD(V4T) (A) 		8-94382-875-1 01 1 1309-1402 ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) 		8-94382-875-1 01 1 1403- ●
167 07.629 HANGER; TIRE
SPARE WHEEL CARRIER<P10> (A) 		8-94382-875-1 01 1 1403- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> REAR WIDE TREAD(V4T) (B) 		8-98036-384-0 01 1 1009-1402 ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) 		8-98036-384-0 01 1 1403- ●
