5-01 — FRAME AND OTHER PARTS (#78173) — 92 parça

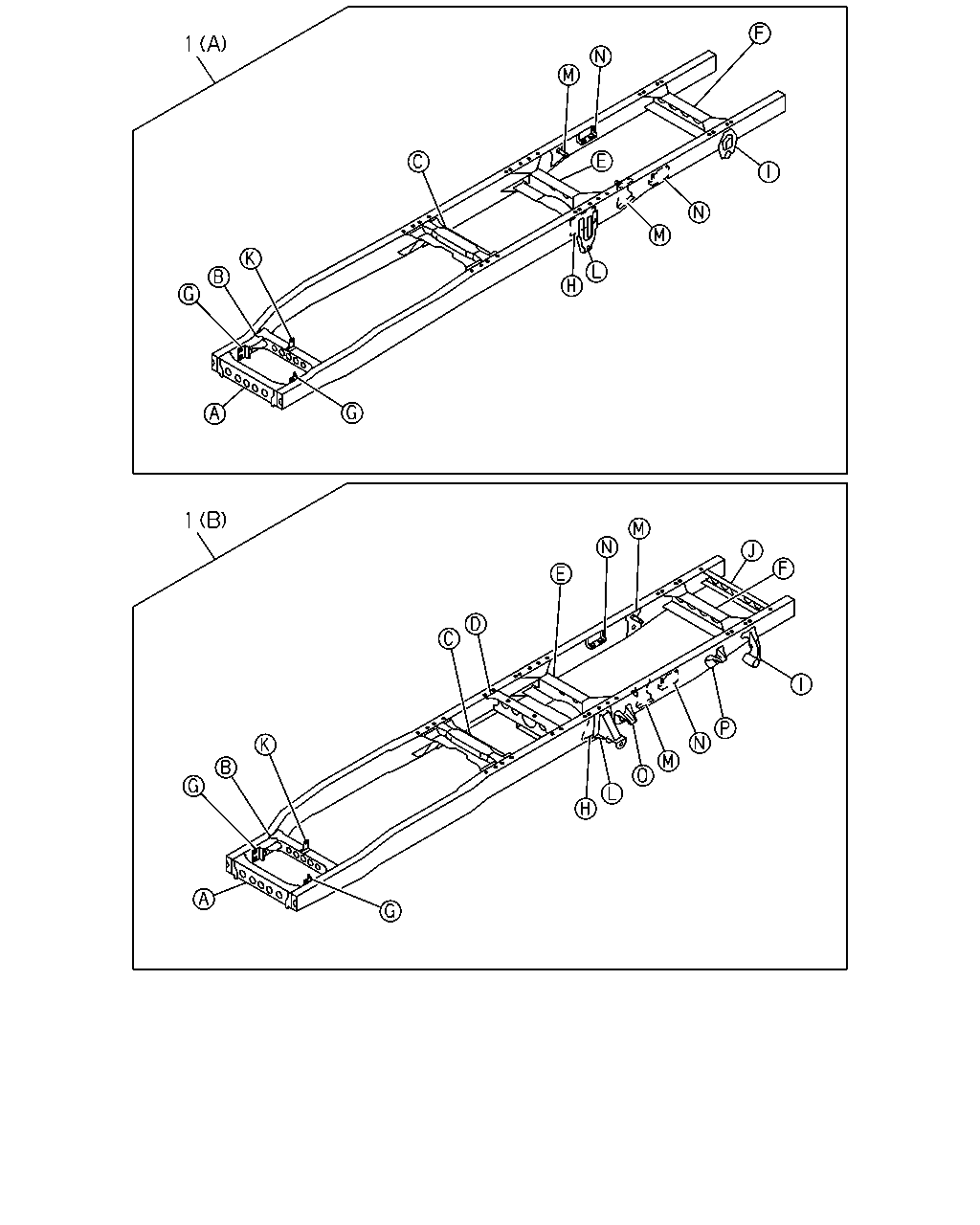

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98177-172-1	01	1	1309-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98177-171-1	01	1	1309-	●
1	07.003 FRAME ASM REAR WIDE TREAD(V4T) (B)	8-98252-850-0	01	1	1309-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-290-2	01	1	1009-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-289-2	01	1	1009-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-259-2	01	1	1009-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98023-258-2	01	1	1009-	●
1	07.003 FRAME ASM (A)	8-98169-729-0	01	1	1009-1308		●
1	07.003 FRAME ASM SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98169-729-0	01	1	1309-		●

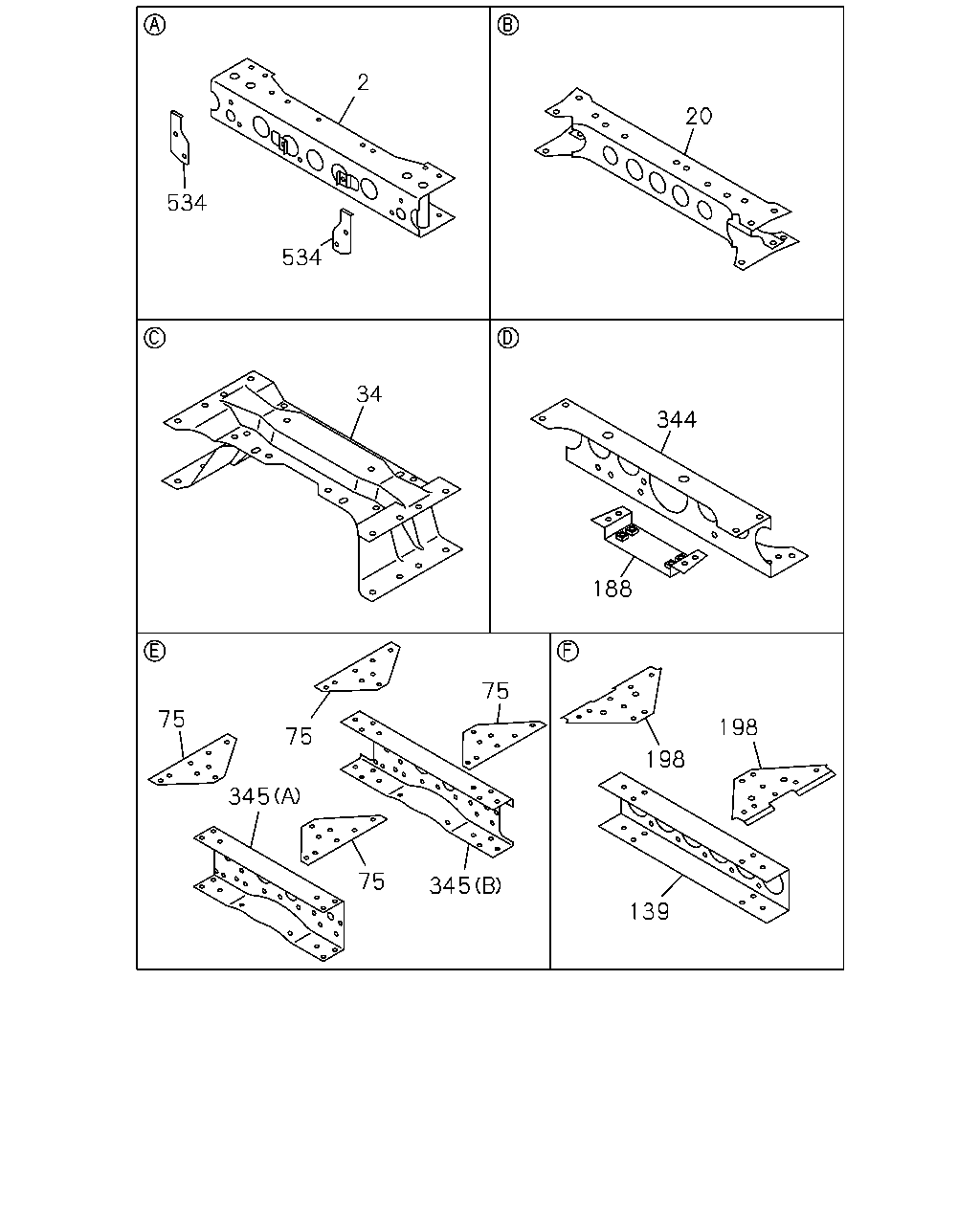

139 198 345 198 75 75 75 345 75 34 344 188 20 534 2 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1009-	●	●
20	07.012 MEMBER; CROSS,2ND	8-98038-419-2	01	1	1009-	●	●
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	1009-	●	●
75	07.039 GUSSET; 5TH C/MBR	8-98011-863-0	04	1	1009-	●	●
139	07.012 MEMBER; CROSS,6TH	8-97384-745-0	01	1	1009-	●	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1009-	●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1009-	●	●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1009-	●	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	1009-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) (B)	8-97384-744-2	01	1	1009-1308	●
345	07.012 MEMBER; CROSS,5TH (B)	8-97384-744-2	01	1	1009-1308		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97384-744-2	01	1	1309-	●
345	07.012 MEMBER; CROSS,5TH SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97384-744-2	01	1	1309-		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) (A)	8-98011-861-2	01	1	1009-1308	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98011-861-2	01	1	1309-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) (A)	8-98011-861-2	01	1	1309-	●
345	07.012 MEMBER; CROSS,5TH REAR WIDE TREAD(V4T) (A)	8-98011-861-2	01	1	1309-		●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1009-	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1009-	●	●

376 376 376 376 376 376 376 376 376 376 376 376 60 296 118 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1009-	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1009-	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1009-		●
118	07.529 NUT; STOPPER REAR WIDE TREAD(V4T) M8 LOCK NUT	0-91370-008-0	02	1	1309-		●
296	07.039 BOLT; 3RD C/MBR M10X30	0-20851-030-0	04	1	1009-		●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME (B) D10X22 TAPER END	9-06751-022-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME (F) D10X30 TAPER END	9-06751-030-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME (G) D10X32 TAPER END	9-06751-032-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME (H) M10X34 TAPER END	9-06751-034-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME 07.105 (I) D12X30 TAPER END	9-06751-230-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME 07.006 (J) D12X32 TAPER END	9-06751-232-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME 07.535 (K) D12X34 TAPER END	9-06751-234-0	AR	1	1009-	●	●
376	07.039 RIVET; FRAME 07.428 (L) D12X36 TAPER END	9-06751-236-0	AR	1	1009-	●	●

533 533 173 173 105 215 215 215 215 105 130 165 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	07.112 BRACKET; RR SPR,FRT REAR WIDE TREAD(V4T) (B)	8-97042-245-1	02	1	1309-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) (A)	8-98028-305-0	01	1	1009-1308	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-98028-305-0	01	1	1009-1308		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98028-305-0	01	1	1309-	●
101	07.112 BRACKET; RR SPR,FRT SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98028-305-0	01	1	1309-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) (A)	8-98028-306-0	01	1	1009-1308	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-98028-306-0	01	1	1009-1308		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98028-306-0	01	1	1309-	●
101	07.112 BRACKET; RR SPR,FRT SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98028-306-0	01	1	1309-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) (B)	8-97034-156-1	02	1	1009-1308	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-97034-156-1	02	1	1309-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) (B)	8-97034-156-1	02	1	1309-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) (A)	8-97166-684-2	02	1	1009-1308	●
105	07.112 BRACKET; RR SPR,RR (A)	8-97166-684-2	02	1	1009-1308		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-97166-684-2	02	1	1309-	●
105	07.112 BRACKET; RR SPR,RR SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-97166-684-2	02	1	1309-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (B)	8-98032-488-0	01	1	1009-1308	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98032-488-0	01	1	1309-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (B)	8-98032-488-0	01	1	1309-	●
105	07.112 BRACKET; RR SPR,RR REAR WIDE TREAD(V4T) (B)	8-98032-488-0	01	1	1309-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (B)	8-98032-489-0	01	1	1009-1308	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98032-489-0	01	1	1309-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (B)	8-98032-489-0	01	1	1309-	●
105	07.112 BRACKET; RR SPR,RR REAR WIDE TREAD(V4T) (B)	8-98032-489-0	01	1	1309-		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-1	01	1	1009-	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1009-	●	●
173	07.112 STIFFENER; RR SPRING REAR WIDE TREAD(V4T) (B)	8-98012-947-3	02	1	1309-		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) (A)	8-97386-634-0	02	1	1009-1308	●
173	07.112 STIFFENER; RR SPRING (A)	8-97386-634-0	02	1	1009-1308		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-97386-634-0	02	1	1309-	●
173	07.112 STIFFENER; RR SPRING SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-97386-634-0	02	1	1309-		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1009-	●	●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1009-	●	●

140 140 140 217 217 103 147 103 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (B)	8-97223-748-0	02	1	1309-		●
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (A)	8-97223-750-0	02	1	1309-		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) (A)	8-98006-178-0	01	1	1009-1308	●
140	07.112 BRACKET; S/ABS,RR (A)	8-98006-178-0	01	1	1009-1308		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98006-178-0	01	1	1309-	●
140	07.112 BRACKET; S/ABS,RR SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98006-178-0	01	1	1309-		●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1009-	●	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (C)	8-98006-180-0	01	1	1009-1308	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98006-180-0	01	1	1309-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (C)	8-98006-180-0	01	1	1309-	●
140	07.112 BRACKET; S/ABS,RR REAR WIDE TREAD(V4T) (C)	8-98006-180-0	01	1	1309-		●
147	07.535 RUBBER; SUB SPRING REAR WIDE TREAD(V4T)	8-97254-387-0	04	1	1309-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (B)	8-98006-210-0	02	1	1009-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	1009-	●
