◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#7817) — 110 parça

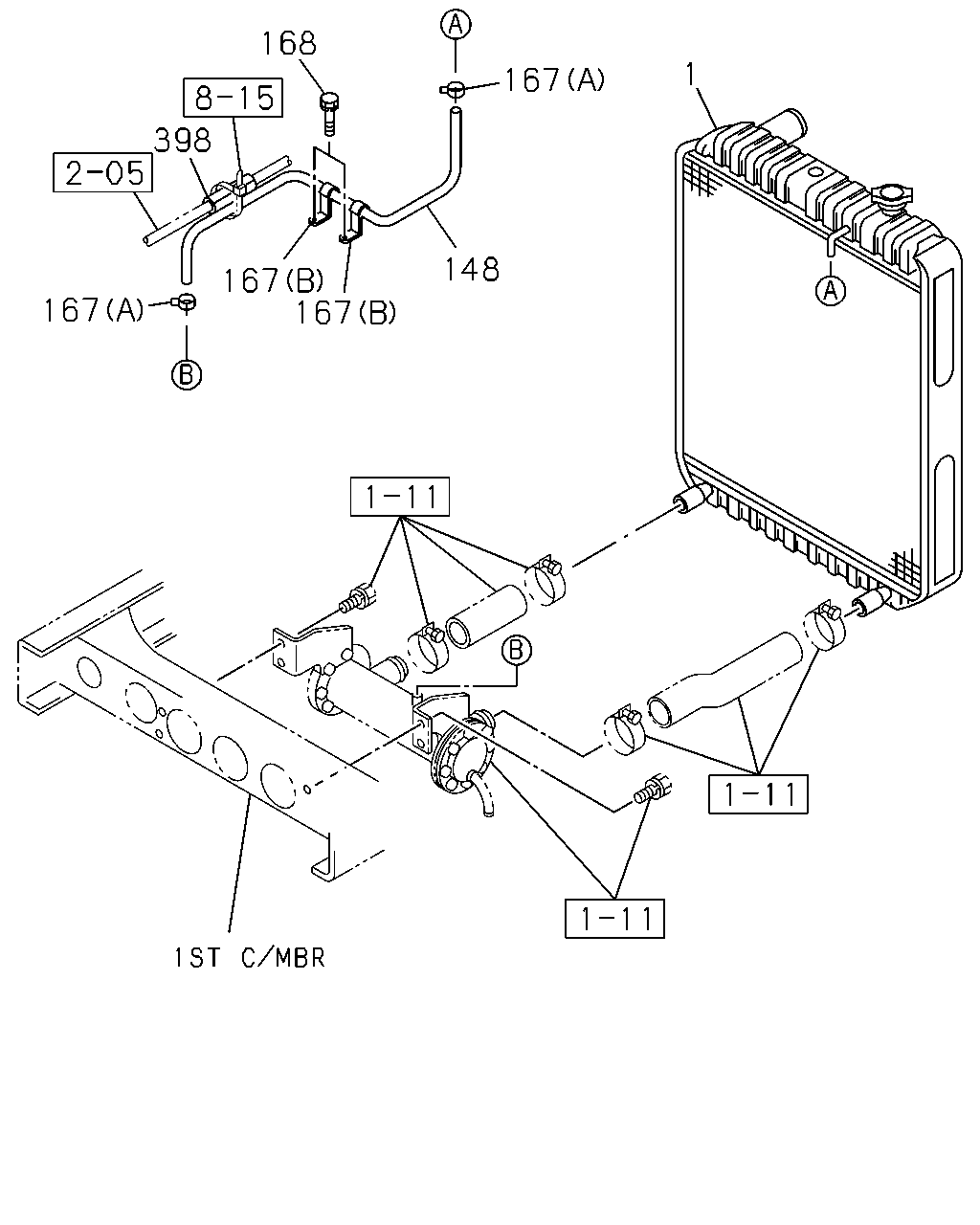

çizim 26921
168 1 167 398 148 167 167 167
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
FTR(FT****) 		1-21410-819-0 01 1 0302- ●
1 RADIATOR ASM 1-21410-863-0 01 1 9905-0301 ●
1 RADIATOR ASM
FRR(FR****) FSR(FS****) 		1-21410-863-0 01 1 0302- ●
1 RADIATOR ASM 1-21410-805-0 01 1 9905-9908 ●
1 RADIATOR ASM 1-21410-861-0 01 1 9909- ●
148 HOSE; WATER,BYPASS,SUB RAD
L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 9905-0109 ●
148 HOSE; WATER,BYPASS,SUB RAD
L=1400 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
167 CLIP; BYPASS HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9905-9909 ●
167 CLIP; BYPASS HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 9910- ●
167 CLIP; BYPASS HOSE
(A) ID=12 		8-94238-610-0 02 1 9905- ●
168 BOLT; CLIP,BYPASS HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 9905-9909 ●
168 BOLT; CLIP,BYPASS HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 9910-0512 ●
168 BOLT; CLIP,BYPASS HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
398 SLEEVE; RUBBER,BYPASS
ID=17 OD=21 L=40 		1-09337-012-0 01 1 9909- ●

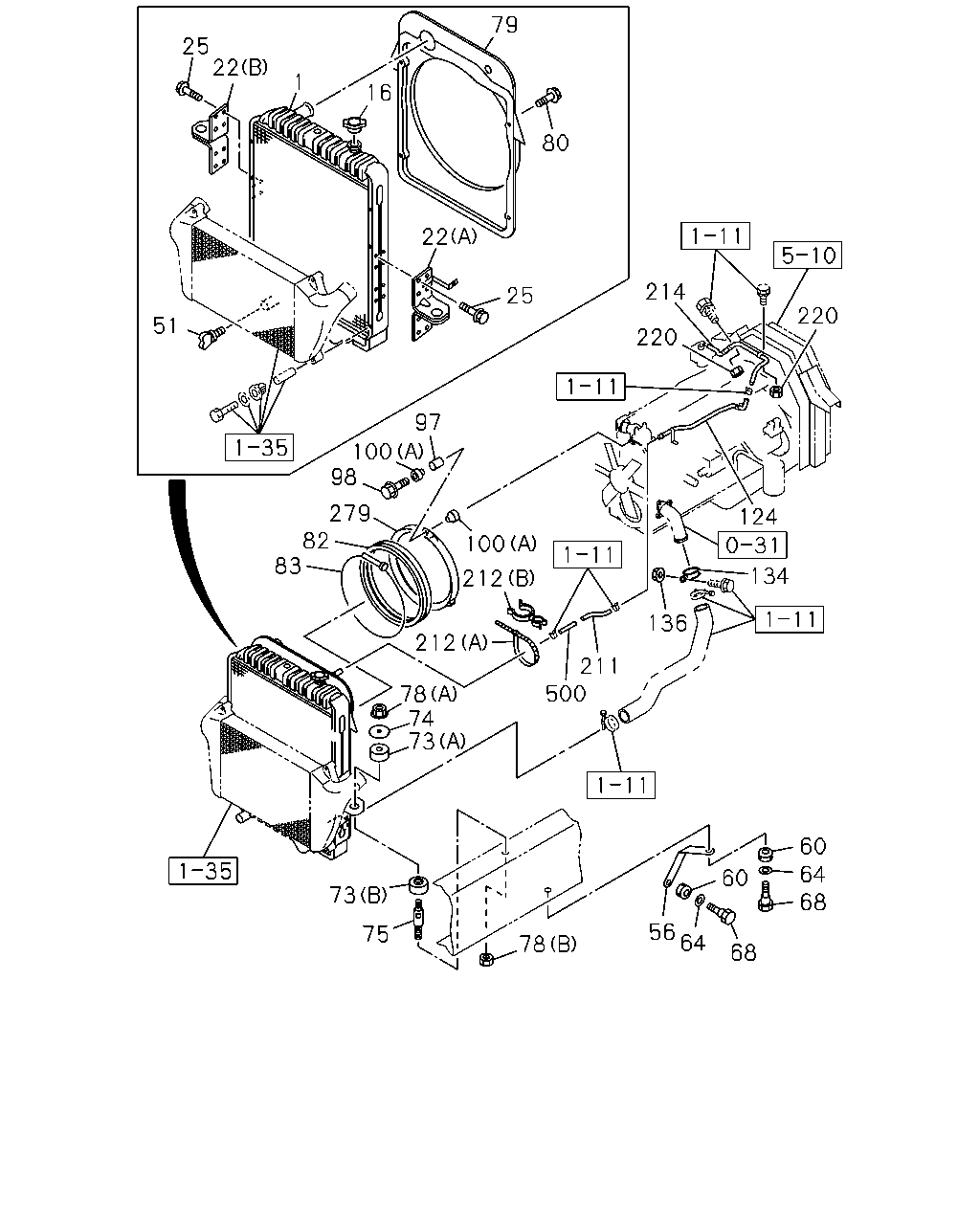

çizim 98800
79 25 22 1 16 80 22 214 25 220 51 220 97 100 98 279 82 83 124 100 134 212 136 212 211 500 78 74 73 60 64 68 60 73 78 56 64 75 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
FTR(FT****) 		1-21410-819-0 01 1 0302- ●
1 RADIATOR ASM 1-21410-863-0 01 1 9905-0301 ●
1 RADIATOR ASM
FRR(FR****) FSR(FS****) 		1-21410-863-0 01 1 0302- ●
1 RADIATOR ASM 1-21410-805-0 01 1 9905-9908 ●
1 RADIATOR ASM 1-21410-861-0 01 1 9909- ●
16 CAP; RAD 1-21450-097-2 01 1 9905- ● ●
22 BRACKET; RAD MTG
FTR(FT****) (A) 		1-21464-667-0 01 1 0302-0302 ●
22 BRACKET; RAD MTG
FTR(FT****) (A) 		1-21464-737-0 01 1 0303- ●
22 BRACKET; RAD MTG
FTR(FT****) (B) 		1-21464-668-0 01 1 0302-0302 ●
22 BRACKET; RAD MTG
FTR(FT****) (B) 		1-21464-750-0 01 1 0303- ●
22 BRACKET; RAD MTG
(A) 		1-21464-646-0 01 1 9905-0301 ● ●
22 BRACKET; RAD MTG
FRR(FR****) FSR(FS****) (A) 		1-21464-646-0 01 1 0302- ●
22 BRACKET; RAD MTG
(A) 		1-21464-646-0 01 1 0302- ●
22 BRACKET; RAD MTG
(B) 		1-21464-654-0 01 1 9905-0301 ● ●
22 BRACKET; RAD MTG
FRR(FR****) FSR(FS****) (B) 		1-21464-654-0 01 1 0302- ●
22 BRACKET; RAD MTG
(B) 		1-21464-654-0 01 1 0302- ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9905- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9905- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9905- ● ●
56 STAY; RAD
FTR(FT****) 		1-21464-631-0 01 1 0302- ●
56 STAY; RAD
FTR(FT****) 		1-21464-632-0 01 1 0302- ●
56 STAY; RAD
FRR(FR****) 		1-21464-570-0 01 1 9905- ●
56 STAY; RAD
FRR(FR****) 		1-21464-569-0 01 1 9905- ●
56 STAY; RAD
FSR(FS****) 		1-21464-453-0 01 1 9905- ●
56 STAY; RAD 1-21464-453-0 01 1 9905- ●
56 STAY; RAD
FSR(FS****) 		1-21464-452-0 01 1 9905- ●
56 STAY; RAD 1-21464-452-0 01 1 9905- ●
60 GROMMET 1-09332-117-0 04 1 9905- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9905-0605 ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ● ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 02 1 9905- ● ●
68 BOLT; STAY TO BRKT
M8X22 		1-09009-123-0 02 1 9905- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9905- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9905- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9905- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 9905- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9905-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9905- ● ●
79 GUIDE; FAN,RAD
FTR(FT****) 		1-21551-468-1 01 1 0302- ●
79 GUIDE; FAN,RAD 1-21551-471-1 01 1 9905-0301 ● ●
79 GUIDE; FAN,RAD
FRR(FR****) FSR(FS****) 		1-21551-471-1 01 1 0302- ●
79 GUIDE; FAN,RAD 1-21551-471-1 01 1 0302- ●
80 BOLT; FAN GUIDE
FTR(FT****) M6X10 FLANGE 		0-28080-610-0 08 1 0302- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9905-0301 ● ●
80 BOLT; FAN GUIDE
FRR(FR****) FSR(FS****) M6X10 FLANGE 		0-28080-610-0 04 1 0302- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0302- ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 9905- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9905- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9905- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9905-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9905- ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9905- ● ●
124 PIPE; WATER,TANK TO RAD 8-97600-308-0 01 1 9905- ● ●
134 CLIP; OUTLET PIPE,RAD 1-09700-842-1 01 1 9905- ● ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91150-108-0 01 1 9905-0602 ● ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9905-0102 ● ●
211 HOSE; RAD TO PIPE
L=450 SERVICED BY L=3000 		0-03257-300-0 01 1 0103-0109 ● ●
211 HOSE; RAD TO PIPE
L=450 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
212 CLIP; HOSE
FTR(FT****) (A) L=250 		5-09707-030-1 01 1 0302- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 9905-0102 ● ●
212 CLIP; HOSE
(B) ID=13 & 21 		8-94417-626-0 01 1 0103-0301 ● ●
212 CLIP; HOSE
FRR(FR****) FSR(FS****) (B) ID=13 & 21 		8-94417-626-0 01 1 0302- ●
212 CLIP; HOSE
(B) ID=13 & 21 		8-94417-626-0 01 1 0302- ●
214 HOSE; PIPE TO RESERVE TANK
FTR(FT****) L=1400 SERVICED BY L=3000 		0-03557-300-0 01 1 0302-0302 ●
214 HOSE; PIPE TO RESERVE TANK
L=1500 SERVICED BY L=3000 		0-03257-300-0 01 1 9905-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0301 ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR(FR****) FSR(FS****) L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0302-0302 ●
214 HOSE; PIPE TO RESERVE TANK
L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0302-0302 ●
214 HOSE; PIPE TO RESERVE TANK
L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0303- ● ●
220 NUT; CLIP
FTR(FT****) M8 FLANGE 		0-91150-108-0 04 1 0302-0302 ●
220 NUT; CLIP
FTR(FT****) M8 FLANGE 		0-91150-108-0 05 1 0303-0602 ●
220 NUT; CLIP
FTR(FT****) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9905-0301 ● ●
220 NUT; CLIP
FRR(FR****) FSR(FS****) M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ●
220 NUT; CLIP
FRR(FR****) FSR(FS****) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
279 BELL MOUTH 8-94393-779-1 01 1 9905- ● ●
500 SLEEVE; RUBBER
FTR(FT****) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0302- ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 9905-0102 ● ●

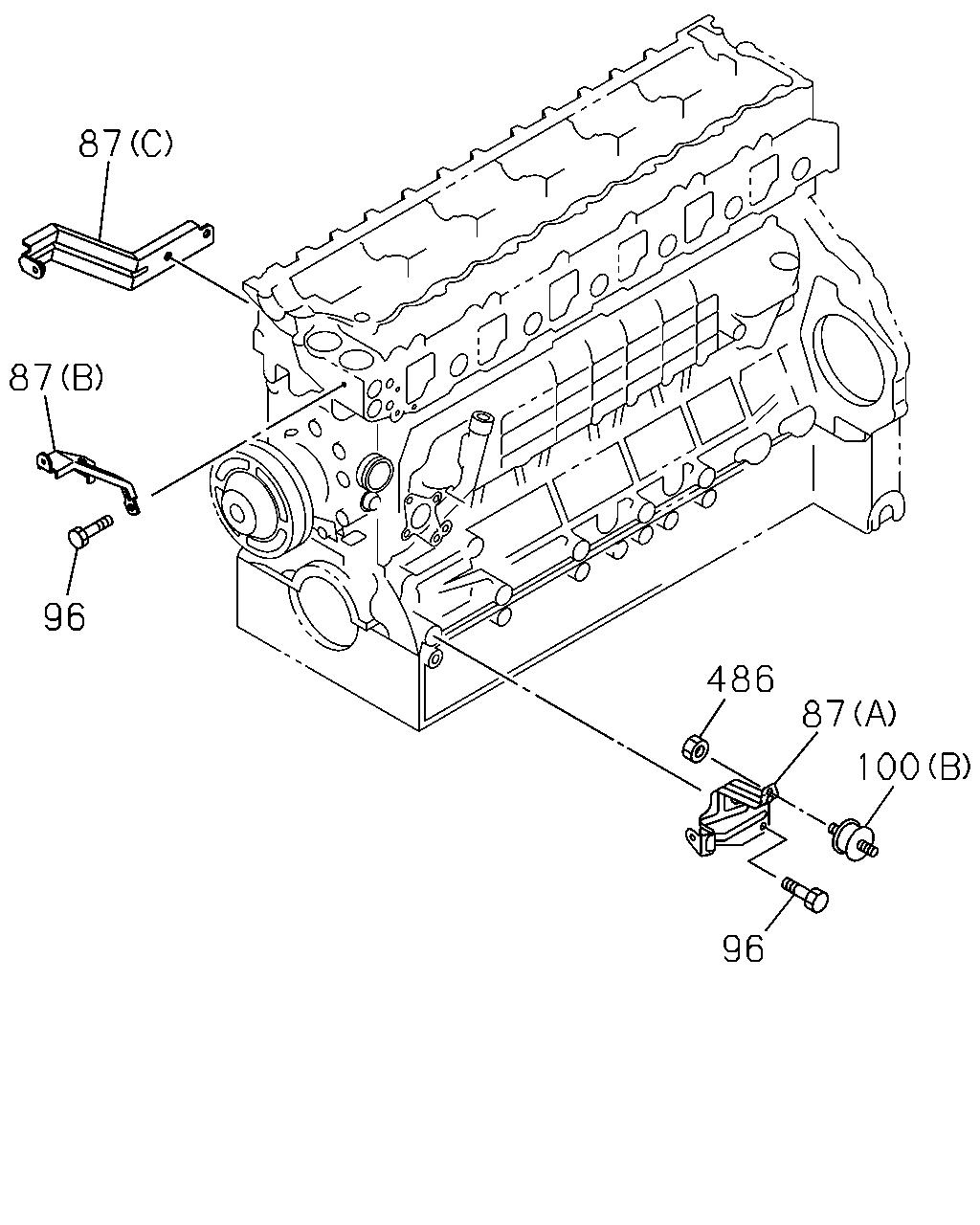

çizim 98802
87 87 96 486 87 100 96
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(C) 		8-94391-022-1 01 1 9905- ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 9905- ● ●
87 STAY; FAN GUIDE
(A) 		8-94393-777-1 01 1 9905-0012 ● ●
87 STAY; FAN GUIDE
(A) 		8-97601-850-0 01 1 0101- ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9905-0512 ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28181-045-0 01 1 9905-0512 ● ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28151-045-0 01 1 0601- ● ●
96 BOLT; STAY FIX
M10X75 FLANGE 		8-94399-669-1 01 1 9905- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9905- ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9905- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9905-0602 ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
