◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#78167) — 60 parça
çizim 124736
225 230 227 180 180 15 15 182 182 153 180 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 3-LEAF 		8-98252-082-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 7-LEAF 		8-98252-083-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 7-LEAF 		8-98258-484-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 3-LEAF 		8-98022-372-0 02 1 1009-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 3-LEAF 		8-98022-372-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 5-LEAF 		8-98048-271-0 02 1 1009-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 5-LEAF 		8-98048-271-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98001-619-0 02 1 1009-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-619-0 02 1 1309-1309 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 6-LEAF 		8-98253-318-0 02 1 1310- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1009- ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1009- ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=19 		8-97360-119-0 02 1 1009- ● ●
180 07.529 PIN; RR SPR
07.427 (B) M16X122 FLANGE 		8-97360-110-0 02 1 1009- ● ●
180 07.529 PIN; RR SPR
(A) M18X130 FLANGE 		8-97360-112-0 02 1 1009- ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1009- ● ●
182 07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1009- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1009-1308 ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1309- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> 		8-94379-470-1 02 1 1009-1103 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 1009-1103 ●
225 07.535 RUBBER; CUSHION,RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> 		8-98187-342-0 02 1 1104-1308 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1104-1308 ●
225 07.535 RUBBER; CUSHION,RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> 		8-98187-342-0 02 1 1309- ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1009- ● ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 1009-1308 ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 1309- ● ●

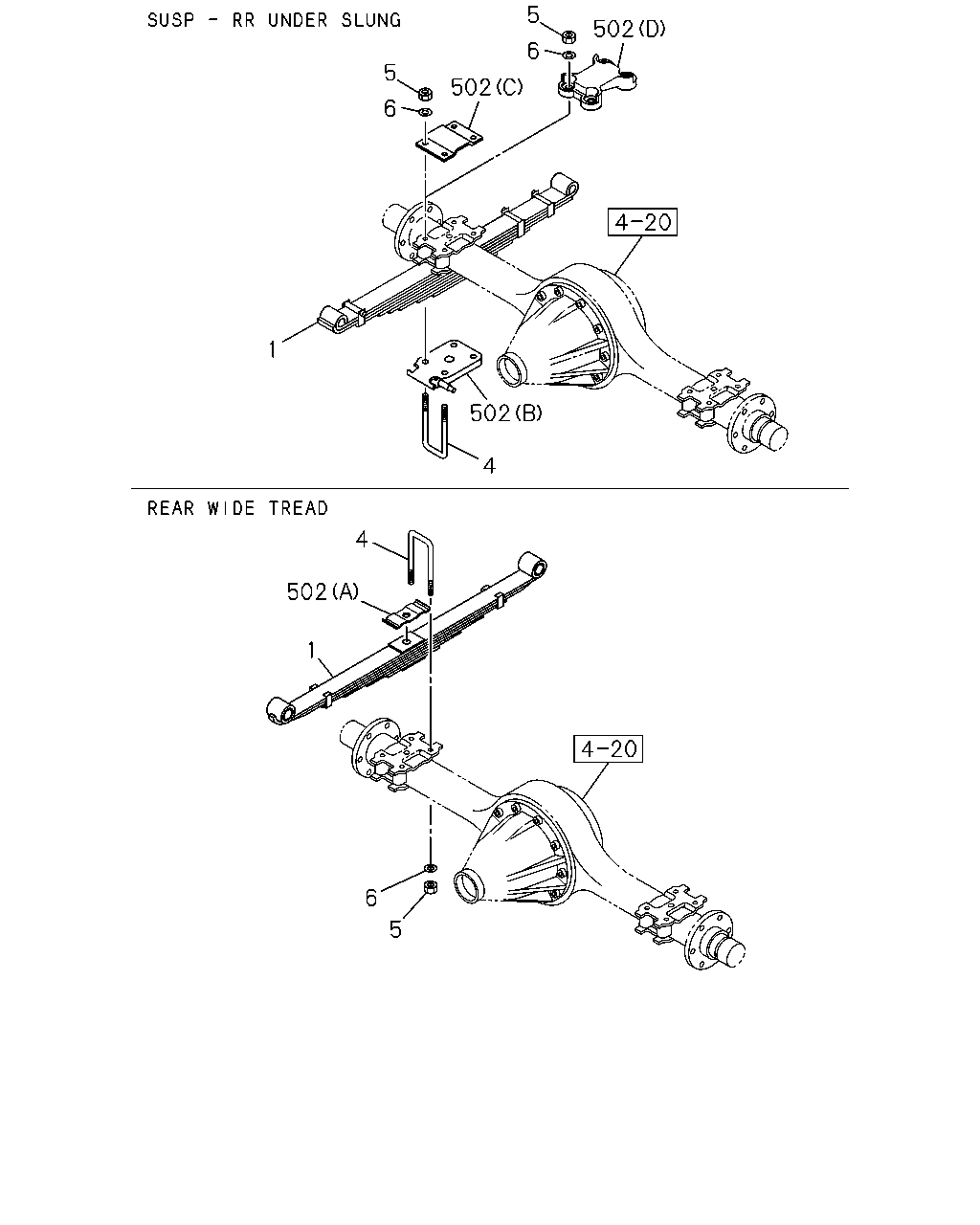

çizim 125054
5 6 1 502 4 4 502 1 6 5 502 6 5 502
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 3-LEAF 		8-98252-082-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 7-LEAF 		8-98252-083-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 7-LEAF 		8-98258-484-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 3-LEAF 		8-98022-372-0 02 1 1009-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 3-LEAF 		8-98022-372-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 5-LEAF 		8-98048-271-0 02 1 1009-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 5-LEAF 		8-98048-271-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98001-619-0 02 1 1009-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-619-0 02 1 1309-1309 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 6-LEAF 		8-98253-318-0 02 1 1310- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=245 		8-94127-921-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=255 		8-94127-922-3 04 1 1009-1308 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=255 		8-94127-922-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) L=235 		8-97262-039-0 04 1 1009-1308 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) L=235 		8-97262-039-0 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
L=260 		8-94157-016-1 04 1 1009-1308 ●
4 07.516 U-BOLT; RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) L=260 		8-94157-016-1 04 1 1309- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1009- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1009- ● ●
502 07.506 CLAMP; RR LEAF SPR
(D) 		8-97383-975-0 02 1 1011-1308 ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-97383-975-0 02 1 1309- ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 1009-1308 ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 1309- ● ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94113-325-2 01 1 1009-1308 ●
502 07.506 CLAMP; RR LEAF SPR
(B) 		8-94113-325-2 01 1 1009-1308 ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94113-325-2 01 1 1309- ● ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94113-326-2 01 1 1009-1308 ●
502 07.506 CLAMP; RR LEAF SPR
(B) 		8-94113-326-2 01 1 1009-1308 ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94113-326-2 01 1 1309- ● ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (C) L=176 T=8 		8-97136-907-0 02 1 1009-1010 ●
502 07.506 CLAMP; RR LEAF SPR
(C) L=176 T=8 		8-97136-907-0 02 1 1009-1010 ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (C) L=176 T=8 		8-97136-907-0 02 1 1011- ●
