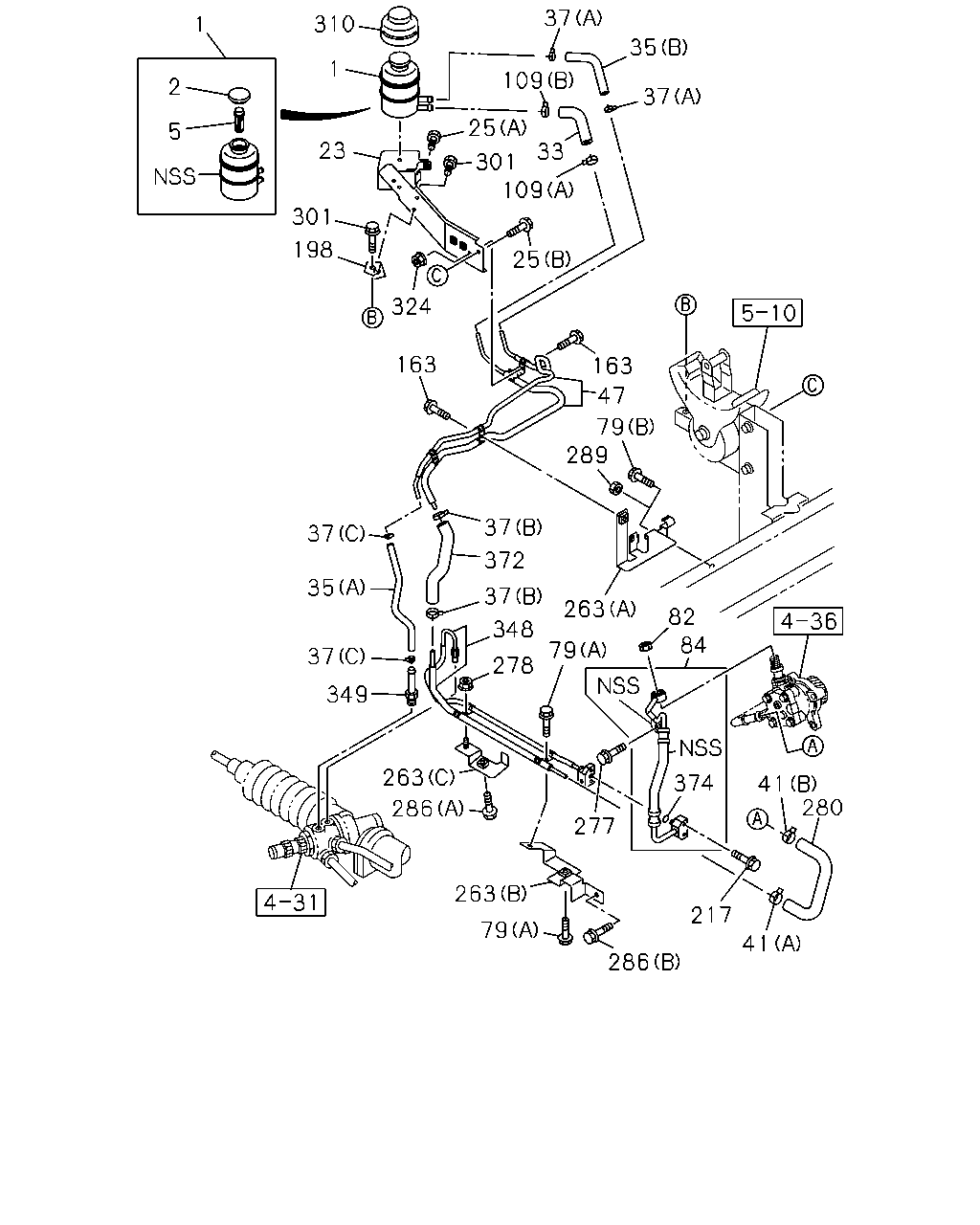

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#78161) — 47 parça

41 217 41 280 374 277 79 263 286 263 349 37 35 37 37 372 37 348 278 263 79 82 84 289 79 47 163 163 324 198 301 23 1 310 1 2 5 109 25 301 33 109 25 37 35 37 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1009-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1009-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1009-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1009-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1009-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1009-	●	●
35	06.671 HOSE; RETURN,P/S TANK TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98054-272-1	01	1	1009-	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	1009-1011	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
35	06.671 HOSE; RETURN,P/S TANK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98117-895-0	01	1	1009-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98117-895-0	01	1	1009-		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1009-	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1009-	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (C) ID=11-17	8-98173-762-1	02	1	1009-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1009-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1009-	●	●
47	06.671 PIPE; RETURN	8-98054-224-0	01	1	1009-1011	●	●
47	06.671 PIPE; RETURN	8-98173-324-0	01	1	1012-	●	●
79	06.672 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●
79	06.672 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
79	06.672 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1009-	●	●
84	06.670 HOSE; FLEX,P/S	8-98027-970-3	01	1	1009-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1009-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1009-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1009-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1009-	●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1009-	●	●
263	06.672 BRACKET; P/S PIPE (C)	8-98028-334-2	01	1	1009-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98028-335-2	01	1	1009-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98027-972-0	01	1	1009-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-	●	●
289	06.673 NUT; BRKT,POWER STRG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1009-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98027-337-2	01	1	1009-1012	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98156-804-0	01	1	1101-	●	●
349	06.671 PIPE; OIL,P/S RETURN	8-98008-162-1	01	1	1009-	●	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1009-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1009-	●	●
