Isuzu WW
▶
TRUCKS
▶
FRR
▶
10808 - FRR-G/FSR/FTR TAIWAN
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶

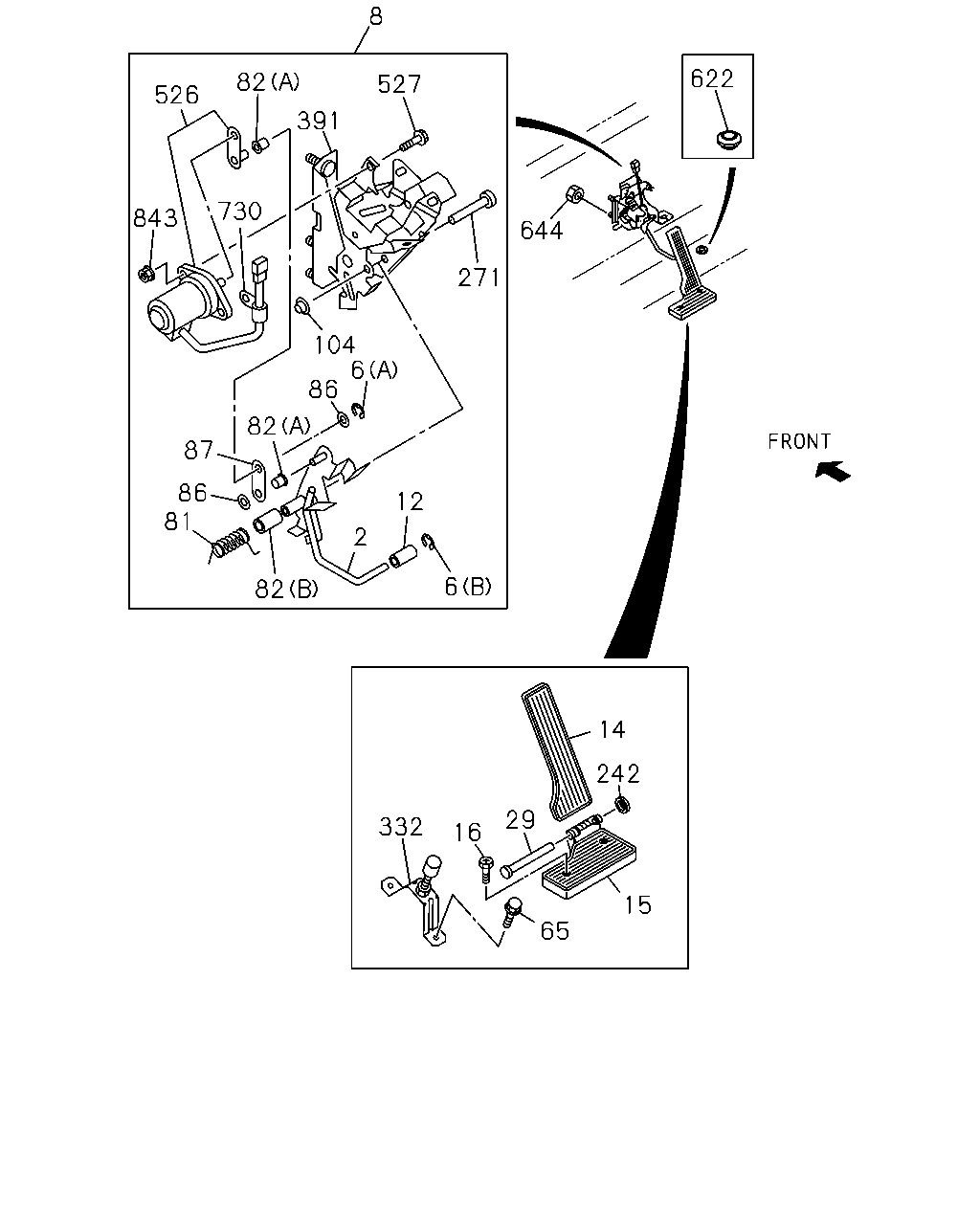

1-01 — ACCELERATOR PEDAL AND CONTROL
(#7816) — 30 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
8
622
82
527
526
391
730
843
644
271
104
6
86
82
87
86
81
12
2
6
82
14
242
29
332
16
15
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LEVER; ENG CONT
1-71907-535-1
01
1
9905-
●
●
6
RING; SNAP,LINK TO LINK
(A) ID=4
9-09185-404-0
02
1
9905-0604
●
●
6
RING; SNAP,LINK TO LINK
(A) ID=4
0-91805-504-0
02
1
0605-
●
●
6
RING; SNAP,LINK TO LINK
(B) ID=6
9-09185-406-0
01
1
9905-0204
●
●
8
LINK ASM; ENG CONT
8-97865-105-4
01
1
9905-
●
●
12
ROLLER; ENG CONT LEVER
1-09989-007-0
01
1
9905-0204
●
●
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
9905-
●
●
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
9905-
●
●
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
9905-
●
●
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
9905-
●
●
65
BOLT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9905-
●
●
81
SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
9905-
●
●
82
BUSHING; ENG CONT LVR
(B) L=31.5
1-53459-627-0
01
1
9905-
●
●
82
BUSHING; ENG CONT LVR
(A)
1-71907-244-1
02
1
9905-
●
●
86
WASHER; PL,ENG CONT LEVER
ID=6.4
9-09160-506-0
02
1
9905-
●
●
87
LINK; ENG CONT
8-97865-545-0
01
1
9905-
●
●
104
NUT; ENG CONT
D=17.5
8-94368-617-0
01
1
9905-
●
●
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
9905-
●
●
271
SHAFT; ENG CONT
OD=8.0 L=74
1-71907-212-1
01
1
9905-
●
●
332
BRACKET; ACCEL PEDAL STOPPER
8-97865-218-1
01
1
9905-
●
●
391
BRACKET; ENG CONT
8-97865-118-2
01
1
9905-
●
●
526
SENSOR; ACCEL
8-94390-280-0
01
1
9905-
●
●
527
BOLT; ACCEL SENSOR
M6X25 FLANGE
0-28680-625-0
02
1
9905-0512
●
●
527
BOLT; ACCEL SENSOR
M6X25 FLANGE
0-28650-625-0
02
1
0601-
●
●
622
GROMMET; ACCEL CONT CABLE
OD=30
8-94107-655-0
01
1
9905-
●
●
644
NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER
1-09984-176-0
04
1
9905-
●
●
730
CLIP
ID=11 L=20
9-09525-032-0
01
1
9905-0606
●
●
730
CLIP
ID=11 L=20
0-95235-032-0
01
1
0607-
●
●
843
NUT
M6 FLANGE
0-91150-106-0
02
1
9905-0602
●
●
843
NUT
M6 FLANGE
0-91180-106-0
02
1
0603-
●
●
