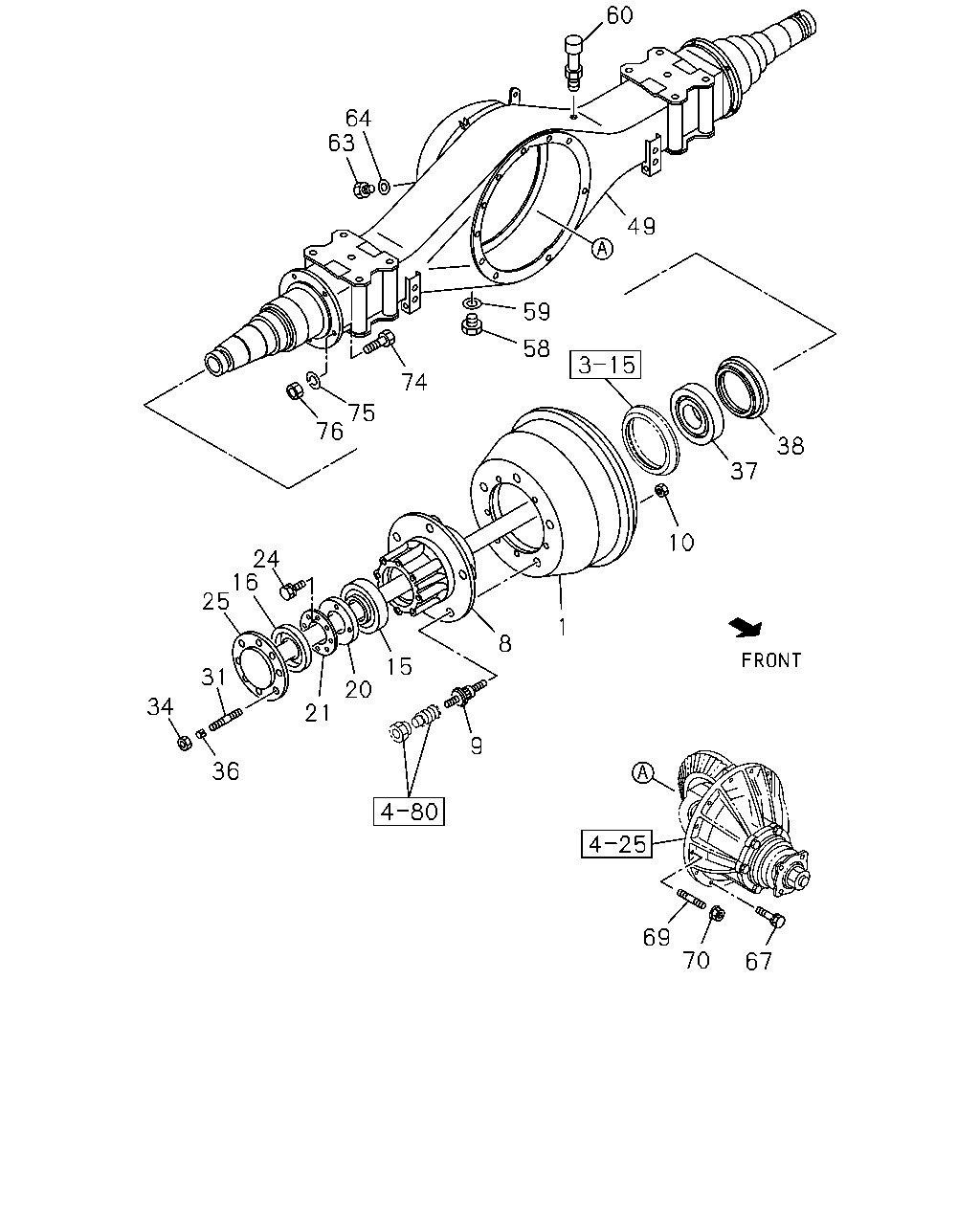

4-20 — REAR AXLE CASE AND SHAFT (#78156) — 157 parça

60 49 64 63 59 58 74 75 76 10 37 38 1 8 9 15 20 21 36 34 31 25 16 24 69 70 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR	8-97184-245-2	02	1	1009-1212	●
1	05.809 DRUM; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-97184-245-2	02	1	1301-	●
1	05.809 DRUM; BRK,RR	8-97036-367-1	02	1	1009-1308		●
1	05.809 DRUM; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-97036-367-1	02	1	1309-		●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	1301-1308	●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	1309-	●	●
8	05.809 HUB; RR AXLE	8-97034-406-4	02	1	1009-1212	●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97034-406-4	02	1	1301-	●
8	05.809 HUB; RR AXLE	8-97173-549-0	02	1	1009-1308		●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97173-549-0	02	1	1309-		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD	8-98028-532-1	05	1	1301-1308	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD	8-98028-532-1	05	1	1309-	●	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD	8-98028-533-1	05	1	1301-1308	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD	8-98028-533-1	05	1	1309-	●	●
9	05.812 PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1009-1212	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1301-	●
9	05.812 PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1009-1212	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1301-	●
9	05.812 PIN; WHEEL,RR AXLE M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1009-1308		●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1309-		●
9	05.812 PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1009-1308		●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1309-		●
10	05.813 NUT; WHEEL PIN,RR AXLE 05.812 M20	0-91110-520-0	10	1	1009-1212	●	●
10	05.813 NUT; WHEEL PIN,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> 05.812 M20	0-91110-520-0	10	1	1301-1308	●
10	05.813 NUT; WHEEL PIN,RR AXLE 05.812 M20	0-91110-520-0	10	1	1301-1308		●
10	05.813 NUT; WHEEL PIN,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> 05.812 M20	0-91110-520-0	10	1	1309-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1009-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1009-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1009-1207	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1009-1106	●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	1009-1303	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1009-	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1009-1508	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR REAR WIDE TREAD(V4T)	8-97032-496-0	02	1	1009-1308	●
25	05.420 SHAFT; AXLE,RR REAR WIDE TREAD(V4T)	8-97032-496-0	02	1	1309-	●	●
25	05.420 SHAFT; AXLE,RR EXC. REAR WIDE TREAD(V4T)	8-97032-495-0	02	1	1009-1308	●
25	05.420 SHAFT; AXLE,RR	8-97032-495-0	02	1	1009-1308		●
25	05.420 SHAFT; AXLE,RR EXC. REAR WIDE TREAD(V4T)	8-97032-495-0	02	1	1309-	●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1009-	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1009-	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1009-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1009-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1009-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	1301-1308	●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	1309-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1009-1212	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	1301-1308	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1301-1308		●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	1309-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1009-1212	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	1301-1308	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1301-1308		●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	1309-	●	●
49	05.387 CASE; RR AXLE 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T)	8-98022-458-5	01	1	1301-1308	●
49	05.387 CASE; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	1309-	●	●
49	05.387 CASE; RR AXLE REAR WIDE TREAD(V4T)	8-97251-368-3	01	1	1009-1212	●
49	05.387 CASE; RR AXLE REAR WIDE TREAD(V4T) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97251-368-3	01	1	1301-	●
49	05.387 CASE; RR AXLE EXC. REAR WIDE TREAD(V4T)	8-97251-367-2	01	1	1009-1212	●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-97251-367-2	01	1	1301-	●
49	05.387 CASE; RR AXLE	8-97210-374-2	01	1	1009-1308		●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97210-374-2	01	1	1309-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1009-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1009-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1009-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1009-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1009-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1009-	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1009-	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1009-	●	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1009-1212	●	●
74	05.002 BOLT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12X32	8-97359-819-0	12	1	1301-1308	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1301-1308		●
74	05.002 BOLT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12X32	8-97359-819-0	12	1	1309-	●	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	1009-1212	●	●
75	05.002 WASHER; LK,RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 07.347 ID=12.2	0-91510-812-0	12	1	1301-1308	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	1301-1308		●
75	05.002 WASHER; LK,RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> 07.347 ID=12.2	0-91510-812-0	12	1	1309-	●	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1009-1212	●	●
76	05.002 NUT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12	0-91110-512-0	12	1	1301-1308	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1301-1308		●
76	05.002 NUT; RR BRK ASM SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12	0-91110-512-0	12	1	1309-	●	●

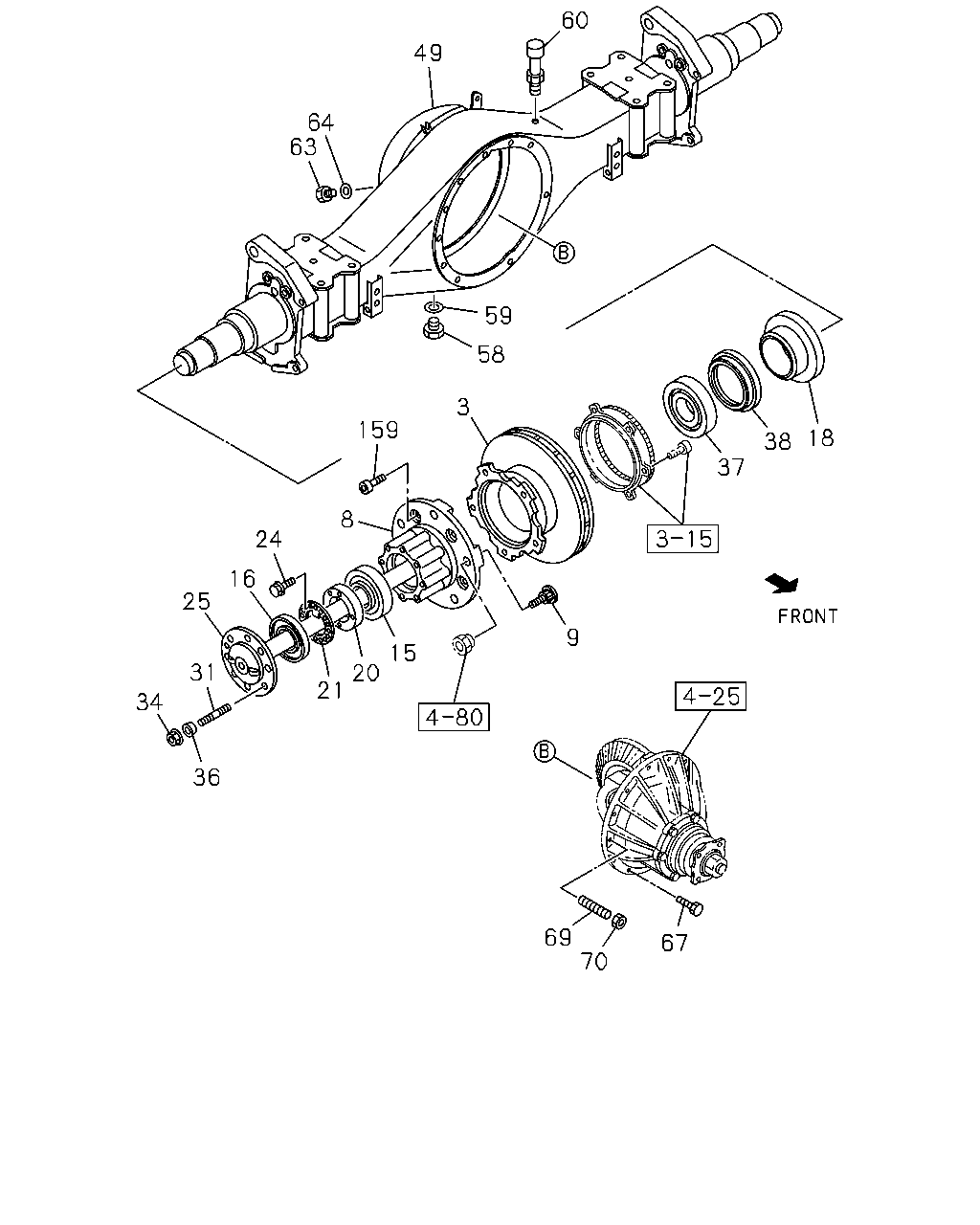

67 70 69 20 15 21 36 34 31 25 16 24 8 159 3 58 59 9 37 38 18 60 49 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	05.809 ROTOR; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98209-261-2	02	1	1309-		●
3	05.809 ROTOR; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98024-006-0	02	1	1301-1310	●
3	05.809 ROTOR; DISC BRK,RR 4 WHEEL DISC BRAKE<JF9>	8-98248-897-0	02	1	1311-	●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	1301-1308	●
8	05.809 HUB; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-462-0	02	1	1309-	●	●
8	05.809 HUB; RR AXLE	8-97034-406-4	02	1	1009-1212	●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97034-406-4	02	1	1301-	●
8	05.809 HUB; RR AXLE	8-97173-549-0	02	1	1009-1308		●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97173-549-0	02	1	1309-		●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD	8-98028-532-1	05	1	1301-1308	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD	8-98028-532-1	05	1	1309-	●	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD	8-98028-533-1	05	1	1301-1308	●
9	05.812 PIN; WHEEL,RR AXLE 4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD	8-98028-533-1	05	1	1309-	●	●
9	05.812 PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1009-1212	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1301-	●
9	05.812 PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1009-1212	●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1301-	●
9	05.812 PIN; WHEEL,RR AXLE M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1009-1308		●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1309-		●
9	05.812 PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1009-1308		●
9	05.812 PIN; WHEEL,RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9> M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1309-		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1009-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1009-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1009-1207	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1009-1106	●	●
18	05.822 RETAINER; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98032-676-0	02	1	1301-1308	●
18	05.822 RETAINER; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98232-252-0	02	1	1309-1309	●
18	05.822 RETAINER; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98232-252-0	02	1	1309-	●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	1009-1303	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1009-	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1009-1508	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR REAR WIDE TREAD(V4T)	8-97032-496-0	02	1	1009-1308	●
25	05.420 SHAFT; AXLE,RR REAR WIDE TREAD(V4T)	8-97032-496-0	02	1	1309-	●	●
25	05.420 SHAFT; AXLE,RR EXC. REAR WIDE TREAD(V4T)	8-97032-495-0	02	1	1009-1308	●
25	05.420 SHAFT; AXLE,RR	8-97032-495-0	02	1	1009-1308		●
25	05.420 SHAFT; AXLE,RR EXC. REAR WIDE TREAD(V4T)	8-97032-495-0	02	1	1309-	●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1009-	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1009-	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1009-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1009-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1009-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	1301-1308	●
38	05.822 SEAL; OIL,RR HUB,INNER 4 WHEEL DISC BRAKE<JF9> NOK	8-98037-080-0	02	1	1309-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1009-1212	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	1301-1308	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1301-1308		●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> TKK	8-94336-314-1	02	1	1309-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1009-1212	●	●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	1301-1308	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1301-1308		●
38	05.822 SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-94367-959-0	02	1	1309-	●	●
49	05.387 CASE; RR AXLE 4 WHEEL DISC BRAKE<JF9> REAR WIDE TREAD(V4T)	8-98022-458-5	01	1	1301-1308	●
49	05.387 CASE; RR AXLE 4 WHEEL DISC BRAKE<JF9>	8-98022-458-5	01	1	1309-	●	●
49	05.387 CASE; RR AXLE REAR WIDE TREAD(V4T)	8-97251-368-3	01	1	1009-1212	●
49	05.387 CASE; RR AXLE REAR WIDE TREAD(V4T) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97251-368-3	01	1	1301-	●
49	05.387 CASE; RR AXLE EXC. REAR WIDE TREAD(V4T)	8-97251-367-2	01	1	1009-1212	●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>,REAR WIDE TREAD(V4T)	8-97251-367-2	01	1	1301-	●
49	05.387 CASE; RR AXLE	8-97210-374-2	01	1	1009-1308		●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97210-374-2	01	1	1309-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1009-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1009-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1009-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1009-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1009-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1009-	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1009-	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1009-	●	●
159	05.822 BOLT; ROTOR TO HUB 4 WHEEL DISC BRAKE<JF9> 05.812	8-98021-780-0	10	1	1309-1310		●
159	05.822 BOLT; ROTOR TO HUB 4 WHEEL DISC BRAKE<JF9> 05.812	8-98021-780-0	10	1	1301-1310	●
159	05.822 BOLT; ROTOR TO HUB 4 WHEEL DISC BRAKE<JF9> 05.812	8-98021-780-0	10	1	1311-	●	●
