4-01 — PROPELLER SHAFT (#78153) — 69 parça

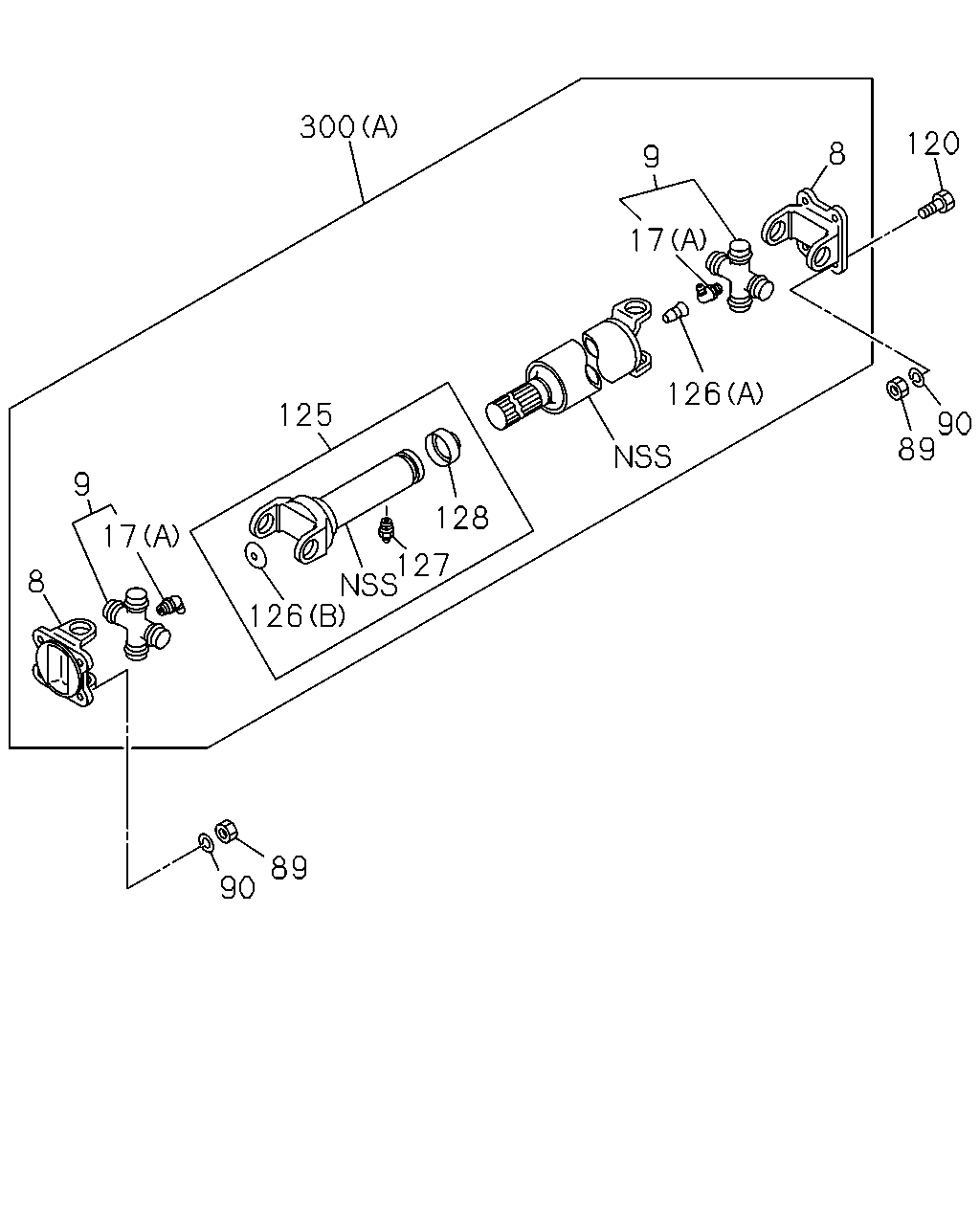

90 89 8 9 17 126 127 128 125 300 9 17 126 89 90 8 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	1009-	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	02	1	1009-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1009-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1009-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1009-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1009-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1009-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	1009-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1009-	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1009-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1009-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1009-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	1009-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	1009-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1009-	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1009-	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1009-	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1009-	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1009-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2400MM(24W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●
128	05.586 SEAL; SLEEVE WHEEL BASE 2400MM(24W)	8-97145-746-0	01	1	1009-	●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	1009-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=899	8-97383-842-2	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=969	8-98001-994-2	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) (A) L=969	8-98001-994-2	01	1	1009-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=760	8-98039-643-1	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=830	8-98039-644-1	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=844	8-97383-838-2	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=919	8-97383-844-2	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=700	8-98039-642-1	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=775	8-98039-657-1	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1009-	●

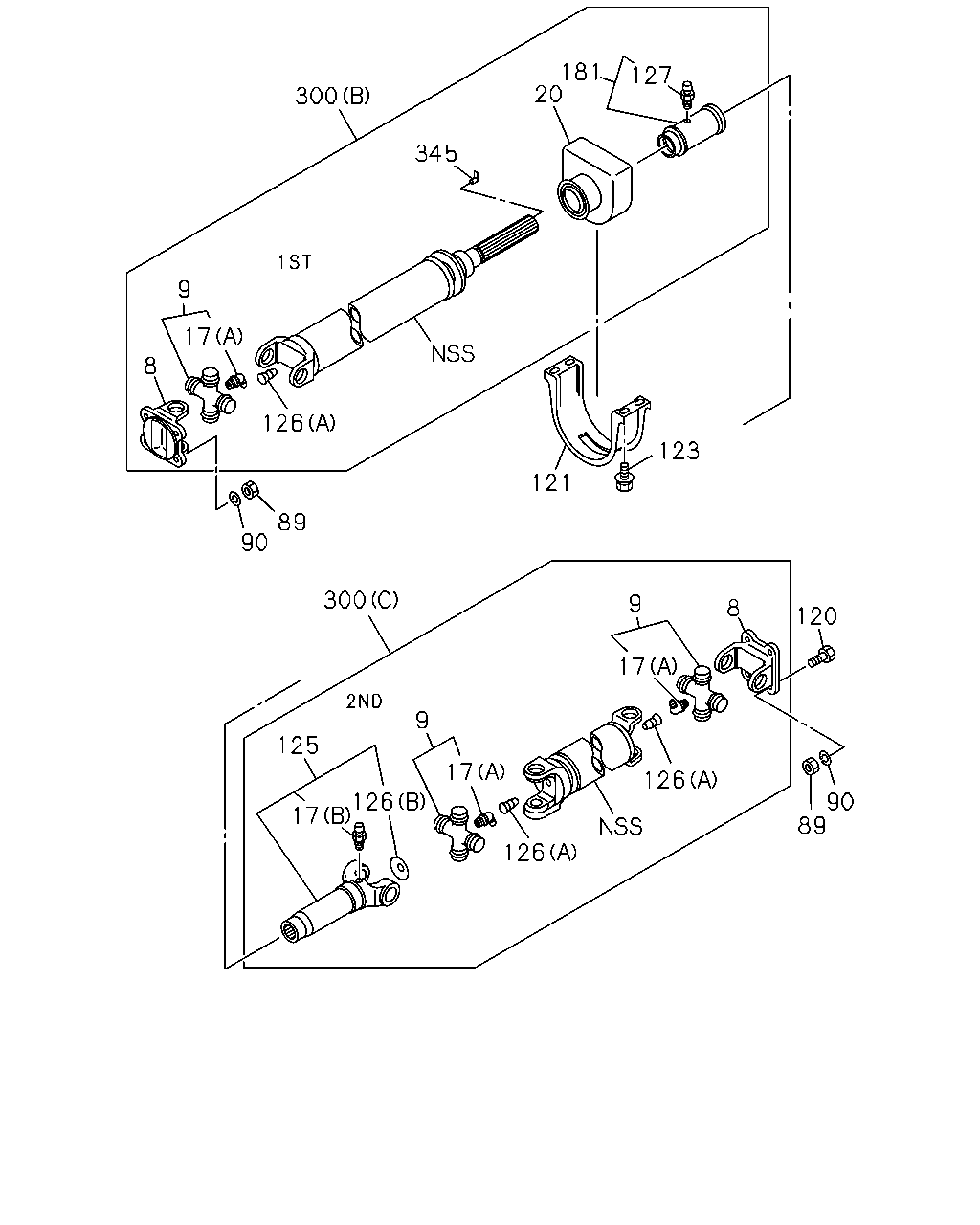

89 90 126 126 17 125 126 9 17 9 17 8 120 121 123 300 90 89 126 8 9 17 300 345 20 181 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	1009-	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	02	1	1009-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1009-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1009-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1009-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1009-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1009-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	1009-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1009-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1009-	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1009-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1009-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1009-	●	●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1009-	●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1009-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	1009-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	1009-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1009-	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1009-	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1009-	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1009-	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1009-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2400MM(24W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●
181	05.586 COVER; BRG,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98046-526-0	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=899	8-97383-842-2	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=969	8-98001-994-2	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) (A) L=969	8-98001-994-2	01	1	1009-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=760	8-98039-643-1	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=830	8-98039-644-1	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=844	8-97383-838-2	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=919	8-97383-844-2	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=700	8-98039-642-1	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=775	8-98039-657-1	01	1	1009-	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1009-	●
345	05.600 PLUG; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98042-692-0	01	1	1009-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
