Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#78152) — 469 parça

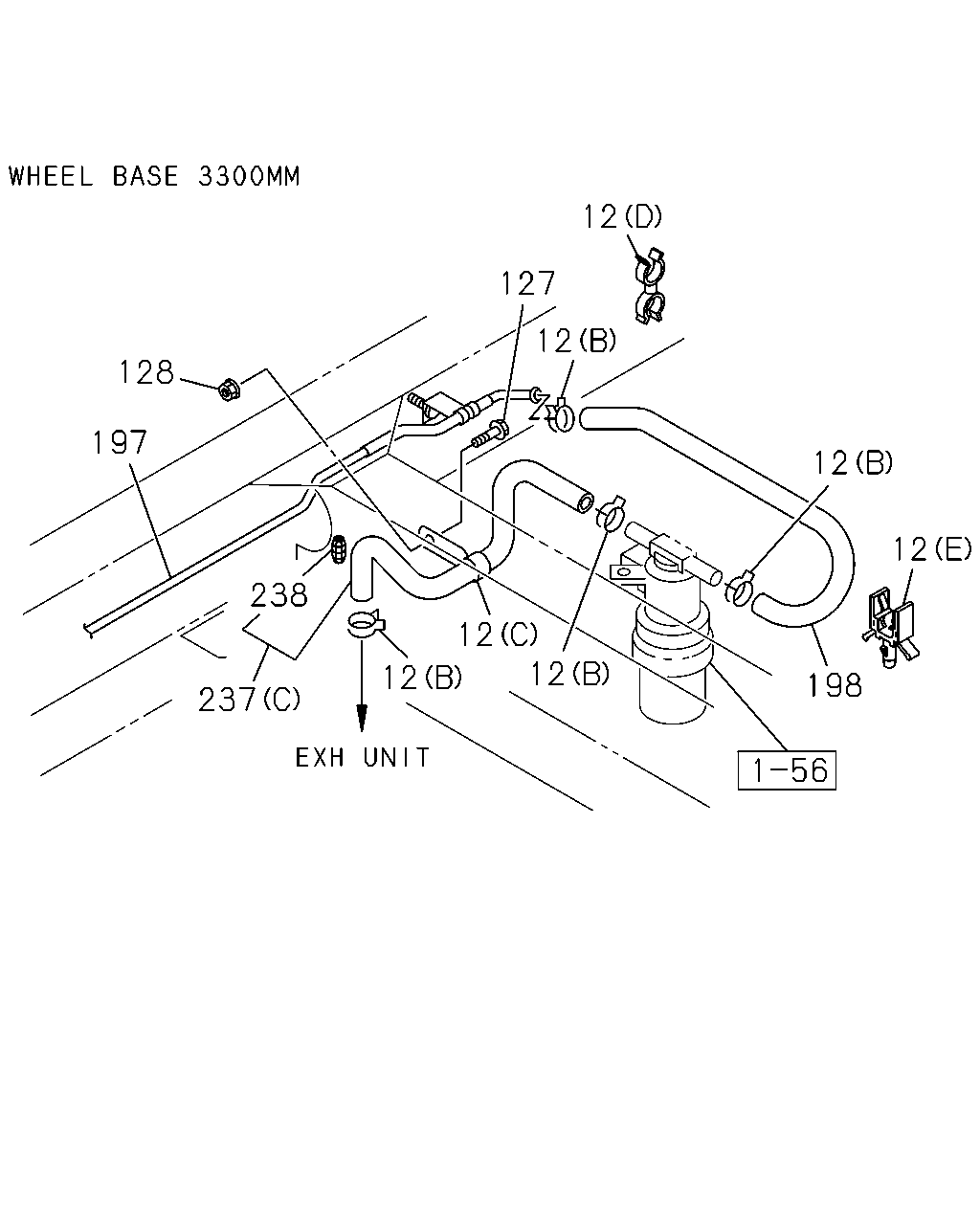

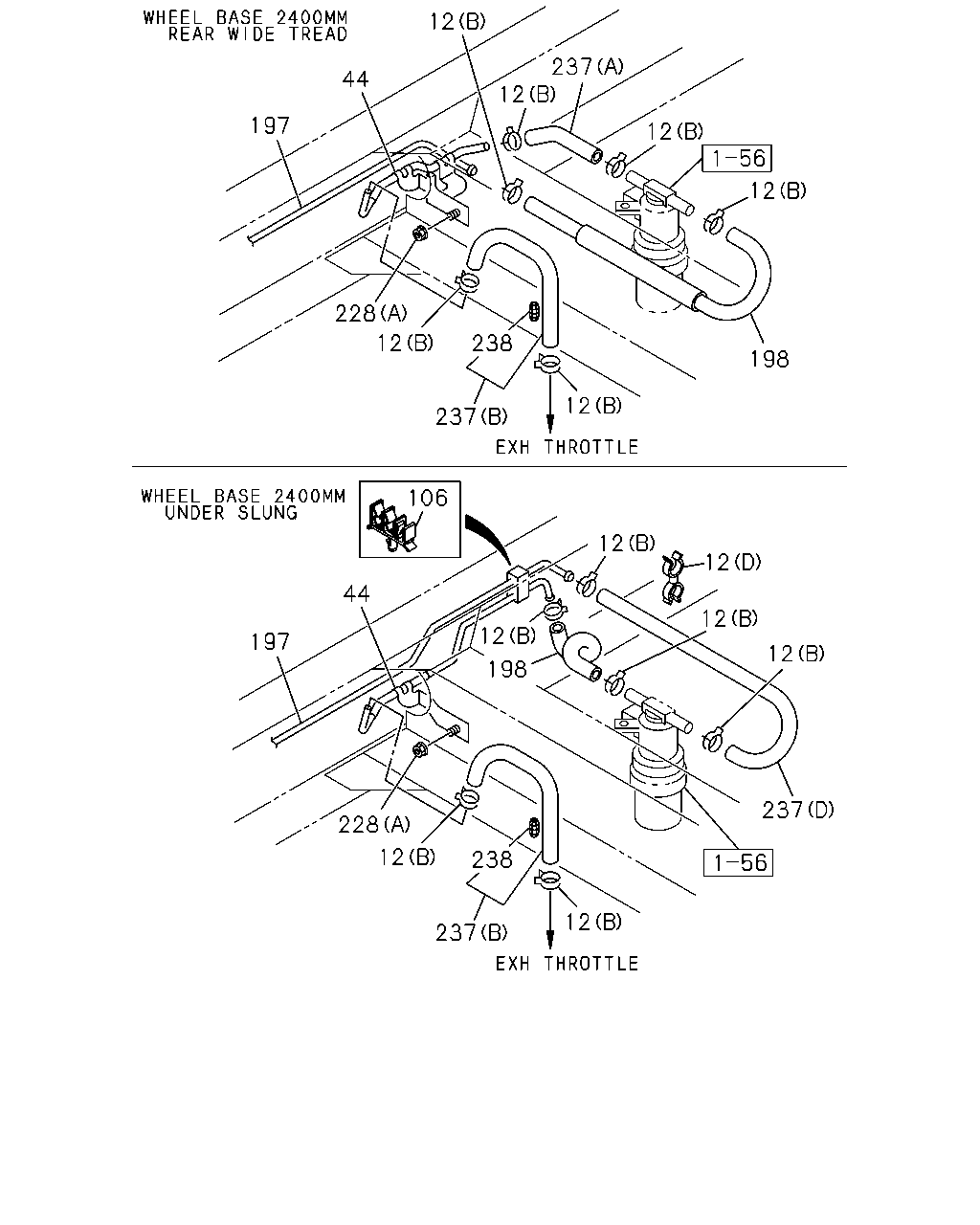

197 44 12 12 237 12 12 198 12 237 238 12 228 106 12 12 12 12 237 12 237 238 12 228 197 44 12 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1009-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1009-1012	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-806-0	01	1	1009-1308	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-806-0	01	1	1309-	●
44	04.930 PIPE; VAC,MAG VLV REAR WIDE TREAD(V4T)	8-98039-806-0	01	1	1309-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-807-1	01	1	1009-1308	●
44	04.930 PIPE; VAC,MAG VLV	8-98039-807-1	01	1	1009-1308		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-807-1	01	1	1309-	●
44	04.930 PIPE; VAC,MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-807-1	01	1	1309-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W)	8-98042-654-0	01	1	1009-	●
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1009-1308	●
106	04.930 CLIP; PIPE ID=10X2 & 4.76	8-97170-259-0	01	1	1009-1308		●
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1309-	●
106	04.930 CLIP; PIPE SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1309-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1009-1308	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1309-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1309-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1009-1308	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV	8-98039-801-1	01	1	1009-1308		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1309-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1309-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	1009-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1009-1308	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1309-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1309-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1009-1308	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98039-788-1	01	1	1009-1308		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1309-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1309-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	1009-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1009-1308	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1009-1308	●
228	04.930 NUT; PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1009-1308		●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-	●
228	04.930 NUT; PIPE REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-		●
228	04.930 NUT; PIPE SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-		●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1009-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1009-1308	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1309-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1309-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1009-1308	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1009-1308	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98034-429-0	01	1	1009-1308		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1309-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1309-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1309-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1309-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1009-1308	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (D)	8-98039-789-1	01	1	1009-1308		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1309-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1309-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98039-792-0	01	1	1009-1009	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1009-	●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	1009-1308	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1309-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1309-	●
238	04.892 ORIFICE; VACUUM HOSE REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1309-		●
238	04.892 ORIFICE; VACUUM HOSE SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1309-		●

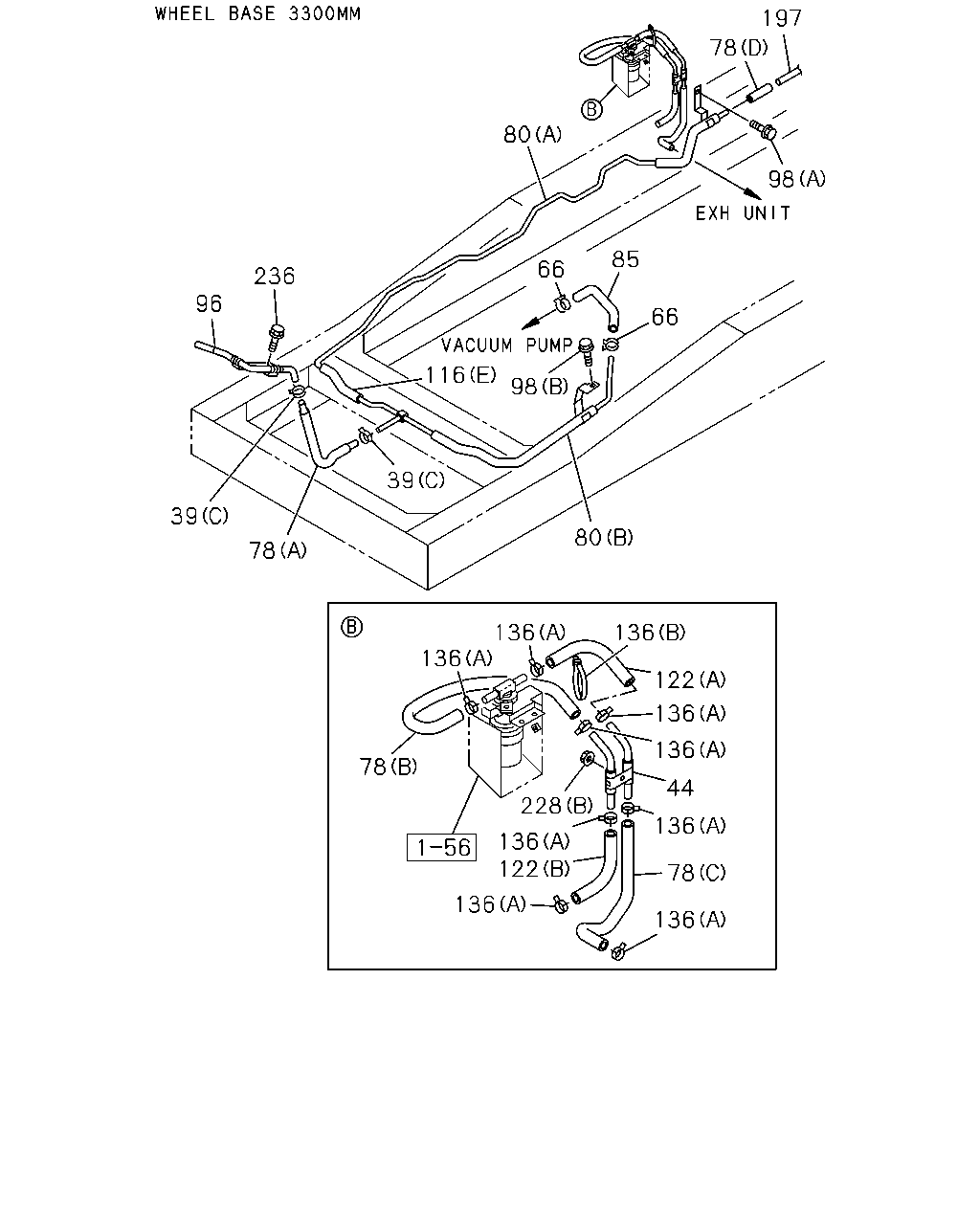

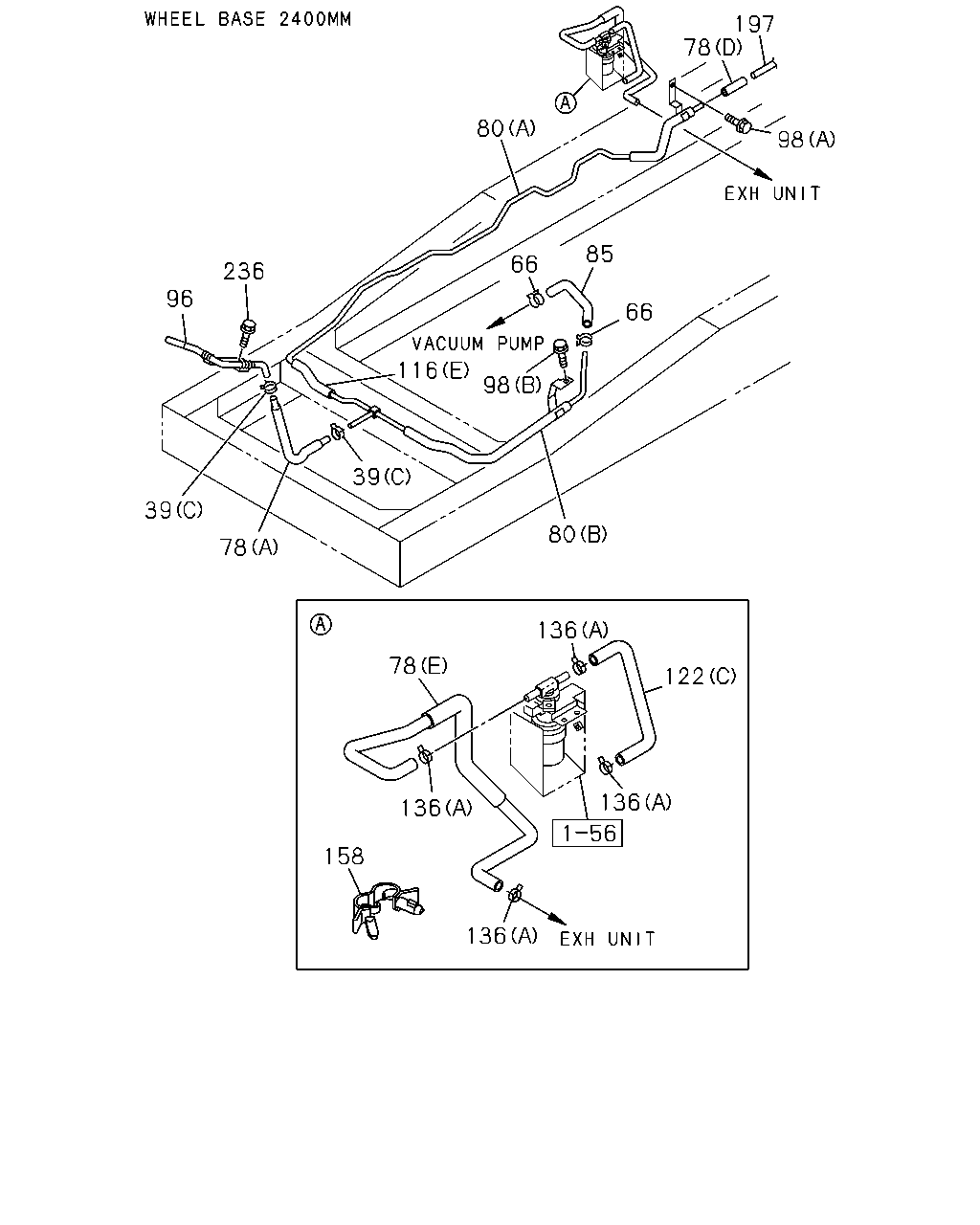

197 78 98 66 85 66 80 98 116 39 78 39 96 236 78 80 136 122 136 136 136 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1009-	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1009-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1009-	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1009-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (E)	8-98098-174-0	01	1	1009-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98098-174-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	1009-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	1009-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1009-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	1009-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98064-345-2	01	1	1205-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	1009-	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1009-1204	●	●
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B)	8-98075-014-0	01	1	1205-	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98135-573-0	01	1	1205-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1009-1204	●	●
85	04.931 HOSE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98075-176-0	01	1	1205-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1009-	●	●
98	04.931 BOLT; VAC PIPE FIX EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1009-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (C)	8-97389-674-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (D)	8-97389-689-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1009-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1009-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1009-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1009-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	1009-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	1009-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1105-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1009-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1009-	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1009-	●	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) ID=18-24 L=14.5	1-09709-298-0	01	1	1009-	●
158	04.681 CLIP; HOSE ID=18-24 L=14.5	1-09709-298-0	01	1	1009-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1009-1308	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1309-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1309-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1009-1308	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV	8-98039-801-1	01	1	1009-1308		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1309-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1309-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	1009-	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1009-	●	●

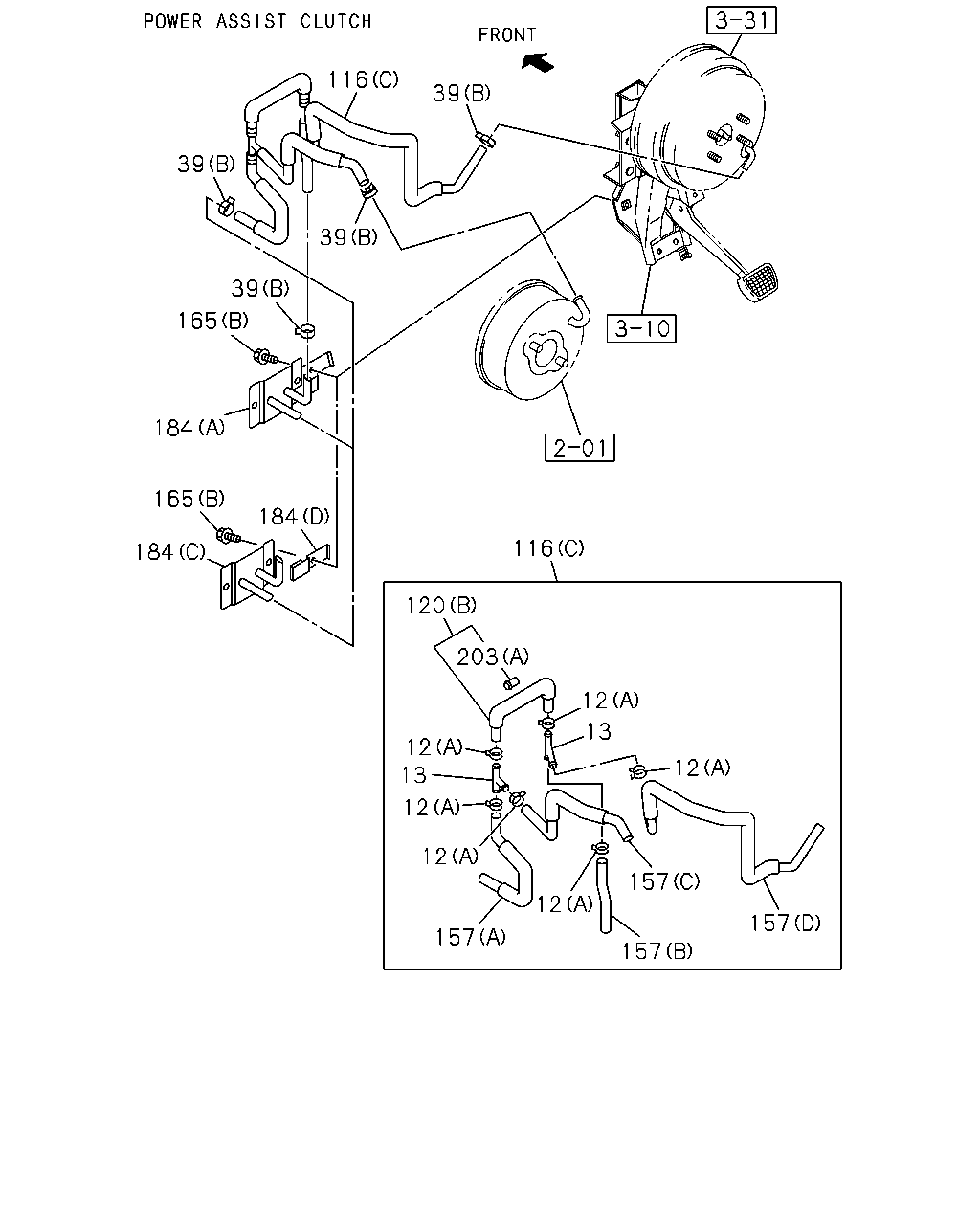

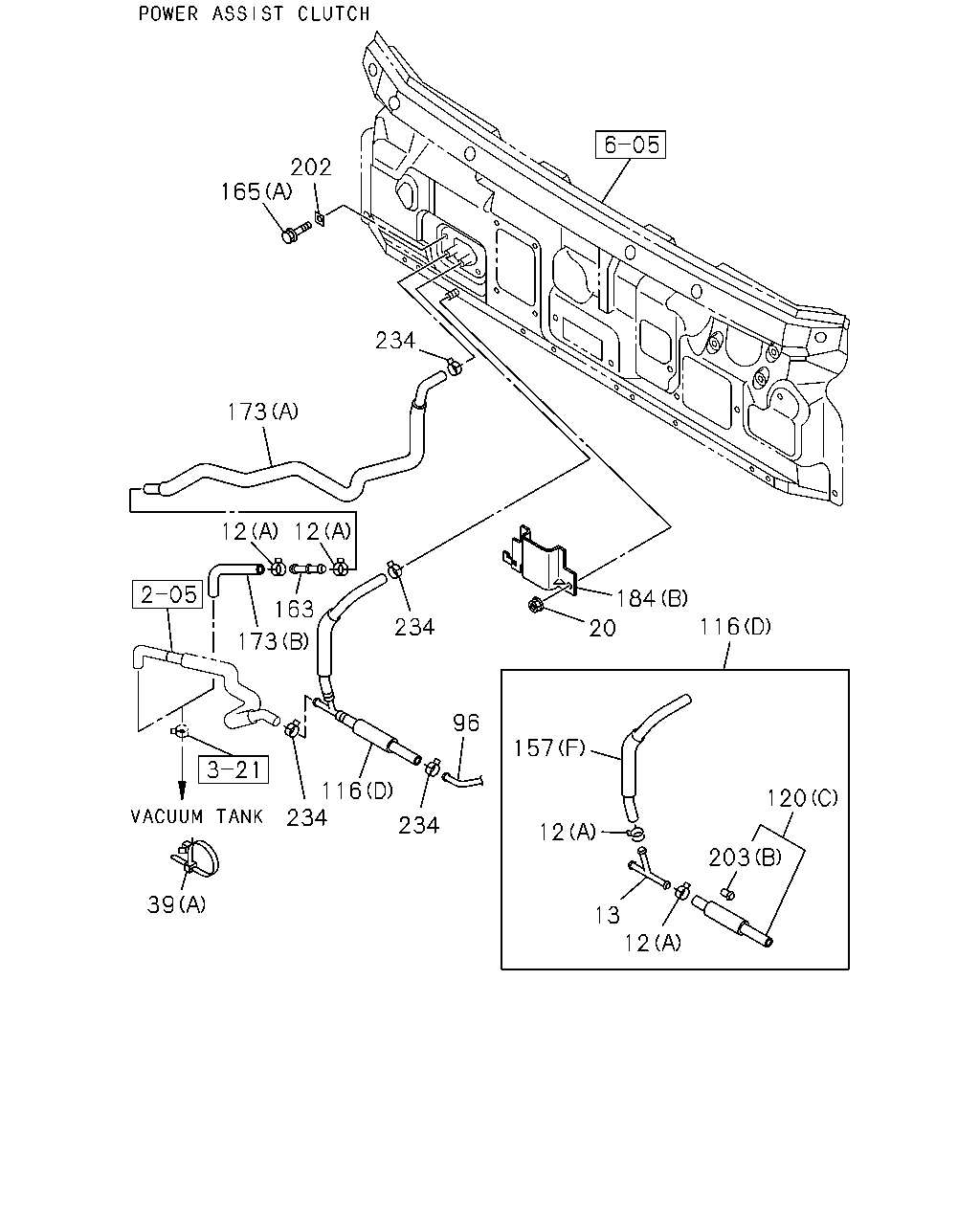

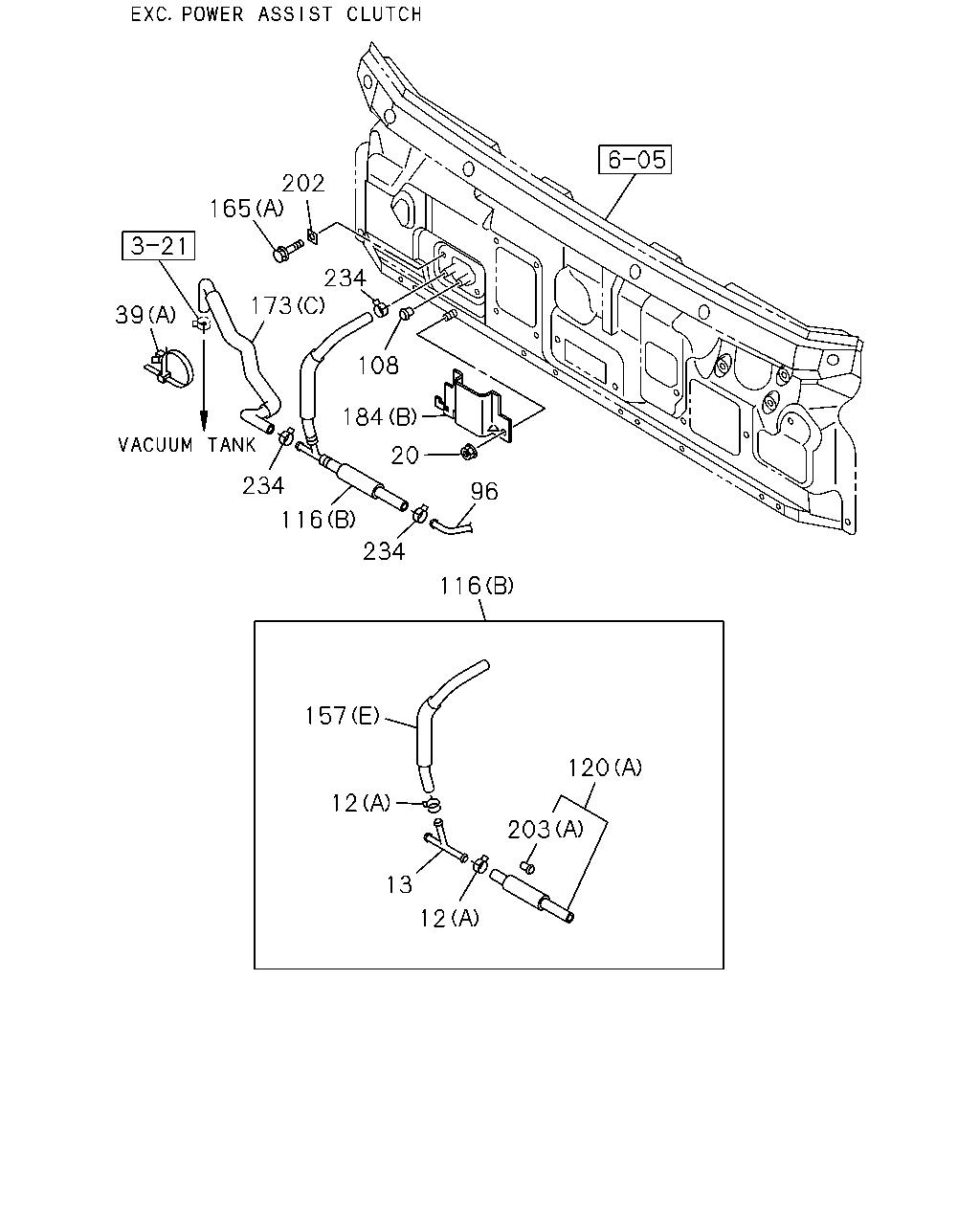

197 78 98 85 66 66 80 98 116 39 78 39 96 236 80 136 136 136 122 136 136 44 136 78 136 136 136 122 228 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1009-	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1009-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1009-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-806-0	01	1	1009-1308	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-806-0	01	1	1309-	●
44	04.930 PIPE; VAC,MAG VLV REAR WIDE TREAD(V4T)	8-98039-806-0	01	1	1309-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-807-1	01	1	1009-1308	●
44	04.930 PIPE; VAC,MAG VLV	8-98039-807-1	01	1	1009-1308		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-807-1	01	1	1309-	●
44	04.930 PIPE; VAC,MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-807-1	01	1	1309-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W)	8-98042-654-0	01	1	1009-	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1009-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (E)	8-98098-174-0	01	1	1009-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98098-174-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	1009-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	1009-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1009-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	1009-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98064-345-2	01	1	1205-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	1009-	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1009-1204	●	●
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B)	8-98075-014-0	01	1	1205-	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98135-573-0	01	1	1205-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1009-1204	●	●
85	04.931 HOSE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98075-176-0	01	1	1205-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1009-	●	●
98	04.931 BOLT; VAC PIPE FIX EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1009-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (C)	8-97389-674-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (D)	8-97389-689-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1009-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1009-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1009-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98076-068-1	01	1	1009-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	1009-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	1009-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1105-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1009-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1009-	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1009-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1009-1308	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1309-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1309-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1009-1308	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV	8-98039-801-1	01	1	1009-1308		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1309-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1309-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	1009-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1009-1308	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1009-1308	●
228	04.930 NUT; PIPE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1009-1308		●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-	●
228	04.930 NUT; PIPE REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-		●
228	04.930 NUT; PIPE SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1309-		●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1009-	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1009-	●	●

116 39 39 165 184 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1009-	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1009-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1009-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (C)	8-97389-674-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (D)	8-97389-689-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1009-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1009-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1009-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1009-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1009-1103	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1009-	●	●

157 157 157 12 13 12 203 120 12 13 12 12 157 12 184 184 165 184 165 39 39 39 116 39 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1009-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1009-1012	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1009-	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	03	1	1009-		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1009-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1009-	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1009-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1009-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (C)	8-97389-674-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (D)	8-97389-689-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1009-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1009-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1009-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (C)	8-97389-695-2	01	1	1009-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1009-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (B)	8-98027-352-3	01	1	1009-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1009-	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1009-	●
157	04.931 HOSE; JOINT (F)	8-98017-168-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1009-	●
157	04.931 HOSE; JOINT (D)	8-98027-350-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1009-	●
157	04.931 HOSE; JOINT (C)	8-98027-351-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1009-	●
157	04.931 HOSE; JOINT (B)	8-98027-353-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1009-	●
157	04.931 HOSE; JOINT (A)	8-98027-354-2	01	1	1009-		●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1009-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1009-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1009-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1009-1103	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1009-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1009-	●
203	04.690 VALVE; CHECK (B)	8-94104-021-0	01	1	1009-		●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1009-	●	●

12 127 12 12 12 128 197 238 12 237 12 12 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1009-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1009-1012	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-	●
127	04.930 BOLT; CLIP WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●
128	04.930 NUT; CLIP WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1009-1308	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1309-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1309-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1009-1308	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV	8-98039-801-1	01	1	1009-1308		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1309-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1309-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	1009-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1009-1308	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1309-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1309-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1009-1308	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98039-788-1	01	1	1009-1308		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1309-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1309-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	1009-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1009-1308	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1309-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1309-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1009-1308	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1009-1308	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (B)	8-98034-429-0	01	1	1009-1308		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1309-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1309-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1309-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1309-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1009-1308	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (D)	8-98039-789-1	01	1	1009-1308		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1309-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1309-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98039-792-0	01	1	1009-1009	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1009-	●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	1009-1308	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1309-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1309-	●
238	04.892 ORIFICE; VACUUM HOSE REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1309-		●
238	04.892 ORIFICE; VACUUM HOSE SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1309-		●

202 165 234 173 12 12 234 96 20 116 120 203 12 13 12 157 234 116 234 39 173 163 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1009-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1009-1012	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1009-	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	03	1	1009-		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1009-	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1009-	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1009-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1009-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1009-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (C)	8-97389-674-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (D)	8-97389-689-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1009-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1009-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1009-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (C)	8-97389-695-2	01	1	1009-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1009-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (B)	8-98027-352-3	01	1	1009-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1009-	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1009-	●
157	04.931 HOSE; JOINT (F)	8-98017-168-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1009-	●
157	04.931 HOSE; JOINT (D)	8-98027-350-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1009-	●
157	04.931 HOSE; JOINT (C)	8-98027-351-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1009-	●
157	04.931 HOSE; JOINT (B)	8-98027-353-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1009-	●
157	04.931 HOSE; JOINT (A)	8-98027-354-2	01	1	1009-		●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1009-	●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	1009-	●
163	04.681 JOINT; VAC HOSE 03.163	8-97353-668-0	01	1	1009-		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1009-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1009-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	1009-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE (A)	8-98055-936-1	01	1	1009-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-	●
173	04.931 HOSE; VAC,VAC TANK SIDE (B)	8-98121-941-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	1009-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE (B)	8-98055-937-1	01	1	1009-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-	●
173	04.931 HOSE; VAC,VAC TANK SIDE (A)	8-98121-940-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	1009-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1009-1103	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1009-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1009-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1009-	●
203	04.690 VALVE; CHECK (B)	8-94104-021-0	01	1	1009-		●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1009-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1009-	●
234	04.685 CLAMP; PIPE 04.930 ID=16	8-94238-568-0	04	1	1009-		●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1009-	●

202 165 234 173 108 184 96 234 116 234 39 116 20 157 12 13 12 203 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	10	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1009-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308	●
12	04.681 CLIP; HOSE 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-1308		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-	●
12	04.681 CLIP; HOSE SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1309-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1009-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1009-	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1009-1012	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1009-	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	03	1	1009-		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1009-	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1009-	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1009-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1009-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1009-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1009-	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (C)	8-97389-674-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC (D)	8-97389-689-3	01	1	1009-		●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1009-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1009-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1009-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1009-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (C)	8-97389-695-2	01	1	1009-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1009-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (B)	8-98027-352-3	01	1	1009-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1009-	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1009-	●
157	04.931 HOSE; JOINT (F)	8-98017-168-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1009-	●
157	04.931 HOSE; JOINT (D)	8-98027-350-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1009-	●
157	04.931 HOSE; JOINT (C)	8-98027-351-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1009-	●
157	04.931 HOSE; JOINT (B)	8-98027-353-3	01	1	1009-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1009-	●
157	04.931 HOSE; JOINT (A)	8-98027-354-2	01	1	1009-		●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1009-	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1009-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1009-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	1009-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE (A)	8-98055-936-1	01	1	1009-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-	●
173	04.931 HOSE; VAC,VAC TANK SIDE (B)	8-98121-941-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	1009-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE (B)	8-98055-937-1	01	1	1009-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-	●
173	04.931 HOSE; VAC,VAC TANK SIDE (A)	8-98121-940-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	1009-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1009-1103	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1009-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1009-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1009-	●
203	04.690 VALVE; CHECK (B)	8-94104-021-0	01	1	1009-		●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1009-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1009-	●
234	04.685 CLAMP; PIPE 04.930 ID=16	8-94238-568-0	04	1	1009-		●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1009-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
