◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#78149) — 26 parça

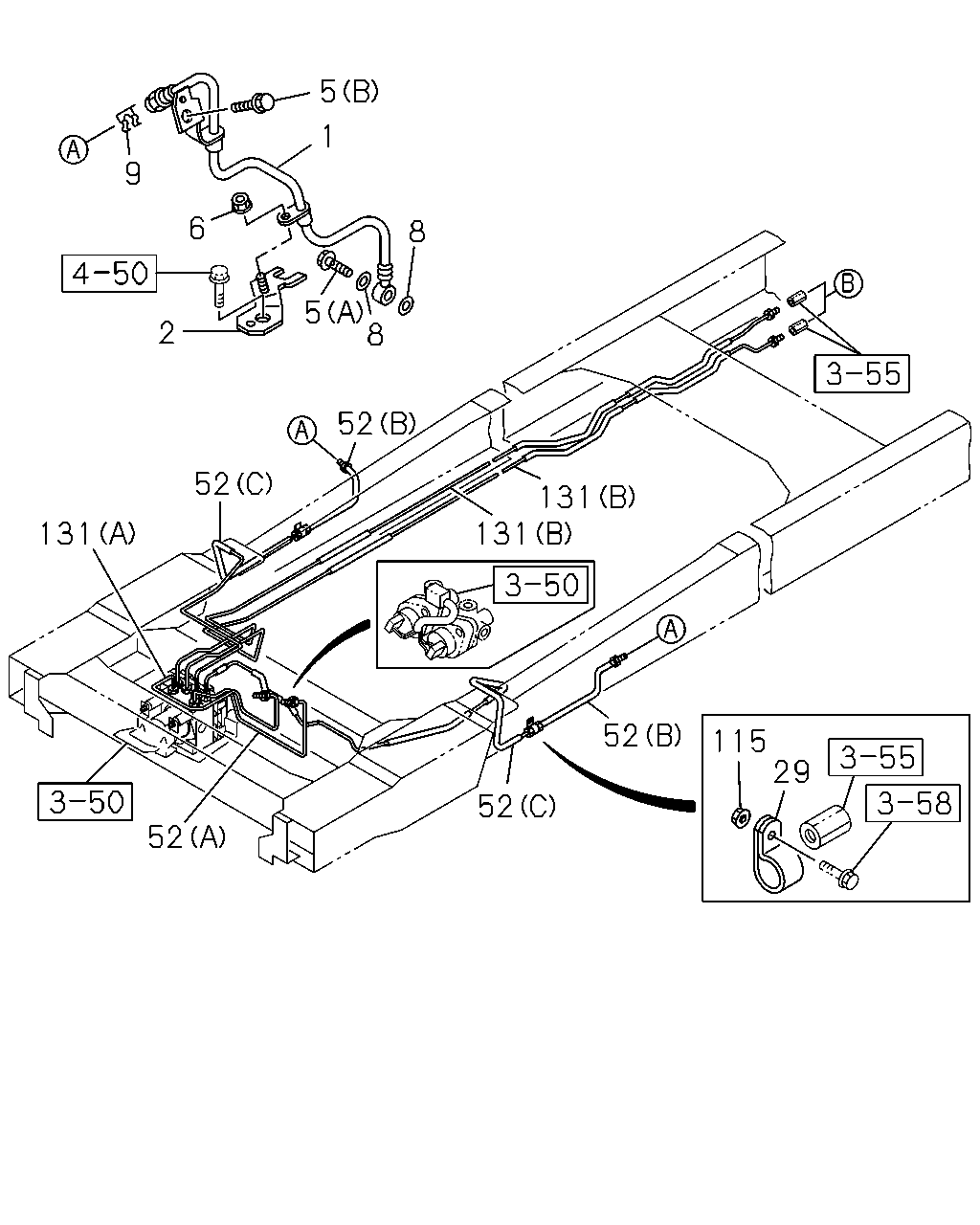

çizim 119713
5 9 6 2 1 8 5 8 52 52 131 131 131 52 52 52 115 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK 8-97358-770-3 01 1 1009- ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97358-771-3 01 1 1009- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
04.686 		8-97369-635-1 01 1 1009- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
04.686 		8-97369-636-1 01 1 1009- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1009- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
(A) M10X22 		8-98014-005-0 02 1 1009- ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1009- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1009- ● ●
29 04.686 CLIP; UNION
ID=16 L=20 		0-95235-532-0 02 1 1009- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1009- ● ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-381-0 01 1 1009- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1009- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1009- ● ●
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98074-270-0 01 1 1009- ● ●
115 04.680 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1009- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-371-0 01 1 1009- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1009- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1009- ● ●

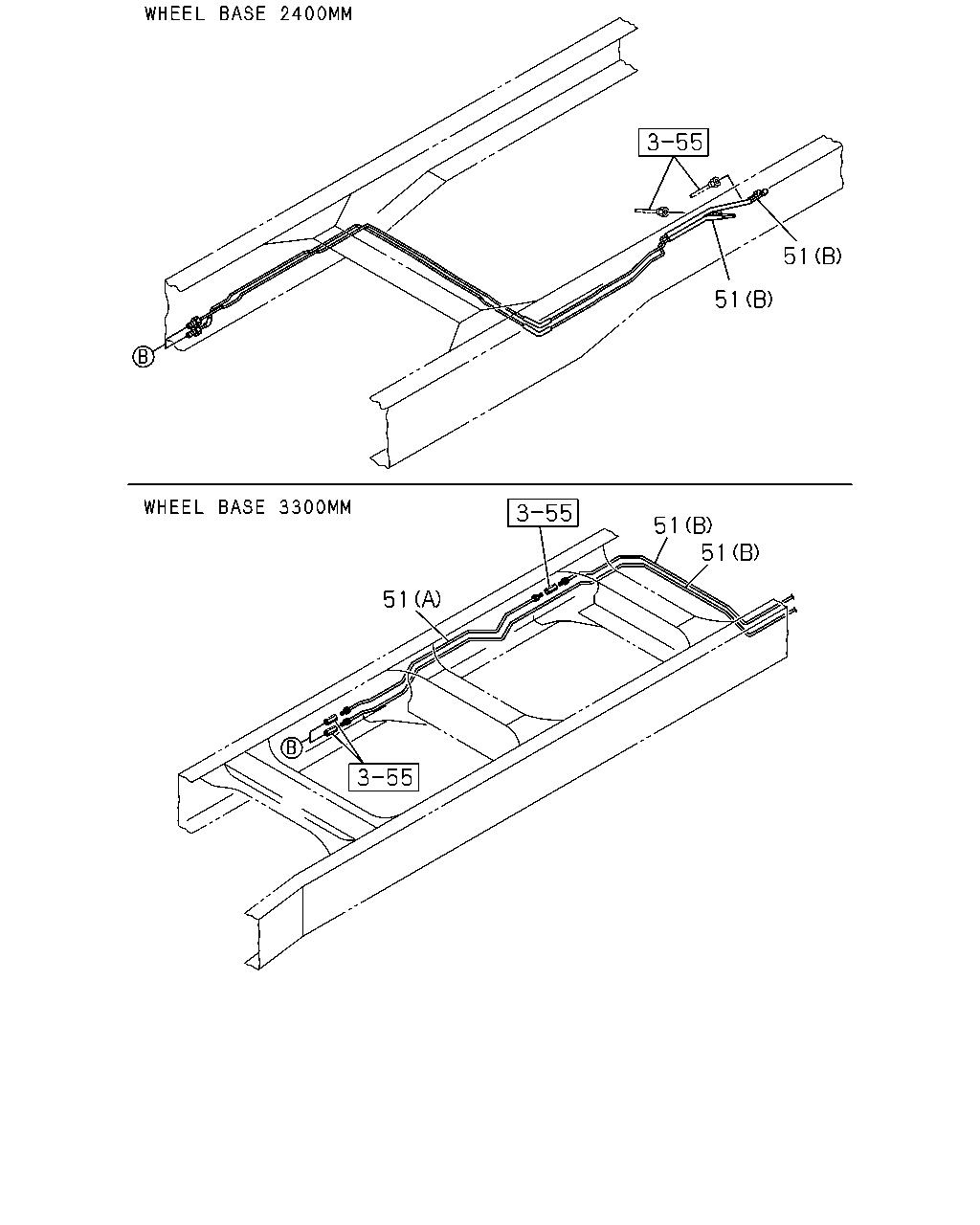

çizim 119968
51 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1009- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1009- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1009- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1009- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1009- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1009- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) 2WAY TO 2WAY 		8-98061-507-0 01 1 1009- ●
