3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#78148) — 44 parça

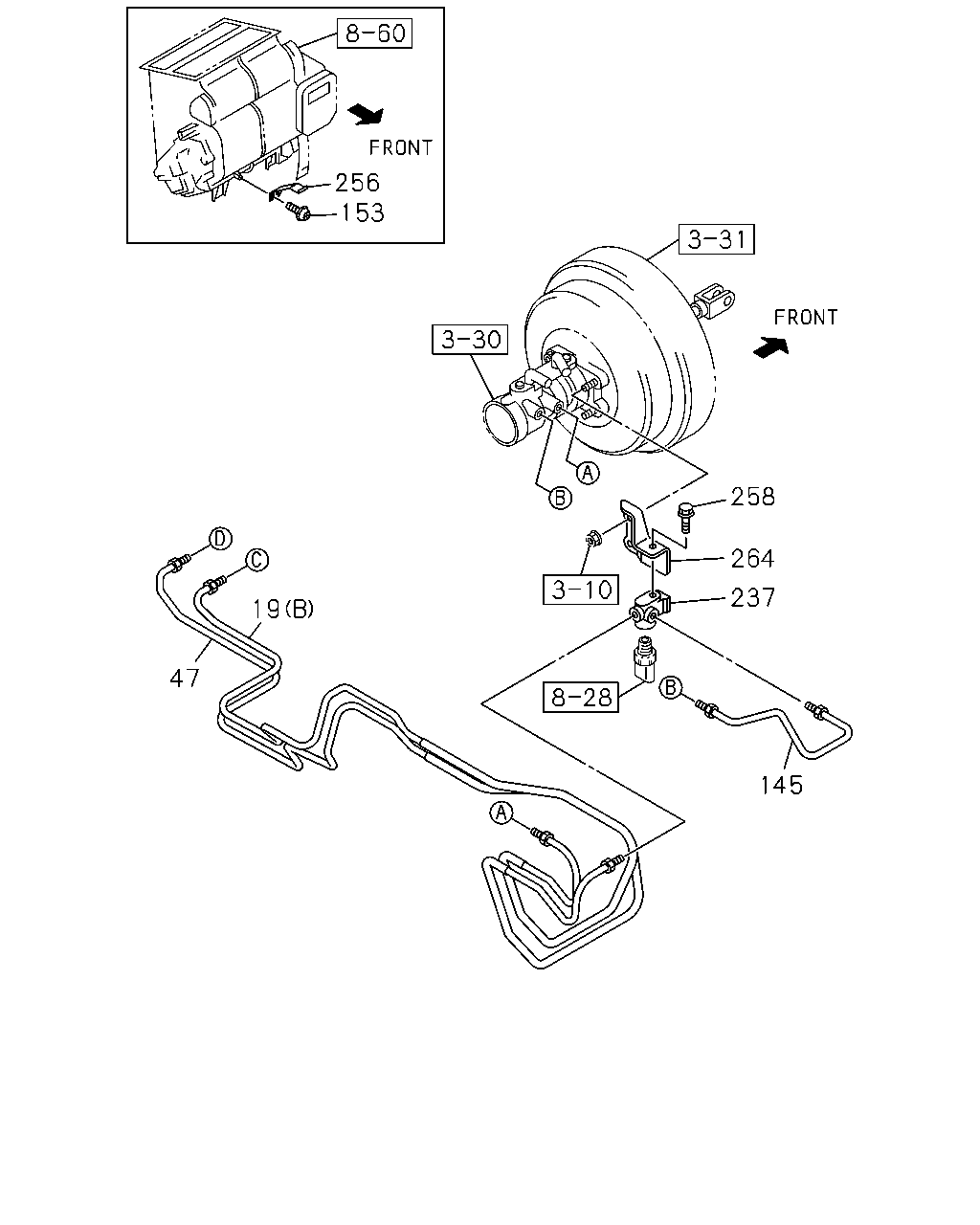

145 237 264 258 256 153 47 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1009-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	1009-	●	●
47	04.685 PIPE; OIL,FRT BRK L=1173	8-98133-413-0	01	1	1009-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION L=201	8-98133-407-0	01	1	1009-	●	●
153	04.730 SCREW; BRKT FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1009-	●	●
237	04.840 CONNECTOR; MODULATOR	8-98111-748-1	01	1	1009-	●	●
256	04.840 BRACKET; BRK PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98163-521-0	01	1	1009-	●	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-	●	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	1009-	●	●

130 131 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	04.686 BRACKET; SPEED SENSOR (B)	8-97080-060-2	02	1	1009-1212	●
130	04.686 BRACKET; SPEED SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97080-060-2	02	1	1301-	●
130	04.686 BRACKET; SPEED SENSOR (A)	8-98035-633-0	01	1	1009-	●	●
130	04.686 BRACKET; SPEED SENSOR (A)	8-98035-634-0	01	1	1009-	●	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1009-	●

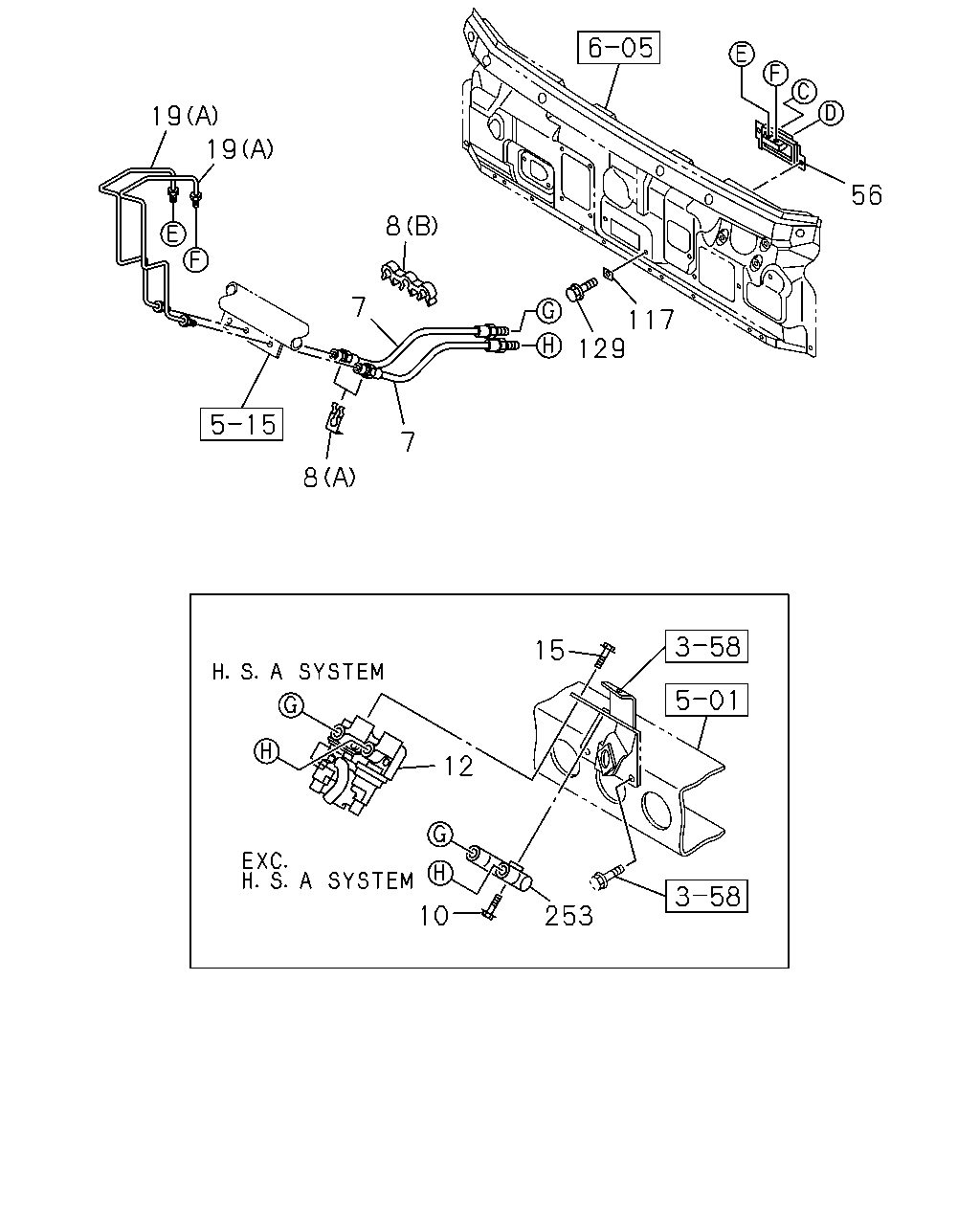

253 10 12 15 7 8 7 8 129 117 19 19 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98033-732-0	02	1	1009-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1009-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (B)	8-98056-614-0	01	1	1009-	●	●
10	04.686 BOLT; JOINT EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1009-	●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-97331-331-2	01	1	1009-1107	●
12	04.690 VALVE ASM; HSA	8-97331-331-2	01	1	1009-1107		●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-98159-364-1	01	1	1108-	●
12	04.690 VALVE ASM; HSA	8-98159-364-1	01	1	1108-		●
15	04.730 BOLT; HSA VALVE H.S.A SYSTEM<6EP> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1009-	●
15	04.730 BOLT; HSA VALVE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1009-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1009-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	1009-	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98154-265-1	01	1	1009-	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98154-264-1	01	1	1009-	●
56	04.686 BRACKET; UNION,BRK	8-98154-264-1	01	1	1009-		●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1009-	●	●
129	04.710 BOLT; BRKT 08.857 M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1009-	●	●
253	04.840 JOINT EXC. H.S.A SYSTEM<6EP>	8-97038-940-1	01	1	1009-	●

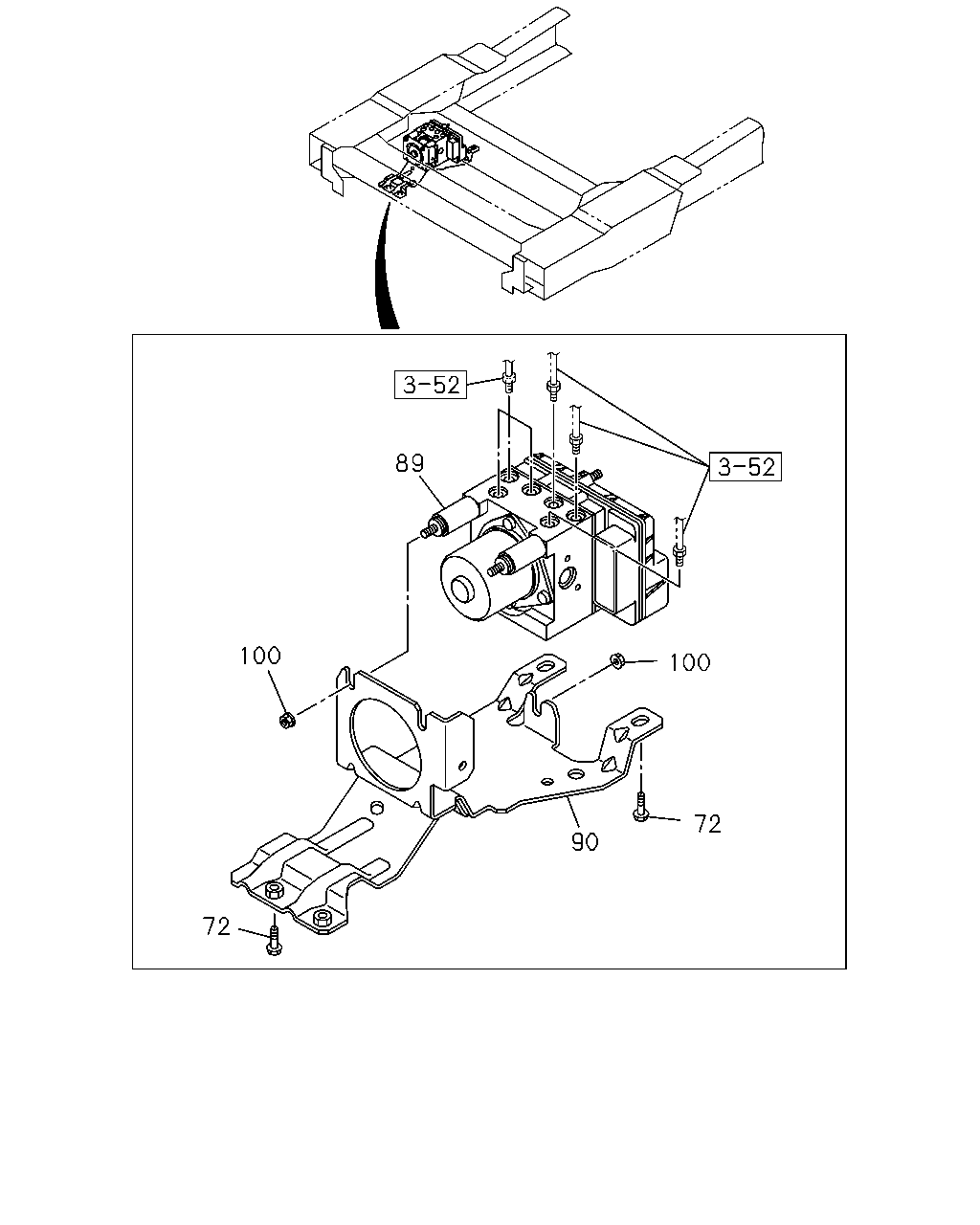

89 100 72 90 72 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1212-1212	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1301-1308	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1309-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL DISC BRAKE<JF9>	8-98158-009-1	01	1	1301-1308	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL DISC BRAKE<JF9>	8-98158-009-1	01	1	1309-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-007-1	01	1	1009-1211	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52>	8-98158-007-1	01	1	1212-1308	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-007-1	01	1	1212-1308		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52>	8-98158-007-1	01	1	1309-	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97386-355-0	01	1	1009-	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 M8 FLANGE	0-91180-108-0	03	1	1009-	●	●
