◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#78146) — 53 parça

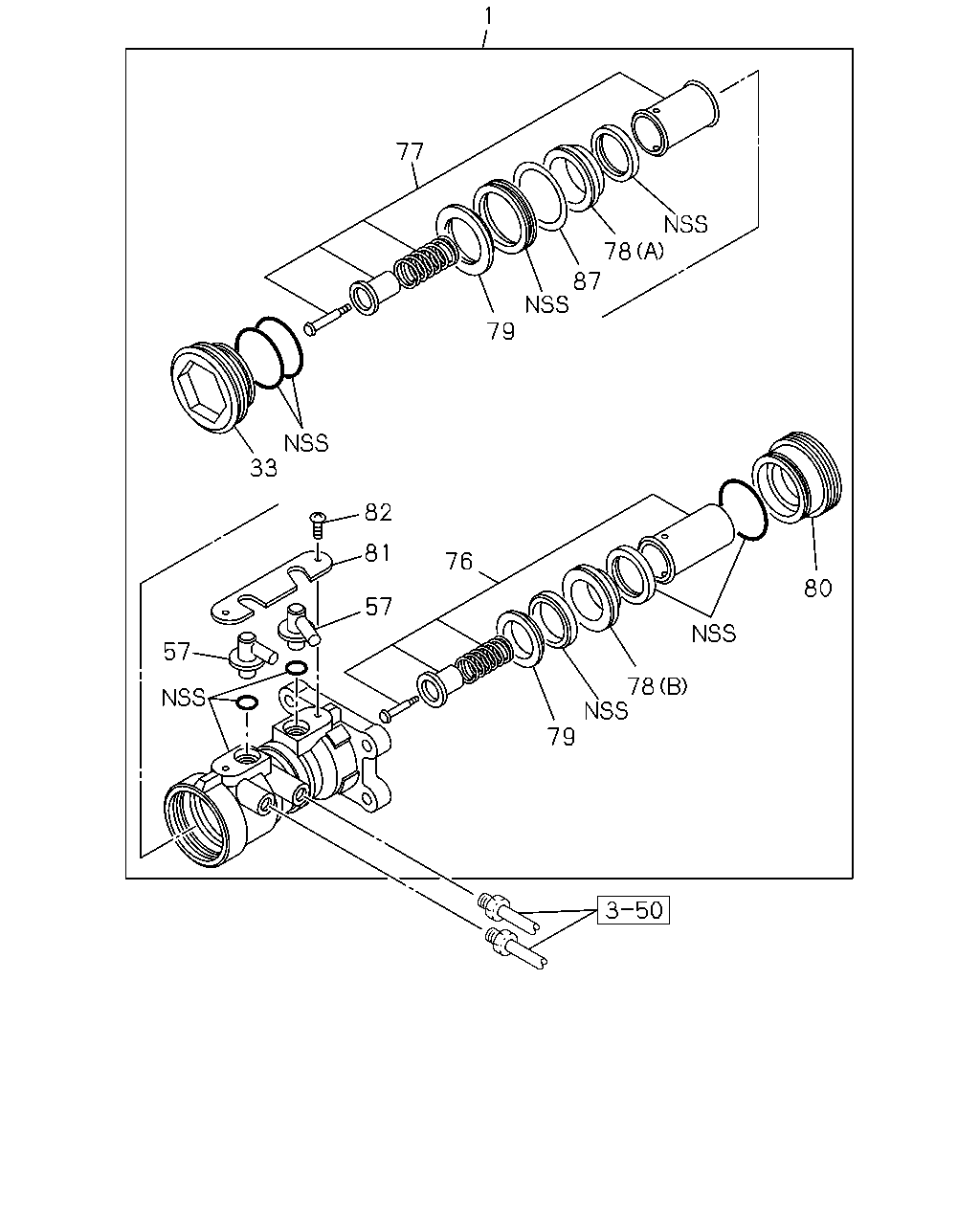

çizim 117127
80 78 79 76 57 81 82 33 57 77 1 79 87 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-599-0 01 1 1009-1211 ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> 		8-98032-599-0 01 1 1212- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-600-0 01 1 1009-1212 ●
1 04.650 CYLINDER ASM; BRK MASTER
4 WHEEL DISC BRAKE<JF9> 		8-98032-600-0 01 1 1301- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-600-0 01 1 1301- ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1009-1211 ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> 		8-97186-696-0 01 1 1212- ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 1009-1212 ●
33 04.661 PLUG; END,M/CYL
4 WHEEL DISC BRAKE<JF9> 		8-97186-697-0 01 1 1301- ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 1301- ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 1009- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1009-1211 ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> 		8-97224-636-0 01 1 1212- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 1009-1212 ●
76 04.653 PISTON ASM; PRIMARY
4 WHEEL DISC BRAKE<JF9> 		8-97224-643-0 01 1 1301- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 1301- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1009-1211 ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> 		8-97224-635-0 01 1 1212- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 1009-1212 ●
77 04.653 PISTON ASM; SECONDARY
4 WHEEL DISC BRAKE<JF9> 		8-97224-642-0 01 1 1301- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 1301- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1009-1211 ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 1212- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1009-1211 ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> (B) 		8-97217-310-0 01 1 1212- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 1009-1212 ●
78 04.651 BUSHING; MASTER CYL
4 WHEEL DISC BRAKE<JF9> (A) 		8-97130-455-0 01 1 1301- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 1301- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 1009-1212 ●
78 04.651 BUSHING; MASTER CYL
4 WHEEL DISC BRAKE<JF9> (B) 		8-97217-312-0 01 1 1301- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 1301- ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1009-1211 ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 1212- ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 1009-1212 ●
79 04.651 SUPPORTER; CUP
4 WHEEL DISC BRAKE<JF9> 		8-97130-463-0 02 1 1301- ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 1301- ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1009-1211 ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 1212- ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 1009-1212 ●
80 04.651 COVER; MASTER CYL
4 WHEEL DISC BRAKE<JF9> 		8-97130-449-0 01 1 1301- ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 1301- ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 1009- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1009- ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1009-1211 ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 1212- ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 1009-1212 ●
87 04.662 SPACER; CUP
4 WHEEL DISC BRAKE<JF9> 		8-97130-459-0 01 1 1301- ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 1301- ●

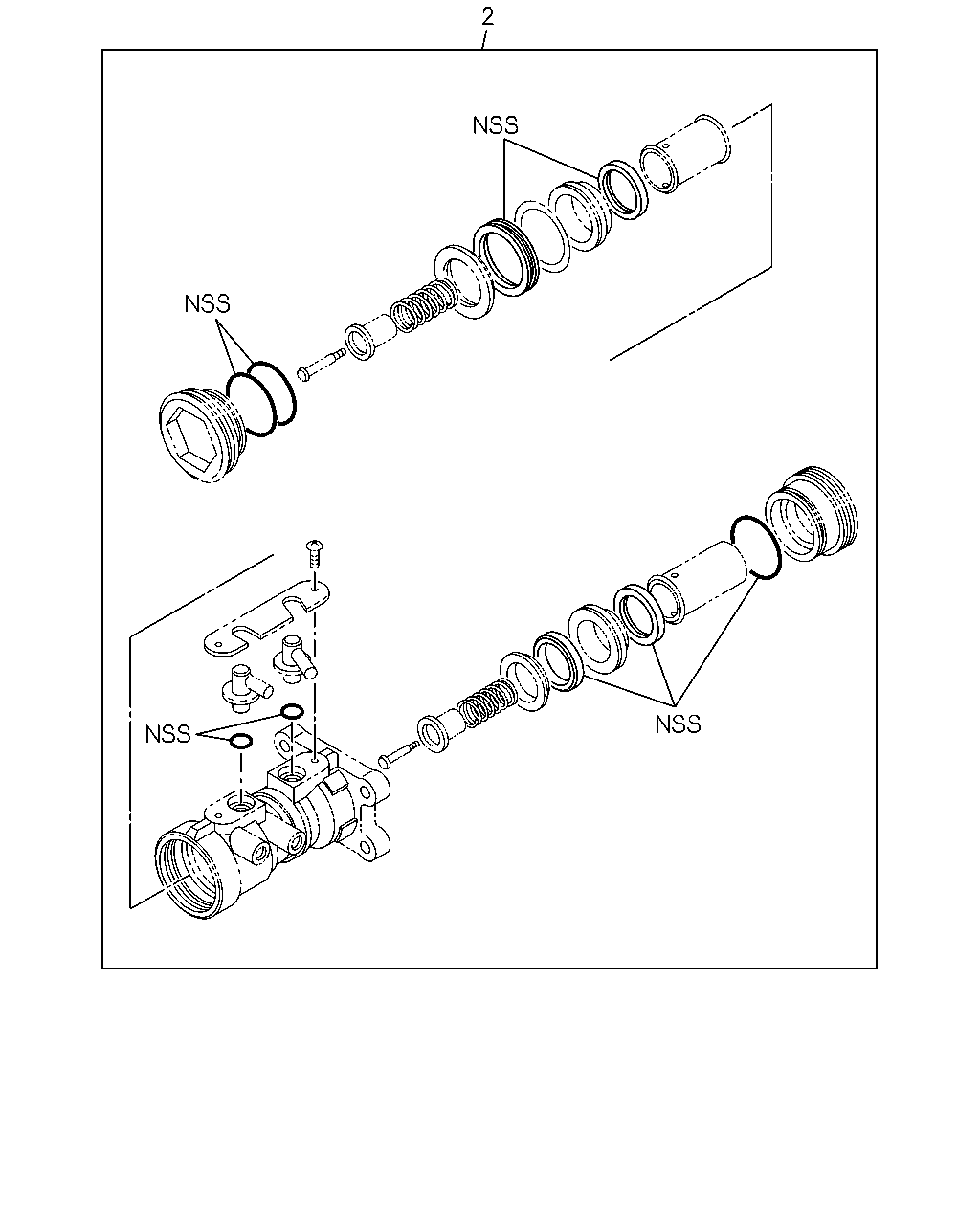

çizim 187120
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1009-1211 ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 1212- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 1009-1212 ●
2 04.649 REPAIR KIT; BRK,M/CYL
4 WHEEL DISC BRAKE<JF9> 		8-97130-471-0 01 1 1301- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 1301- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
