◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#78144) — 82 parça

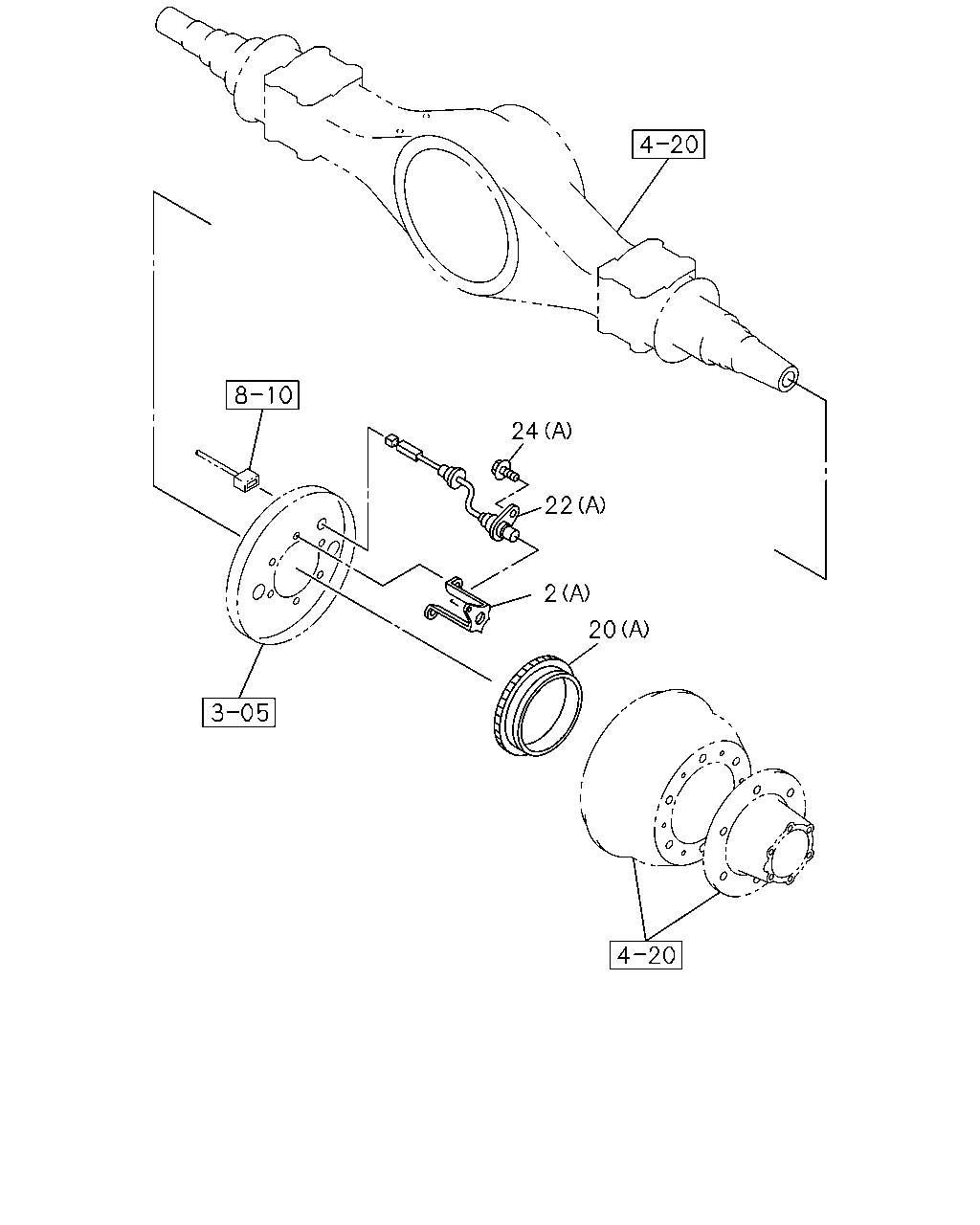

çizim 115401
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98045-222-0 02 1 1301-1308 ●
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98045-222-0 02 1 1309- ● ●
2 04.730 BRACKET; SENSOR
(A) 		8-98000-019-2 02 1 1009-1212 ● ●
2 04.730 BRACKET; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98000-019-2 02 1 1301-1308 ●
2 04.730 BRACKET; SENSOR
(A) 		8-98000-019-2 02 1 1301-1308 ●
2 04.730 BRACKET; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98000-019-2 02 1 1309- ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-98187-136-0 02 1 1301-1308 ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-98187-136-0 02 1 1309-1511 ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98312-785-0 02 1 1512- ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1009-1212 ● ●
20 04.710 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97234-459-3 02 1 1301-1308 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1301-1308 ●
20 04.710 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97234-459-3 02 1 1309- ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98244-877-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1009-1212 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97388-899-1 02 1 1301-1308 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1301-1308 ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97388-899-1 02 1 1309-1401 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98219-351-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.811 (B) 		8-98001-470-1 01 1 1009- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.811 (B) 		8-98001-471-2 01 1 1009- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 1301-1308 ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 1309- ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1009-1401 ● ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 04.730 BOLT; SENSOR
02.343 (B) M8X12 FLANGE 		0-28050-812-0 04 1 1009- ● ●
24 04.730 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 02 1 1009-1409 ● ●
24 04.730 BOLT; SENSOR
04.686 (C) M6X14 FLANGE 		0-28080-614-0 02 1 1410- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 00.349 (D) M6X10 HEX SOCKET 		0-58330-610-0 12 1 1301-1303 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (D) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1304-1308 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (D) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1309- ● ●

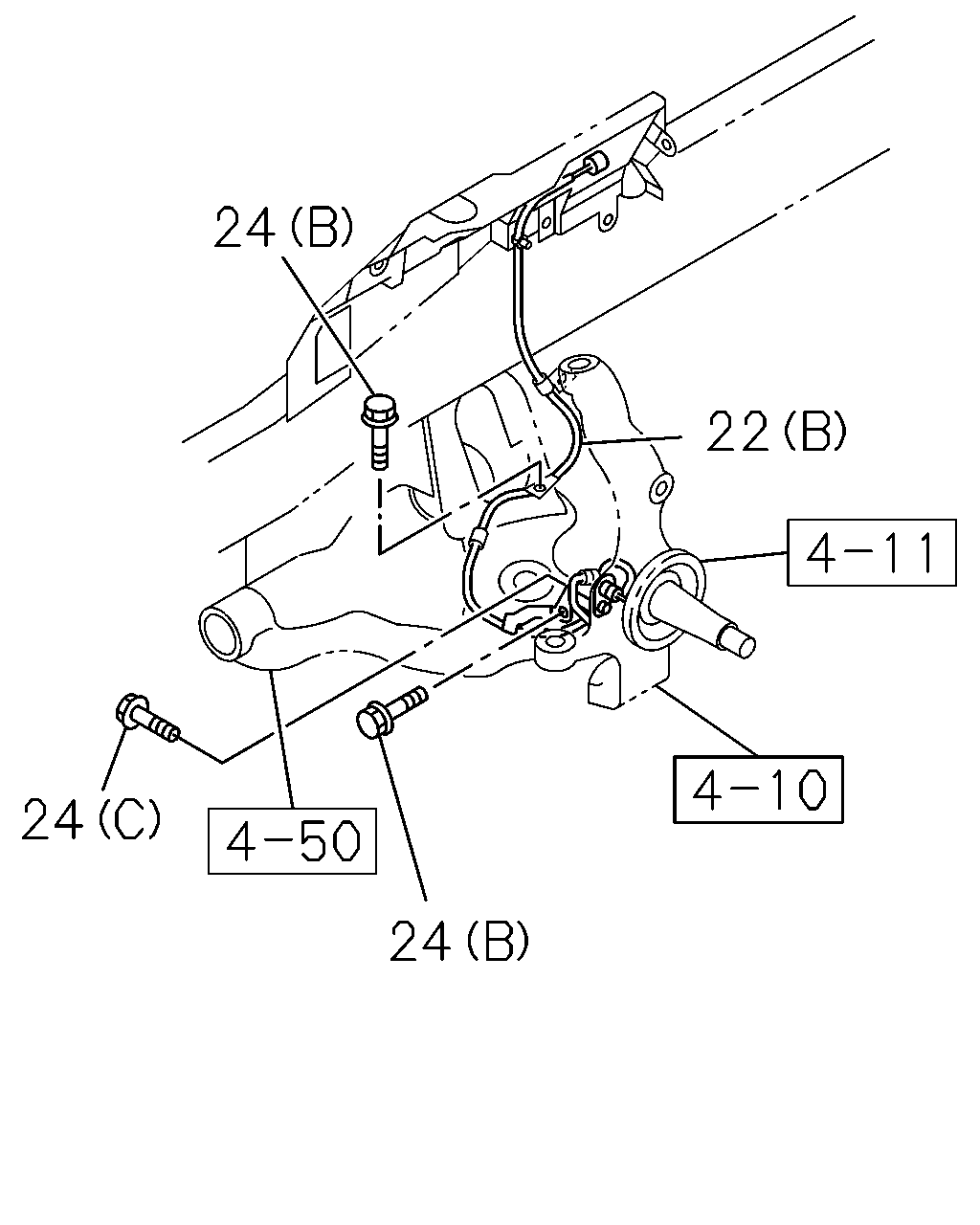

çizim 187119
24 22 24 24
BalonParca AdiParca NoAdetTipApplied Date A B
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98244-877-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1009-1212 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97388-899-1 02 1 1301-1308 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1301-1308 ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97388-899-1 02 1 1309-1401 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98219-351-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.811 (B) 		8-98001-470-1 01 1 1009- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.811 (B) 		8-98001-471-2 01 1 1009- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 1301-1308 ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 1309- ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1009-1401 ● ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 04.730 BOLT; SENSOR
02.343 (B) M8X12 FLANGE 		0-28050-812-0 04 1 1009- ● ●
24 04.730 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 02 1 1009-1409 ● ●
24 04.730 BOLT; SENSOR
04.686 (C) M6X14 FLANGE 		0-28080-614-0 02 1 1410- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 00.349 (D) M6X10 HEX SOCKET 		0-58330-610-0 12 1 1301-1303 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (D) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1304-1308 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (D) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1309- ● ●

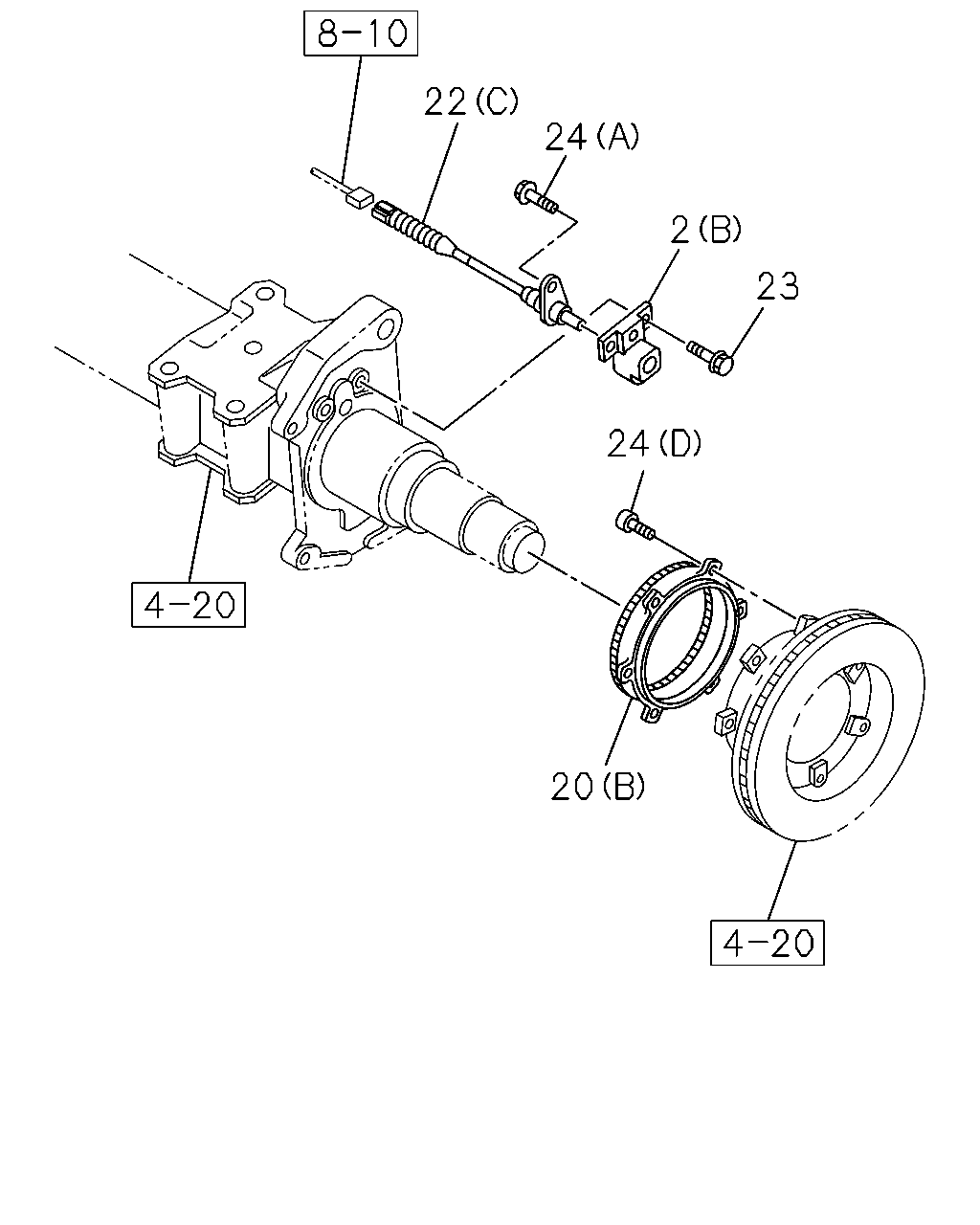

çizim 327778
22 2 24 23 24 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98045-222-0 02 1 1301-1308 ●
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98045-222-0 02 1 1309- ● ●
2 04.730 BRACKET; SENSOR
(A) 		8-98000-019-2 02 1 1009-1212 ● ●
2 04.730 BRACKET; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98000-019-2 02 1 1301-1308 ●
2 04.730 BRACKET; SENSOR
(A) 		8-98000-019-2 02 1 1301-1308 ●
2 04.730 BRACKET; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98000-019-2 02 1 1309- ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-98187-136-0 02 1 1301-1308 ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-98187-136-0 02 1 1309-1511 ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98312-785-0 02 1 1512- ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1009-1212 ● ●
20 04.710 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97234-459-3 02 1 1301-1308 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1301-1308 ●
20 04.710 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97234-459-3 02 1 1309- ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98244-877-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1009-1212 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97388-899-1 02 1 1301-1308 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1301-1308 ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97388-899-1 02 1 1309-1401 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98219-351-0 02 1 1402- ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.811 (B) 		8-98001-470-1 01 1 1009- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 05.811 (B) 		8-98001-471-2 01 1 1009- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 1301-1308 ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 1309- ● ●
23 04.710 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 1301-1308 ●
23 04.710 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 1309- ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1009-1401 ● ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 04.730 BOLT; SENSOR
02.343 (B) M8X12 FLANGE 		0-28050-812-0 04 1 1009- ● ●
24 04.730 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 02 1 1009-1409 ● ●
24 04.730 BOLT; SENSOR
04.686 (C) M6X14 FLANGE 		0-28080-614-0 02 1 1410- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 00.349 (D) M6X10 HEX SOCKET 		0-58330-610-0 12 1 1301-1303 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (D) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1304-1308 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (D) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1309- ● ●
