3-05 — REAR WHEEL BRAKE (#78140) — 142 parça

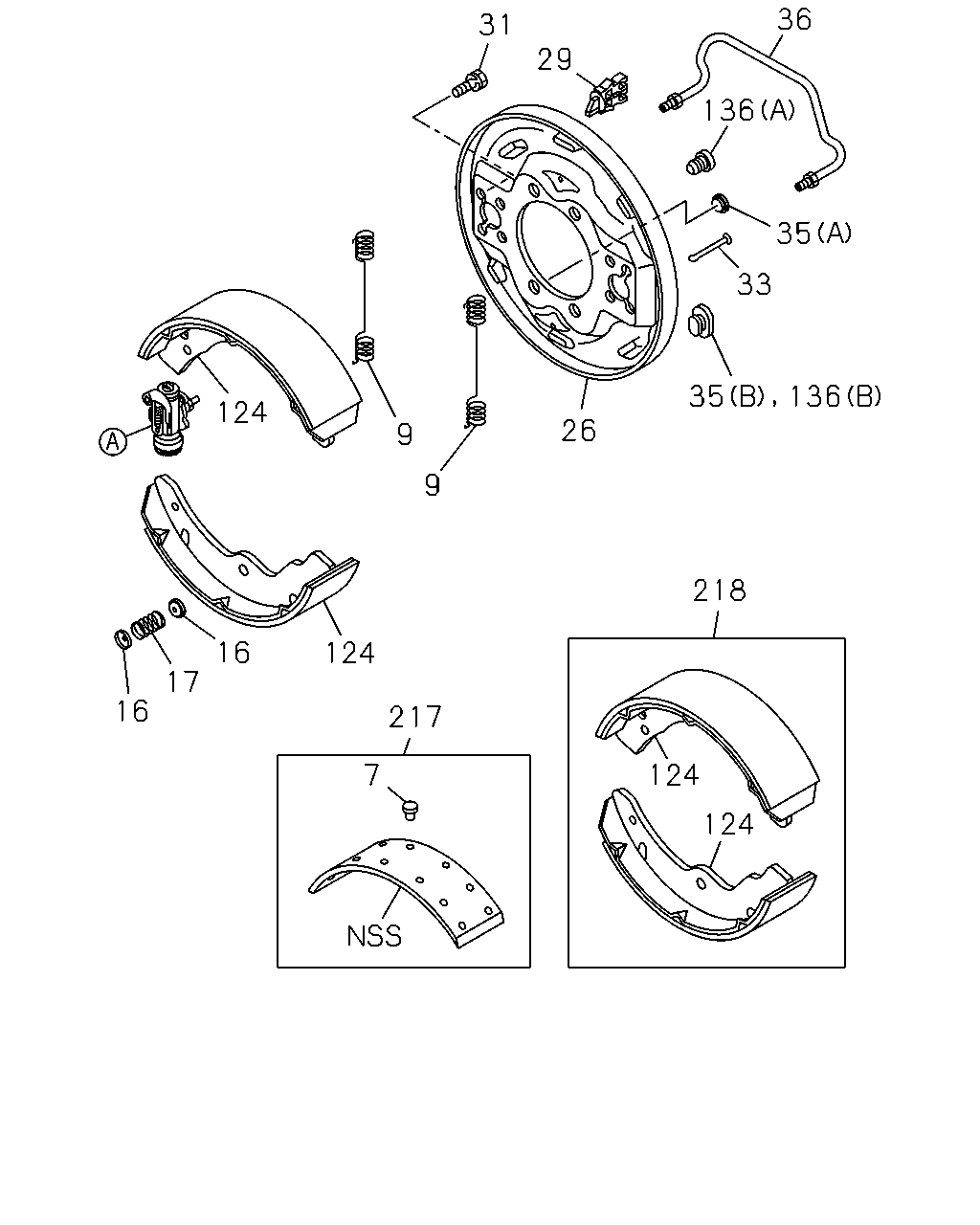

124 124 218 136 35 33 35 36 136 29 31 26 9 9 124 16 17 16 124 217 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	48	1	1009-1308	●
7	05.019 RIVET; LINING,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	1-09732-029-0	48	1	1309-	●
9	05.026 SPRING; RETURN,BRK SHOE	8-97191-707-0	04	1	1009-1212		●
9	05.026 SPRING; RETURN,BRK SHOE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-707-0	04	1	1301-		●
9	05.026 SPRING; RETURN,BRK SHOE	8-97022-087-0	04	1	1009-1308	●
9	05.026 SPRING; RETURN,BRK SHOE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97022-087-0	04	1	1309-	●
16	05.043 CUP; SHOE HOLDING	8-97191-712-0	08	1	1009-1212		●
16	05.043 CUP; SHOE HOLDING EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-712-0	08	1	1301-		●
16	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	1009-1308	●
16	05.043 CUP; SHOE HOLDING EXC. 4 WHEEL DISC BRAKE<JF9>	9-47165-096-0	08	1	1309-	●
17	04.043 SPRING; SHOE HOLD DOWN	8-97191-708-0	04	1	1009-1212		●
17	04.043 SPRING; SHOE HOLD DOWN EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-708-0	04	1	1301-		●
17	04.043 SPRING; SHOE HOLD DOWN 05.043	5-09580-101-1	04	1	1009-1308	●
17	04.043 SPRING; SHOE HOLD DOWN EXC. 4 WHEEL DISC BRAKE<JF9> 05.043	5-09580-101-1	04	1	1309-	●
26	05.001 PLATE; BACK,RR BRK	8-97191-698-0	01	1	1009-1212		●
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-698-0	01	1	1301-		●
26	05.001 PLATE; BACK,RR BRK	8-97191-699-0	01	1	1009-1212		●
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-699-0	01	1	1301-		●
26	05.001 PLATE; BACK,RR BRK	8-97192-080-0	01	1	1009-1308	●
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97192-080-0	01	1	1309-	●
26	05.001 PLATE; BACK,RR BRK	8-97192-081-0	01	1	1009-1308	●
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97192-081-0	01	1	1309-	●
29	04.685 CLIP; PIPE,BRK	8-97191-703-0	02	1	1009-1212		●
29	04.685 CLIP; PIPE,BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-703-0	02	1	1301-		●
29	04.685 CLIP; PIPE,BRK	8-97022-086-0	02	1	1009-1308	●
29	04.685 CLIP; PIPE,BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97022-086-0	02	1	1309-	●
31	04.665 BOLT; RR WHEEL CYL	8-97191-714-0	16	1	1009-1212		●
31	04.665 BOLT; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-714-0	16	1	1301-		●
31	04.665 BOLT; RR WHEEL CYL	8-97081-305-0	16	1	1009-1308	●
31	04.665 BOLT; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97081-305-0	16	1	1309-	●
33	05.043 PIN; SHOE HOLD DOWN	8-97191-711-0	04	1	1009-1212		●
33	05.043 PIN; SHOE HOLD DOWN EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-711-0	04	1	1301-		●
33	05.043 PIN; SHOE HOLD DOWN	8-97022-089-0	04	1	1009-1308	●
33	05.043 PIN; SHOE HOLD DOWN EXC. 4 WHEEL DISC BRAKE<JF9>	8-97022-089-0	04	1	1309-	●
35	05.002 GROMMET; CHECK HOLE (A)	8-97191-720-0	02	1	1009-1212		●
35	05.002 GROMMET; CHECK HOLE EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97191-720-0	02	1	1301-		●
35	05.002 GROMMET; CHECK HOLE (B)	8-97017-507-0	02	1	1009-1308	●
35	05.002 GROMMET; CHECK HOLE EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97017-507-0	02	1	1309-	●
36	04.685 PIPE; OIL,RR BRK	8-97191-702-0	02	1	1009-1212		●
36	04.685 PIPE; OIL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-702-0	02	1	1301-		●
36	04.685 PIPE; OIL,RR BRK	8-97192-215-0	02	1	1009-1308	●
36	04.685 PIPE; OIL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97192-215-0	02	1	1309-	●
124	05.017 SHOE ASM; BRK,RR	8-97331-932-0	04	1	1009-1212		●
124	05.017 SHOE ASM; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-97331-932-0	04	1	1301-		●
124	05.017 SHOE ASM; BRK,RR	8-97201-061-0	04	1	1009-1308	●
124	05.017 SHOE ASM; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-97201-061-0	04	1	1309-	●
136	05.002 GROMMET (B)	8-97191-718-0	08	1	1009-1212		●
136	05.002 GROMMET EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97191-718-0	08	1	1301-		●
136	05.002 GROMMET 04.670 (A)	1-47154-008-0	04	1	1009-1308	●
136	05.002 GROMMET EXC. 4 WHEEL DISC BRAKE<JF9> 04.670 (A)	1-47154-008-0	04	1	1309-	●
136	05.002 GROMMET (B)	8-97017-507-0	04	1	1009-1308	●
136	05.002 GROMMET EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97017-507-0	04	1	1309-	●
217	05.018 LINING KIT; RR BRK	5-87831-774-0	01	1	1009-1308	●
217	05.018 LINING KIT; RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-774-0	01	1	1309-	●
217	05.018 LINING KIT; RR BRK BEST VALUE PARTS	5-87610-120-0	01	1	1009-1308	●
217	05.018 LINING KIT; RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS	5-87610-120-0	01	1	1309-	●
218	05.017 SHOE KIT; BRK,RR	5-87832-044-0	01	1	1009-1212		●
218	05.017 SHOE KIT; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	5-87832-044-0	01	1	1301-		●
218	05.017 SHOE KIT; BRK,RR	5-87831-775-0	01	1	1009-1308	●
218	05.017 SHOE KIT; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-775-0	01	1	1309-	●

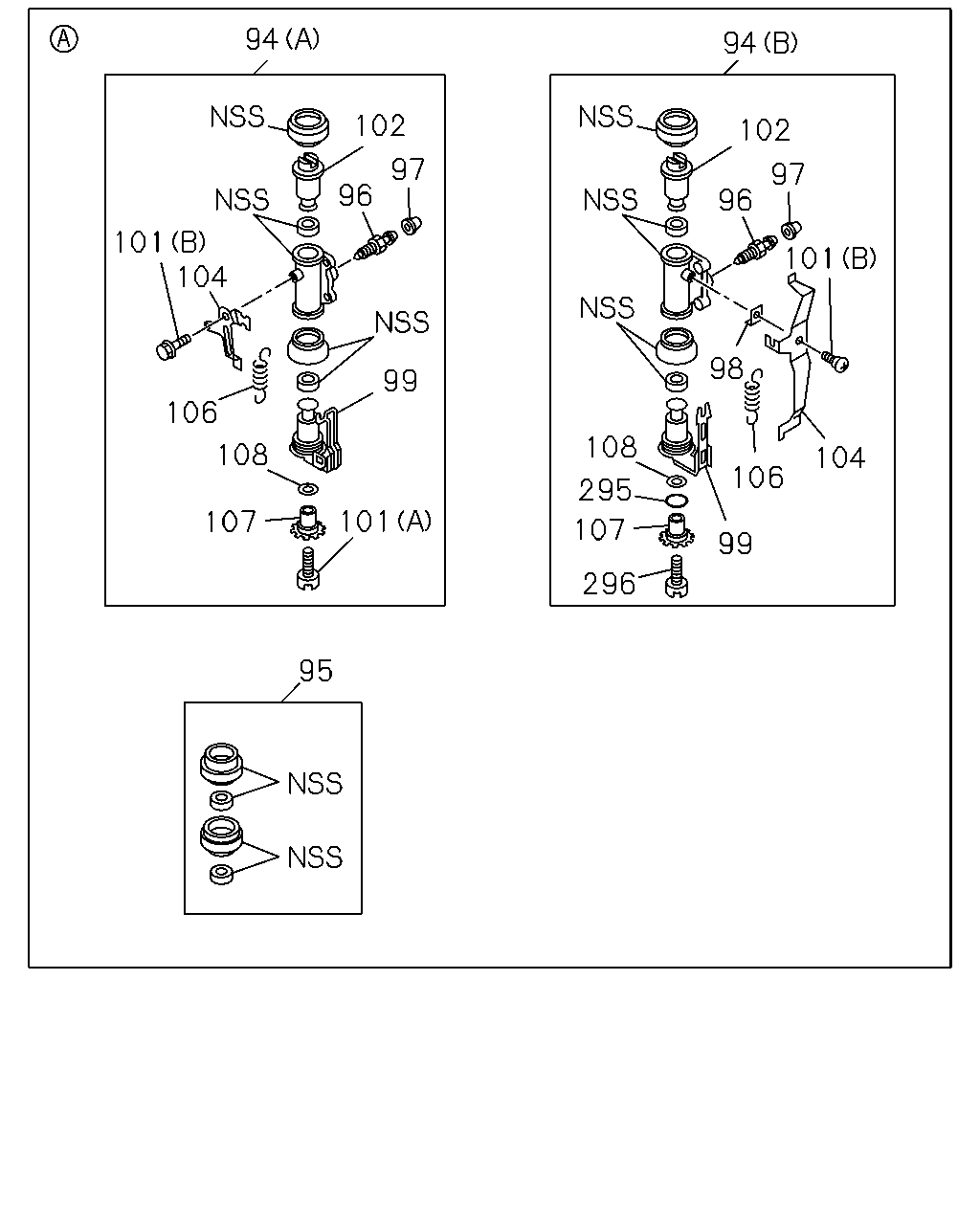

95 296 107 295 108 106 99 104 101 98 96 97 102 94 102 97 96 99 101 107 108 106 104 101 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-97191-497-0	01	1	1009-1212		●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT	8-97191-497-0	01	1	1301-		●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-97191-499-0	01	1	1009-1212		●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR	8-97191-499-0	01	1	1301-		●
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-97191-501-0	01	1	1009-1212		●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT	8-97191-501-0	01	1	1301-		●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-97191-502-0	01	1	1009-1212		●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR	8-97191-502-0	01	1	1301-		●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-705-0	01	1	1009-1308	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-705-0	01	1	1309-	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-706-0	01	1	1009-1308	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-706-0	01	1	1309-	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-707-0	01	1	1009-1308	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-707-0	01	1	1309-	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-708-0	01	1	1009-1308	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-708-0	01	1	1309-	●
95	04.665 CUP SET; RR WHEEL CYL	5-87831-781-0	01	1	1009-1212		●
95	04.665 CUP SET; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-781-0	01	1	1301-		●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-070-0	01	1	1009-1308	●
95	04.665 CUP SET; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	5-87832-070-0	01	1	1309-	●
96	04.666 SCREW; BLEEDER,RR BRK	8-97191-759-0	02	1	1009-1212		●
96	04.666 SCREW; BLEEDER,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-759-0	02	1	1301-		●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-476-0	02	1	1009-1308	●
96	04.666 SCREW; BLEEDER,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-476-0	02	1	1309-	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-97191-774-0	02	1	1009-1212		●
97	04.666 CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-774-0	02	1	1301-		●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	02	1	1009-1308	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-479-0	02	1	1309-	●
98	04.669 SPRING; RR WHEEL CYL	8-97191-768-0	04	1	1009-1212		●
98	04.669 SPRING; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-768-0	04	1	1301-		●
99	04.668 PISTON; RR WHEEL CYL	8-97191-731-0	02	1	1009-1212		●
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-731-0	02	1	1301-		●
99	04.668 PISTON; RR WHEEL CYL	8-97191-732-0	02	1	1009-1212		●
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-732-0	02	1	1301-		●
99	04.668 PISTON; RR WHEEL CYL	8-97349-729-0	02	1	1009-1308	●
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-729-0	02	1	1309-	●
99	04.668 PISTON; RR WHEEL CYL	8-97349-730-0	02	1	1009-1308	●
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-730-0	02	1	1309-	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (B)	8-97191-770-0	04	1	1009-1212		●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97191-770-0	04	1	1301-		●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	1009-1308	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97349-741-0	02	1	1309-	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	1009-1308	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97349-742-0	02	1	1309-	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	1009-1308	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97349-747-0	04	1	1309-	●
102	04.668 PISTON; REAR WHEEL CYL	8-97191-755-0	04	1	1009-1212		●
102	04.668 PISTON; REAR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-755-0	04	1	1301-		●
102	04.668 PISTON; REAR WHEEL CYL	8-97078-045-0	04	1	1009-1308	●
102	04.668 PISTON; REAR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97078-045-0	04	1	1309-	●
104	05.103 LEVER; ADJ	8-97191-739-0	02	1	1009-1212		●
104	05.103 LEVER; ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-739-0	02	1	1301-		●
104	05.103 LEVER; ADJ	8-97191-740-0	02	1	1009-1212		●
104	05.103 LEVER; ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-740-0	02	1	1301-		●
104	05.103 LEVER; ADJ	8-97349-743-0	02	1	1009-1308	●
104	05.103 LEVER; ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-743-0	02	1	1309-	●
104	05.103 LEVER; ADJ	8-97349-744-0	02	1	1009-1308	●
104	05.103 LEVER; ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-744-0	02	1	1309-	●
106	05.107 SPRING; ADJ LEVER	8-97191-743-0	02	1	1009-1212		●
106	05.107 SPRING; ADJ LEVER EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-743-0	02	1	1301-		●
106	05.107 SPRING; ADJ LEVER	8-97191-744-0	02	1	1009-1212		●
106	05.107 SPRING; ADJ LEVER EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-744-0	02	1	1301-		●
106	05.107 SPRING; ADJ LEVER	8-97349-745-0	04	1	1009-1308	●
106	05.107 SPRING; ADJ LEVER EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-745-0	04	1	1309-	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97191-747-0	02	1	1009-1212		●
107	05.110 GEAR; ADJ,RR W/CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-747-0	02	1	1301-		●
107	05.110 GEAR; ADJ,RR W/CYL	8-97191-748-0	02	1	1009-1212		●
107	05.110 GEAR; ADJ,RR W/CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-748-0	02	1	1301-		●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-738-0	02	1	1009-1308	●
107	05.110 GEAR; ADJ,RR W/CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-738-0	02	1	1309-	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-740-0	02	1	1009-1308	●
107	05.110 GEAR; ADJ,RR W/CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-740-0	02	1	1309-	●
108	05.110 WASHER; THRUST,GEAR ADJ	8-97191-762-0	04	1	1009-1212		●
108	05.110 WASHER; THRUST,GEAR ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-762-0	04	1	1301-		●
108	05.110 WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	1009-1308	●
108	05.110 WASHER; THRUST,GEAR ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-736-0	04	1	1309-	●
295	05.110 SEAL; DUST	8-97191-751-0	04	1	1009-1212		●
295	05.110 SEAL; DUST EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-751-0	04	1	1301-		●
296	05.125 BOLT; ADJ,RR WHEEL CYL	8-97191-764-0	02	1	1009-1212		●
296	05.125 BOLT; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-764-0	02	1	1301-		●
296	05.125 BOLT; ADJ,RR WHEEL CYL	8-97191-765-0	02	1	1009-1212		●
296	05.125 BOLT; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97191-765-0	02	1	1301-		●
