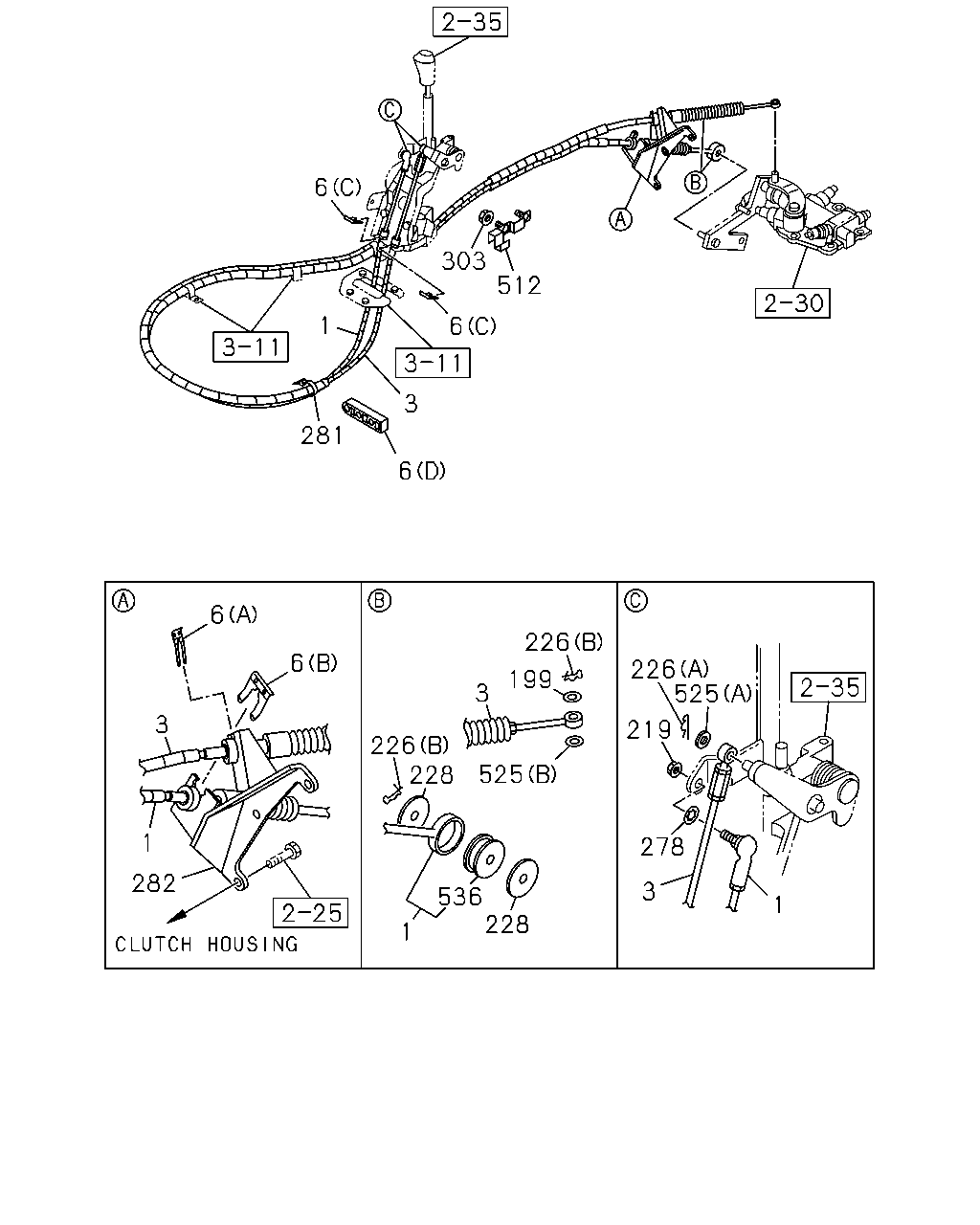

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#78133) — 23 parça

3 1 278 219 226 525 228 536 1 525 228 226 3 226 199 6 6 3 282 1 6 281 3 1 512 6 303 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2955	8-98146-815-1	01	1	1009-1106	●	●
1	00.854 CABLE; SHIFT,TRANS CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2955	8-98164-353-1	01	1	1107-1411	●	●
1	00.854 CABLE; SHIFT,TRANS CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2955	8-98292-916-0	01	1	1412-	●	●
3	00.852 CABLE; SELECT,TRANS CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3035	8-98001-087-2	01	1	1009-1106	●	●
3	00.852 CABLE; SELECT,TRANS CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3035	8-98164-362-1	01	1	1107-1411	●	●
3	00.852 CABLE; SELECT,TRANS CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3035	8-98283-986-0	01	1	1412-	●	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 04.008 (D)	8-97093-491-1	01	1	1009-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (A) ID=22.2	1-09701-209-1	01	1	1009-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2	8-97211-011-0	01	1	1009-	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97011-448-0	02	1	1009-	●	●
199	04.012 WASHER; PL,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1009-	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0	8-94363-045-0	01	1	1009-	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7	8-94111-137-0	01	1	1009-	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23	8-94170-378-0	02	1	1009-	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.2 OD=40	8-97182-975-0	02	1	1009-	●	●
278	00.854 WASHER; LK,SHIFT WIRE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	1009-	●	●
281	04.042 CLIP; BAND EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140	5-09707-031-1	01	1	1009-	●	●
282	04.010 BRACKET; TRANS SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97350-449-0	01	1	1009-	●	●
303	00.855 NUT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
512	04.012 GUIDE; CABLE,GEAR CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98111-916-0	01	1	1009-	●	●
525	04.047 WASHER; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1009-	●	●
525	04.047 WASHER; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1009-	●	●
536	00.854 DAMPER; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98097-681-0	01	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
