10808 - FRR-G/FSR/FTR TAIWAN
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#7812) — 61 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
◀
[060A] STARTER,GENERATOR FIXING (29 parça)
[060A] CHASSIS FRONT SIDE (12 parça)
[060A] CYLINDER AND CAB REAR MEMBER SIDE (14 parça)
[060A] INSIDE (6 parça)
▶

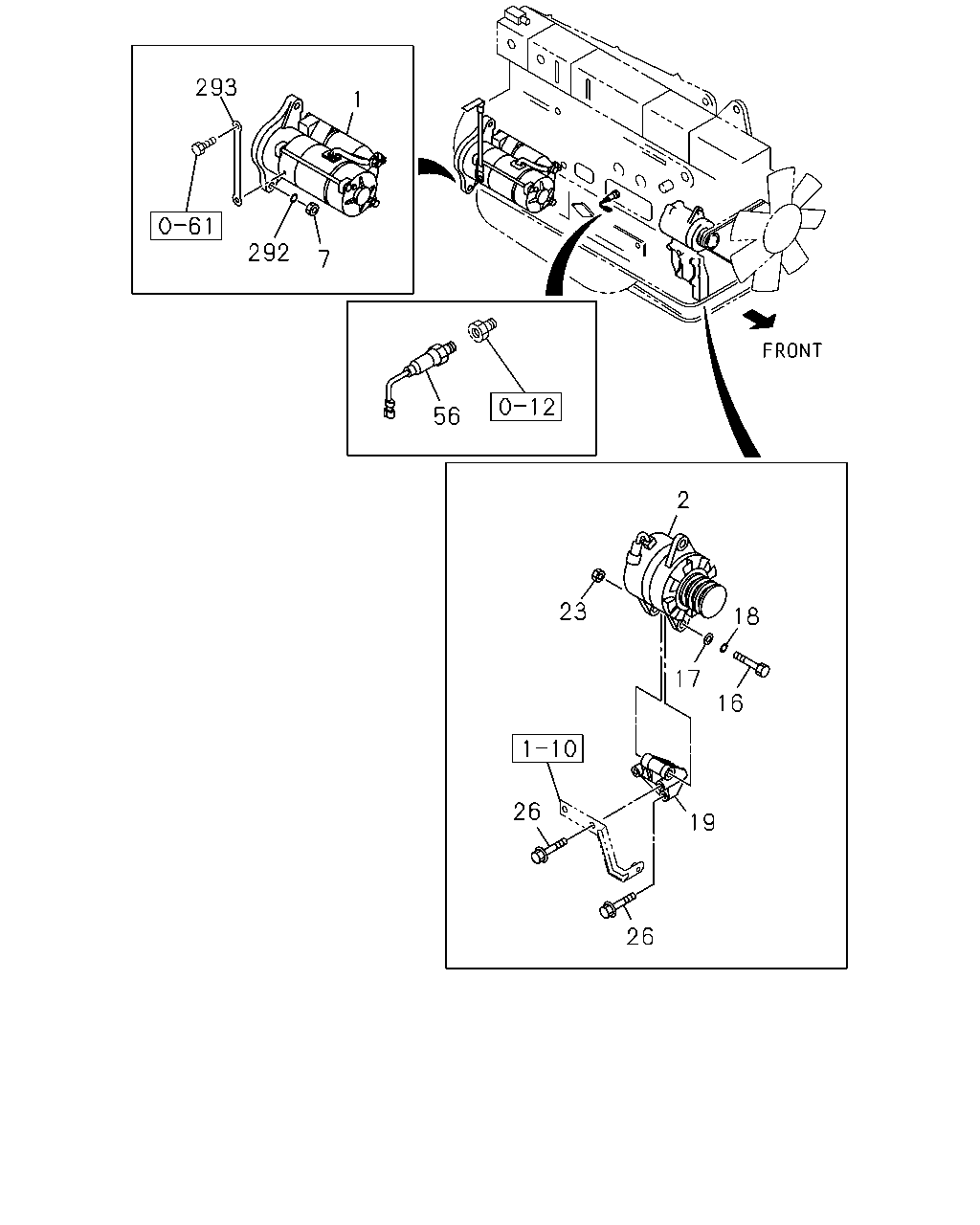

293
1
292
7
56
2
23
18
17
16
26
19
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
1-81100-319-1
01
1
9905-0002
●
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
1-81100-414-2
01
1
0003-0609
●
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98060-854-0
01
1
0610-
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-416-4
01
1
9905-
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI
1-81200-521-0
01
1
9905-9905
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI
1-81200-577-0
01
1
9906-9907
●
●
7
NUT; STARTER
M14
9-99110-414-0
02
1
9905-0512
●
●
7
NUT; STARTER
M14
0-91110-514-0
02
1
0601-
●
●
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
9905-
●
●
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
9905-0605
●
●
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
●
●
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
9905-0603
●
●
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0604-
●
●
19
BRACKET; GEN
8-94396-297-0
01
1
9905-0112
●
●
19
BRACKET; GEN
8-97602-318-0
01
1
0201-
●
●
23
NUT; GEN
M14
9-99110-414-0
01
1
9905-0512
●
●
23
NUT; GEN
M14
0-91110-514-0
01
1
0601-
●
●
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28181-040-0
01
1
9905-0512
●
●
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
01
1
0601-
●
●
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28181-080-0
02
1
9905-0512
●
●
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28151-080-0
02
1
0601-
●
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
9905-
●
●
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
9905-0603
●
●
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0604-
●
●
293
CABLE; STARTER EARTH
FTR(FT****) L=350
1-82650-266-0
01
1
0302-
●
293
CABLE; STARTER EARTH
L=350
1-82650-266-0
01
1
9905-9910
●
●
293
CABLE; STARTER EARTH
L=320
1-82650-324-0
01
1
9911-0301
●
●
293
CABLE; STARTER EARTH
FRR(FR****) FSR(FS****) L=320
1-82650-324-0
01
1
0302-
●
293
CABLE; STARTER EARTH
L=320
1-82650-324-0
01
1
0302-
●

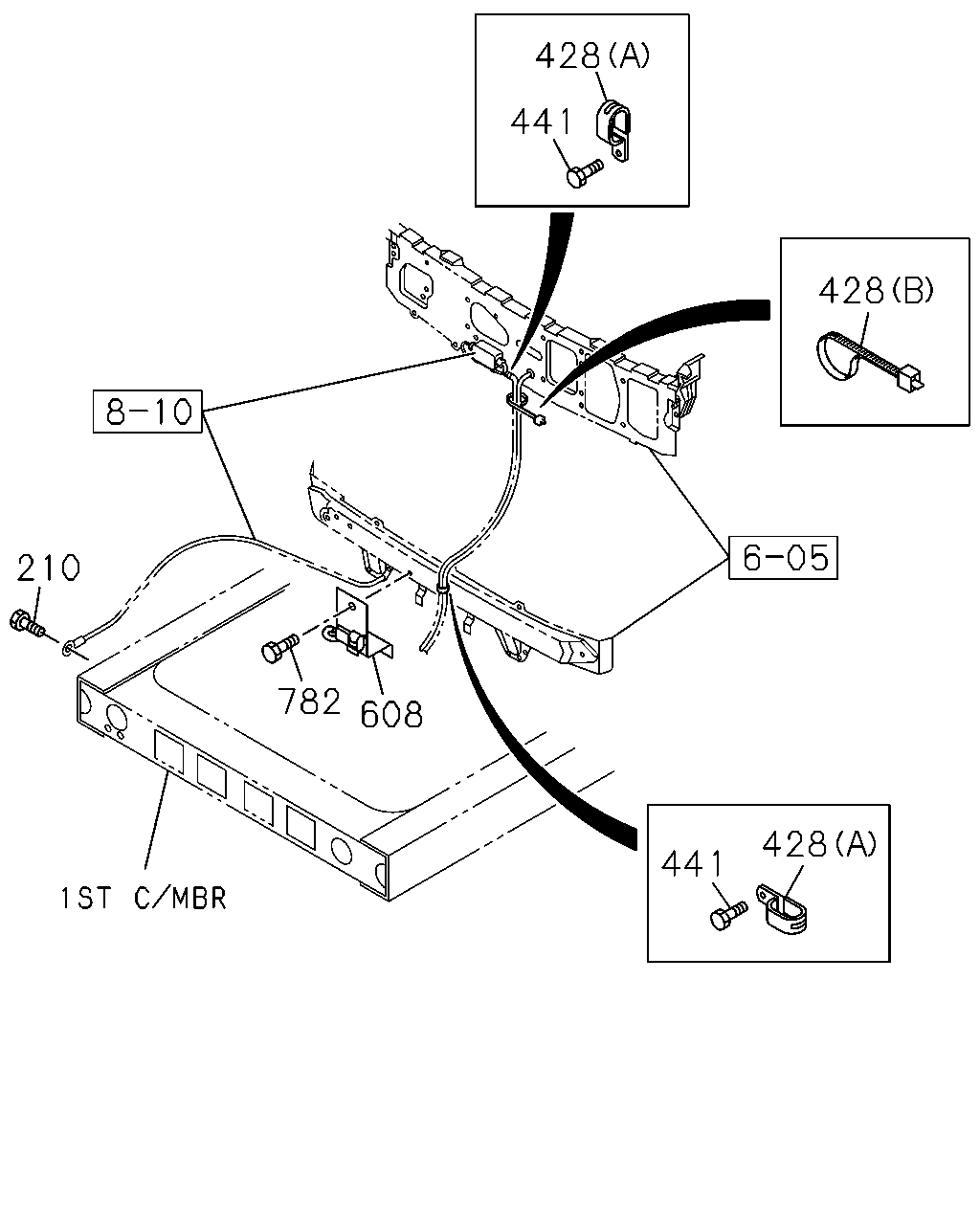

428
441
428
210
782
608
428
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
210
BOLT; CABLE FIX
M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
9905-9907
●
●
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
9908-
●
●
428
CLIP; HARNESS
(A) ID=35 L=50
1-09701-214-0
02
1
9905-
●
●
428
CLIP; HARNESS
(B) L=300
1-09707-001-1
07
1
9905-0301
●
●
428
CLIP; HARNESS
TRANS SIDE PTO WO/LVR(SH5) (B) L=300
1-09707-001-1
07
1
0302-
●
428
CLIP; HARNESS
TRANS FRT PTO(RC2) (B) L=300
1-09707-001-1
07
1
0302-
●
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
9905-0512
●
●
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
608
SENSOR; TEMP
1-83544-031-0
01
1
9905-0301
●
●
608
SENSOR; TEMP
TRANS SIDE PTO WO/LVR(SH5)
1-83544-031-0
01
1
0302-
●
608
SENSOR; TEMP
TRANS FRT PTO(RC2)
1-83544-031-0
01
1
0302-
●
782
BOLT; SENSOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
9905-
●
●

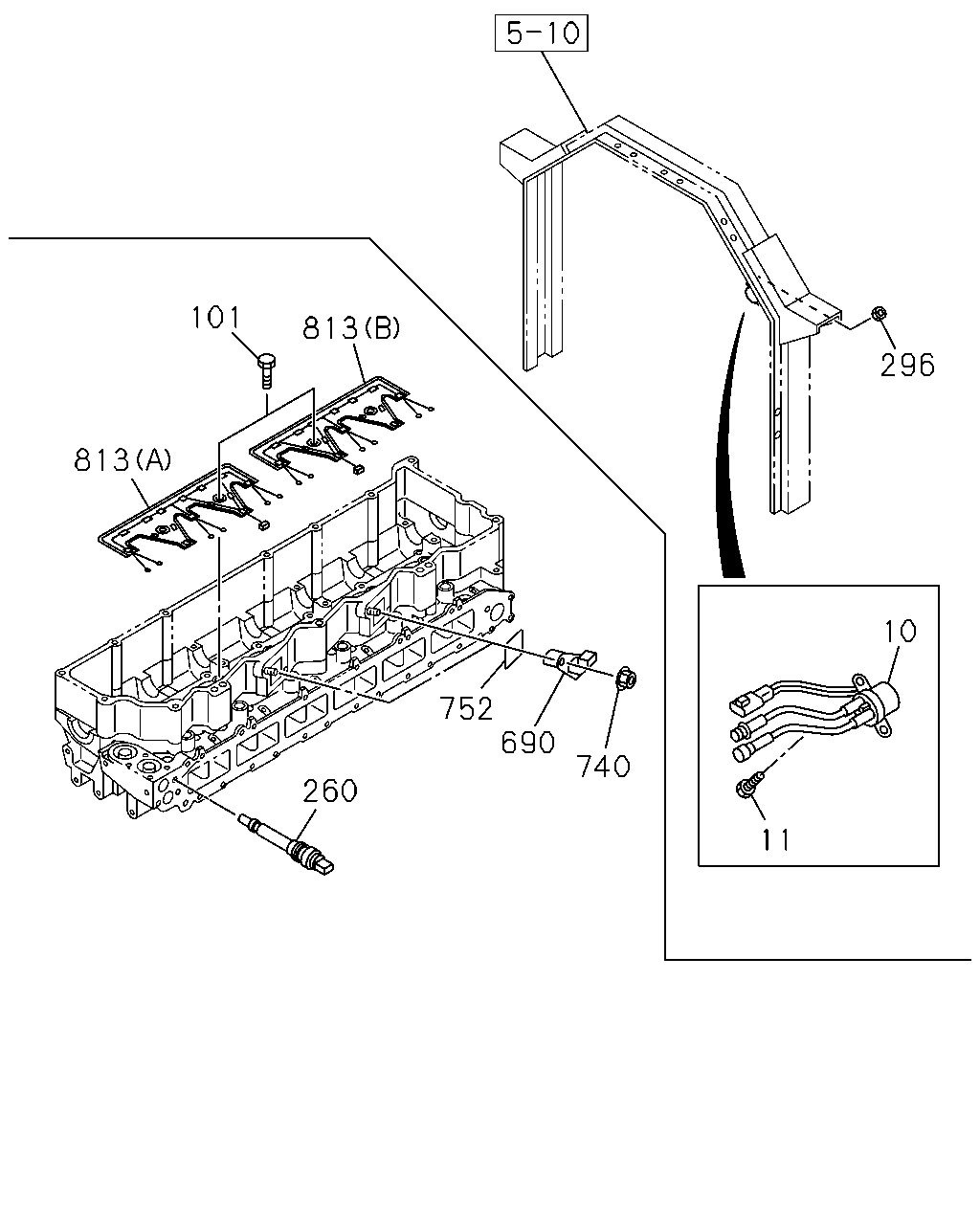

101
813
296
813
10
752
690
740
260
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
RELAY; STARTER
DENSO
1-81171-070-0
01
1
9905-
●
●
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28680-820-0
02
1
9905-0512
●
●
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
101
BOLT; HARNESS
M8X40 FLANGE
0-28680-840-0
04
1
9905-0512
●
●
101
BOLT; HARNESS
M8X40 FLANGE
0-28650-840-0
04
1
0601-
●
●
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
9905-
●
●
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
9905-0602
●
●
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
690
CONNECTOR
8-94390-858-1
02
1
9905-
●
●
740
NUT
M8 FLANGE
0-91150-108-0
04
1
9905-0602
●
●
740
NUT
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
9905-
●
●
813
HARNESS; INJECTOR
(A) FRONT
8-94391-302-3
01
1
9905-
●
●
813
HARNESS; INJECTOR
(B) REAR
8-94391-303-3
01
1
9905-
●
●

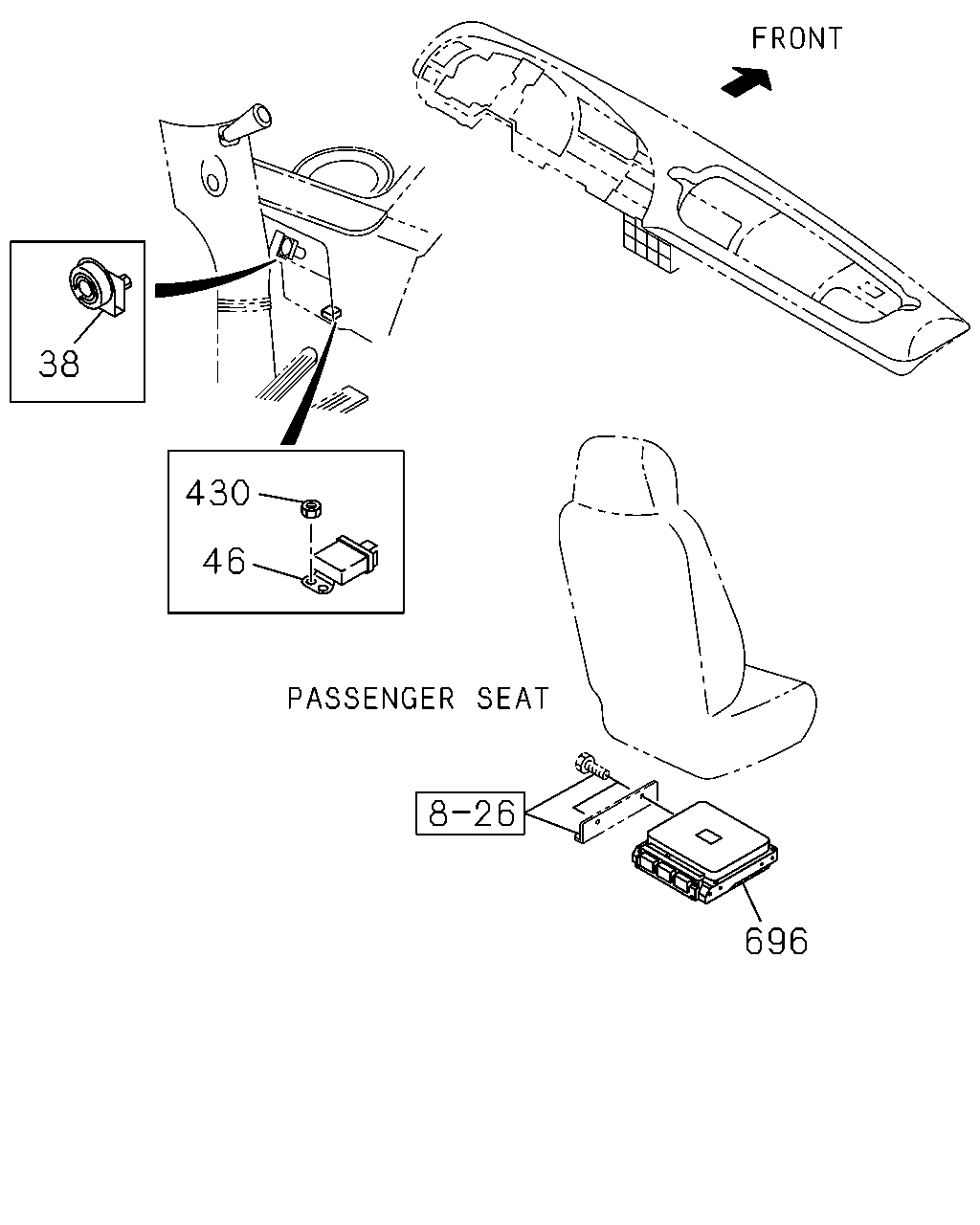

38
430
46
696
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
38
RESISTOR; CONT,GLOW PLUG
1-81402-008-0
01
1
9905-
●
●
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
9905-
●
●
430
NUT; RELAY FIX
M6 FLANGE
0-91150-106-0
01
1
9905-0602
●
●
430
NUT; RELAY FIX
M6 FLANGE
0-91180-106-0
01
1
0603-
●
●
696
CONTROL UNIT
8-94392-865-1
01
1
9905-
●
696
CONTROL UNIT
8-94392-866-1
01
1
9905-
●
