1-31 — AIR DUCT (#78114) — 63 parça

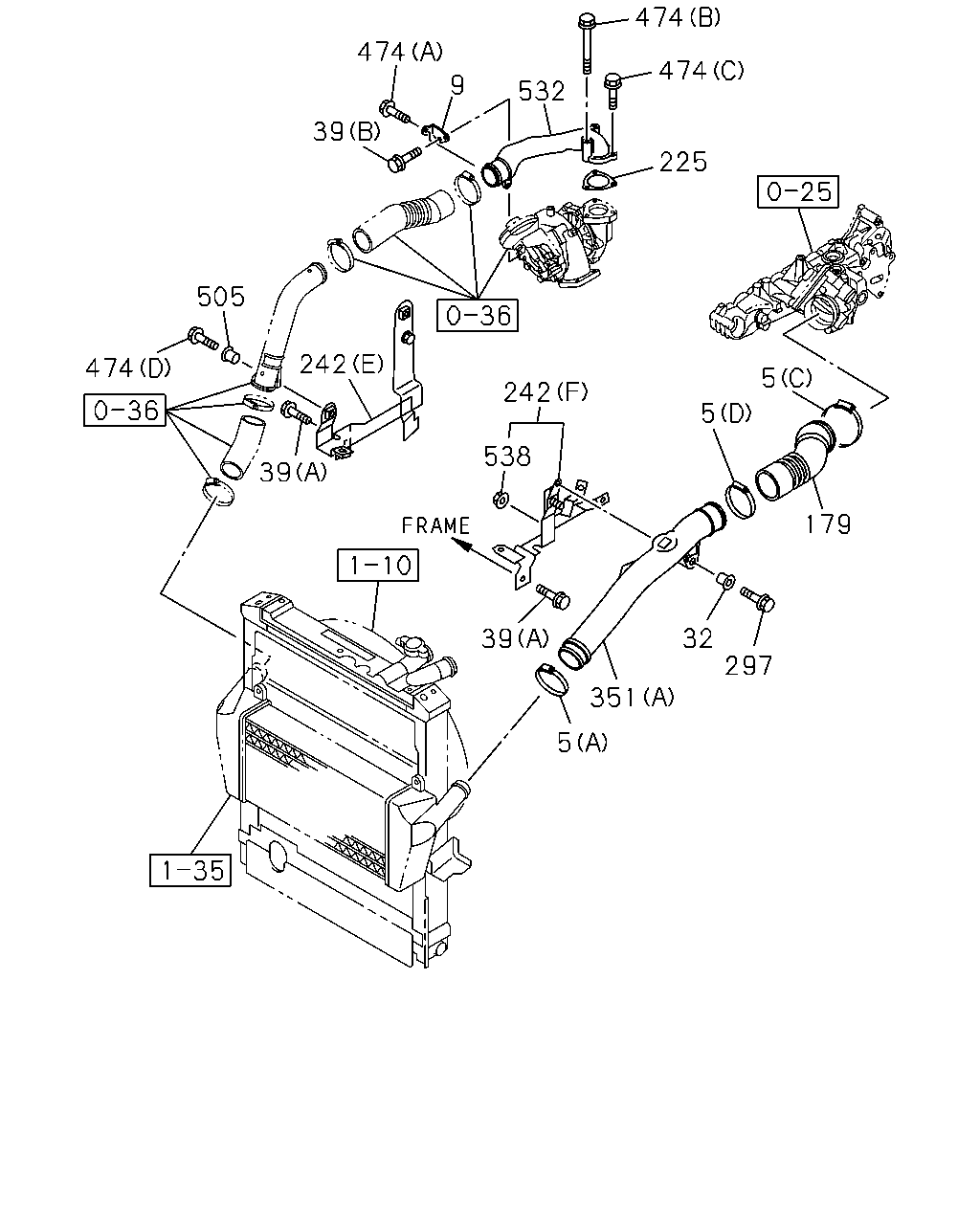

474 9 532 474 474 225 39 505 242 474 39 538 242 39 351 5 32 297 179 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (A) ID=58-79	1-09707-136-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=60-65	8-98096-418-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (C) ID=70-90	8-98122-372-0	01	1	1009-	●	●
9	03.417 BRACKET; INT PIPE	8-98009-086-0	01	1	1009-	●	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	1009-	●	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●	●
39	03.417 BOLT; BRKT 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1009-	●	●
179	03.417 HOSE; AIR INT	8-98050-920-2	01	1	1009-	●	●
225	03.417 GASKET; AIR PIPE 03.270 ID=47	8-97202-328-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-97384-140-3	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98108-313-1	01	1	1009-	●	●
297	03.417 BOLT; DUCT 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1009-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	1009-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1009-	●	●
474	03.417 BOLT; PIPE (B) M6X70 FLANGE	0-28050-670-0	02	1	1009-	●	●
474	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1009-	●	●
474	03.417 BOLT; PIPE 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1009-	●	●
474	03.417 BOLT; PIPE 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	1009-	●	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	1009-	●	●
532	03.417 PIPE; INTAKE	8-97385-203-1	01	1	1009-1303	●	●
532	03.417 PIPE; INTAKE	8-98237-771-1	01	1	1304-	●	●
538	03.417 NUT; PLATE,AIR DUCT 01.062 M6 FLANGE	0-91180-106-0	02	1	1009-	●	●

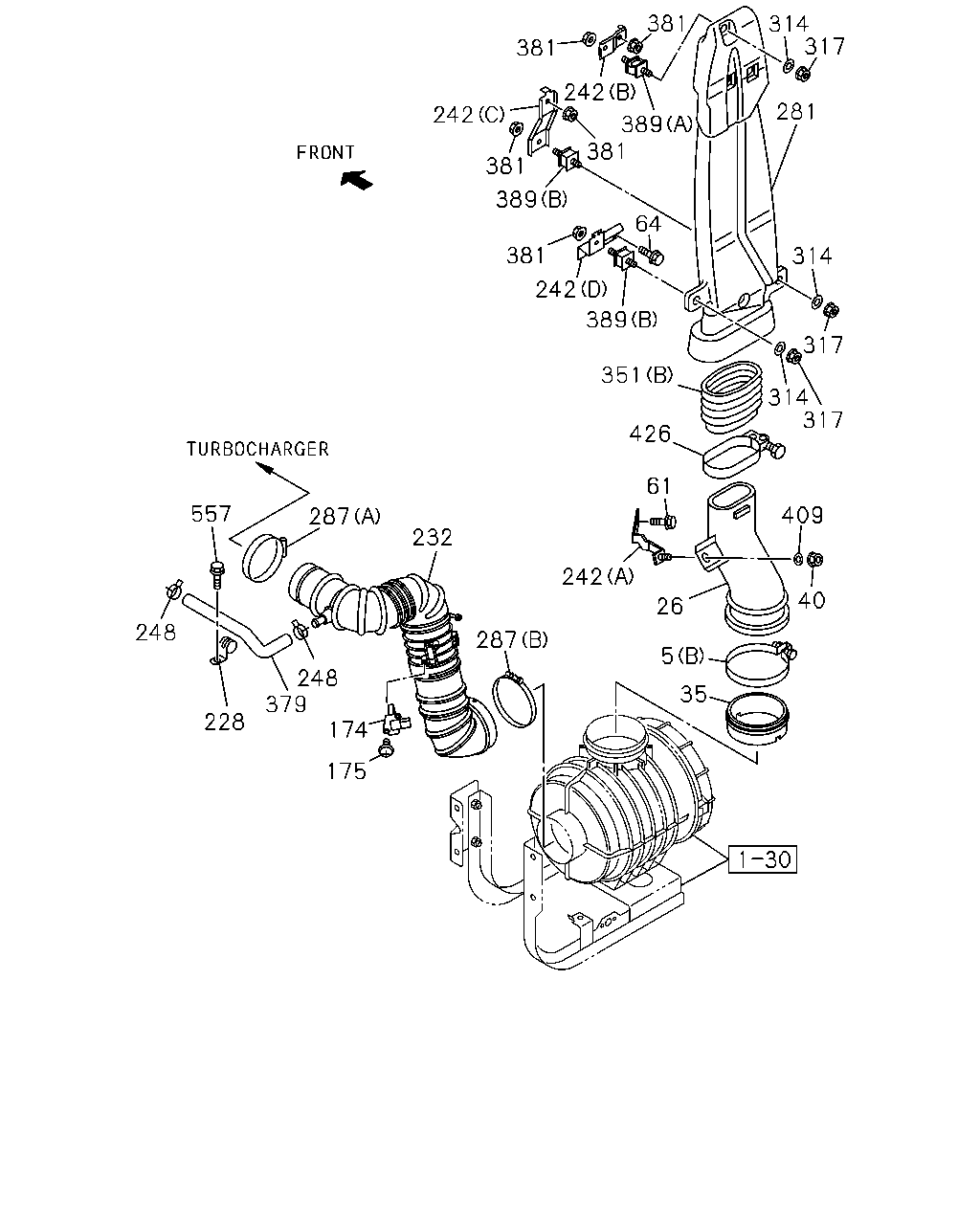

381 381 314 242 317 281 389 242 381 381 389 64 381 314 242 317 389 314 351 426 317 61 409 242 40 26 5 35 287 175 174 248 379 228 248 557 287 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (A) ID=58-79	1-09707-136-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=60-65	8-98096-418-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (C) ID=70-90	8-98122-372-0	01	1	1009-	●	●
26	03.417 DUCT; AIR INT	8-98023-339-0	01	1	1009-	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1009-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1009-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●
228	03.278 CLIP; PCV HOSE ID=24.5 H=29 L=25	8-98120-913-0	01	1	1009-	●	●
232	03.417 HOSE; CONN	8-98048-136-1	01	1	1009-1503	●	●
232	03.417 HOSE; CONN	8-98290-770-0	01	1	1504-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-97384-140-3	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98108-313-1	01	1	1009-	●	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1009-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	1009-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=70-90	8-98122-372-0	01	1	1009-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=117	9-09915-075-1	01	1	1009-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	1009-	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1009-	●	●
379	03.675 HOSE; RUBBER	8-98156-950-0	01	1	1009-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1009-	●	●
557	03.403 BOLT; HOSE CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1009-	●	●
