1-11 — RADIATOR HOSE AND SUB TANK (#78112) — 14 parça

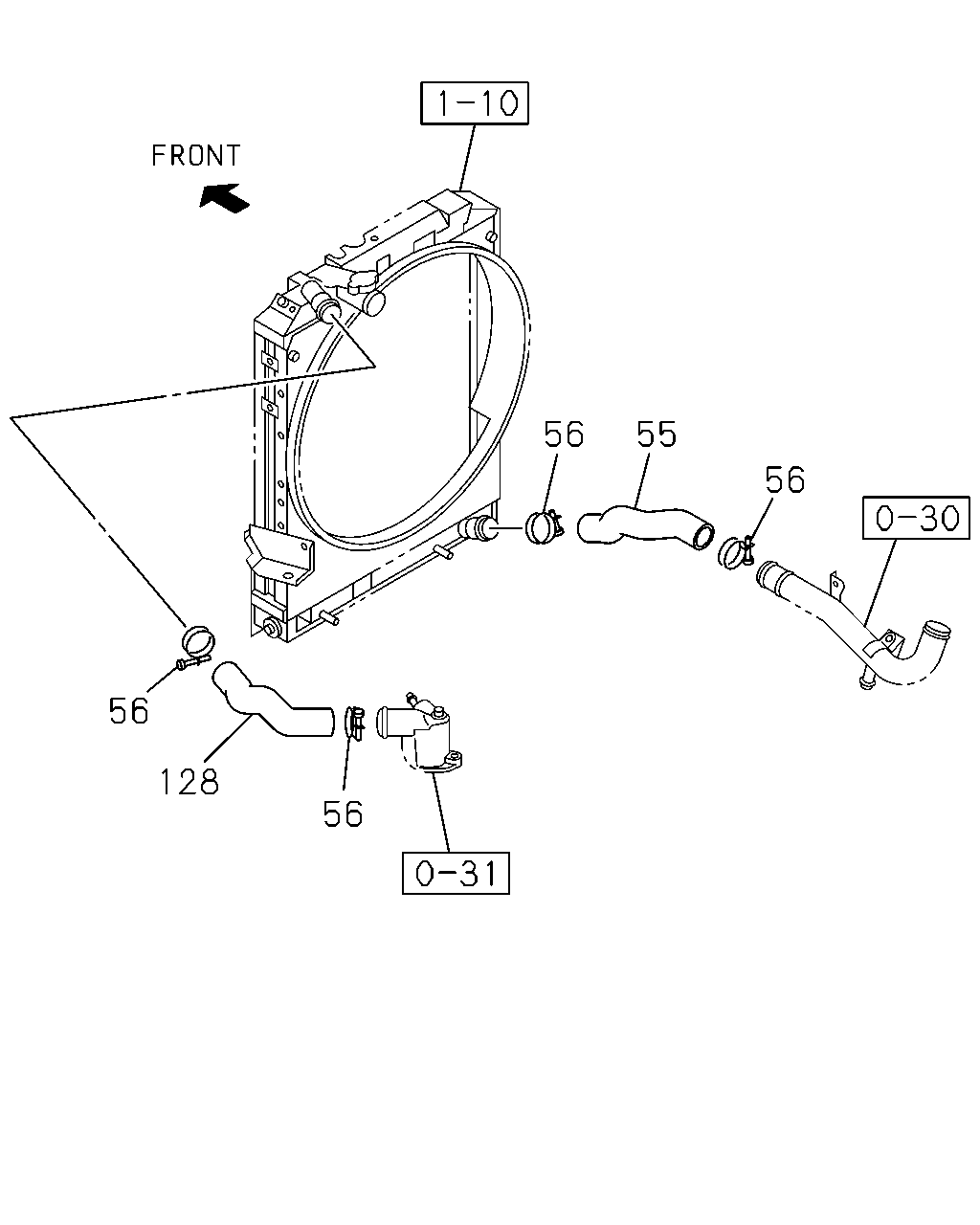

çizim 89522
56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B
55 01.173 HOSE; WATER,RAD OUTLET 8-97383-814-1 01 1 1009- ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 04 1 1009- ● ●
128 01.159 HOSE; WATER,RAD INL 8-97383-812-1 01 1 1009- ● ●

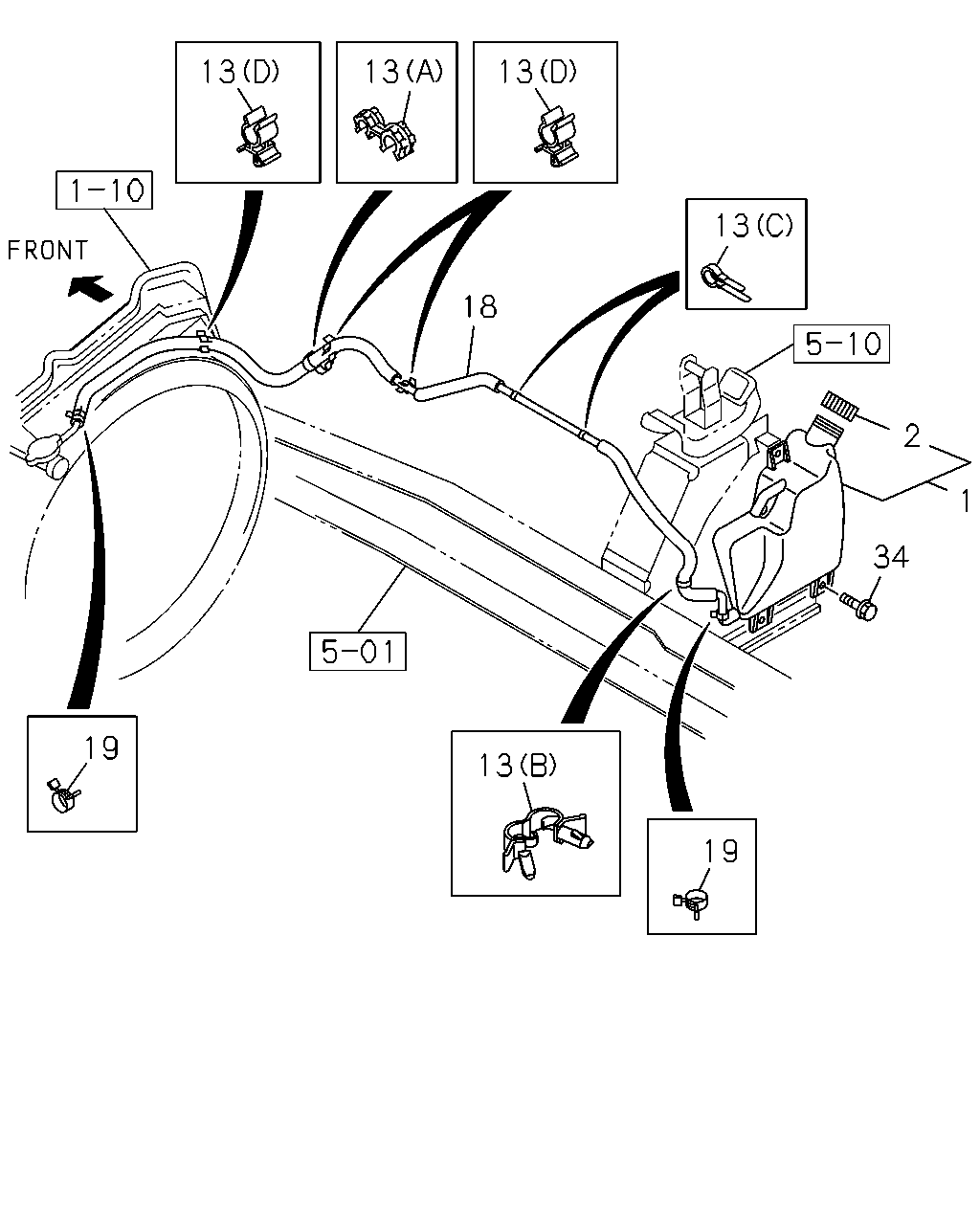

çizim 187096
1 2 34 19 13 19 13 13 13 13 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 TANK; SURGE,RAD 8-97387-632-1 01 1 1009-1010 ● ●
1 01.219 TANK; SURGE,RAD 8-98178-179-0 01 1 1011- ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 1009-1010 ● ●
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1011- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.162 (B) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 02 1 1009- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 1009- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 03 1 1009- ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-98065-255-0 01 1 1009- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 1009- ● ●
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 1009- ● ●
