0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#78107) — 15 parça

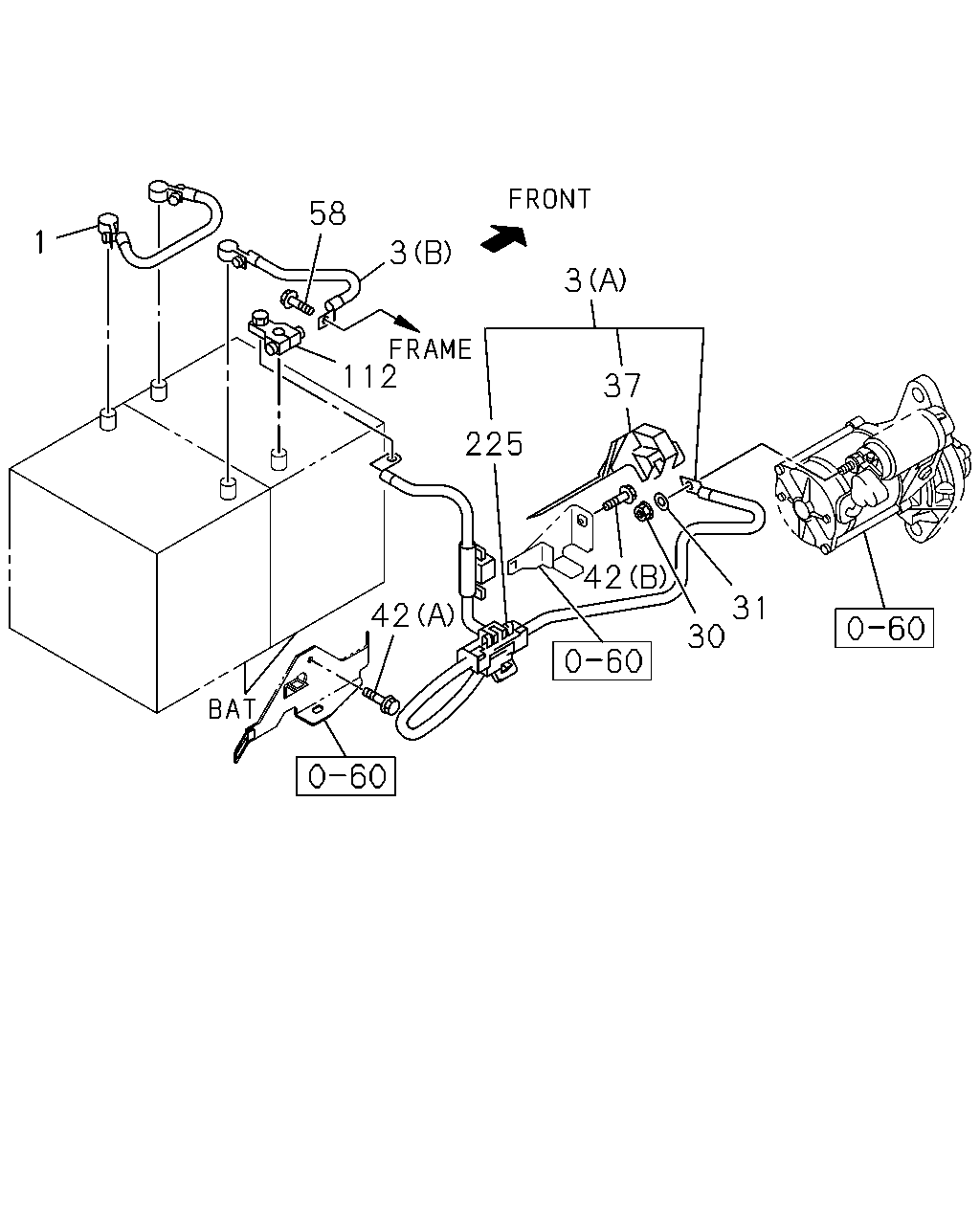

çizim 73031
1 58 3 3 37 31 30 42 225 112 42
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1009-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) (A) 		8-98048-439-3 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) (A) 		8-98293-886-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98136-986-2 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98294-703-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1009-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1009-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1009-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1009-
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2400MM(24W) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1009-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1009-
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1009-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1009-
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1009-1409
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410-
