Isuzu WW
▶
TRUCKS
▶
NLR
▶
51275 - NLR/NMR(85) AUST/NZ EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#78105) — 29 parça
◀

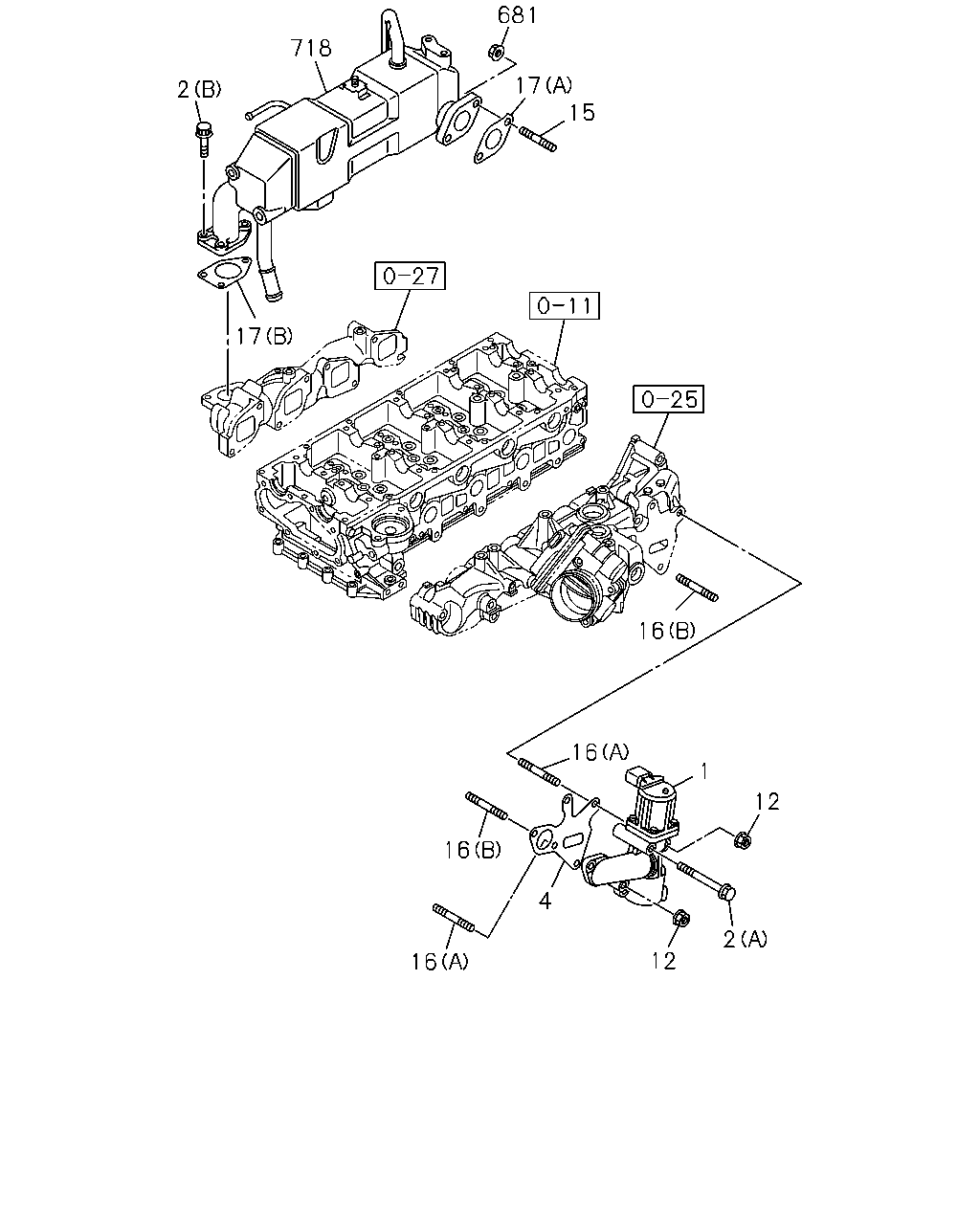

[057A] NO.1 (13 parça)
[057A] NO.2 (16 parça)
▶
16
16
1
12
2
12
4
16
16
17
2
718
681
17
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.670 VALVE; EGR
8-97381-560-7
01
1
1009-1403
1
03.670 VALVE; EGR
8-98238-259-1
01
1
1404-
2
03.670 BOLT; EGR VLV
01.252 (A) M8X80 FLANGE
0-28050-880-0
01
1
1009-
2
03.670 BOLT; EGR VLV
03.417 (B) M8X23 FLANGE
8-97378-077-0
03
1
1009-
4
03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98094-528-2
01
1
1009-
12
03.671 NUT; EGR VLV
01.540 M8 FLANGE
0-91180-208-0
04
1
1009-
15
03.670 STUD; EGR PIPE
03.275 M8X25 L=37
0-41010-825-0
02
1
1009-
16
03.275 STUD; EGR VLV
(B) M8X25 L=41
0-40210-825-0
02
1
1009-
16
03.275 STUD; EGR VLV
(A) M8X50 L=62
0-40210-850-0
02
1
1009-
17
03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97357-684-3
01
1
1009-
17
03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98063-284-1
01
1
1009-
681
03.671 NUT; EGR PIPE
01.540 M8 FLANGE
0-91180-208-0
02
1
1009-
718
03.337 COOLER; EGR
8-98063-283-8
01
1
1009-
73
194
73
747
779
752
753
472
73
194
82
194
738
667
697
271
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
03.680 CLIP; VAC HOSE
00.854 (A) ID=11.8 & 7.5
1-09709-182-0
01
1
1009-
73
03.680 CLIP; VAC HOSE
04.342 (B) ID=8.3 & 10
8-94176-792-0
01
1
1009-
73
03.680 CLIP; VAC HOSE
03.162 (C) ID=13.2 & 7.5
8-94315-426-0
01
1
1009-
82
03.680 JOINT; 3 WAY
3WAY
8-98045-385-0
01
1
1009-
194
03.675 HOSE; VAC
(A)
0-04420-270-0
01
1
1009-
194
03.675 HOSE; VAC
(B)
8-98085-688-0
01
1
1009-
194
03.675 HOSE; VAC
(C)
8-98107-557-0
01
1
1009-
271
03.675 BOLT; BRKT
02.343 M8X16 FLANGE
0-28050-816-0
01
1
1009-
472
03.671 BOLT; BRKT
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1009-
667
03.670 SENSOR; VAC
8-98044-520-0
01
1
1009-
697
03.680 BOLT; SENSOR
03.162 M6X20 FLANGE
0-28650-620-0
02
1
1009-
738
03.675 BRACKET; SENSOR,VAC
8-98044-607-0
01
1
1009-
747
03.671 NUT; VAC REG VALVE
01.062 M8 FLANGE
0-91180-108-0
02
1
1009-
752
03.670 VALVE; EVRV
8-98116-259-0
01
1
1009-
753
03.670 BRACKET; VALVE
8-97381-571-1
01
1
1009-
779
03.671 WASHER; VALVE
06.168 ID=8.4 OD=18
0-91610-608-0
02
1
1009-
