◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#7810) — 14 parça

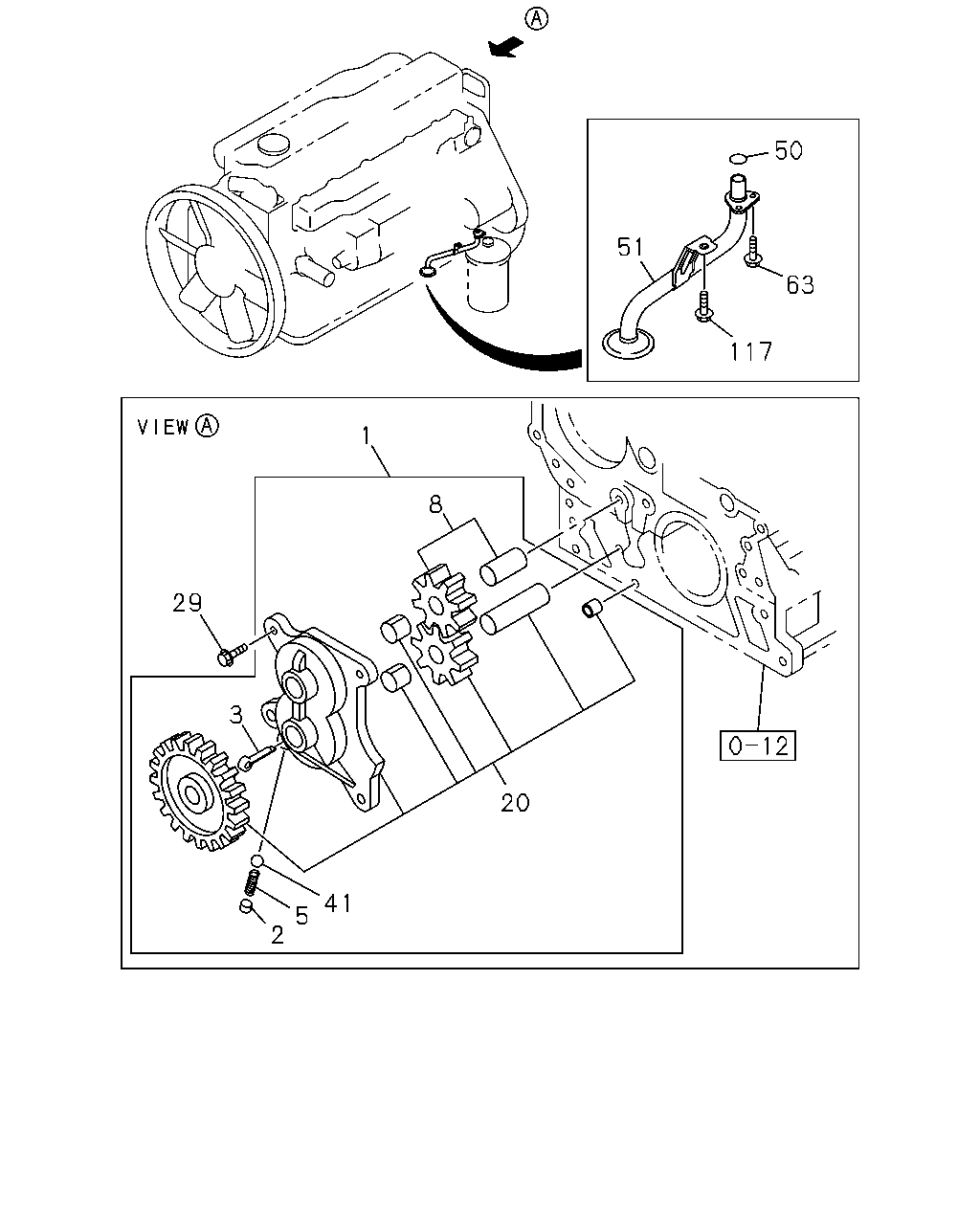

çizim 27069
50 51 63 117 1 8 29 3 20 41 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL 8-94395-564-3 01 1 9905- ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9905- ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9905- ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9905- ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 9905- ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-1 01 1 9905- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9905-0512 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 0601- ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9905- ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9905-0112 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0201- ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 9905- ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9905- ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9905- ● ●
