◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#78092) — 28 parça

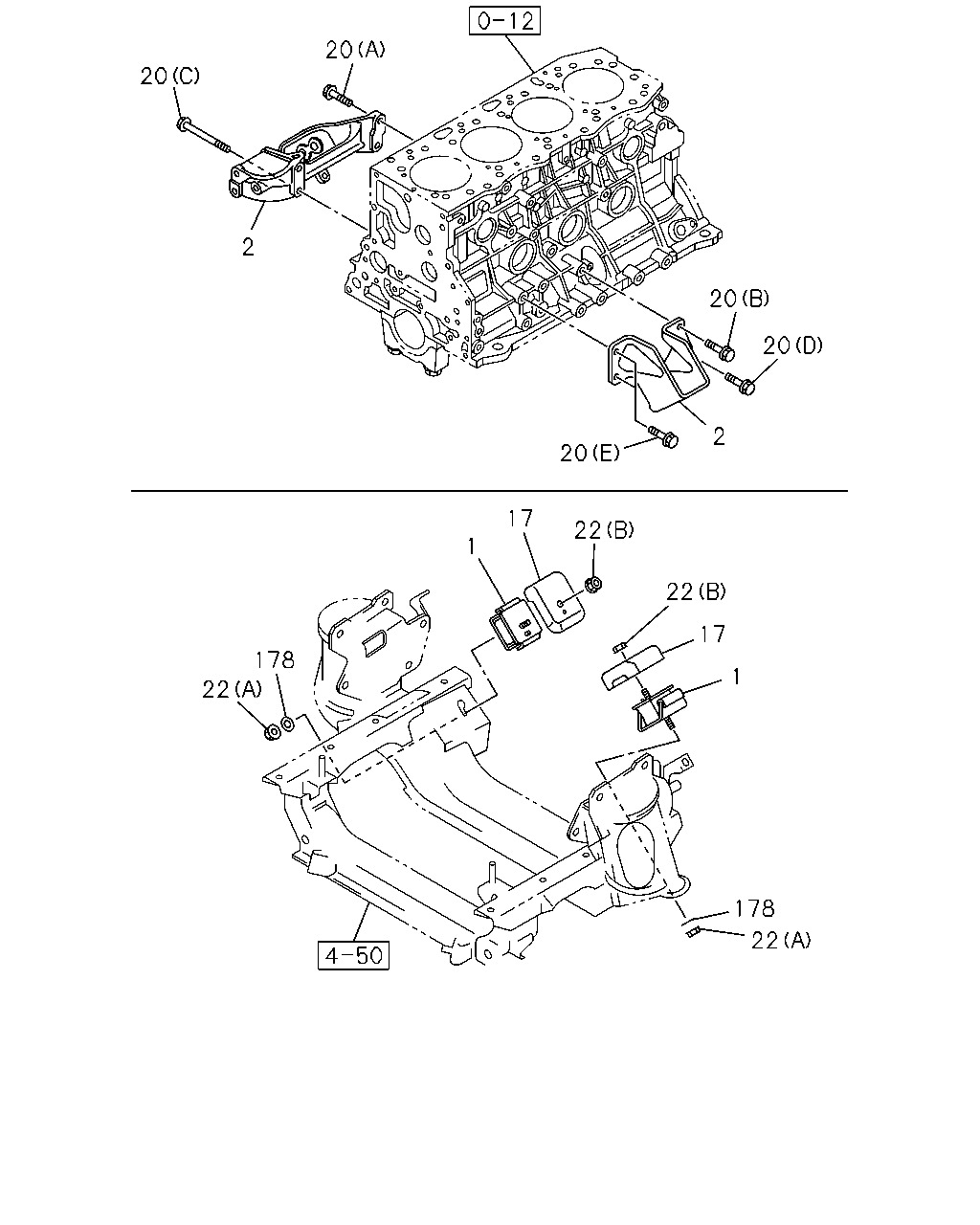

çizim 38630
20 2 20 20 20 2 20 1 17 22 17 1 22 178 22 22 178
BalonParca AdiParca NoAdetTipApplied Date
1 00.027 RUBBER; ENG FOOT,FRT 8-98053-831-0 01 1 1009-
1 00.027 RUBBER; ENG FOOT,FRT 8-98053-832-0 01 1 1009-
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1009-
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1009-
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 1009-
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 1009-
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1009-
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1009-
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1009-
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1009-
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1009-
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (A) M12 		0-91110-512-0 02 1 1009-
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE 		0-91180-112-0 02 1 1009-
178 00.002 WASHER; PL,CUSHION RUBBER TO BRK
07.529 ID=12.5 OD=32 		0-91614-712-0 02 1 1009-

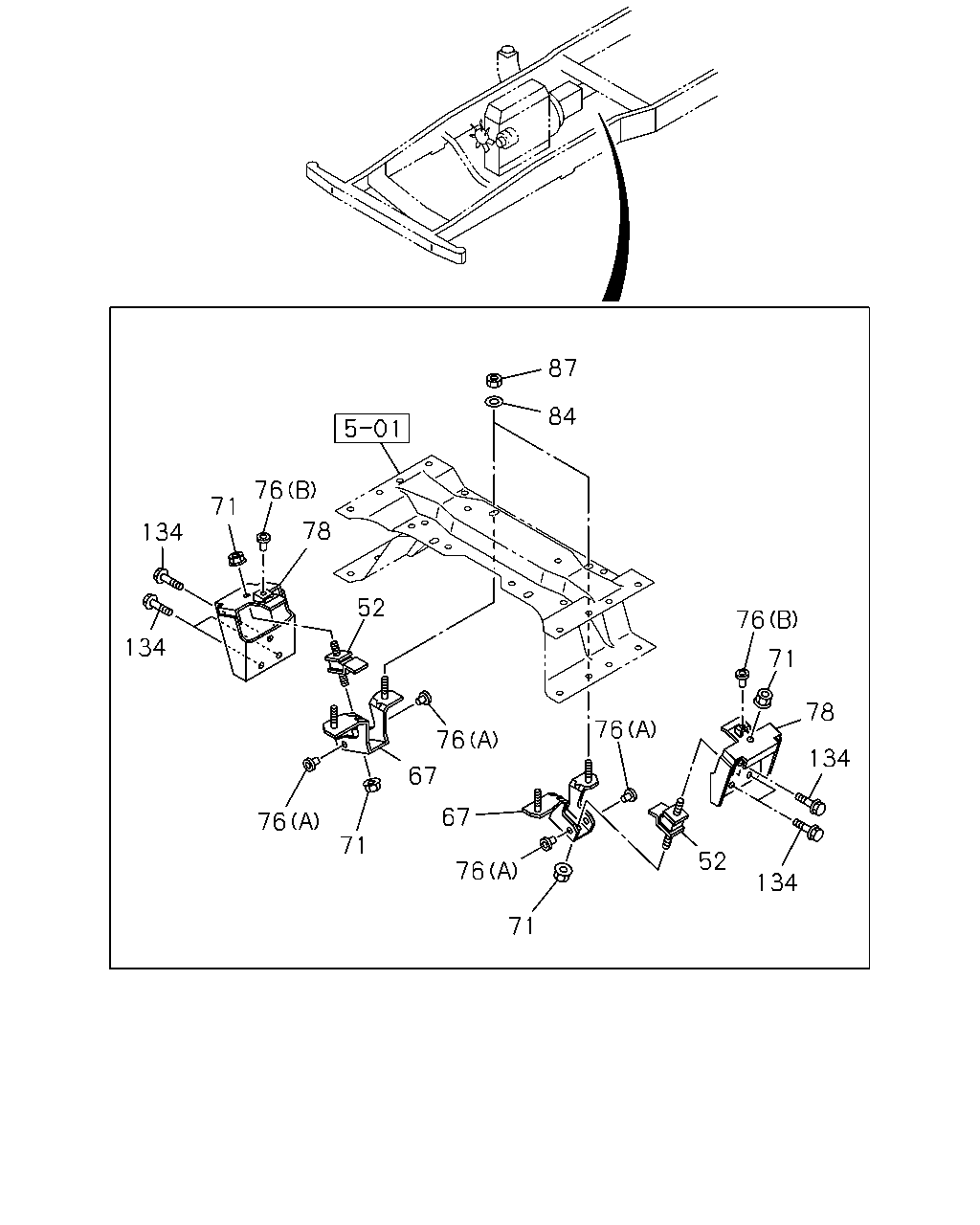

çizim 39220
87 84 76 71 78 134 134 52 76 71 76 67 67 76 71 76 52 78 76 71 134 134
BalonParca AdiParca NoAdetTipApplied Date
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1009-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-324-1 01 1 1009-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-325-1 01 1 1009-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-876-1 01 1 1009-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97354-877-1 01 1 1009-
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1009-
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1009-
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1009-
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98053-903-0 02 1 1009-1407
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98220-858-0 02 1 1408-
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98053-902-1 02 1 1009-
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1009-
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1009-
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1009-
