◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#7809) — 35 parça
çizim 26977
496 307 308 265 328 328 2 265 321 321 321
BalonParca AdiParca NoAdetTipApplied Date A B
2 ELEMENT; OIL FILTER 8-94391-049-4 01 1 9905- ● ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 9905- ● ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 9905- ● ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 9905- ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 9905- ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 9905- ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 9905-0512 ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9905-0512 ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ● ●
496 FILTER ASM; OIL 8-94391-015-8 01 1 9905- ● ●

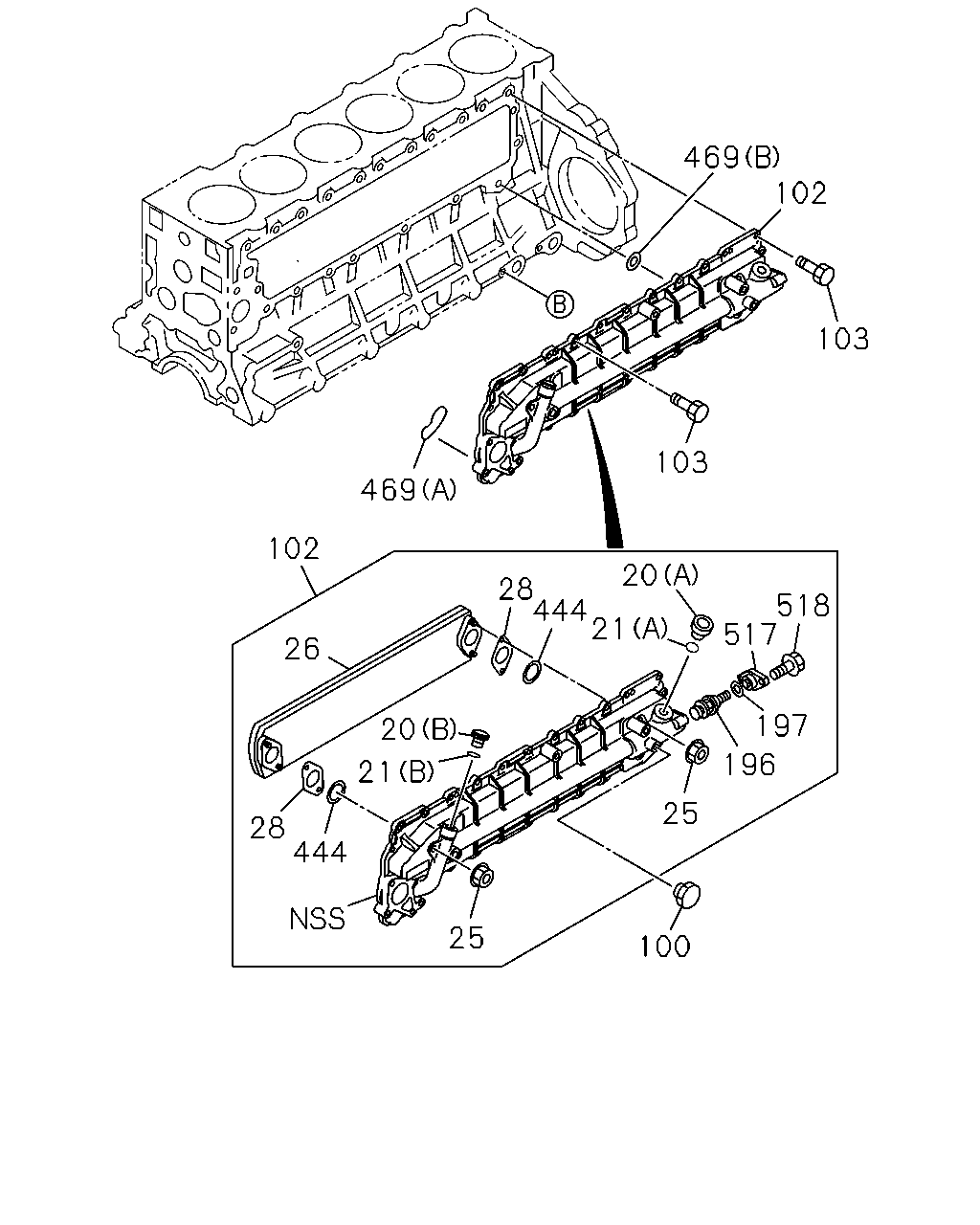

çizim 27068
469 102 103 103 469 102 20 28 444 21 518 517 26 197 20 196 21 25 28 444 25 100
BalonParca AdiParca NoAdetTipApplied Date A B
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 9905- ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 9905- ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 9905- ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 9905- ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 9905- ● ●
26 CORE ASM; OIL COOLER 8-94391-739-0 01 1 9905- ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 9905- ● ●
100 PLUG; OIL COOLER
M14 		8-94399-225-0 01 1 9905-0301 ● ●
100 PLUG; OIL COOLER
FRR(FR****) FSR(FS****) M14 		8-94399-225-0 01 1 0302- ●
100 PLUG; OIL COOLER
M14 		8-94399-225-0 01 1 0302- ●
102 COOLER ASM; OIL 8-94392-620-1 01 1 9905- ● ●
103 BOLT; OIL COOLER
M8X22 FLANGE 		0-28080-822-0 24 1 9905- ● ●
103 BOLT; OIL COOLER
M8X35 FLANGE 		0-28080-835-0 01 1 9905-0512 ● ●
103 BOLT; OIL COOLER
M8X35 FLANGE 		0-28050-835-0 01 1 0601- ● ●
196 THERMOSTAT; OIL COOLER
90?C 		8-94394-815-2 01 1 9905-0111 ● ●
196 THERMOSTAT; OIL COOLER
90?C 		8-97600-936-0 01 1 0112- ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 9905- ● ●
444 GASKET; ELEMENT TO BODY 8-94396-810-0 02 1 9905- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 9905- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 9905-0606 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98045-449-0 01 1 0607- ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 9905- ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 9905-0512 ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
