◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#78084) — 48 parça

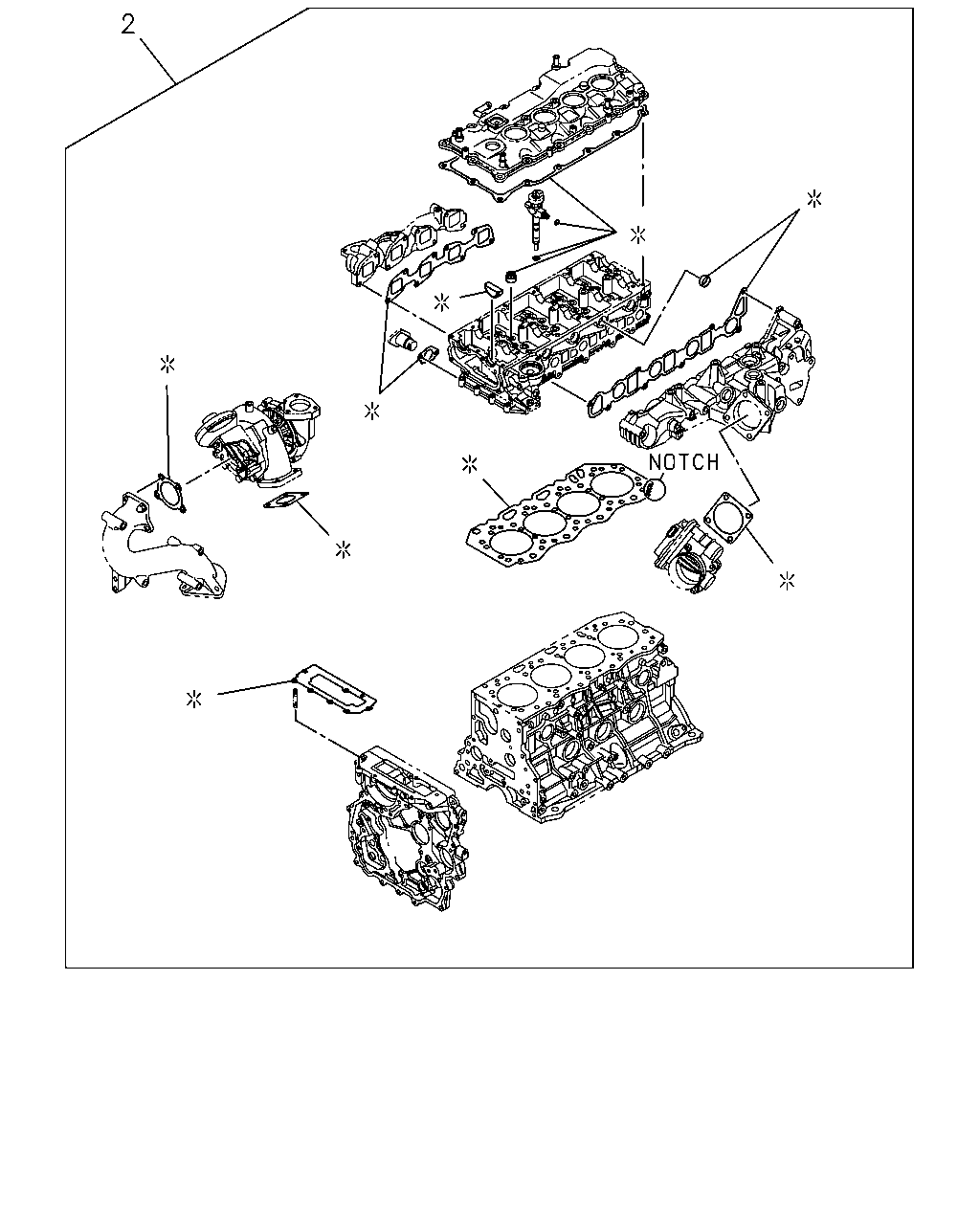

çizim 15393
2
BalonParca AdiParca NoAdetTipApplied Date
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 1009-1012
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101-1108
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-120-0 01 1 1109-1204
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-340-0 01 1 1205-1211
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-507-0 01 1 1212-1304
2 00.010 GASKET SET; ENG HD OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-826-1 01 1 1305-1411
2 00.010 GASKET SET; ENG HD OVERHAUL
GRADE A T=1.14 1-NOTCH 		5-87817-647-0 01 1 1412-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 1009-1012
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101-1108
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-121-0 01 1 1109-1204
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-341-0 01 1 1205-1211
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-508-0 01 1 1212-1304
2 00.010 GASKET SET; ENG HD OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-827-1 01 1 1305-1411
2 00.010 GASKET SET; ENG HD OVERHAUL
GRADE B T=1.19 2-NOTCH 		5-87817-648-0 01 1 1412-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 1009-1012
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101-1108
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-122-0 01 1 1109-1204
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-342-0 01 1 1205-1211
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-509-0 01 1 1212-1304
2 00.010 GASKET SET; ENG HD OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-828-1 01 1 1305-1411
2 00.010 GASKET SET; ENG HD OVERHAUL
GRADE C T=1.24 3-NOTCH 		5-87817-649-0 01 1 1412-

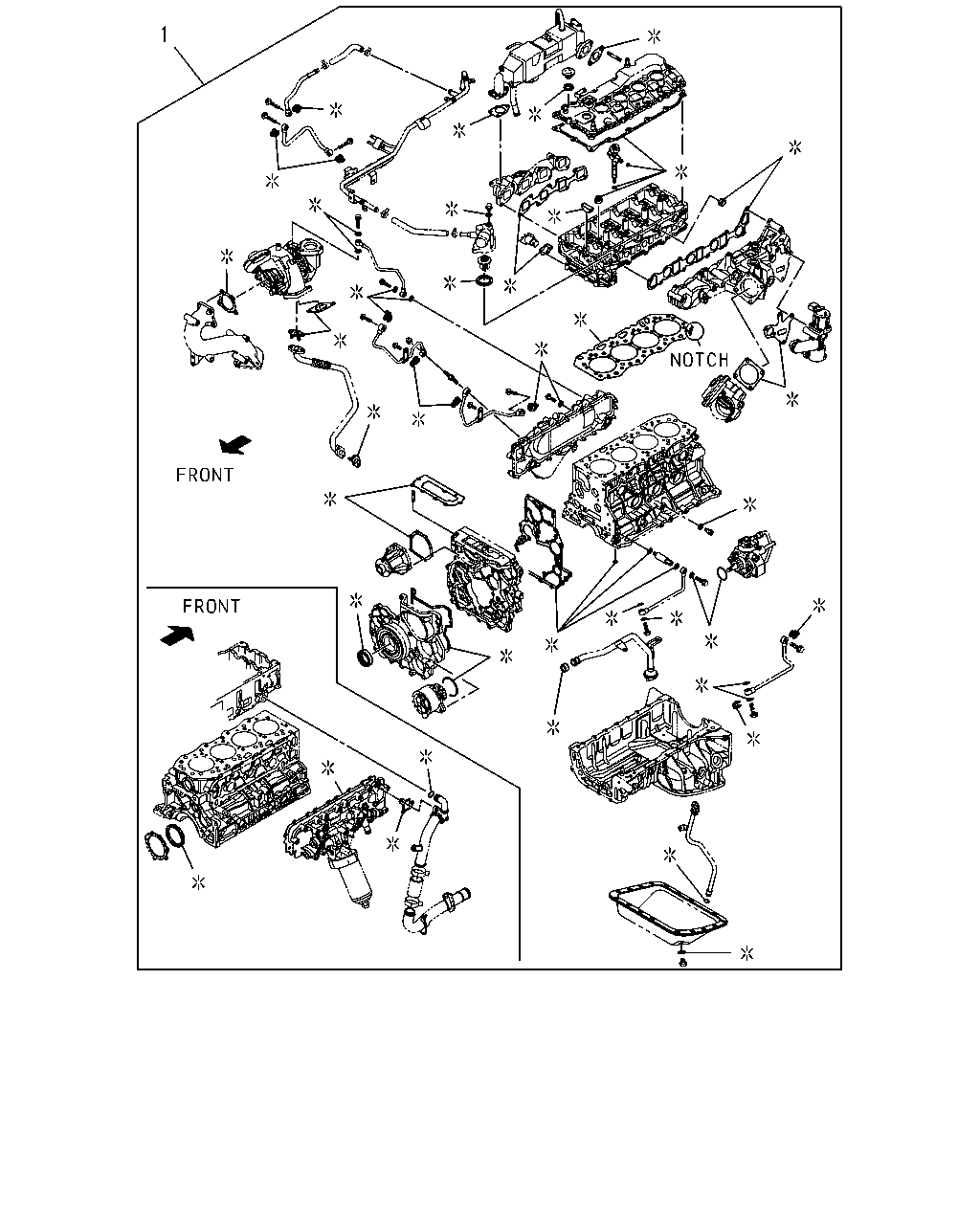

çizim 187090
1
BalonParca AdiParca NoAdetTipApplied Date
1 00.010 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87815-770-0 01 1 1009-1012
1 00.010 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87815-885-0 01 1 1101-1108
1 00.010 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-132-0 01 1 1109-1204
1 00.010 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-337-0 01 1 1205-1211
1 00.010 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-504-0 01 1 1212-1212
1 00.010 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-562-0 01 1 1301-1302
1 00.010 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-743-0 01 1 1303-1304
1 00.010 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-909-1 01 1 1305-1411
1 00.010 GASKET SET; ENG OVERHAUL
GRADE A T=1.14 1-NOTCH 		5-87817-644-0 01 1 1412-
1 00.010 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87815-771-0 01 1 1009-1012
1 00.010 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87815-886-0 01 1 1101-1108
1 00.010 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-133-0 01 1 1109-1204
1 00.010 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-338-0 01 1 1205-1211
1 00.010 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-505-0 01 1 1212-1212
1 00.010 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-563-0 01 1 1301-1302
1 00.010 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-744-0 01 1 1303-1304
1 00.010 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-910-1 01 1 1305-1411
1 00.010 GASKET SET; ENG OVERHAUL
GRADE B T=1.19 2-NOTCH 		5-87817-645-0 01 1 1412-
1 00.010 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87815-772-0 01 1 1009-1012
1 00.010 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87815-887-0 01 1 1101-1108
1 00.010 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-134-0 01 1 1109-1204
1 00.010 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-339-0 01 1 1205-1211
1 00.010 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-506-0 01 1 1212-1212
1 00.010 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-564-0 01 1 1301-1302
1 00.010 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-745-0 01 1 1303-1304
1 00.010 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-911-1 01 1 1305-1411
1 00.010 GASKET SET; ENG OVERHAUL
GRADE C T=1.24 3-NOTCH 		5-87817-646-0 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
