9-01 — TOOLS (#78082) — 24 parça

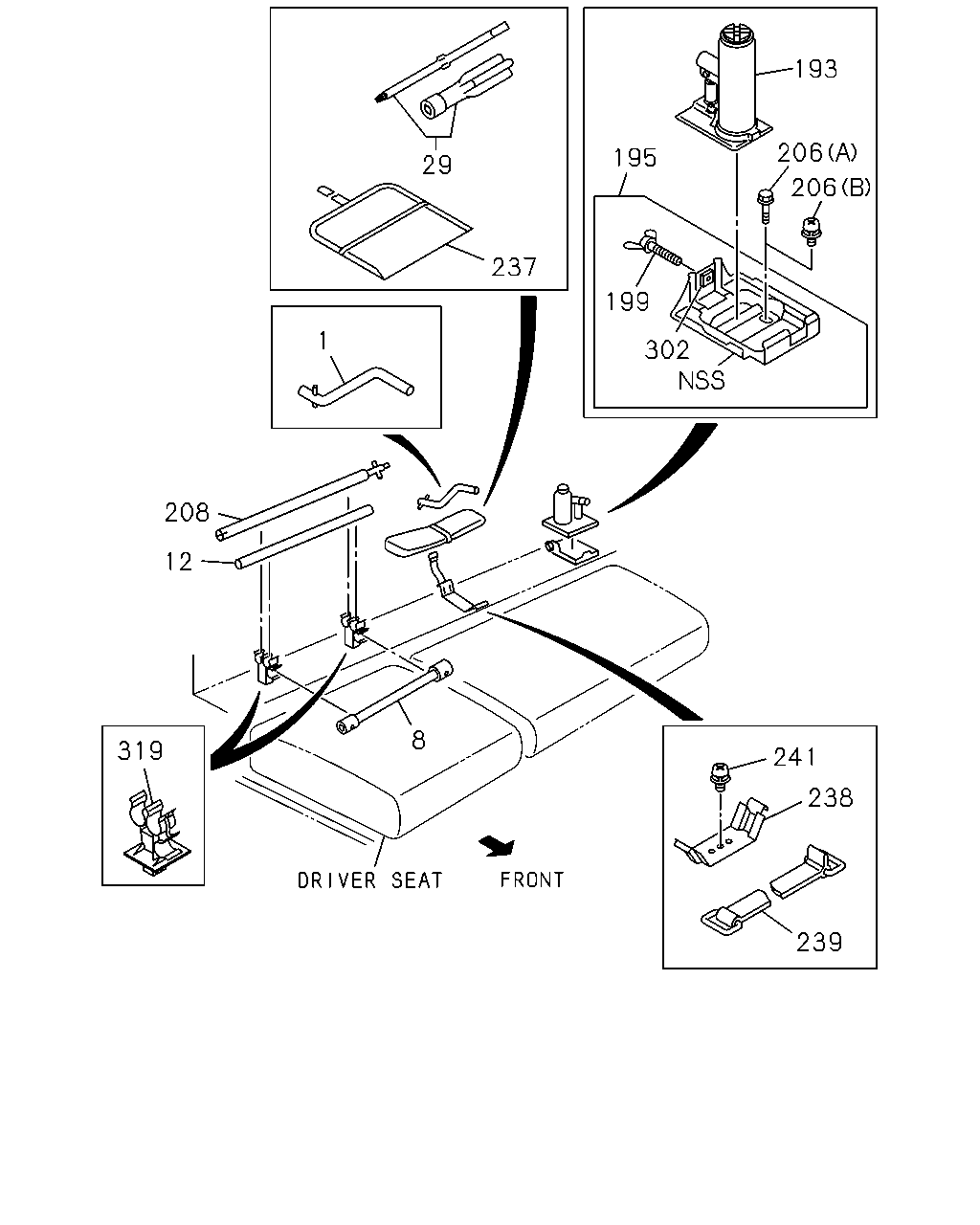

çizim 14445
237 1 29 208 12 319 8 241 238 239 206 302 199 195 206 193
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 1009- ● ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1009- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1009-1407 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1408- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1009- ● ●
193 08.820 JACK ASM
5TON 		8-94438-021-2 01 1 1009- ● ●
195 08.820 BRACKET; JACK 8-98034-917-0 01 1 1009- ●
195 08.820 BRACKET; JACK 8-94273-769-5 01 1 1009- ●
199 08.820 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 1009- ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1009- ●
206 08.820 SCREW; OIL JACK BRKT
06.216 (A) BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●
206 08.820 SCREW; OIL JACK BRKT
16.570 (B) M6X16 		0-38050-616-0 01 1 1009- ●
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 1009-1108 ● ●
208 08.820 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1109- ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1009- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1009- ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1009- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1009- ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1009- ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 1009- ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1009- ● ●
çizim 187029
450 450
BalonParca AdiParca NoAdetTipApplied Date A B
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1009- ●
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1009- ●
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1009- ●
