◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42 - FUEL PUMP AND PIPE ▶
0-42 — FUEL PUMP AND PIPE (#7808) — 26 parça

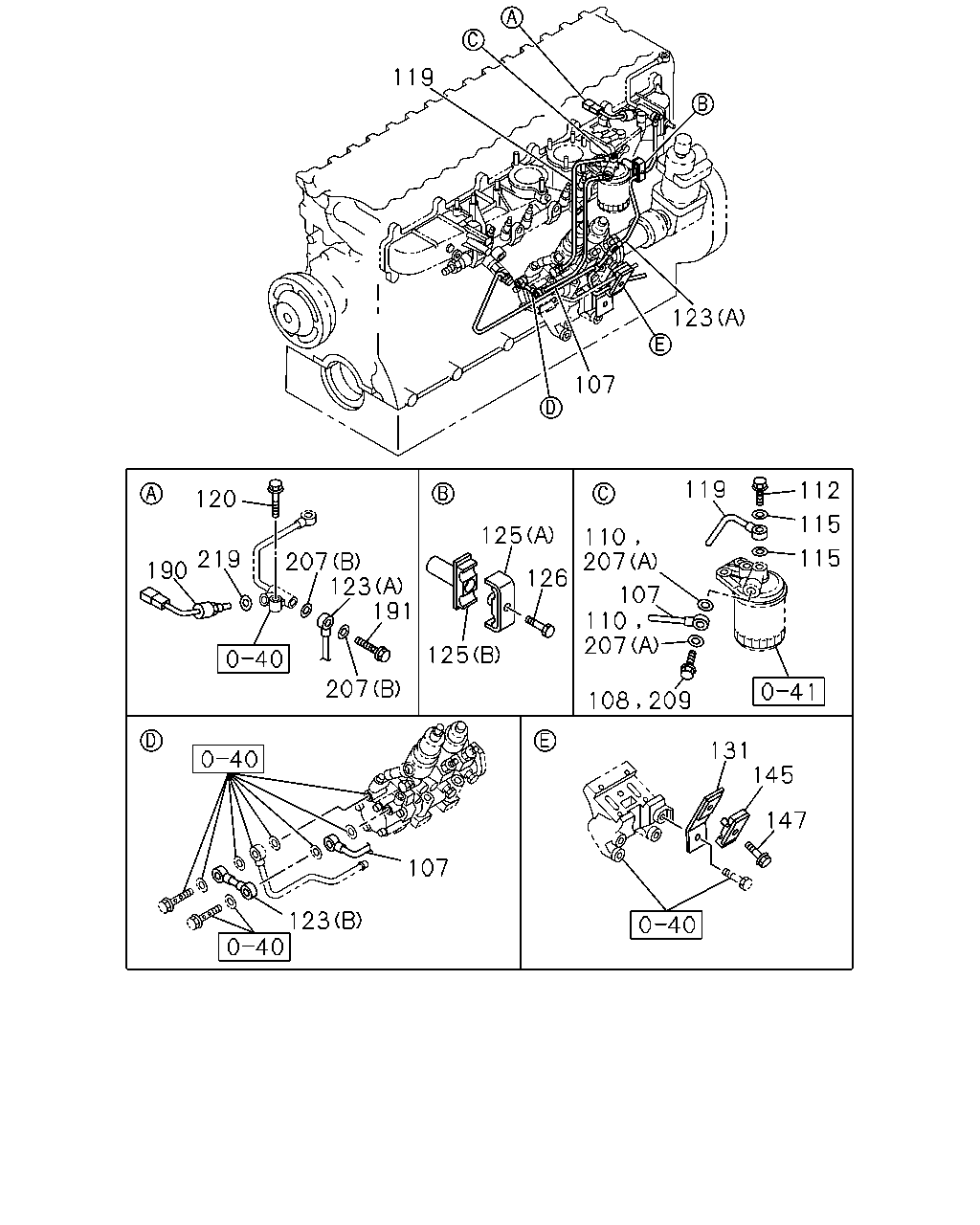

çizim 26976
119 123 107 119 112 120 115 125 110 207 115 219 190 207 123 191 126 107 110 207 125 207 131 145 147 107 123 108 209
BalonParca AdiParca NoAdetTipApplied Date A B
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 8-94390-827-0 01 1 9905- ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0201- ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0201- ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9905- ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 8-94390-820-0 01 1 9905- ● ●
120 BOLT; STAY
M8X40 FLANGE 		0-28080-840-0 01 1 9905-0512 ● ●
120 BOLT; STAY
M8X40 FLANGE 		0-28050-840-0 01 1 0601- ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(B) 		8-94391-513-0 01 1 9905- ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(A) 		8-97600-387-0 01 1 9905- ● ●
125 CLIP; FUEL PIPE
(A) 		1-09701-172-3 01 1 9905- ● ●
125 CLIP; FUEL PIPE
(B) 		8-94391-370-1 01 1 9905- ● ●
126 BOLT; CLIP,FUEL PIPE
M6X60 FLANGE 		0-28080-660-0 01 1 9905-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X60 FLANGE 		0-28050-660-0 01 1 0601- ● ●
131 BRACKET; FUEL PIPE CLIP 8-94390-958-0 01 1 9905- ● ●
145 CLIP; FUEL PIPE
L=48 		5-09709-103-0 01 1 9905-9909 ● ●
145 CLIP; FUEL PIPE
L=48 		5-09709-103-0 02 1 9910- ● ●
147 BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER 		0-50040-630-0 01 1 9905-9909 ● ●
147 BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER 		0-50040-630-0 02 1 9910-0512 ● ●
147 BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER 		0-50540-630-0 02 1 0601- ● ●
190 SENSOR; FUEL TEMP 1-81535-035-3 01 1 9905- ● ●
191 BOLT; EYE,FUEL PIPE
M10X21 FLANGE 		8-94396-711-0 01 1 9905- ● ●
207 GASKET; EYE BOLT
(B) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9905- ● ●
207 GASKET; EYE BOLT
(A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905-0112 ● ●
209 BOLT; EYE,FUEL FILTER 1-15619-310-0 01 1 9905-0112 ● ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2 		1-09630-084-0 01 1 9905- ● ●
