◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#78079) — 12 parça

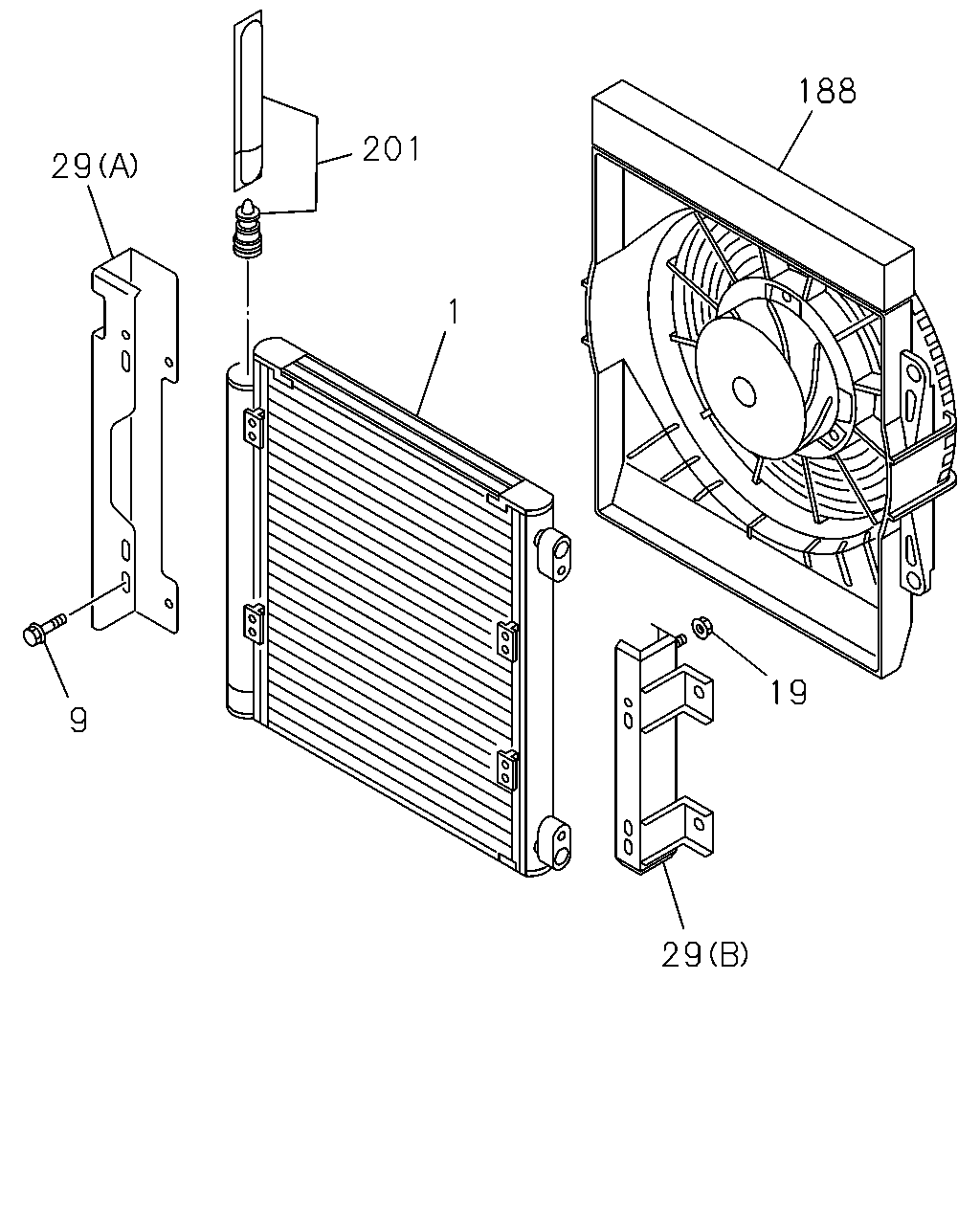

çizim 158322
29 19 1 201 29 9 188
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98042-456-1 01 1 1009- ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M6X14 		1-83539-382-0 08 1 1009- ● ●
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M6 		1-83539-354-0 04 1 1009- ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A) 		8-98042-466-0 01 1 1009- ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B) 		8-98042-467-0 01 1 1009- ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98042-461-0 01 1 1009- ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		1-83535-097-0 01 1 1009-1409 ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98282-482-0 01 1 1410- ● ●

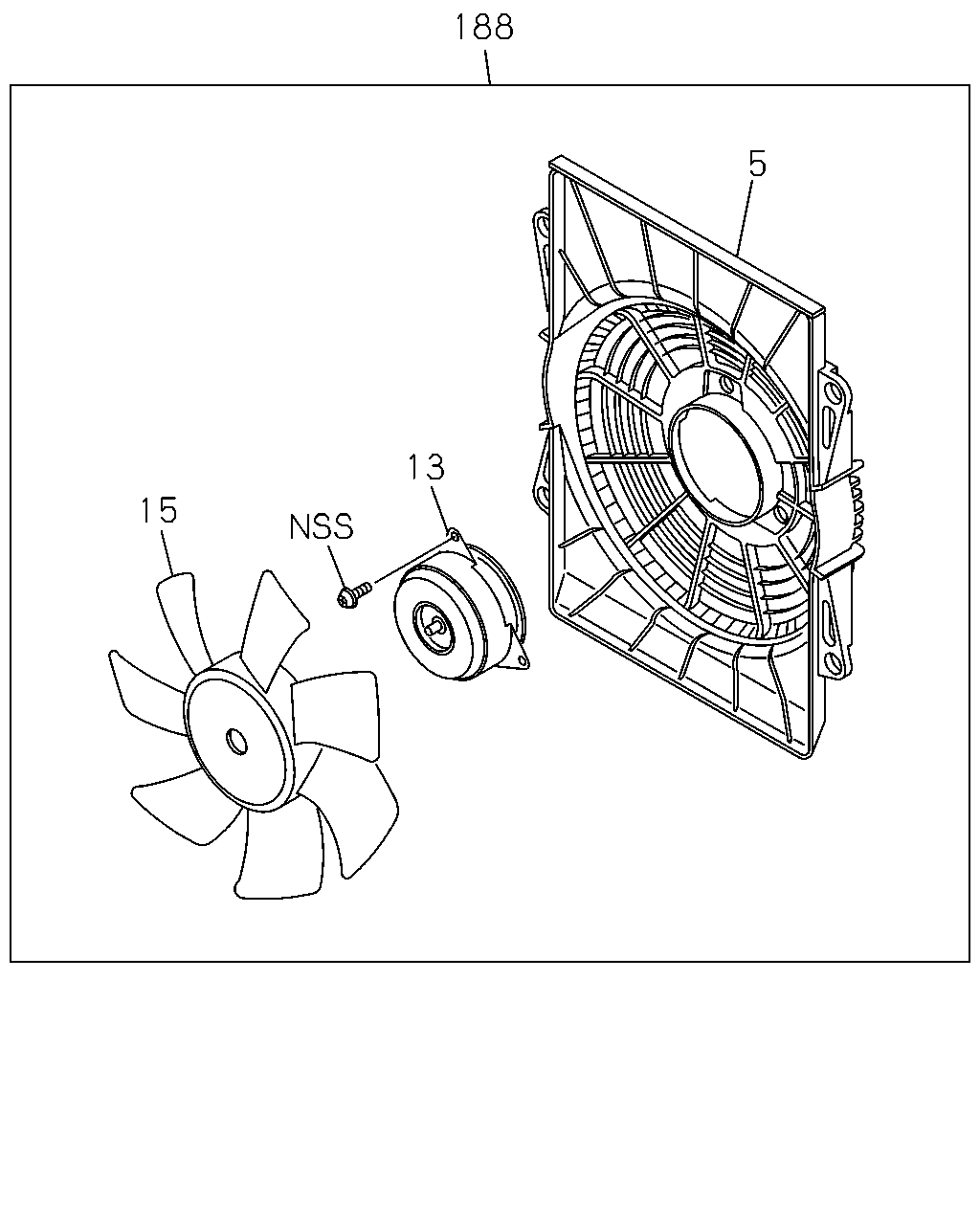

çizim 187024
5 13 15 188
BalonParca AdiParca NoAdetTipApplied Date A B
5 09.216 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98152-866-0 01 1 1009- ● ●
13 09.215 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98157-045-0 01 1 1009- ● ●
15 09.216 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98152-861-0 01 1 1009- ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98042-461-0 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
