◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#78070) — 42 parça
çizim 143821
616 616 666 531
BalonParca AdiParca NoAdetTipApplied Date A B
531 02.769 RELAY; MAIN
02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1009-1402 ● ●
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
616 02.485 RELAY; TRANSFER
08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 1009- ● ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1009- ● ●

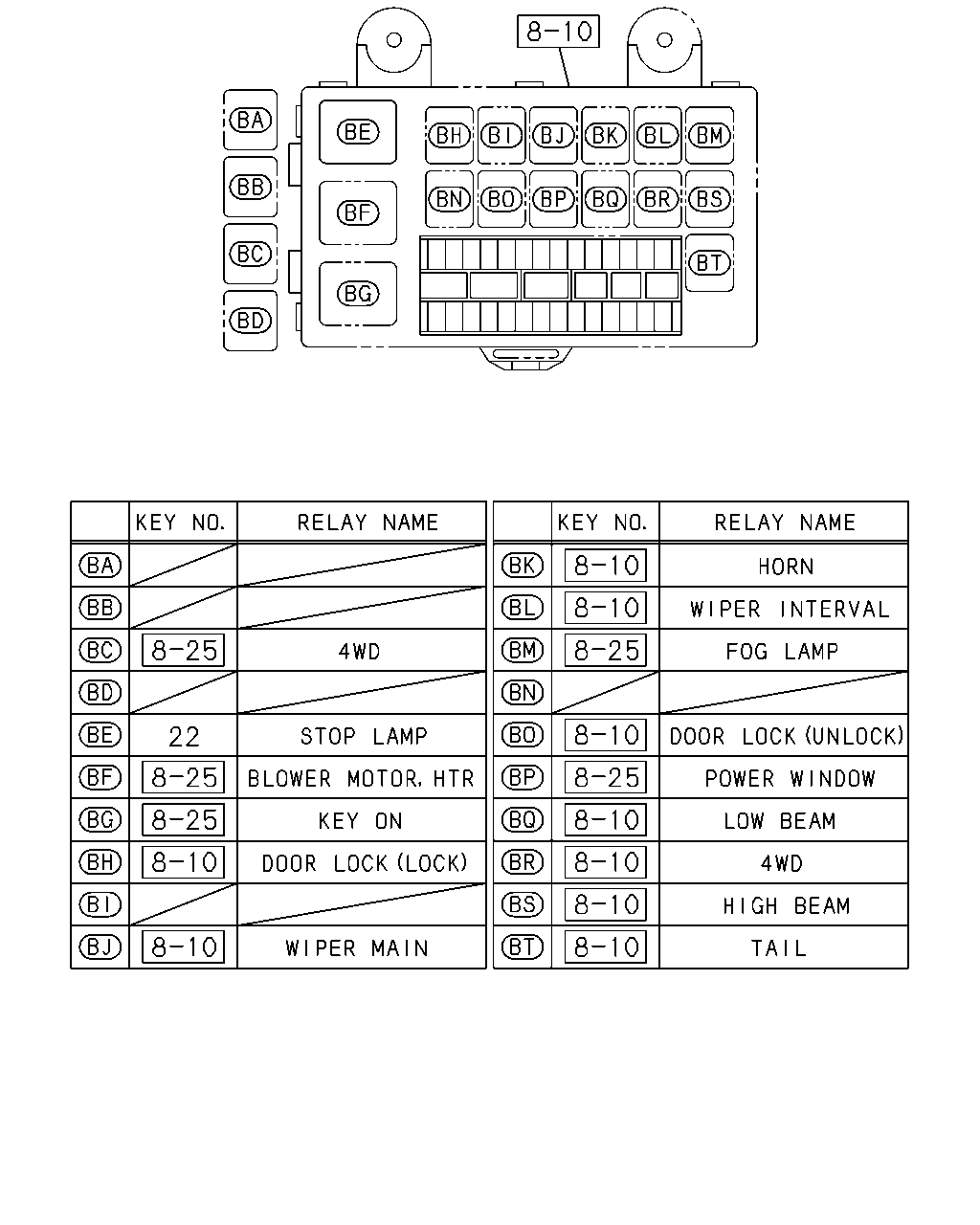

çizim 143868
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●

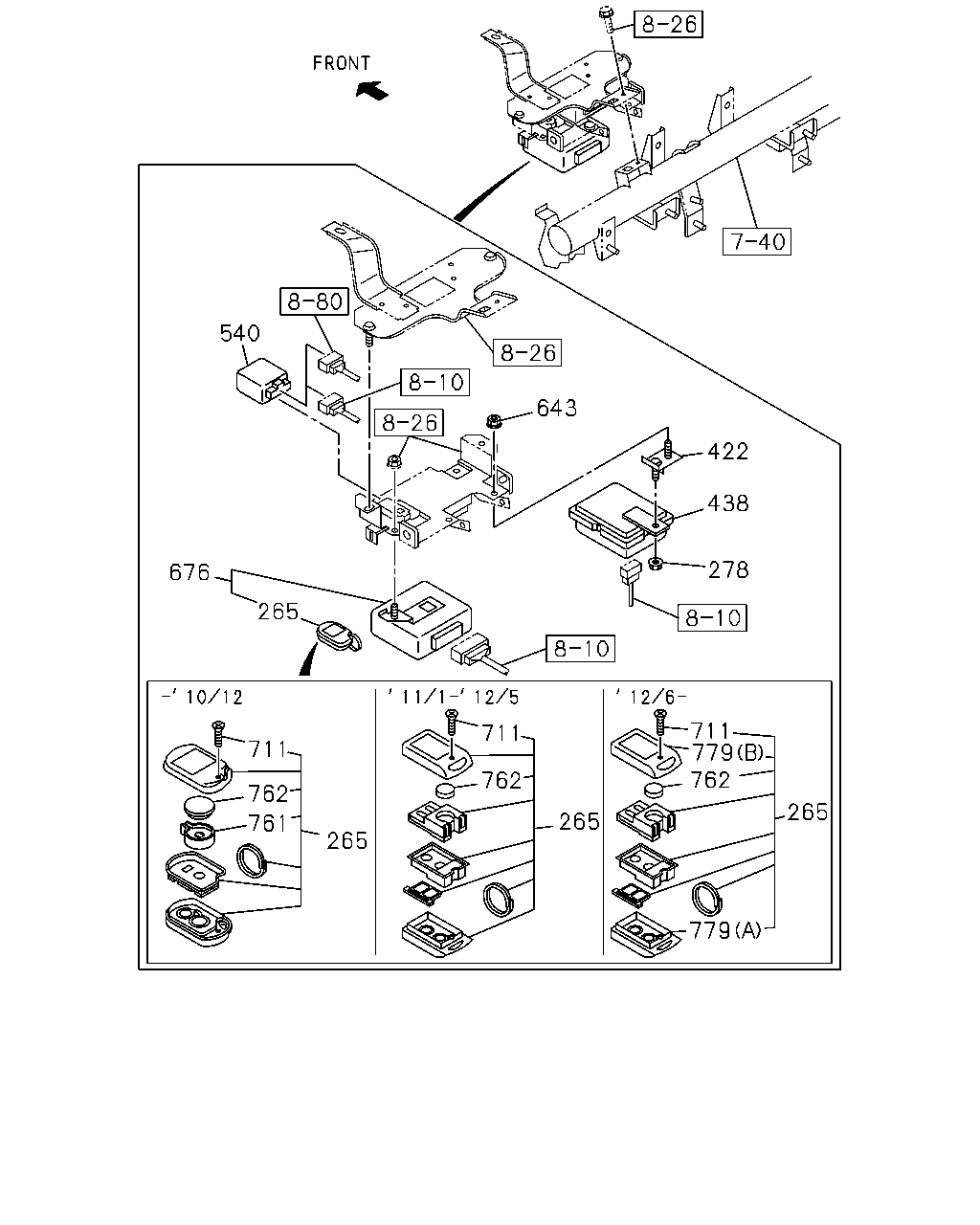

çizim 143997
540 676 265 643 422 438 278 711 762 761 265 711 762 265 711 779 762 265 779
BalonParca AdiParca NoAdetTipApplied Date A B
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 1009-1012 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206-1206 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1207- ● ●
278 03.415 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1009- ● ●
422 03.415 BRACKET; CONT UNIT 8-98082-304-0 01 1 1009- ● ●
438 02.575 UNIT; SPD CONTROL 1-82550-271-0 01 1 1009- ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1009-1308 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309- ● ●
643 07.450 NUT; BRKT,CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1009- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98044-504-1 01 1 1009-1012 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98181-810-0 01 1 1101-1205 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98218-233-0 01 1 1206-1206 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98218-233-0 01 1 1207- ● ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 1009-1205 ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206-1206 ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1207- ● ●
761 04.439 HOLDER; BATTERY 8-98078-063-0 02 1 1009-1012 ●
762 02.559 BATTERY 8-98078-061-0 02 1 1009-1206 ●
762 02.559 BATTERY 8-98078-061-0 02 1 1207- ● ●
779 04.115 COVER; TRANSMITTER
02.510 (A) 		8-98218-240-0 02 1 1206-1206 ●
779 04.115 COVER; TRANSMITTER
02.510 (A) 		8-98218-240-0 02 1 1207- ● ●
779 04.115 COVER; TRANSMITTER
02.510 (B) 		8-98218-243-0 02 1 1206-1206 ●
779 04.115 COVER; TRANSMITTER
02.510 (B) 		8-98218-243-0 02 1 1207- ● ●

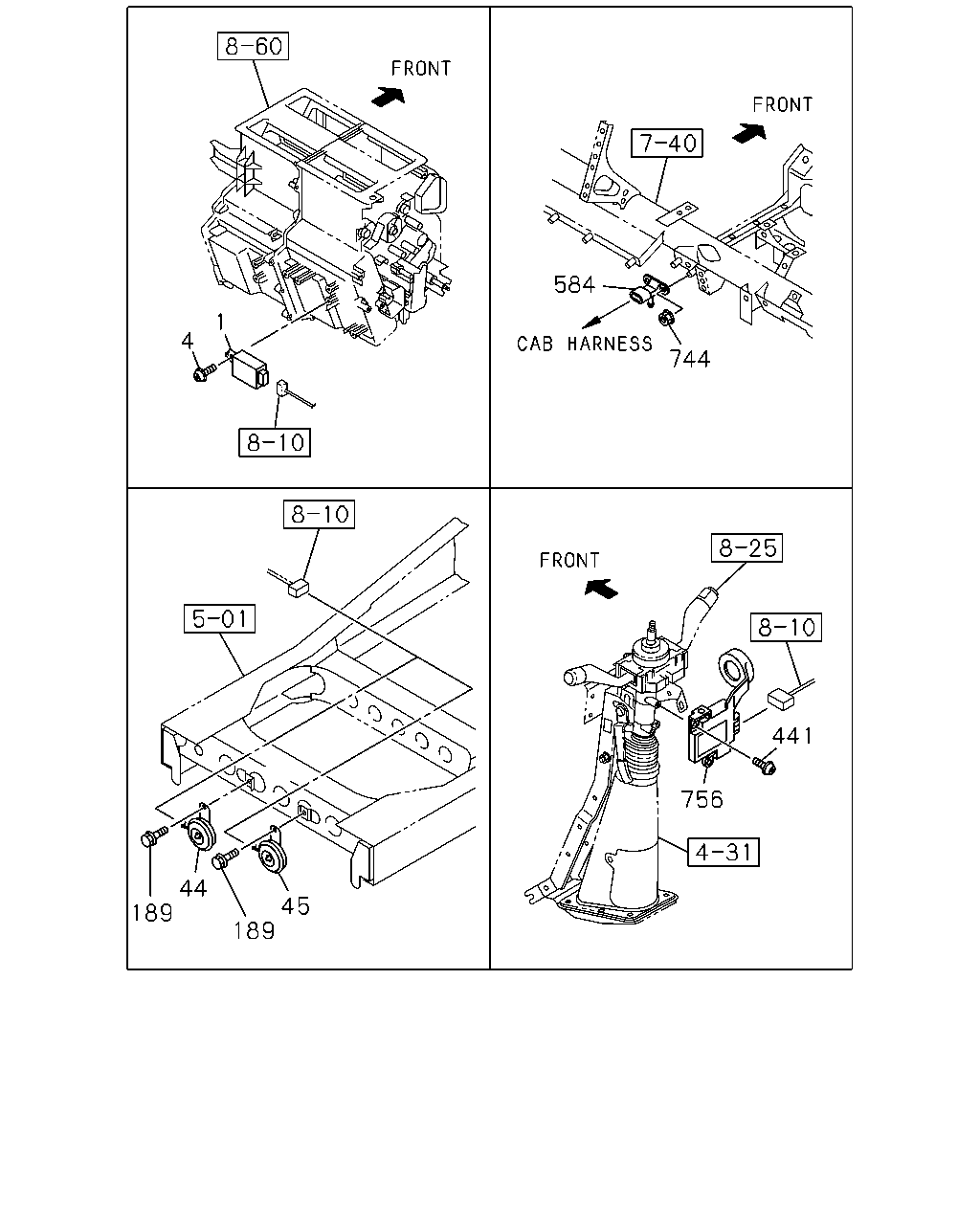

çizim 187022
1 4 584 744 441 756 45 189 44 189
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1009- ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-1101 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98070-080-0 01 1 1009- ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1009- ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1009- ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1009- ● ●
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1009- ● ●
584 02.440 SENSOR; PRESSURE
03.331 		8-98020-514-0 01 1 1009- ● ●
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 1009- ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1009- ● ●

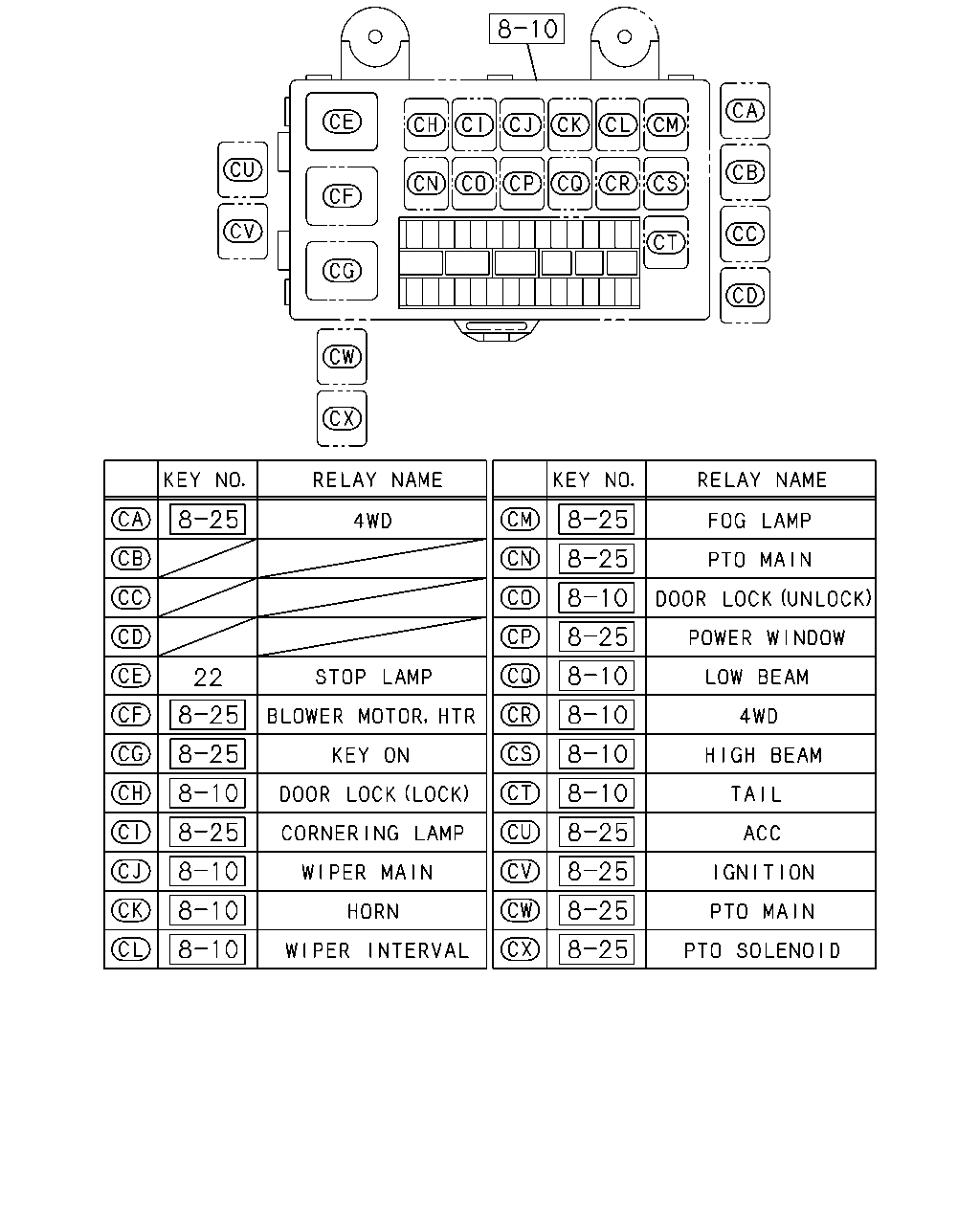

çizim 187030
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
