◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#7807) — 10 parça

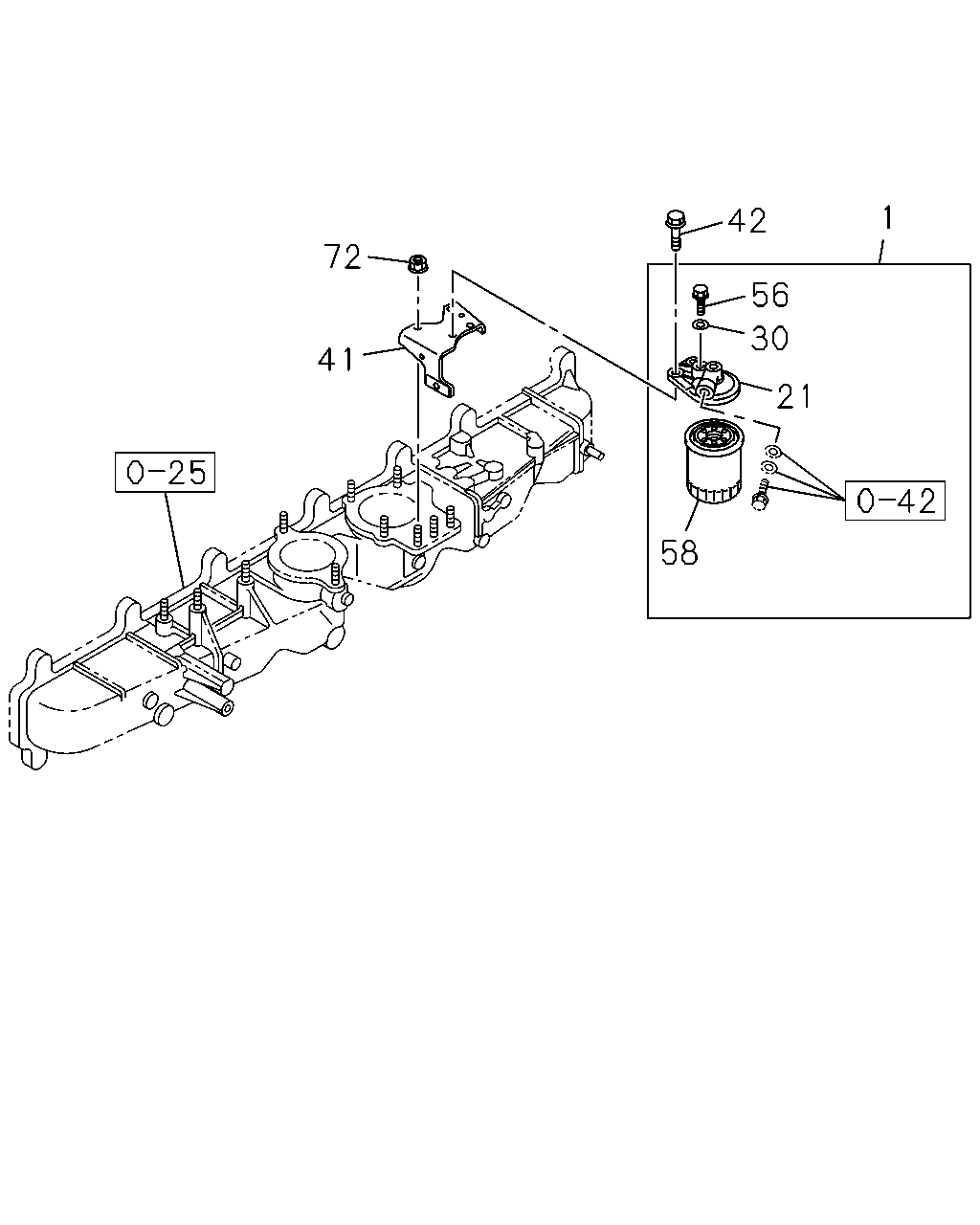

çizim 26876
1 42 72 56 30 41 21 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 8-94392-472-5 01 1 9905- ● ●
21 COVER; UPR,FUEL FILTER 1-13212-108-1 01 1 9905- ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9905-0206 ● ●
41 BRACKET; FUEL FILTER 8-94390-938-0 01 1 9905- ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28681-035-0 02 1 9905-0512 ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 9905-0206 ● ●
58 ELEMENT; FUEL FILTER 8-94392-474-0 01 1 9905- ● ●
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-110-0 02 1 9905-0602 ● ●
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
