8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#78068) — 50 parça

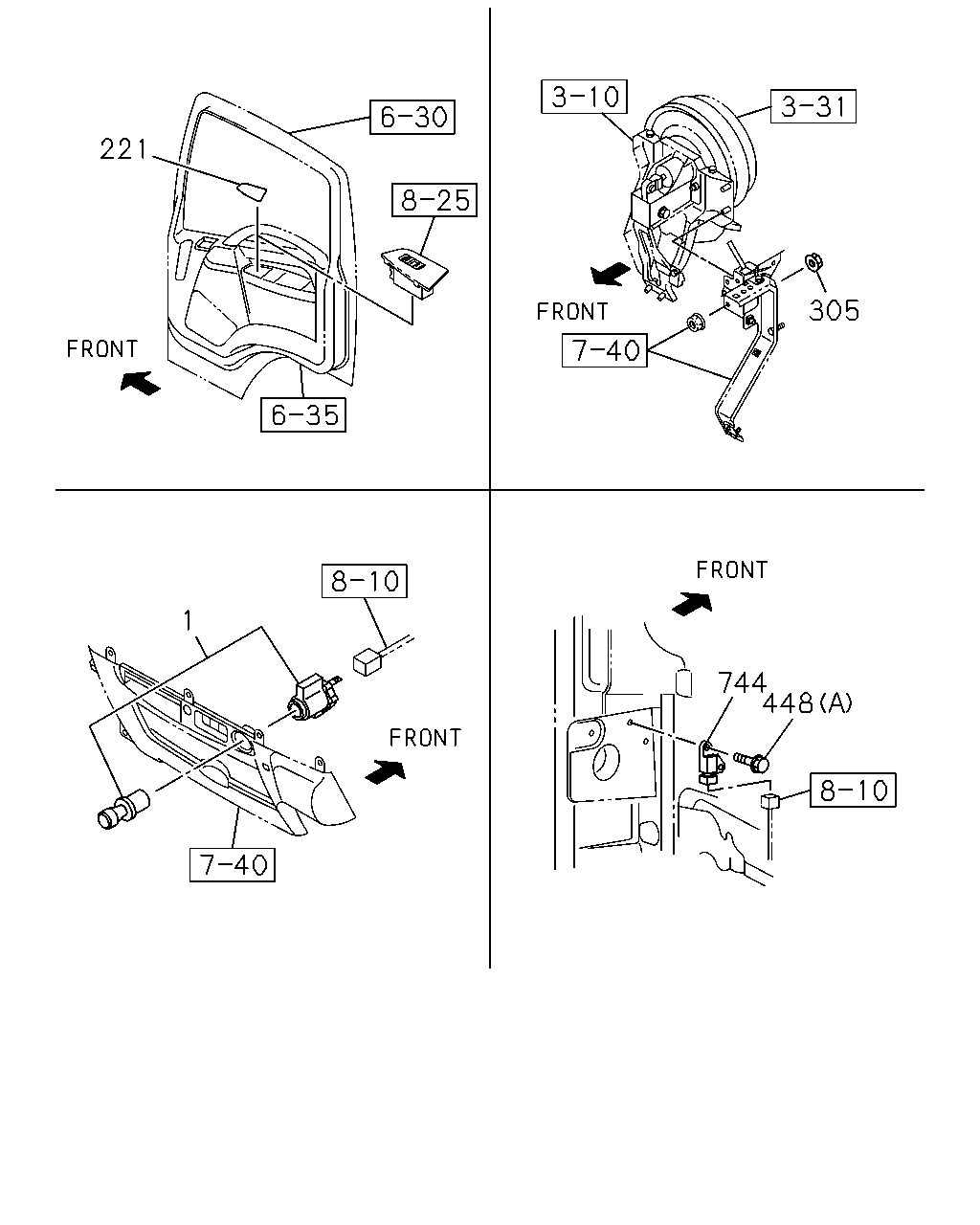

çizim 138061
448 744 305 221 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1009- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1009-1206 ●
221 16.320 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1009-1206 ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1009-1206 ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1207- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1009- ● ●
448 02.500 BOLT; SENSOR
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1009- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1009- ● ●

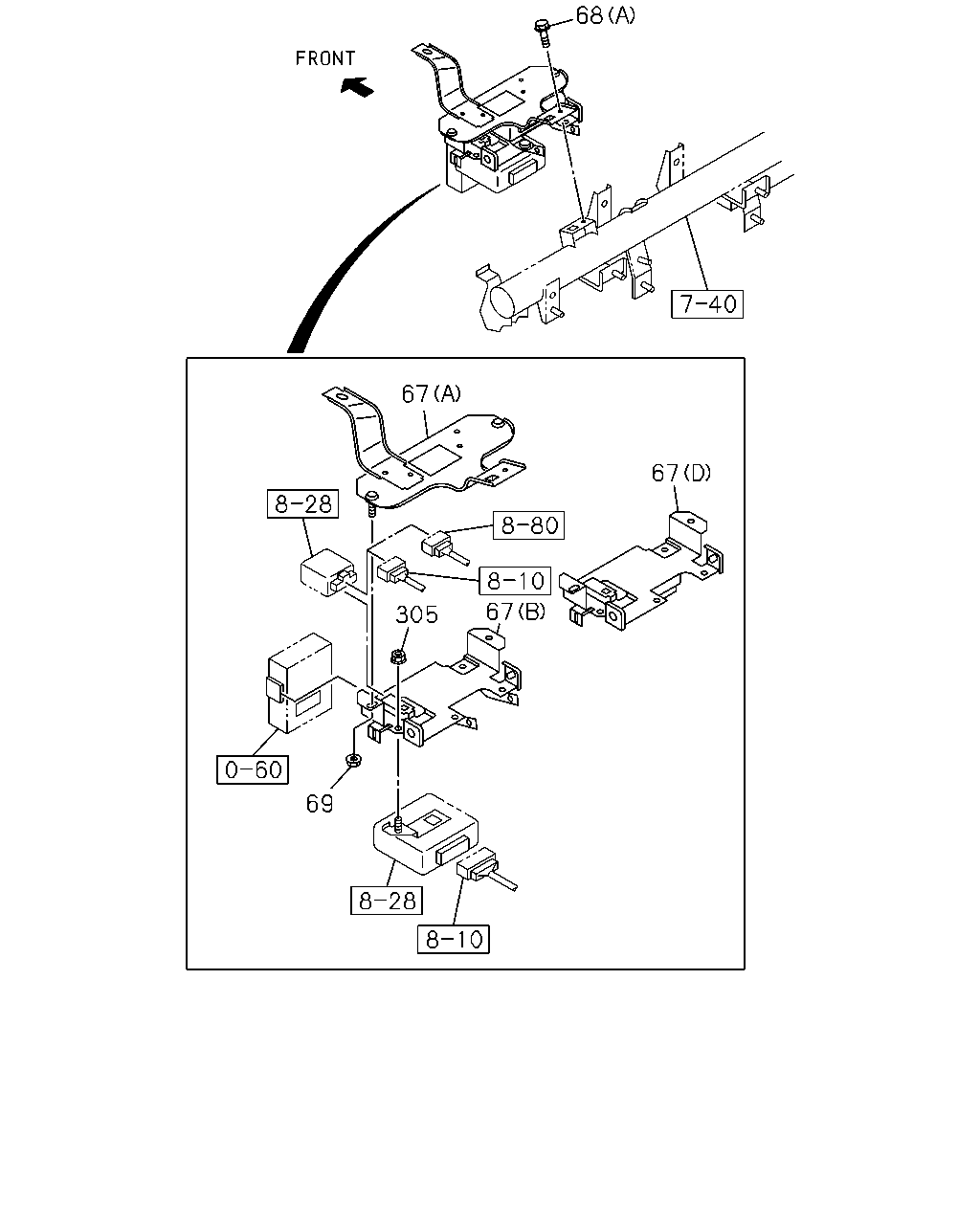

çizim 138477
68 67 67 305 69 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (C) 		8-98203-991-0 01 1 1112-1208 ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (E) 		8-98222-208-0 01 1 1209- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1009- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1009-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1405- ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 16.100 (B) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1009- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1009- ● ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1009-1206 ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1207- ● ●

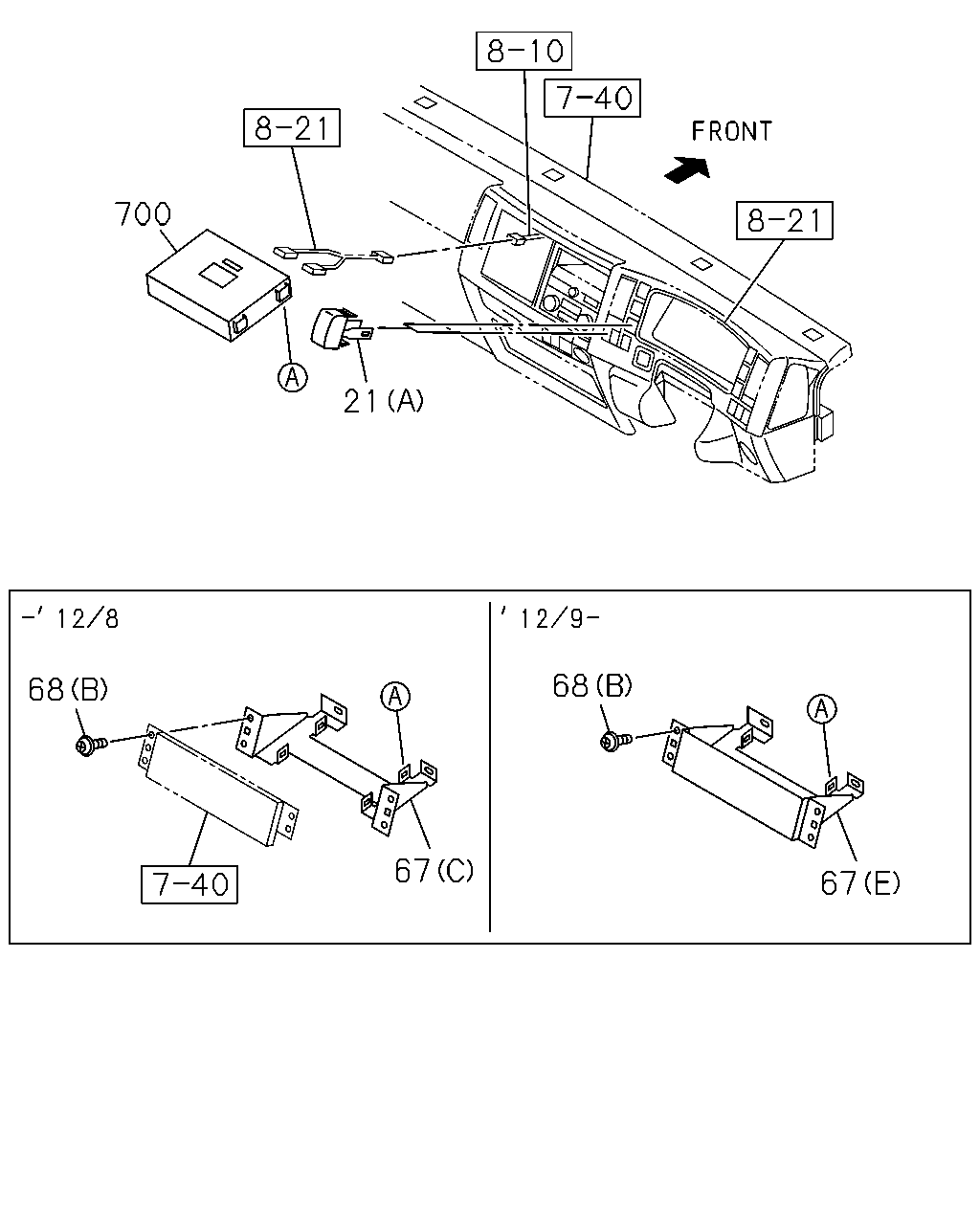

çizim 138491
700 21 68 67 67 68
BalonParca AdiParca NoAdetTipApplied Date A B
21 09.744 COVER; HOLE
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 09.748 (B) 		8-97101-974-0 01 1 1009- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1009- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1009- ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (C) 		8-98203-991-0 01 1 1112-1208 ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (E) 		8-98222-208-0 01 1 1209- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1009- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1009-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1405- ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 16.100 (B) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 1009- ● ●
700 02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD(8PG) 		8-98188-383-0 01 1 1112-1204 ● ●
700 02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD(8PG) 		8-98219-812-1 01 1 1205- ● ●

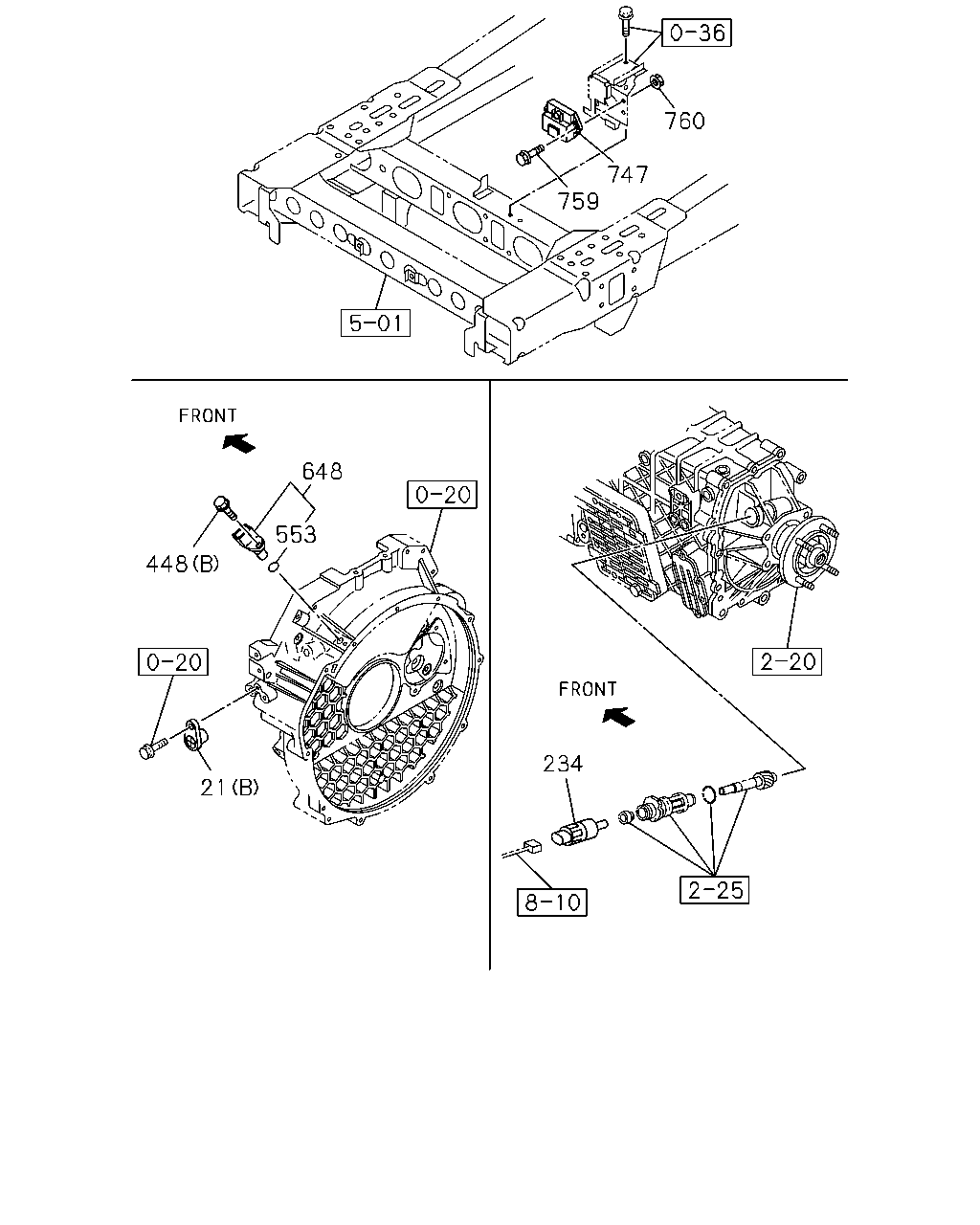

çizim 319293
760 747 759 648 553 448 21 234
BalonParca AdiParca NoAdetTipApplied Date A B
21 09.744 COVER; HOLE
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 09.748 (B) 		8-97101-974-0 01 1 1009- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1009- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1009- ● ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1009- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1009- ● ●
448 02.500 BOLT; SENSOR
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1009- ● ●
553 02.500 GASKET
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1009- ● ●
648 03.682 SENSOR; CRANK ANGLE
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 		8-97606-943-0 01 1 1009- ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98077-118-2 01 1 1009-1012 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1101- ● ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1009- ● ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1009- ● ●
