◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#78067) — 85 parça

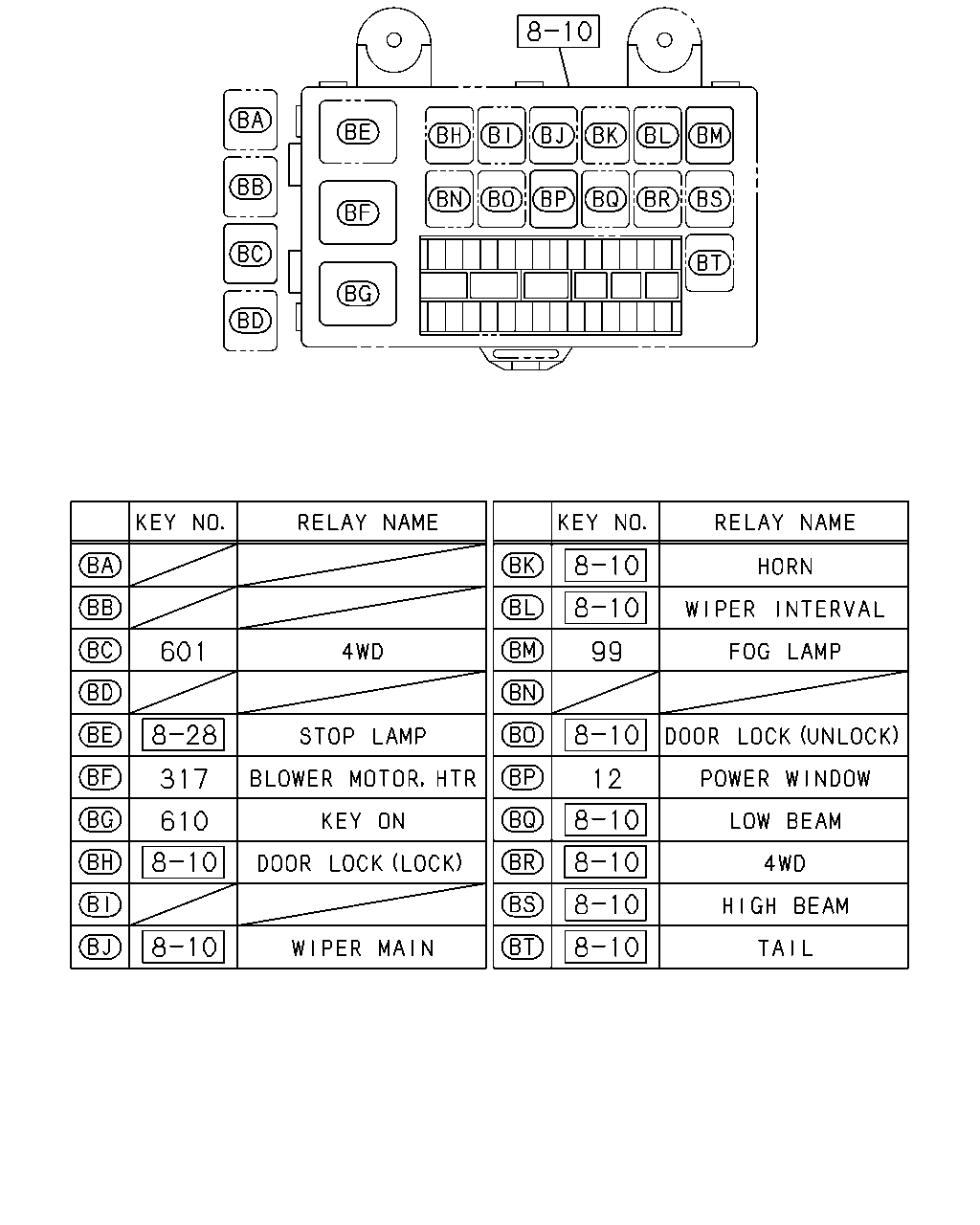

çizim 137346
601 317 610 99 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1206 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1207- ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1207- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
601 02.510 RELAY; 4WD
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1204 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

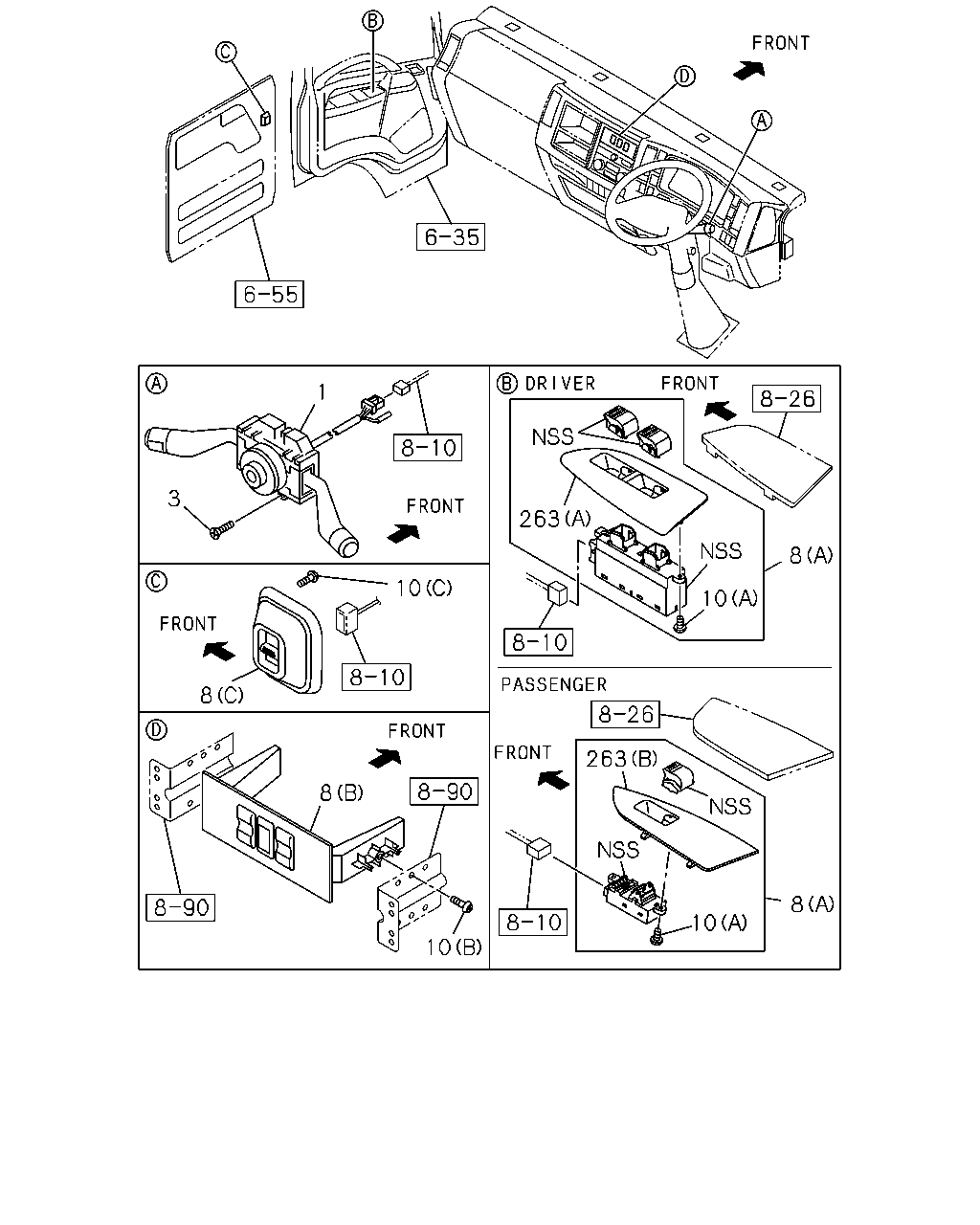

çizim 138144
263 263 10 8 10 8 3 10 10 8 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98146-635-0 01 1 1009-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98217-808-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98243-725-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98069-995-1 01 1 1009-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98243-729-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98069-993-2 01 1 1009-1310 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1311- ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1009- ● ●
8 16.263 SWITCH; POWER WINDOW
VIN MODEL YEAR 2013(VZD) (A) DRIVER SIDE 		8-98227-829-0 01 1 1505-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
VIN MODEL YEAR 2013(VZD) (A) DRIVER SIDE 		8-98298-754-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
VIN MODEL YEAR 2013(VZD) (A) PASSENGER SIDE 		8-98227-828-0 01 1 1505-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
VIN MODEL YEAR 2013(VZD) (A) PASSENGER SIDE 		8-98316-423-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-2 01 1 1207- ●
8 16.263 SWITCH; POWER WINDOW
(C) 		8-97387-035-0 02 1 1207- ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98159-543-0 01 1 1009-1206 ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98159-543-0 01 1 1207-1504 ● ●
8 16.263 SWITCH; POWER WINDOW
EXC. VIN MODEL YEAR 2013(VZD) (A) DRIVER SIDE 		8-98159-543-0 01 1 1505-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
EXC. VIN MODEL YEAR 2013(VZD) (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-97387-034-2 01 1 1009-1206 ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-97387-034-2 01 1 1207-1504 ● ●
8 16.263 SWITCH; POWER WINDOW
EXC. VIN MODEL YEAR 2013(VZD) (A) PASSENGER SIDE 		8-97387-034-2 01 1 1505-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
EXC. VIN MODEL YEAR 2013(VZD) (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (C) M4X14 TAPPING 		0-74360-414-0 04 1 1207- ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1207- ●
10 03.885 SCREW; POWER WINDOW SW
(A) 		8-98153-865-0 03 1 1009-1206 ●
10 03.885 SCREW; POWER WINDOW SW
(A) 		8-98153-865-0 03 1 1207- ● ●
263 16.081 COVER; SW
(A) 		8-98153-836-0 01 1 1009-1206 ●
263 16.081 COVER; SW
(A) 		8-98153-836-0 01 1 1207- ● ●
263 16.081 COVER; SW
(B) 		8-98153-841-0 01 1 1009-1206 ●
263 16.081 COVER; SW
(B) 		8-98153-841-0 01 1 1207- ● ●

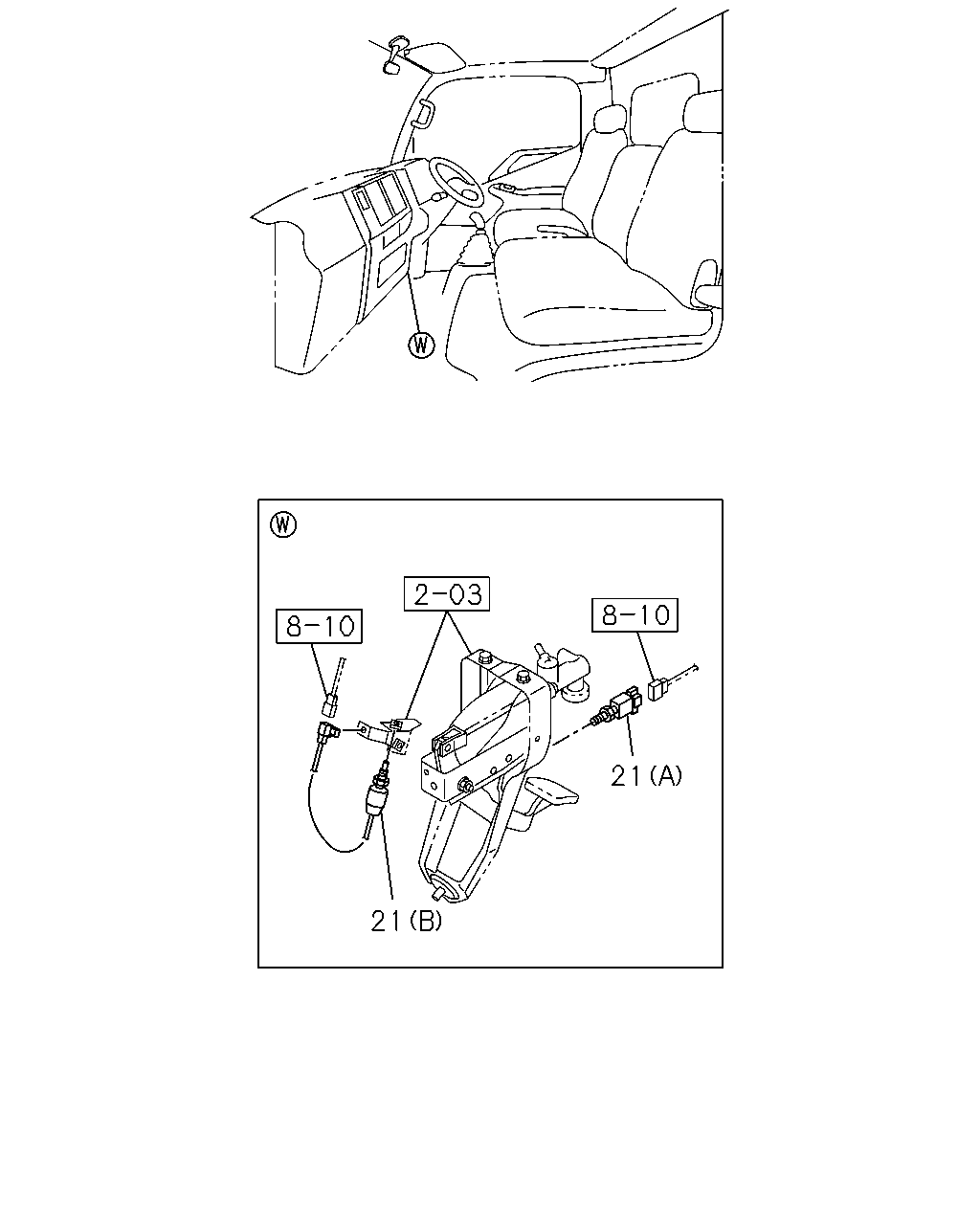

çizim 138157
21 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 (A) 		8-94109-863-0 01 1 1505- ● ●
21 02.575 SWITCH; CLU
(A) 		8-97358-248-0 01 1 1009-1504 ● ●
21 02.575 SWITCH; CLU
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-97358-248-0 01 1 1505- ● ●
21 02.575 SWITCH; CLU
(B) 		8-97620-841-0 01 1 1009- ● ●

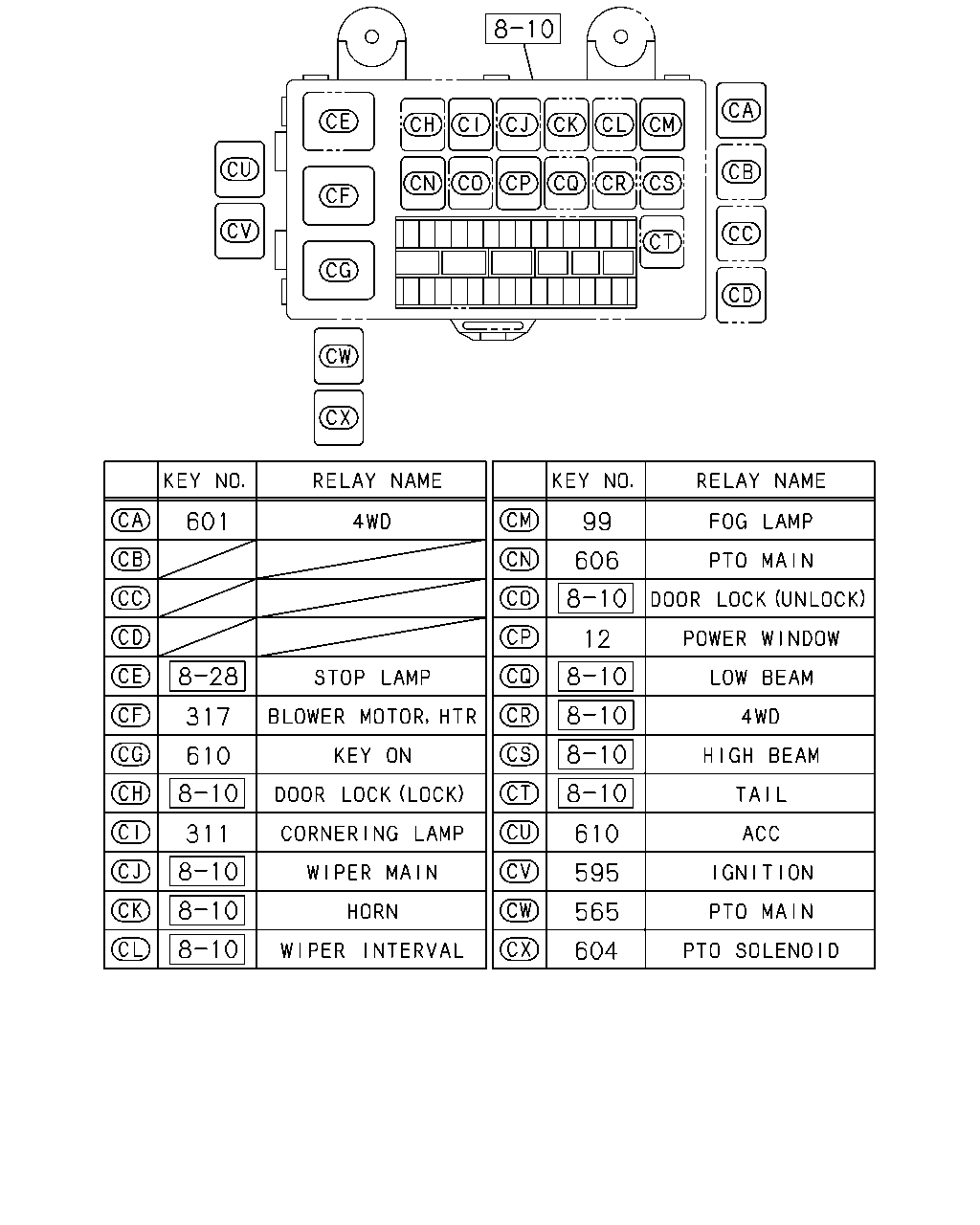

çizim 138195
601 317 610 311 99 606 12 610 595 565 604
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1206 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1207- ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1207- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
311 02.596 RELAY; CORNERING LAMP
CORNERING LAMP<T87> VIN MODEL YEAR 2013(VZD) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. VIN MODEL YEAR 2013(VZD) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
601 02.510 RELAY; 4WD
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. VIN MODEL YEAR 2013(VZD) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. VIN MODEL YEAR 2013(VZD) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1204 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

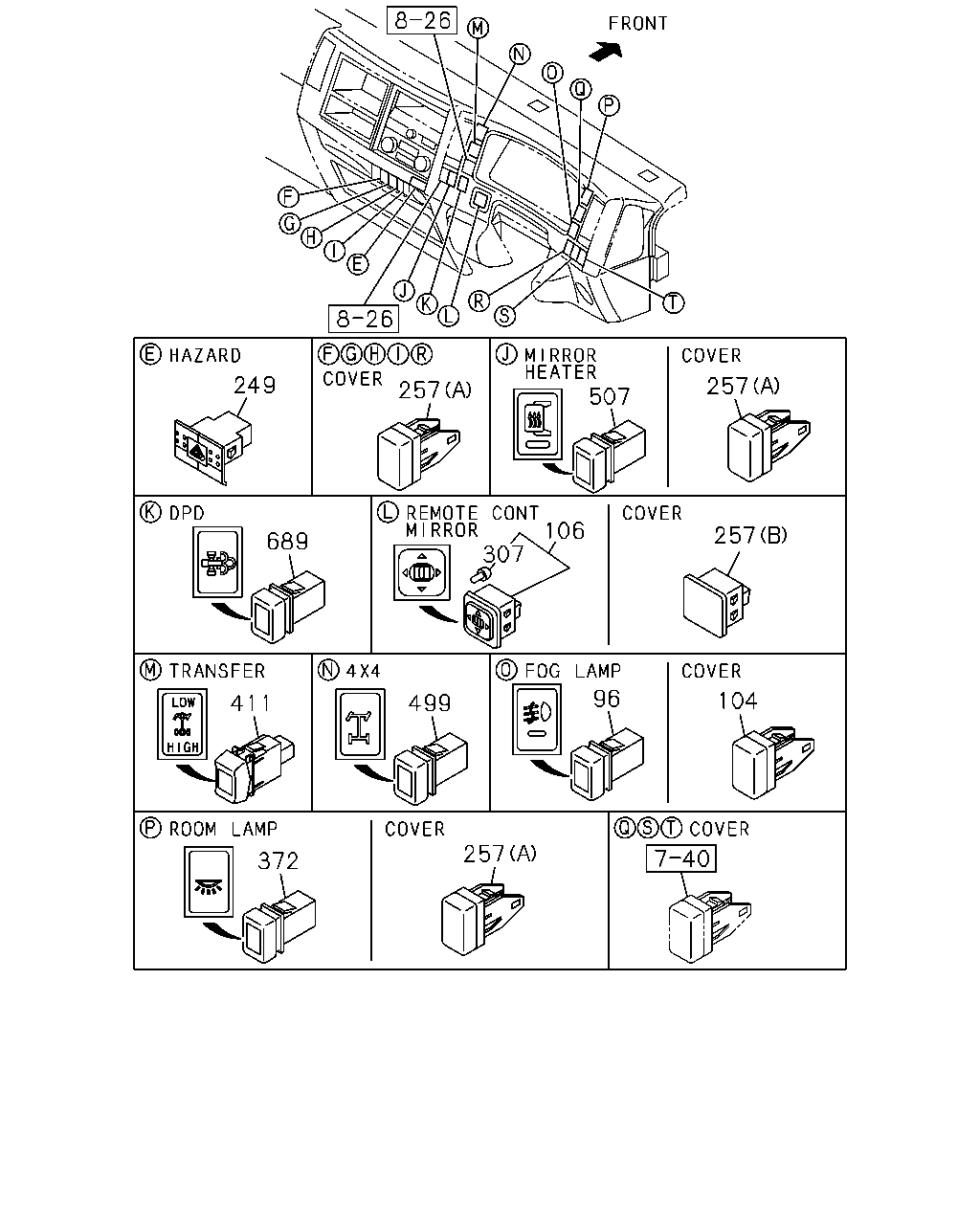

çizim 138329
249 257 507 257 257 106 307 689 411 499 96 104 257 372
BalonParca AdiParca NoAdetTipApplied Date A B
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1009- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1009- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1009- ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009- ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1009- ● ●
372 08.852 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1009- ●
411 09.755 SWITCH; TRANSFER 8-97613-967-1 01 1 1009- ● ●
499 09.755 SWITCH; 4X4 8-97386-914-3 01 1 1009- ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1009- ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1009- ● ●
çizim 187018
151 154
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●

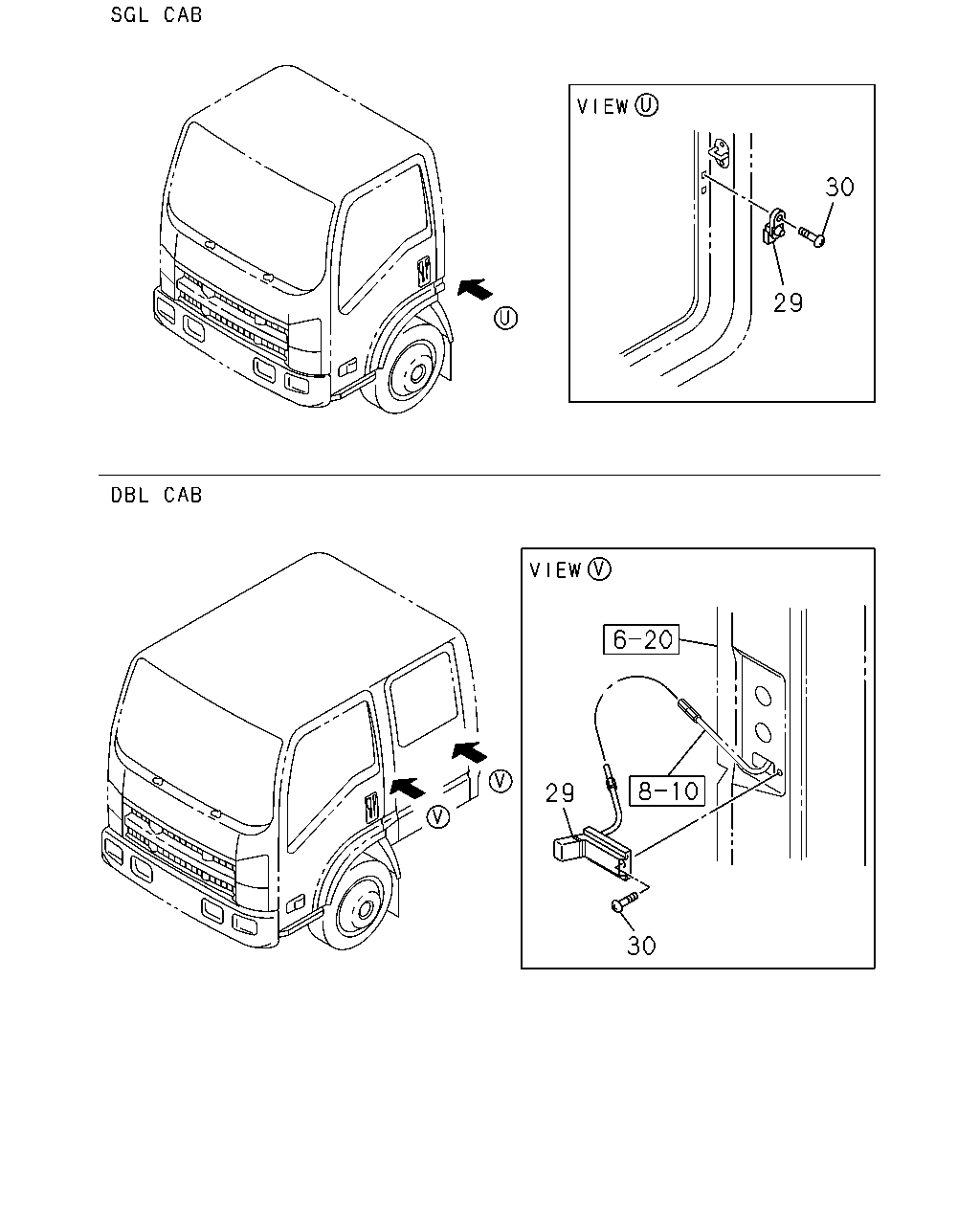

çizim 187019
30 29 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1009- ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1009- ●
29 16.263 SWITCH; DOOR
FRONT 		8-97855-032-3 01 1 1009- ●
29 16.263 SWITCH; DOOR
FRONT 		8-97855-032-3 01 1 1009- ●
29 16.263 SWITCH; DOOR
REAR 		8-98054-195-0 01 1 1009- ●
29 16.263 SWITCH; DOOR
REAR 		8-98054-195-0 01 1 1009- ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 02 1 1009- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 1009- ●
