8-21 — METER ASM (#78066) — 25 parça

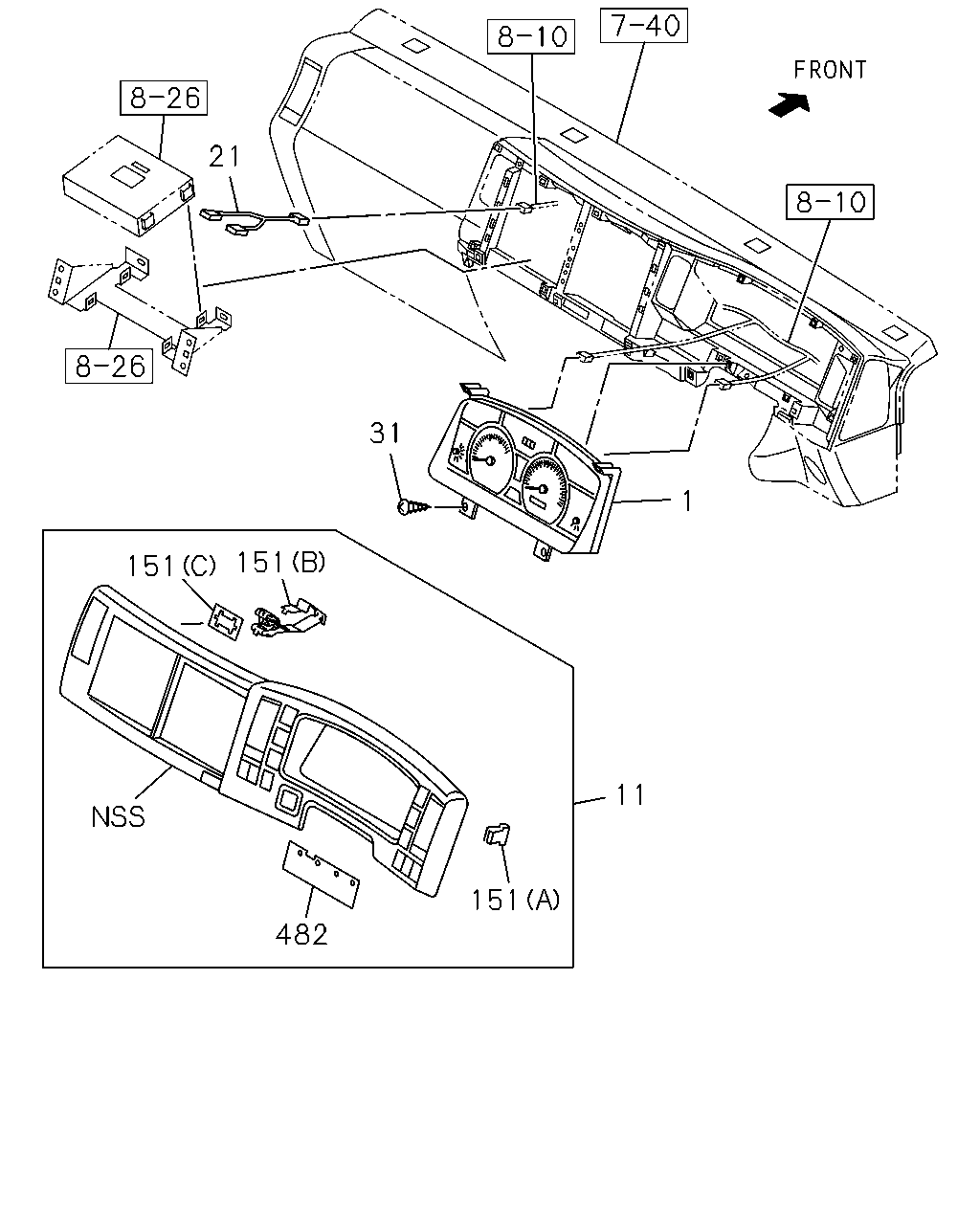

çizim 137707
11 151 482 151 151 31 21 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
VIN MODEL YEAR 2013(VZD) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98231-327-0 01 1 1505- ● ●
1 09.735 METER COMPL; CLUSTER 8-98096-900-4 01 1 1009-1504 ● ●
1 09.735 METER COMPL; CLUSTER
EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98096-900-4 01 1 1505- ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1009- ● ●
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD(8PG) 		8-98204-881-1 01 1 1112- ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-1101 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1009- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1009- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1009- ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1009- ● ●
çizim 137806
480 81 1 2 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
VIN MODEL YEAR 2013(VZD) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98231-327-0 01 1 1505- ● ●
1 09.735 METER COMPL; CLUSTER 8-98096-900-4 01 1 1009-1504 ● ●
1 09.735 METER COMPL; CLUSTER
EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98096-900-4 01 1 1505- ● ●
2 09.735 PANEL; CLUSTER
VIN MODEL YEAR 2013(VZD) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98054-638-0 01 1 1505- ● ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1009-1504 ● ●
2 09.735 PANEL; CLUSTER
EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98054-432-0 01 1 1505- ● ●
81 09.735 METER SUB ASM
VIN MODEL YEAR 2013(VZD) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98231-341-0 01 1 1505- ● ●
81 09.735 METER SUB ASM 8-98096-965-0 01 1 1009-1504 ● ●
81 09.735 METER SUB ASM
EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98096-965-0 01 1 1505- ● ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1009-1504 ● ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1505- ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1009-1504 ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1505- ● ●
