8-15 — FIXING PARTS; WIRING HARNESS (#78065) — 137 parça
çizim 136674
552 515 24 552 515 294 219 24 515 577 139 386 377 386 377 304 480 150 139 139 480 529 313
BalonParca AdiParca NoAdetTipApplied Date A B
24 02.559 NUT; HARNESS
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1009-1409 ● ●
24 02.559 NUT; HARNESS
(A) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410- ● ●
24 02.559 NUT; HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1009- ● ●
139 02.559 BOLT; BRKT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1009- ● ●
139 02.559 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-1101 ● ●
139 02.559 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
139 02.559 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
150 02.343 BOLT; CLIP
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) M8X12 FLANGE 		0-28050-812-0 01 1 1009- ● ●
219 02.559 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-1402 ● ●
294 02.559 NUT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
304 02.483 BOLT; ENG HARNESS CLIP
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 00.029 M10X16 FLANGE 		0-28151-016-0 01 1 1009- ● ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1009- ● ●
377 02.559 BOLT; CAB EARTH
02.343 (A) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1009- ● ●
377 02.559 BOLT; CAB EARTH
(B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1009- ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1009- ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1009- ● ●
480 02.483 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009- ● ●
480 02.483 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1009- ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009- ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009- ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1009- ● ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1009- ● ●
529 02.559 BOLT; RELAY BOX
08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1009- ● ●
552 02.483 NUT; BRKT,HARNESS
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1009- ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 04 1 1009-1204 ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ●

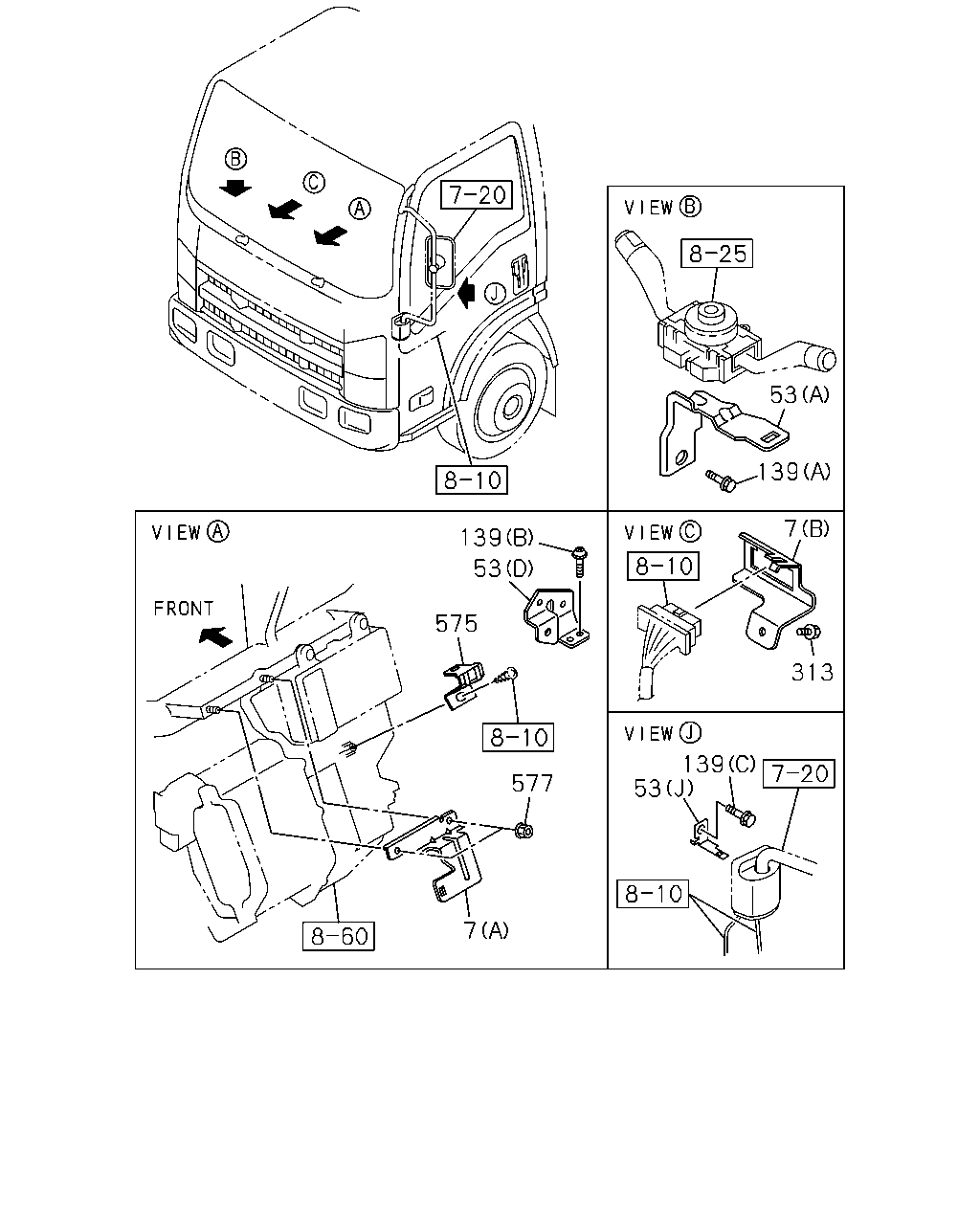

çizim 136831
53 139 7 313 139 53 577 7 575 139 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 02.559 BRACKET; CONNECTOR
(A) 		8-98029-762-4 01 1 1009- ● ●
7 02.559 BRACKET; CONNECTOR
(B) 		8-98043-070-1 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (J) 		8-98039-277-2 02 1 1009- ● ●
53 02.483 BRACKET; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (F) 		8-98052-804-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (E) 		8-98055-636-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(I) 		8-98077-504-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-98130-669-1 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) 		8-98084-590-0 01 1 1009- ● ●
139 02.559 BOLT; BRKT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1009- ● ●
139 02.559 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-1101 ● ●
139 02.559 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
139 02.559 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1009- ● ●
575 02.559 BRACKET; FUSE BOX 8-98042-656-2 01 1 1009- ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 04 1 1009-1204 ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ●

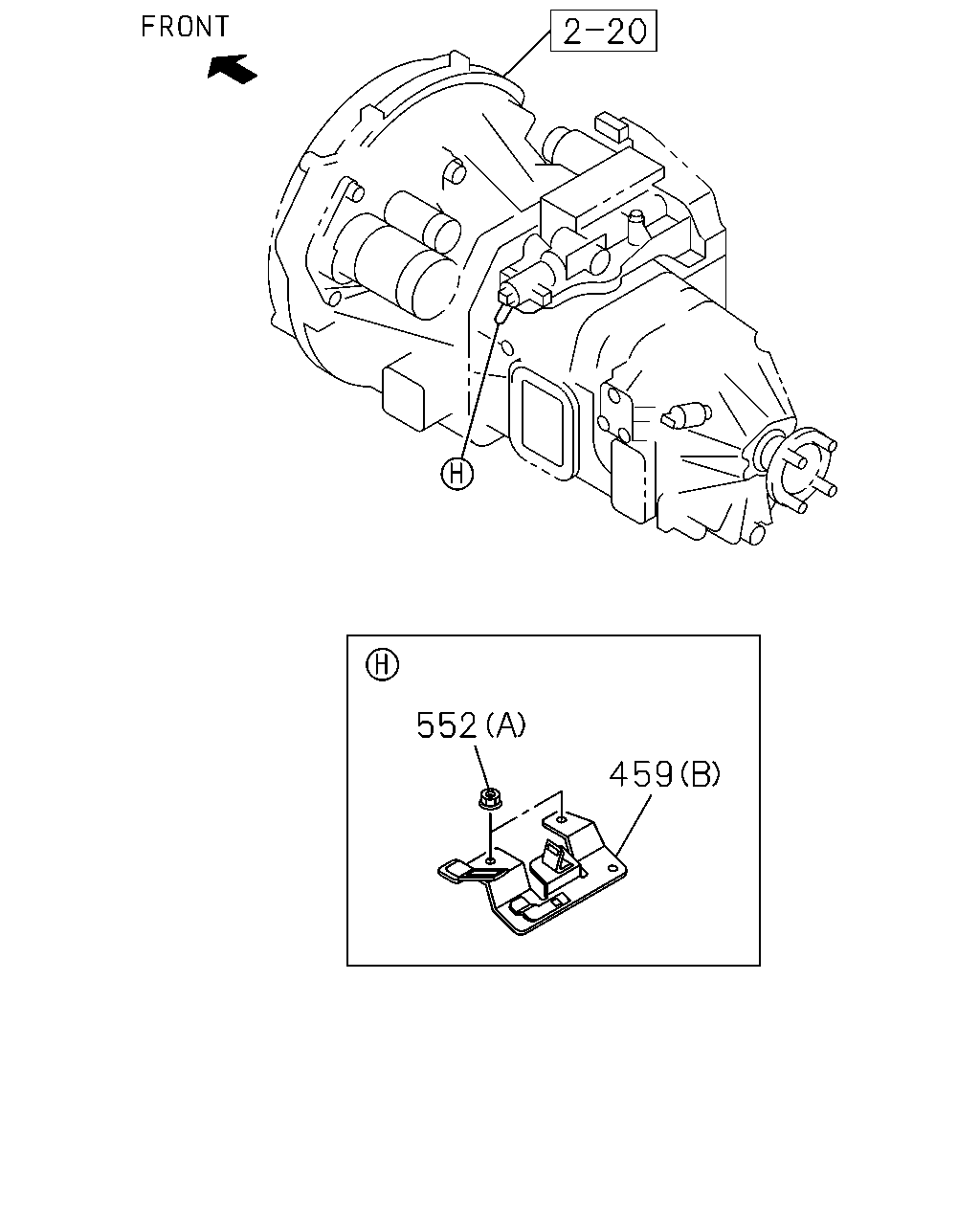

çizim 137108
459 552
BalonParca AdiParca NoAdetTipApplied Date A B
459 02.483 BRACKET; SUPPORT,HARNESS
02.559 (A) 		8-97379-633-0 01 1 1009- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
(B) 		8-98020-227-3 01 1 1009- ● ●
552 02.483 NUT; BRKT,HARNESS
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1009- ● ●
çizim 137931
22 16 102 488 22 16 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 02.559 CLIP; BAND,HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 09.242 L=150 		8-97355-273-0 03 1 1009- ● ●
16 02.559 CLIP; HARNESS
MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) (J) ID=7-10 		8-94472-578-0 01 1 1505- ●
16 02.559 CLIP; HARNESS
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6 		8-97229-357-0 01 1 1505- ● ●
16 02.559 CLIP; HARNESS
(I) L=60 		8-94449-165-0 02 1 1207- ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-97063-335-0 02 1 1207- ●
16 02.559 CLIP; HARNESS
(G) L=135 		1-09987-143-1 01 1 1009-1106 ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1009- ● ●
16 02.559 CLIP; HARNESS
02.694 (B) ID=6 & 10-13 		8-97069-515-0 02 1 1009- ● ●
16 02.559 CLIP; HARNESS
03.483 (E) 		8-97101-436-0 01 1 1009- ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 1009- ● ●
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1009-1206 ● ●
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1207-1504 ● ●
16 02.559 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 02 1 1505- ● ●
16 02.559 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 02 1 1505- ● ●
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1505- ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1009- ● ●
22 02.559 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 01 1 1009- ● ●
22 02.559 CLIP; ENG HARNESS
08.852 (C) L=350 		8-94152-256-1 02 1 1009- ● ●
22 02.559 CLIP; ENG HARNESS
(A) ID=14-20 		8-97061-603-0 02 1 1009-1505 ● ●
102 02.559 CLIP; BAND
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 L=140 		5-09707-031-1 07 1 1009-1009 ● ●
102 02.559 CLIP; BAND
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 L=140 		5-09707-031-1 08 1 1010- ● ●
488 02.559 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 1009- ● ●
çizim 137938
16 16 16 483 483 483 16 16 16 16 16 22 513 530
BalonParca AdiParca NoAdetTipApplied Date A B
16 02.559 CLIP; HARNESS
MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) (J) ID=7-10 		8-94472-578-0 01 1 1505- ●
16 02.559 CLIP; HARNESS
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6 		8-97229-357-0 01 1 1505- ● ●
16 02.559 CLIP; HARNESS
(I) L=60 		8-94449-165-0 02 1 1207- ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-97063-335-0 02 1 1207- ●
16 02.559 CLIP; HARNESS
(G) L=135 		1-09987-143-1 01 1 1009-1106 ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1009- ● ●
16 02.559 CLIP; HARNESS
02.694 (B) ID=6 & 10-13 		8-97069-515-0 02 1 1009- ● ●
16 02.559 CLIP; HARNESS
03.483 (E) 		8-97101-436-0 01 1 1009- ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 1009- ● ●
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1009-1206 ● ●
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1207-1504 ● ●
16 02.559 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 02 1 1505- ● ●
16 02.559 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 02 1 1505- ● ●
16 02.559 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1505- ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1009- ● ●
22 02.559 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 01 1 1009- ● ●
22 02.559 CLIP; ENG HARNESS
08.852 (C) L=350 		8-94152-256-1 02 1 1009- ● ●
22 02.559 CLIP; ENG HARNESS
(A) ID=14-20 		8-97061-603-0 02 1 1009-1505 ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 06.602 (C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009- ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 04.785 (A) ID=14.5 L=40 		1-09701-014-0 01 1 1009- ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (D) ID=19 H=33 L=45 		1-09701-045-0 01 1 1009- ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 01.152 (E) L=36 		8-94224-891-1 01 1 1009- ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) ID=12 		8-97329-630-0 01 1 1009- ● ●
513 02.559 TAPE; SOFT,HARNESS
70X45 		8-97304-372-0 01 1 1009-1309 ● ●
513 02.559 TAPE; SOFT,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 130X80 		8-97304-373-0 01 1 1009- ● ●
530 02.559 SEAL; HARNESS
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1009- ● ●
çizim 187014
48 48 48 483 483
BalonParca AdiParca NoAdetTipApplied Date A B
48 02.559 CLIP; FRAME HARNESS
03.430 (B) ID=10 & 16.5 		8-94424-440-0 01 1 1009- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (A) ID=14 L=47 		5-09700-319-0 05 1 1009- ● ●
48 02.559 CLIP; FRAME HARNESS
(C) T=5.5 		8-97371-951-0 02 1 1009- ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 06.602 (C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009- ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 04.785 (A) ID=14.5 L=40 		1-09701-014-0 01 1 1009- ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (D) ID=19 H=33 L=45 		1-09701-045-0 01 1 1009- ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 01.152 (E) L=36 		8-94224-891-1 01 1 1009- ● ●
483 02.559 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) ID=12 		8-97329-630-0 01 1 1009- ● ●

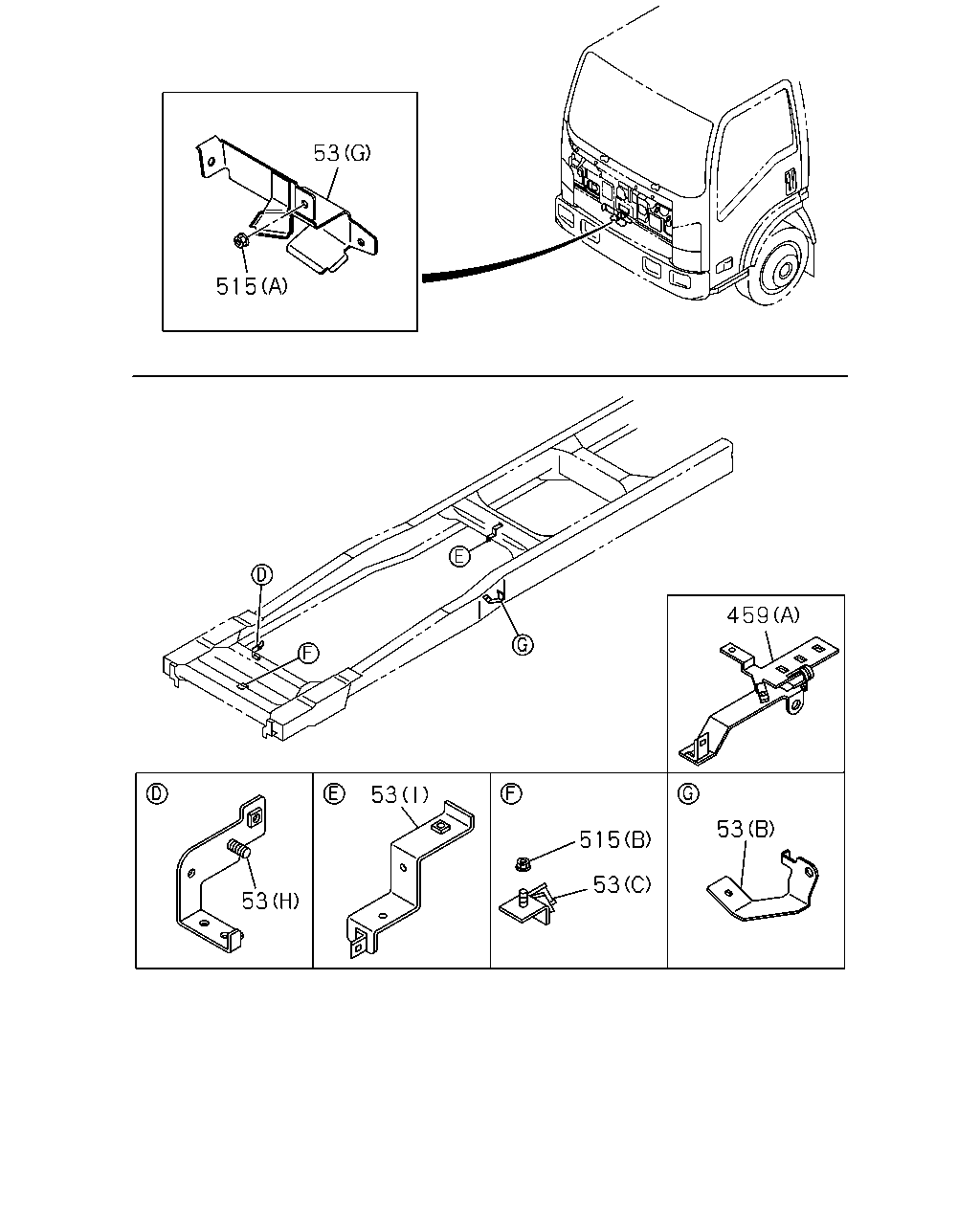

çizim 187016
53 53 459 515 53 53 53 515
BalonParca AdiParca NoAdetTipApplied Date A B
53 02.483 BRACKET; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (J) 		8-98039-277-2 02 1 1009- ● ●
53 02.483 BRACKET; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (F) 		8-98052-804-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (E) 		8-98055-636-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(I) 		8-98077-504-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-98130-669-1 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) 		8-98084-590-0 01 1 1009- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
02.559 (A) 		8-97379-633-0 01 1 1009- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
(B) 		8-98020-227-3 01 1 1009- ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009- ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009- ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1009- ● ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1009- ● ●

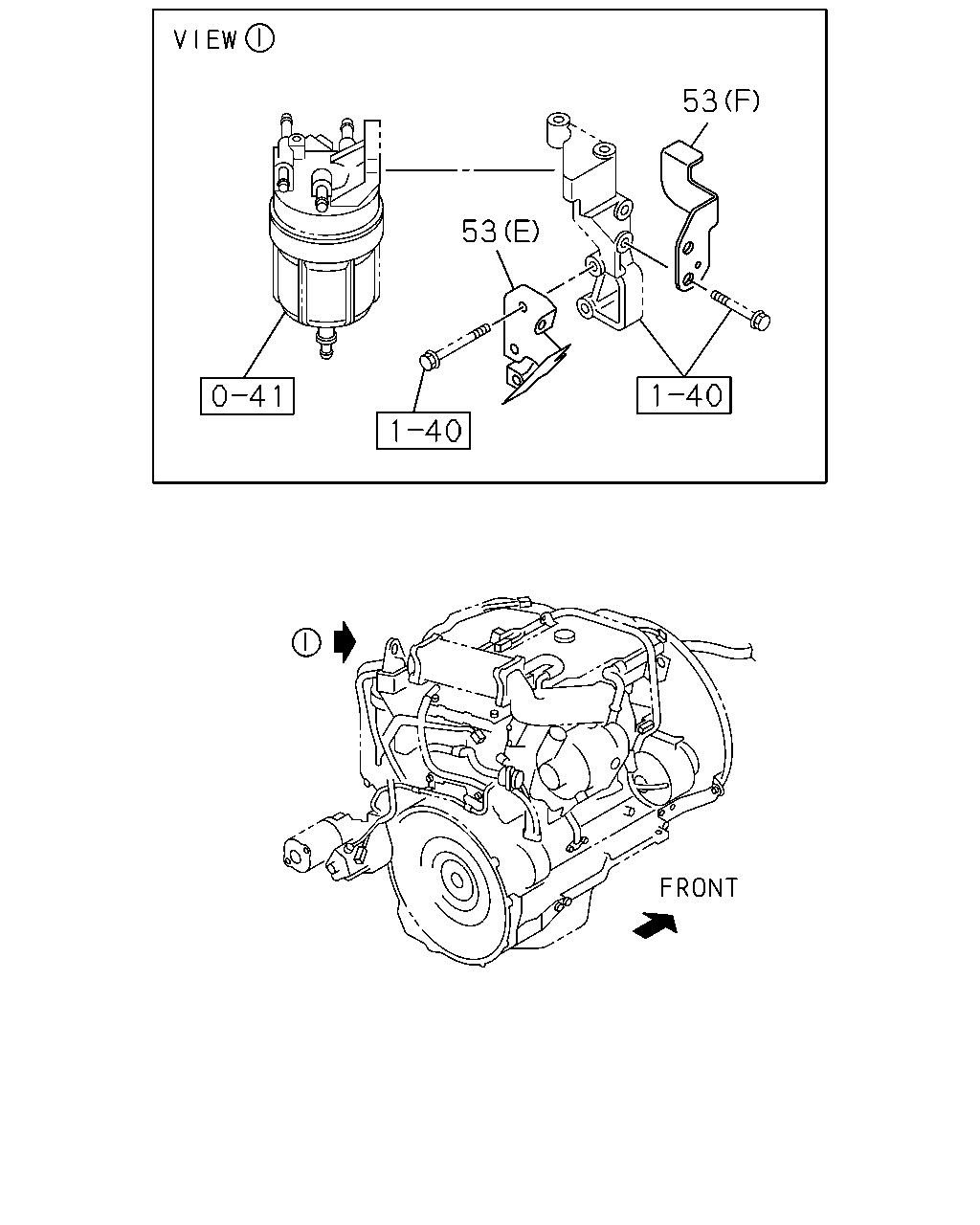

çizim 187023
53 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 02.483 BRACKET; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (J) 		8-98039-277-2 02 1 1009- ● ●
53 02.483 BRACKET; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (F) 		8-98052-804-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (E) 		8-98055-636-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(I) 		8-98077-504-0 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-98130-669-1 01 1 1009- ● ●
53 02.483 BRACKET; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) 		8-98084-590-0 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
