Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#78064) — 187 parça

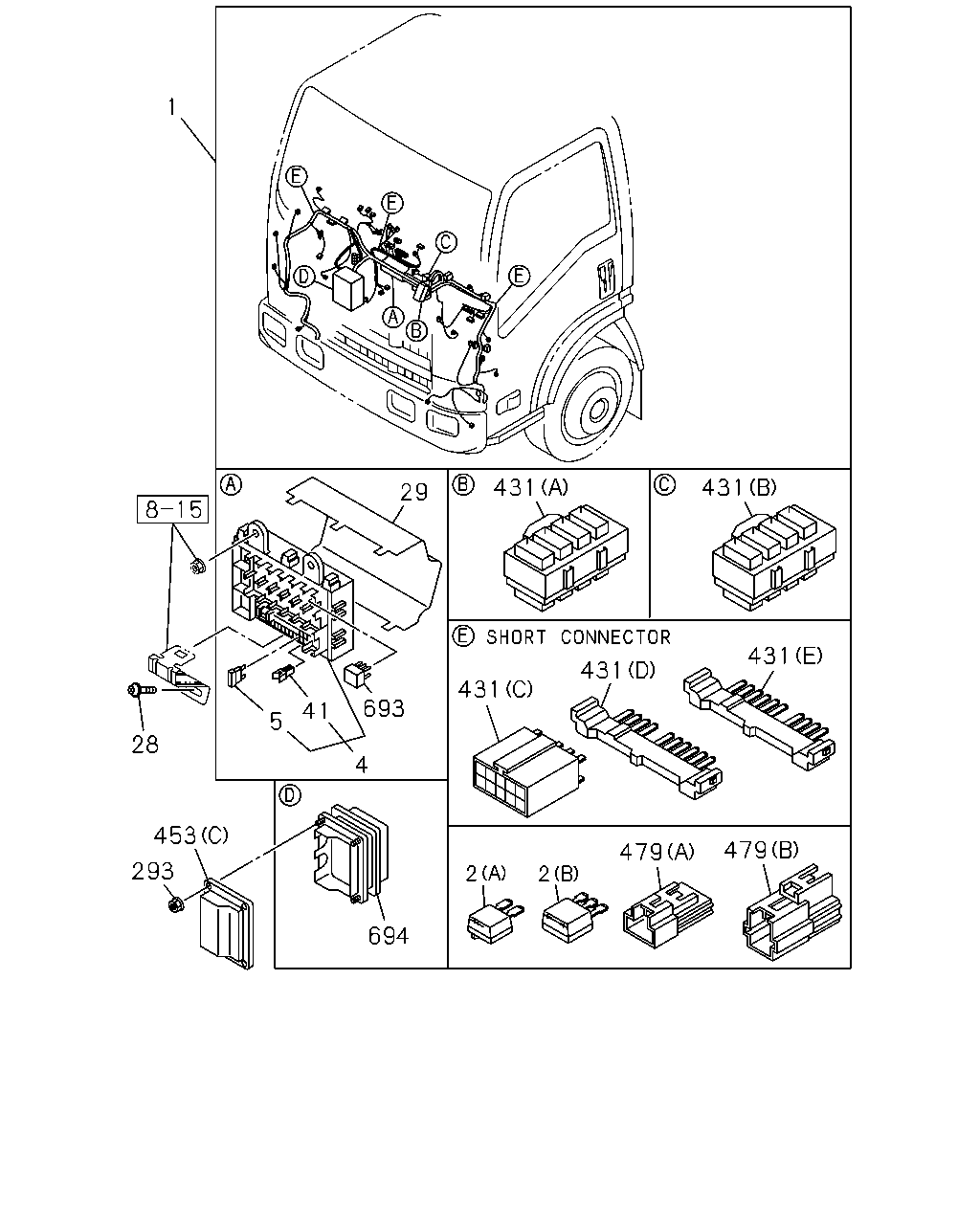

479 479 2 2 694 4 41 5 28 453 293 693 29 431 431 431 431 431 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013(VZD)	8-98225-757-1	01	1	1505-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013(VZD) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-756-1	01	1	1505-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013(VZD)	8-98225-761-1	01	1	1505-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013(VZD) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-760-1	01	1	1505-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) CAN INTERFACE FMS STD(8PG)	8-98204-558-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98204-558-0	01	1	1205-1504	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013(VZD)	8-98204-558-0	01	1	1505-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CAN INTERFACE FMS STD(8PG) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-557-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-557-0	01	1	1205-1504	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013(VZD)	8-98204-557-0	01	1	1505-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) CAN INTERFACE FMS STD(8PG)	8-98204-562-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98204-562-0	01	1	1205-1206		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98217-238-0	01	1	1207-1504		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013(VZD)	8-98217-238-0	01	1	1505-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CAN INTERFACE FMS STD(8PG) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-561-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-561-0	01	1	1205-1206		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98217-237-0	01	1	1207-1504		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013(VZD)	8-98217-237-0	01	1	1505-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98154-793-1	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. CAN INTERFACE FMS STD(8PG)	8-98154-793-1	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98154-792-1	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98154-792-1	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98087-889-6	01	1	1009-1111		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. CAN INTERFACE FMS STD(8PG)	8-98087-889-6	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-888-6	01	1	1009-1111		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98087-888-6	01	1	1112-1204		●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1009-	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1009-	●	●
4	02.483 BOX ASM; FUSE,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98067-619-0	01	1	1009-	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1009-	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1009-	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1009-	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1009-1101	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
29	02.483 COVER; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98056-968-0	01	1	1009-	●	●
41	08.821 PULLER; FUSE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98054-260-0	01	1	1009-	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1009-	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 10P BLUE	1-82699-598-0	01	1	1009-1111	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CAN INTERFACE FMS STD(8PG) (D) 10P BLUE	1-82699-598-0	01	1	1112-1204	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 10P GREEN	1-82699-599-0	01	1	1009-1111	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CAN INTERFACE FMS STD(8PG) (E) 10P GREEN	1-82699-599-0	01	1	1112-1204	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 10P	8-97077-943-0	02	1	1009-1111	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CAN INTERFACE FMS STD(8PG) (C) 10P	8-97077-943-0	02	1	1112-1204	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98046-205-0	01	1	1009-	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98046-206-0	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	01	1	1009-1504	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	01	1	1505-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1009-1504	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1505-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1009-	●	●
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	1009-	●	●
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	1009-	●	●
693	02.694 RELAY; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1009-	●	●
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98057-772-0	01	1	1009-	●	●

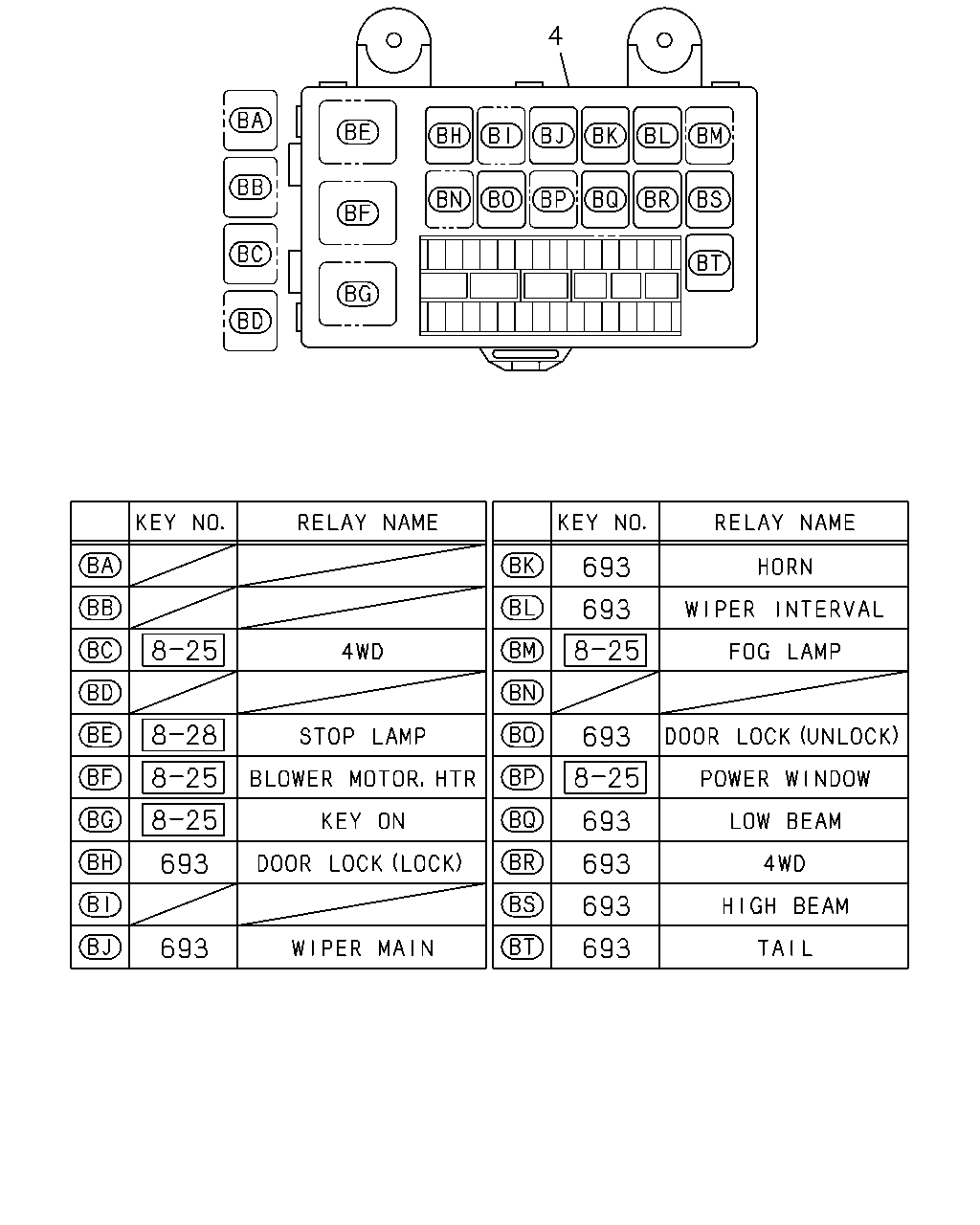

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	02.483 BOX ASM; FUSE,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98067-619-0	01	1	1009-	●	●
	693	02.694 RELAY; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1009-	●	●

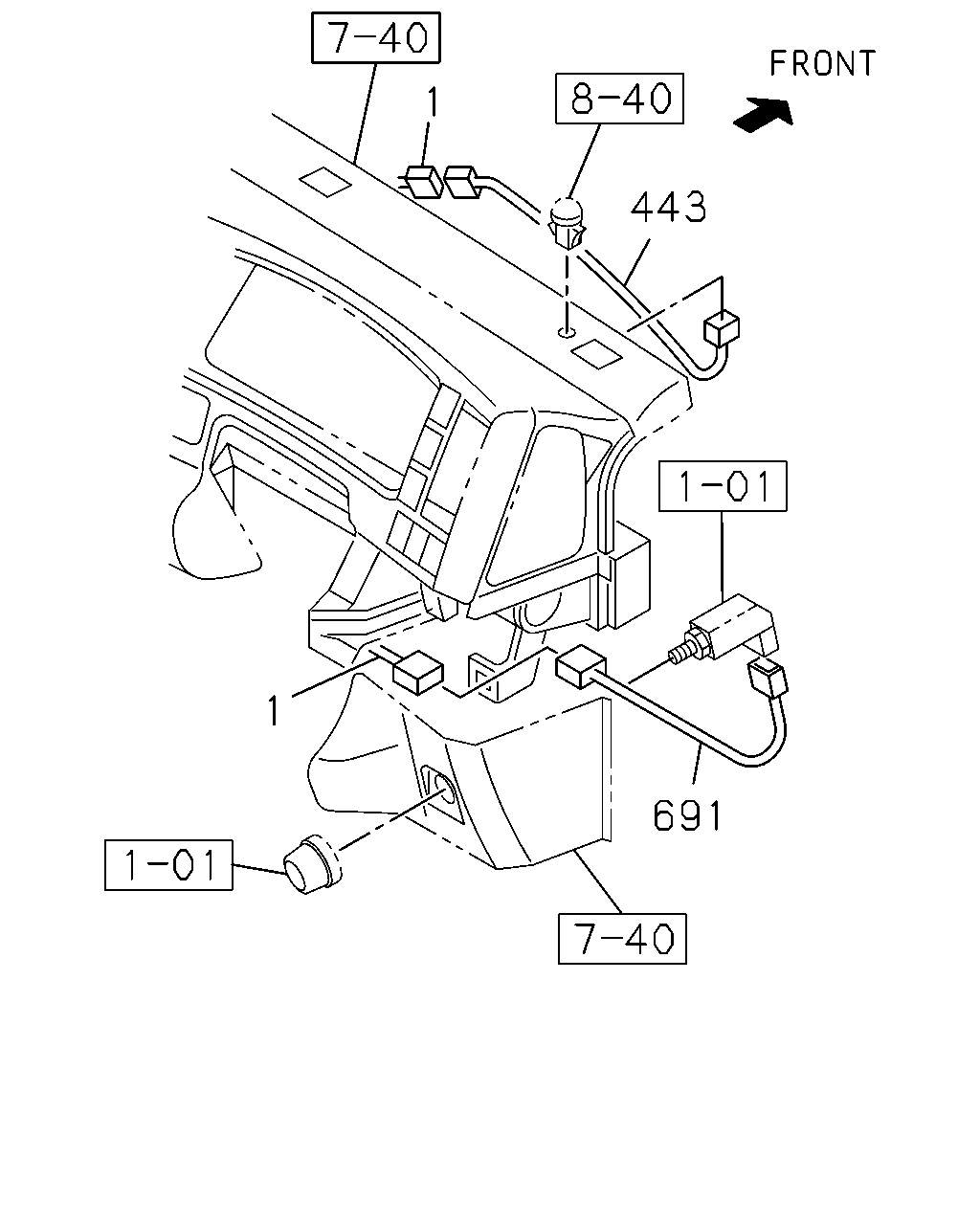

1 1 691 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013(VZD)	8-98225-757-1	01	1	1505-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013(VZD) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-756-1	01	1	1505-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013(VZD)	8-98225-761-1	01	1	1505-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013(VZD) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-760-1	01	1	1505-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) CAN INTERFACE FMS STD(8PG)	8-98204-558-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98204-558-0	01	1	1205-1504	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013(VZD)	8-98204-558-0	01	1	1505-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CAN INTERFACE FMS STD(8PG) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-557-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-557-0	01	1	1205-1504	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013(VZD)	8-98204-557-0	01	1	1505-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) CAN INTERFACE FMS STD(8PG)	8-98204-562-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98204-562-0	01	1	1205-1206		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98217-238-0	01	1	1207-1504		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013(VZD)	8-98217-238-0	01	1	1505-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CAN INTERFACE FMS STD(8PG) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-561-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-561-0	01	1	1205-1206		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98217-237-0	01	1	1207-1504		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013(VZD)	8-98217-237-0	01	1	1505-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98154-793-1	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. CAN INTERFACE FMS STD(8PG)	8-98154-793-1	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98154-792-1	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98154-792-1	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98087-889-6	01	1	1009-1111		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. CAN INTERFACE FMS STD(8PG)	8-98087-889-6	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-888-6	01	1	1009-1111		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98087-888-6	01	1	1112-1204		●
443	02.480 HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98029-830-0	01	1	1009-	●	●
691	02.480 HARNESS; IDLE CONT SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98049-014-2	01	1	1009-	●	●

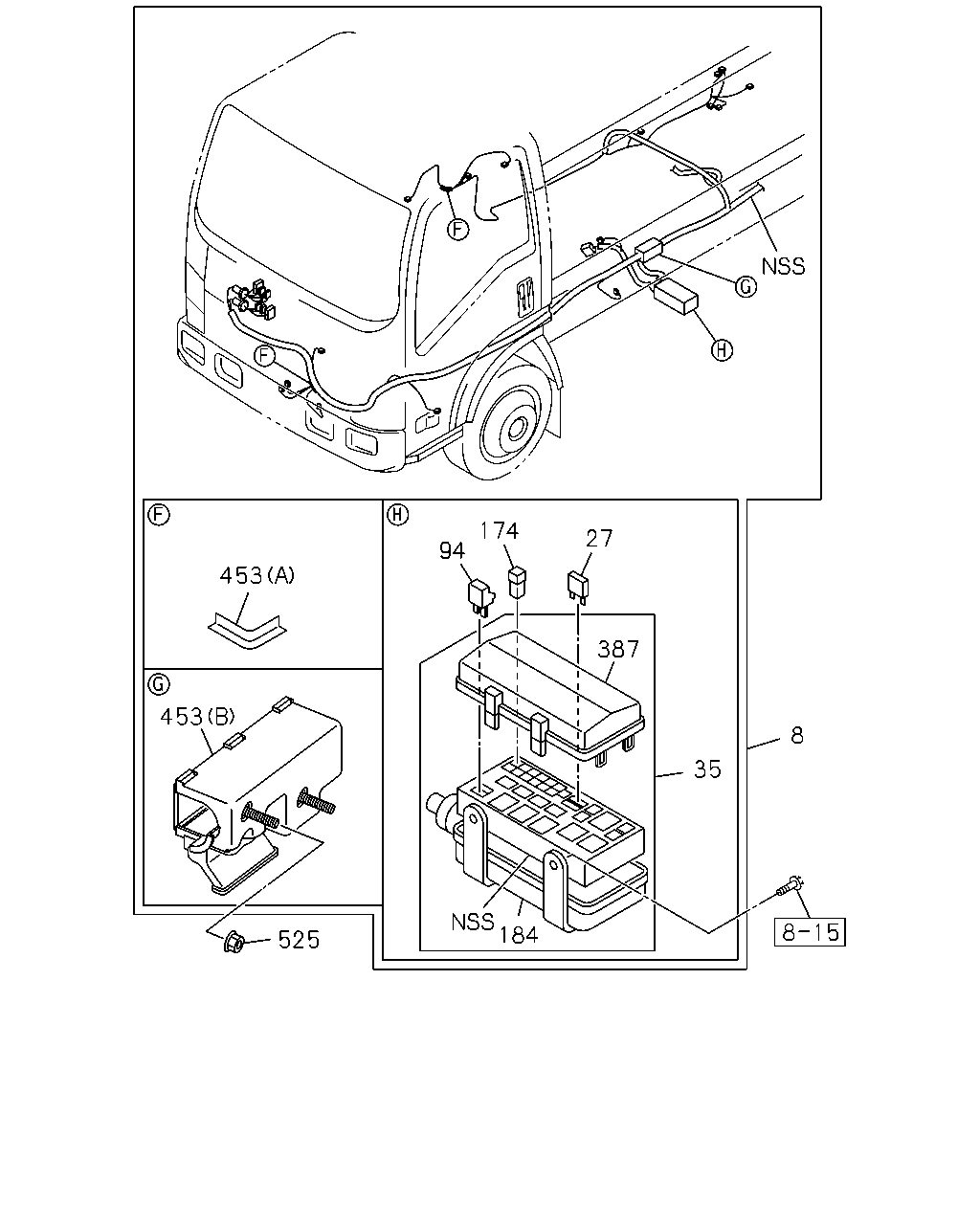

8 35 387 27 174 94 453 453 525 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT VIN MODEL YEAR 2013(VZD) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-352-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT VIN MODEL YEAR 2013(VZD) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-353-0	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT	8-98120-512-8	01	1	1009-1409	●
8	02.480 HARNESS; FRAME,FRT	8-98294-350-0	01	1	1410-1504	●
8	02.480 HARNESS; FRAME,FRT EXC. VIN MODEL YEAR 2013(VZD)	8-98294-350-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT	8-98120-513-8	01	1	1009-1409		●
8	02.480 HARNESS; FRAME,FRT	8-98294-351-0	01	1	1410-1504		●
8	02.480 HARNESS; FRAME,FRT EXC. VIN MODEL YEAR 2013(VZD)	8-98294-351-0	01	1	1505-		●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1009-1504	●	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	04	1	1505-	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1009-1504	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1505-	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1009-1504	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	1505-	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1009-1504	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1505-	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1009-1504	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1505-	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1009-1504	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	01	1	1505-	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1009-1504	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	04	1	1505-	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1009-1504	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1505-	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	01	1	1009-1504	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	01	1	1505-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1009-1504	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1505-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1009-	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●

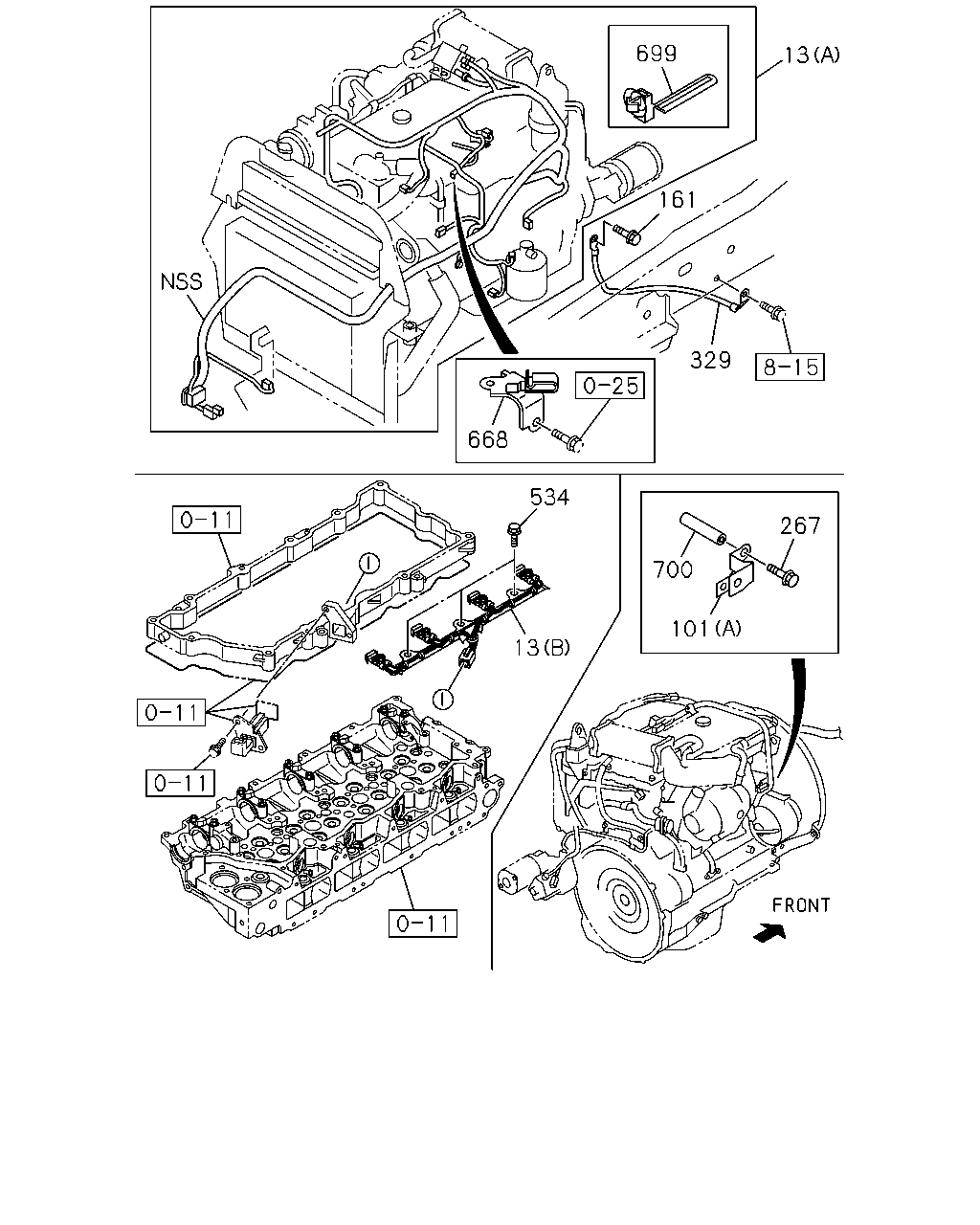

699 13 329 161 668 534 267 101 700 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98135-316-2	01	1	1009-	●	●
13	02.525 HARNESS; ENG GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)	8-98171-638-0	01	1	1009-	●	●
13	02.525 HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98135-317-1	01	1	1009-1312	●	●
13	02.525 HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98186-702-2	01	1	1401-1401	●	●
13	02.525 HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98135-317-2	01	1	1402-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	1009-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	1009-	●	●
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1009-	●	●
267	02.483 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	1009-	●	●
329	02.480 CABLE; ENG TO FRAME	8-98102-465-0	01	1	1009-	●	●
534	02.483 BOLT GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1009-	●	●
668	02.559 BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98061-780-0	01	1	1009-	●	●
699	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) L=146.2	8-98052-677-0	01	1	1009-	●	●
700	02.483 TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) L=105	8-98084-726-0	01	1	1009-	●	●

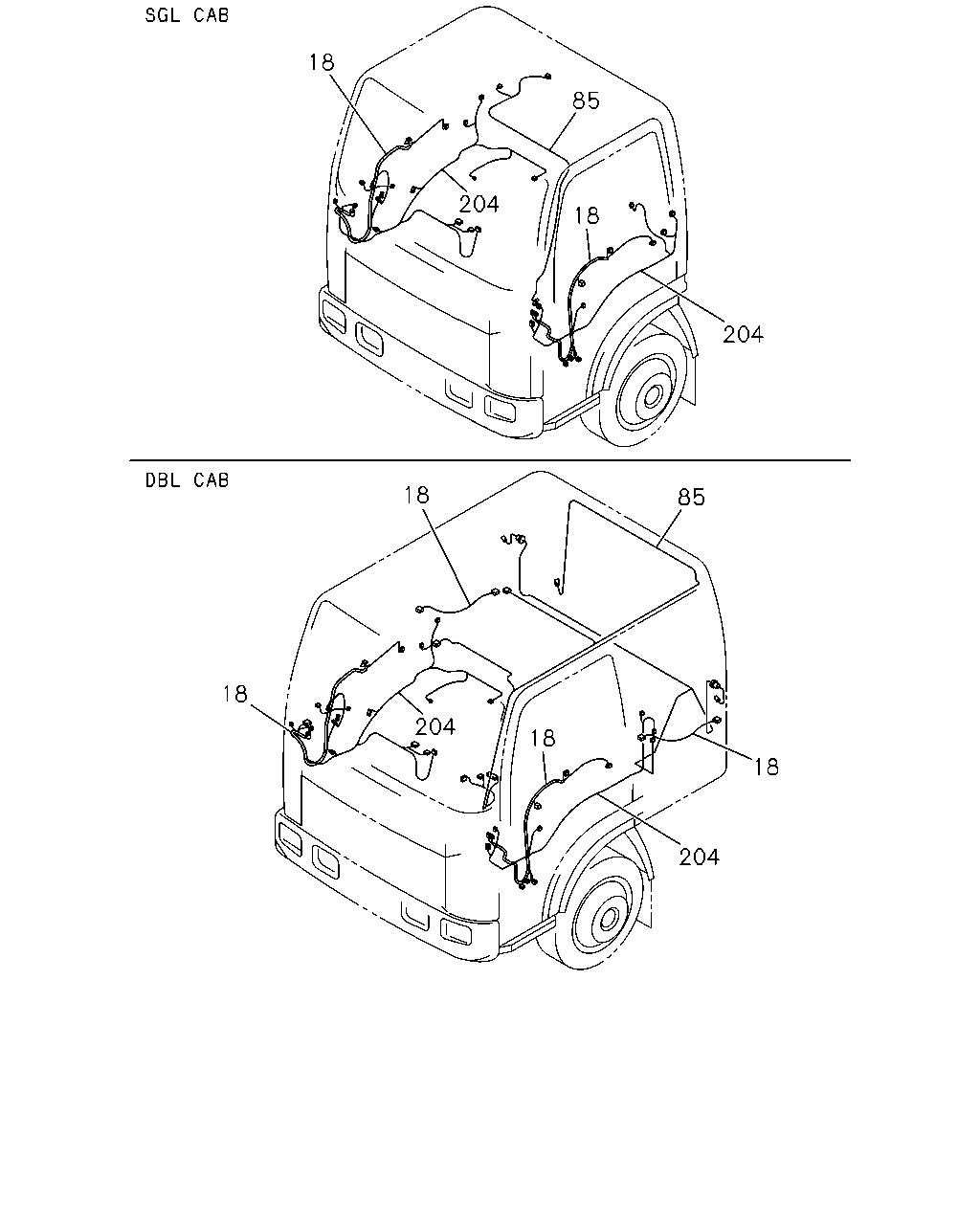

18 18 204 85 204 85 18 18 204 18 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87>	8-98077-590-2	01	1	1505-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87>	8-98077-598-3	01	1	1505-	●	●
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98046-746-5	01	1	1505-	●	●
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98077-596-3	01	1	1505-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-078-2	01	1	1009-1206	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-078-2	01	1	1207-1504	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98071-078-2	01	1	1505-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-086-3	01	1	1009-1206	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-086-3	01	1	1207-1504	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98071-086-3	01	1	1505-	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-076-2	01	1	1009-1206	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-076-2	01	1	1207-1504	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-076-2	01	1	1505-	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-084-3	01	1	1009-1206	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-084-3	01	1	1207-1504	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-084-3	01	1	1505-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-077-2	01	1	1009-1206		●
18	02.480 HARNESS; DOOR	8-98202-555-0	02	1	1207-		●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-085-3	01	1	1009-1206		●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-075-2	01	1	1009-1206		●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-083-2	01	1	1009-1206		●
85	06.495 HARNESS; ROOM LAMP	8-98147-482-0	01	1	1009-	●
85	06.495 HARNESS; ROOM LAMP	8-98071-094-2	01	1	1009-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD)	8-98226-303-0	01	1	1505-	●
204	02.559 HARNESS; CABLE,FLOOR MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98047-164-4	01	1	1505-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98047-157-6	01	1	1009-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-592-3	01	1	1009-1504	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> MANUAL TILT CAB<RWZ> EXC. VIN MODEL YEAR 2013(VZD)	8-98074-592-3	01	1	1505-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. MANUAL TILT CAB<RWZ>	8-98074-592-3	01	1	1505-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-787-4	01	1	1009-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	1009-1504	●
204	02.559 HARNESS; CABLE,FLOOR MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER & PASSENGER<AK5>,VIN MODEL YEAR 2013(VZD)	8-98070-807-3	01	1	1505-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, MANUAL TILT CAB<RWZ>	8-98070-807-3	01	1	1505-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-793-2	01	1	1009-1206		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98029-726-6	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-593-2	01	1	1009-1206		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-594-3	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-791-2	01	1	1009-1206		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-792-3	01	1	1207-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-809-2	01	1	1009-1206		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-810-3	01	1	1207-		●

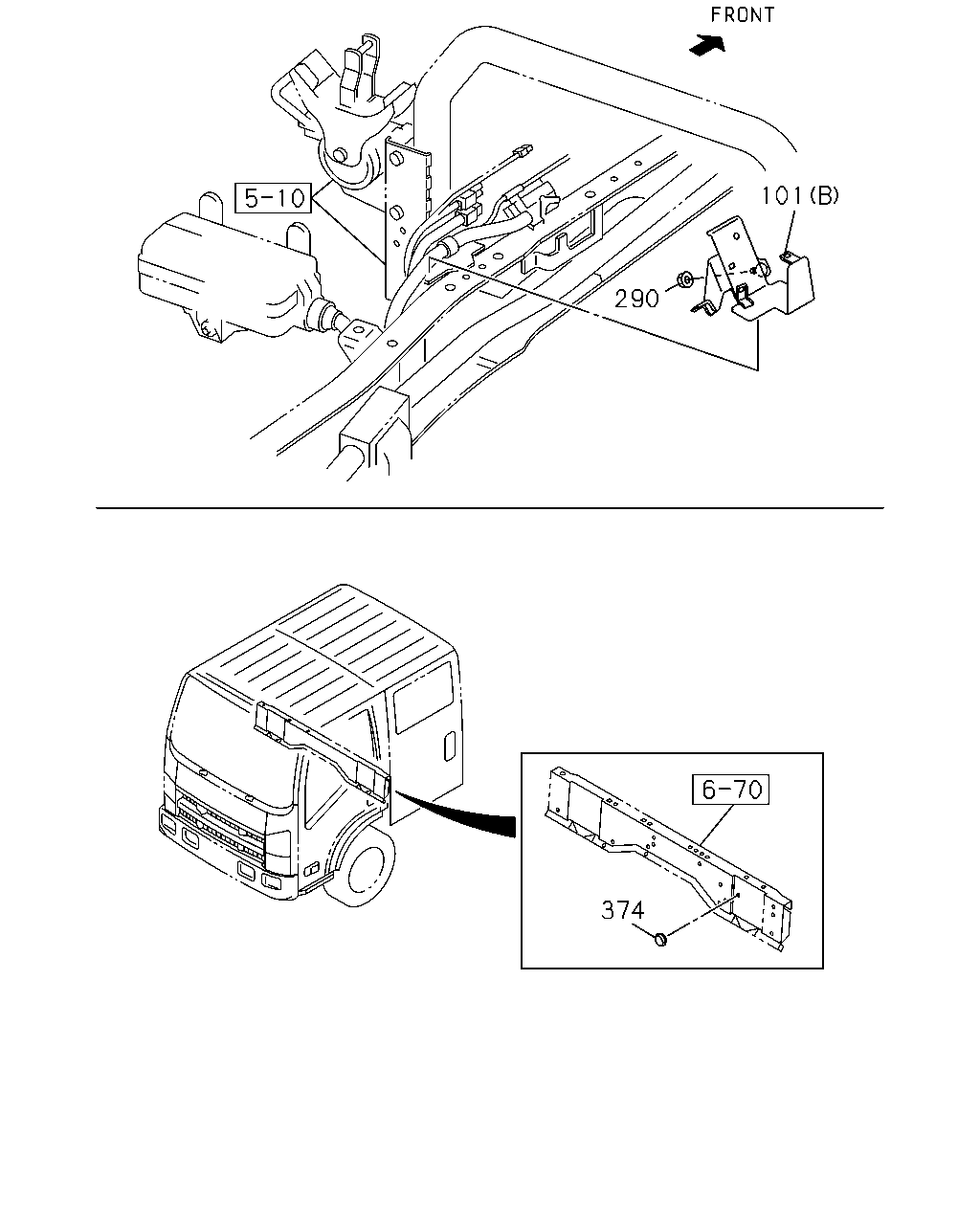

290 101 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	1009-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98133-387-1	01	1	1009-	●	●
290	02.483 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	1009-		●

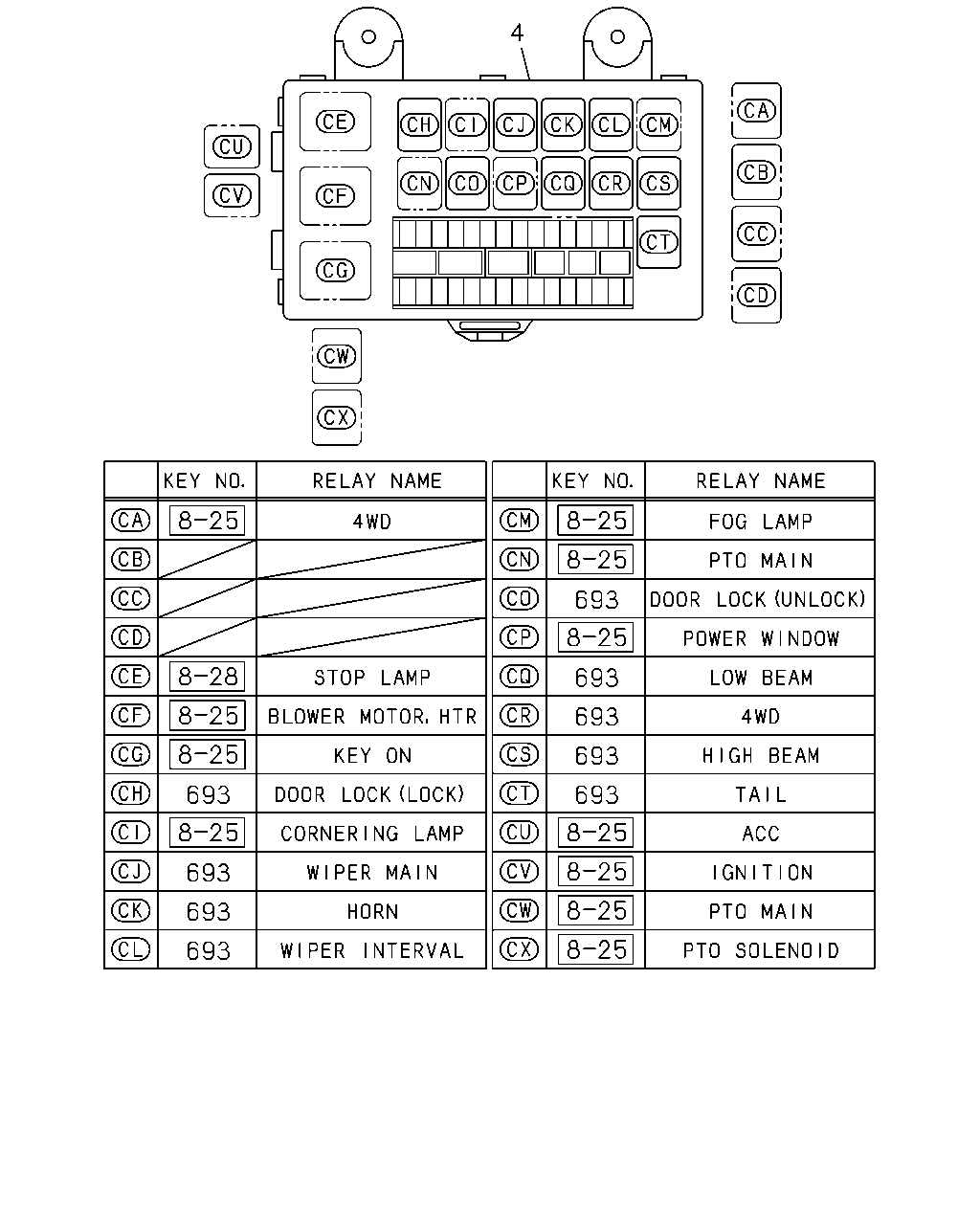

693 693 693 693 693 693 693 693 693 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	02.483 BOX ASM; FUSE,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98067-619-0	01	1	1009-	●	●
	693	02.694 RELAY; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1009-	●	●

9 8 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT VIN MODEL YEAR 2013(VZD) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-352-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT VIN MODEL YEAR 2013(VZD) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-353-0	01	1	1505-		●
8	02.480 HARNESS; FRAME,FRT	8-98120-512-8	01	1	1009-1409	●
8	02.480 HARNESS; FRAME,FRT	8-98294-350-0	01	1	1410-1504	●
8	02.480 HARNESS; FRAME,FRT EXC. VIN MODEL YEAR 2013(VZD)	8-98294-350-0	01	1	1505-	●
8	02.480 HARNESS; FRAME,FRT	8-98120-513-8	01	1	1009-1409		●
8	02.480 HARNESS; FRAME,FRT	8-98294-351-0	01	1	1410-1504		●
8	02.480 HARNESS; FRAME,FRT EXC. VIN MODEL YEAR 2013(VZD)	8-98294-351-0	01	1	1505-		●
9	02.480 HARNESS; FRAME,RR	8-98117-248-0	01	1	1009-	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
