Isuzu WW
▶
TRUCKS
▶
FRR
▶
10808 - FRR-G/FSR/FTR TAIWAN
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#7806) — 70 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
◀

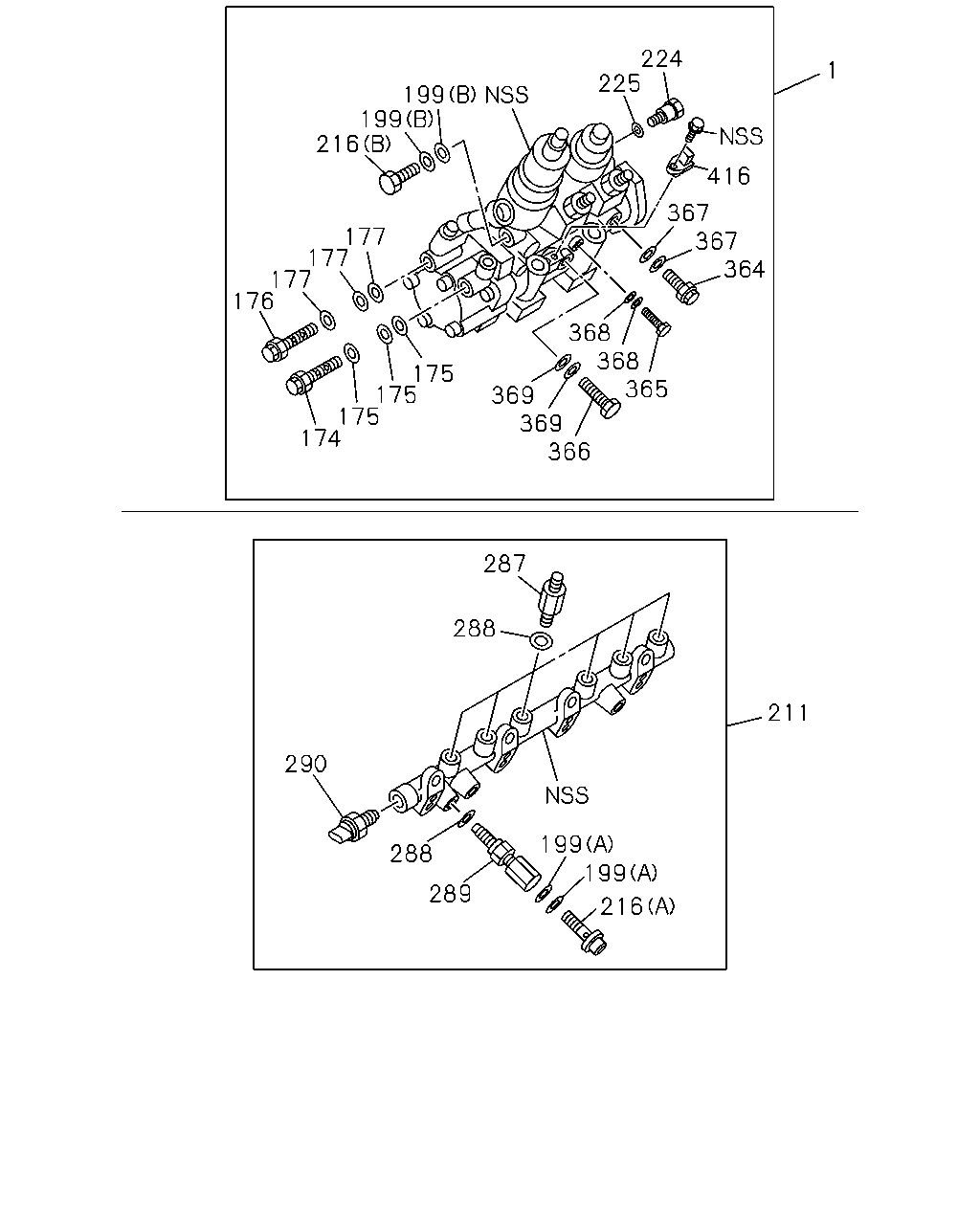

[040A] COMPONENT;INJ PUMP,COMMON RAIL (27 parça)

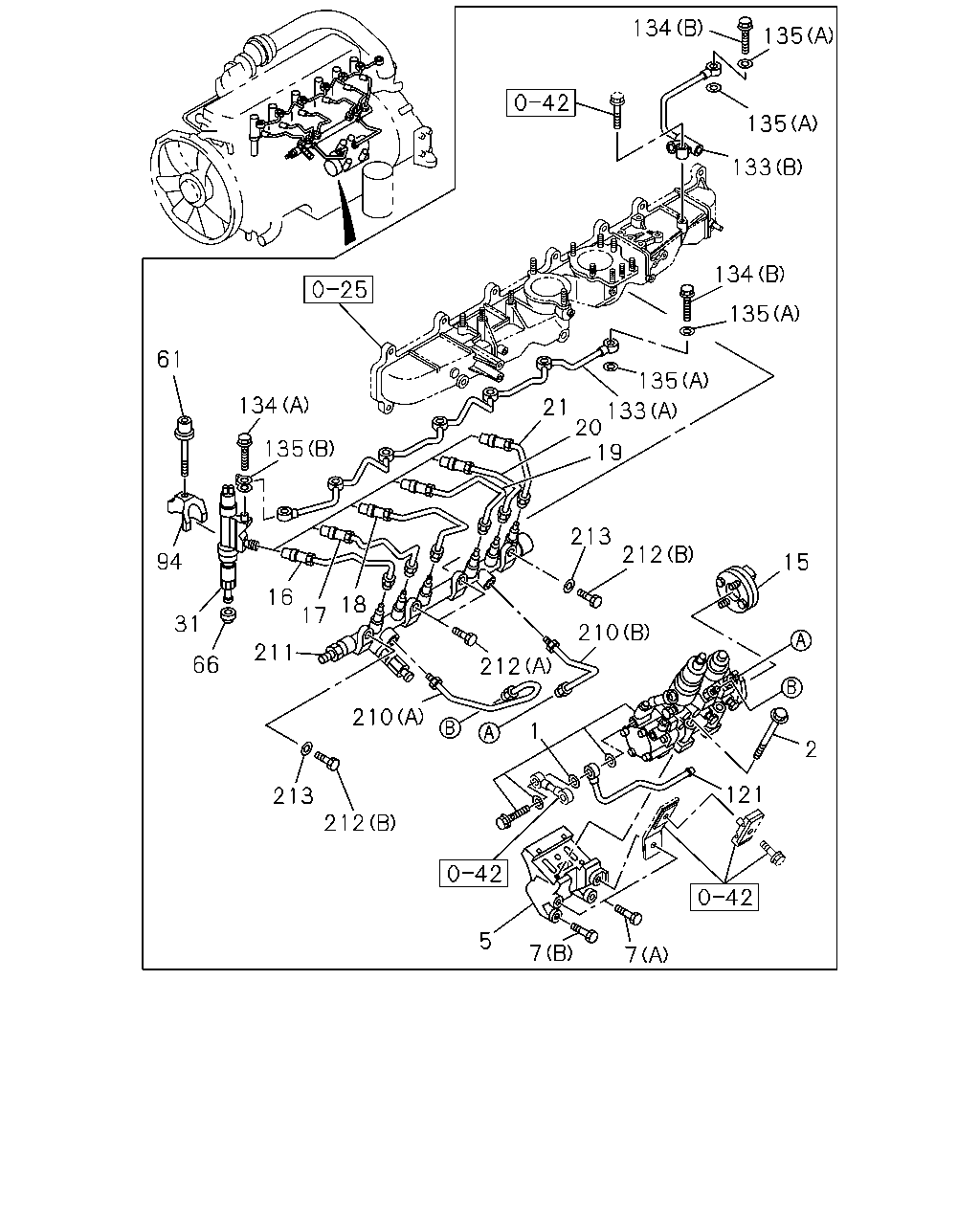

[040A] PUMP ASM,INJ PIPE AND OTHER PARTS (40 parça)
[040A] NOZZLE ASM (3 parça)
▶
224
225
1
199
216
416
367
367
364
177
177
177
176
368
368
365
175
175
175
174
369
369
366
287
288
211
290
199
199
288
289
216
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; INJ
8-94392-714-6
01
1
9905-
●
●
174
BOLT; EYE,FUEL OUTLET,FEED PUMP
1-15619-499-0
01
1
9905-
●
●
175
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
1-15619-501-0
03
1
9905-
●
●
176
BOLT; EYE,FEED PUMP
1-15619-498-0
01
1
9905-
●
●
177
GASKET; EYE BOLT,INL,FUEL FEED PUMP
1-15619-501-0
03
1
9905-
●
●
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97602-218-0
02
1
9905-
●
●
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
1-15619-501-0
02
1
9905-
●
●
211
RAIL ASM; COMMON
8-94392-863-0
01
1
9905-0101
●
●
211
RAIL ASM; COMMON
8-97601-512-2
01
1
0102-
●
●
216
BOLT; EYE
(A)
8-97351-388-0
01
1
9905-0101
●
●
216
BOLT; EYE
(A)
8-97602-173-0
01
1
0102-
●
●
216
BOLT; EYE
(B)
5-15759-003-0
01
1
9905-
●
●
224
PLUG; INJ PUMP
1-15619-500-0
01
1
9905-
●
●
225
GASKET; PLUG
1-15619-502-0
01
1
9905-
●
●
287
DAMPER; FUEL FLOW
8-97601-514-0
06
1
9905-
●
●
288
GASKET
ID=11 OD=16.3
1-15641-046-0
07
1
9905-
●
●
289
LIMITER; FUEL PRESS
1-15641-047-1
01
1
9905-0101
●
●
289
LIMITER; FUEL PRESS
8-97601-515-0
01
1
0102-0110
●
●
289
LIMITER; FUEL PRESS
8-97602-325-0
01
1
0111-
●
●
290
SENSOR; PRESS
1-80220-012-0
01
1
9905-
●
●
364
VALVE; OVER FLOW,INJ PUMP
1-15619-496-0
01
1
9905-
●
●
365
BOLT; EYE,OIL INLET
9-88130-088-0
01
1
9905-
●
●
366
BOLT; EYE,OIL OUTLET
1-15619-497-0
01
1
9905-
●
●
367
GASKET; VALVE,OVER FLOW
1-15619-501-0
02
1
9905-
●
●
368
GASKET; EYE BOLT,OIL INLET
1-15619-503-0
02
1
9905-
●
●
369
GASKET; EYE BOLT,OIL OUTLET
1-15619-504-0
02
1
9905-
●
●
416
SENSOR; POSITION,PUMP
8-97174-899-0
01
1
9905-
●
●
134
135
135
133
134
135
61
135
134
21
133
20
19
135
213
212
94
15
16
18
17
31
210
211
66
212
210
1
2
121
213
212
5
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; INJ
8-94392-714-6
01
1
9905-
●
●
2
BOLT; INJ PUMP
M8X80 FLANGE
0-28080-880-0
04
1
9905-0512
●
●
2
BOLT; INJ PUMP
M8X80 FLANGE
0-28050-880-0
04
1
0601-
●
●
5
BRACKET; INJ PUMP
8-94390-661-0
01
1
9905-
●
●
7
BOLT; INJ PUMP BRKT
(A) M10X100 FLANGE
0-28181-000-0
02
1
9905-0512
●
●
7
BOLT; INJ PUMP BRKT
(A) M10X100 FLANGE
0-28151-000-0
02
1
0601-
●
●
7
BOLT; INJ PUMP BRKT
(B) M10X60 FLANGE
0-28181-060-0
03
1
9905-0512
●
●
7
BOLT; INJ PUMP BRKT
(B) M10X60 FLANGE
0-28151-060-0
03
1
0601-
●
●
15
COUPLING ASM; INJ PUMP
8-94391-467-0
01
1
9905-
●
●
16
PIPE; INJ NO.1
8-94390-230-6
01
1
9905-
●
●
17
PIPE; INJ NO.2
8-94390-231-6
01
1
9905-
●
●
18
PIPE; INJ NO.3
8-94390-232-6
01
1
9905-
●
●
19
PIPE; INJ NO.4
8-94390-233-6
01
1
9905-
●
●
20
PIPE; INJ NO.5
8-94390-234-6
01
1
9905-
●
●
21
PIPE; INJ NO.6
8-94390-235-6
01
1
9905-
●
●
31
NOZZLE ASM; INJ
8-94392-261-4
06
1
9905-
●
●
61
BOLT; CLAMP NOZZLE HOLDER
8-94390-989-1
06
1
9905-0412
●
●
61
BOLT; CLAMP NOZZLE HOLDER
M8X54
8-98008-895-0
06
1
0501-
●
●
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-15315-013-1
06
1
9905-0006
●
●
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1
8-97601-447-2
06
1
0007-
●
●
94
BRACKET; INJ NOZZLE
8-94390-988-0
06
1
9905-0410
●
●
94
BRACKET; INJ NOZZLE
8-97306-074-1
06
1
0411-0606
●
●
94
BRACKET; INJ NOZZLE
8-98028-999-1
06
1
0607-
●
●
121
PIPE; FUEL,FEED PUMP,SUCTION
8-94390-837-2
01
1
9905-
●
●
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-94391-311-0
01
1
9905-
●
●
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-94391-356-1
01
1
9905-
●
●
134
BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT
1-09675-037-1
06
1
9905-
●
●
134
BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE
8-94396-711-0
02
1
9905-
●
●
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2
1-09630-083-0
04
1
9905-
●
●
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6
8-94395-214-0
06
1
9905-9910
●
●
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3
8-97600-925-0
06
1
9911-
●
●
210
PIPE; INJ,C/R
(A)
8-94390-824-3
01
1
9905-
●
●
210
PIPE; INJ,C/R
(B)
8-94390-825-3
01
1
9905-
●
●
211
RAIL ASM; COMMON
8-94392-863-0
01
1
9905-0101
●
●
211
RAIL ASM; COMMON
8-97601-512-2
01
1
0102-
●
●
212
BOLT; RAIL ASM
(A) M8X130 FLANGE
0-28085-813-0
02
1
9905-0512
●
●
212
BOLT; RAIL ASM
(A) M8X130 FLANGE
0-28055-813-0
02
1
0601-
●
●
212
BOLT; RAIL ASM
(B) M8X130
1-09000-200-1
02
1
9905-
●
●
213
WASHER; RAIL ASM
ID=8.4 OD=18
9-09160-608-0
02
1
9905-0605
●
●
213
WASHER; RAIL ASM
ID=8.4 OD=18
0-91610-608-0
02
1
0606-
●
●
31
154
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
31
NOZZLE ASM; INJ
8-94392-261-4
06
1
9905-
●
●
52
GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3
8-94173-412-0
06
1
9905-
●
●
154
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0
9-09561-111-0
06
1
9905-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
