◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#78051) — 18 parça

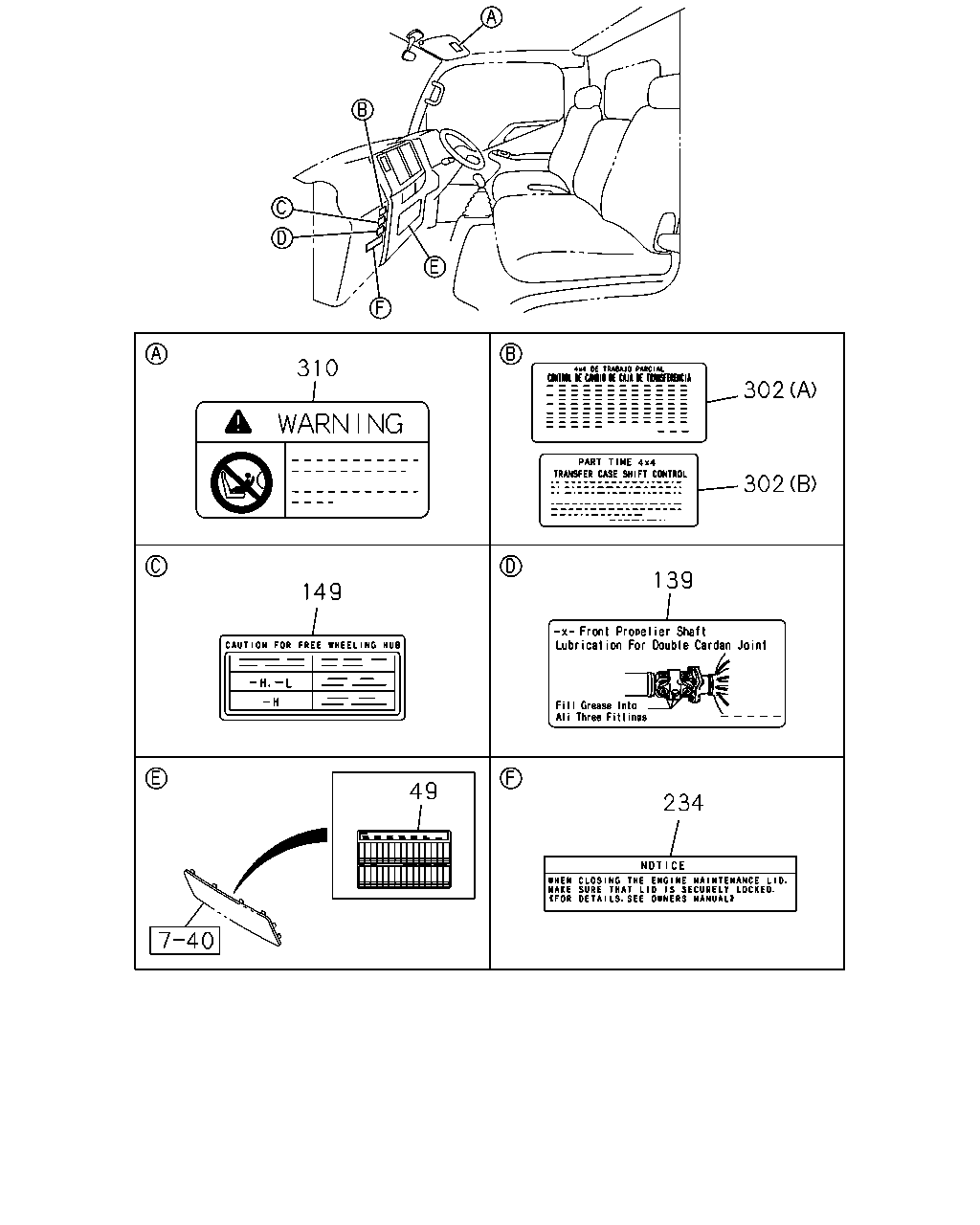

çizim 132770
310 302 302 139 234 49 149
BalonParca AdiParca NoAdetTipApplied Date A B
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1009- ● ●
139 08.808 PLATE; CAUTION,PROP SHAFT
CAUTION SPANISH<YN1> 		8-98009-407-0 01 1 1009- ● ●
139 08.808 PLATE; CAUTION,PROP SHAFT
EXC. CAUTION SPANISH<YN1> 		8-97118-440-0 01 1 1009- ● ●
149 08.808 PLATE; CAUTION,LOCKING HUB
CAUTION SPANISH<YN1> 		8-97108-674-2 01 1 1009- ● ●
149 08.808 PLATE; CAUTION,LOCKING HUB
EXC. CAUTION SPANISH<YN1> 		8-97108-673-1 01 1 1009- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1009- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1009- ● ●
302 08.808 PLATE; CAUTION,TRANSFER
CAUTION SPANISH<YN1> 04.017 (A) 		8-97108-716-1 01 1 1009- ● ●
302 08.808 PLATE; CAUTION,TRANSFER
EXC. CAUTION SPANISH<YN1> 04.017 (B) 		8-97108-715-0 01 1 1009- ● ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 01 1 1009- ● ●

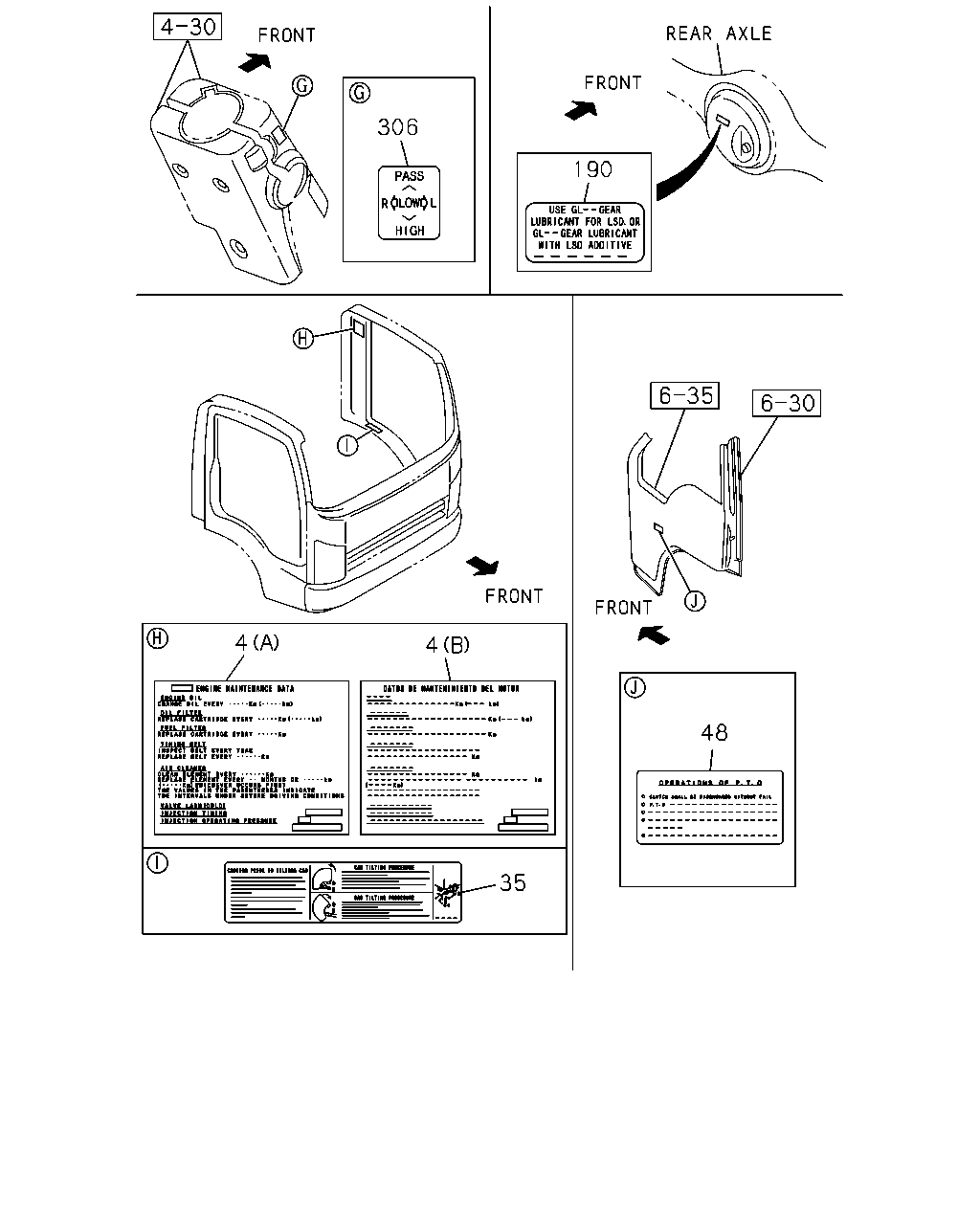

çizim 187003
306 190 4 4 35 48
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1009- ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1009- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1009- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1009- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. VIN MODEL YEAR 2013(VZD) 		8-98017-873-0 01 1 1505- ● ●
48 08.808 PLATE; CAUTION,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. VIN MODEL YEAR 2013(VZD),CAUTION SPANISH<YN1> 		8-98017-874-0 01 1 1505- ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 1009- ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
