0-39 — AIR COMPRESSOR; BRAKE (#7805) — 102 parça

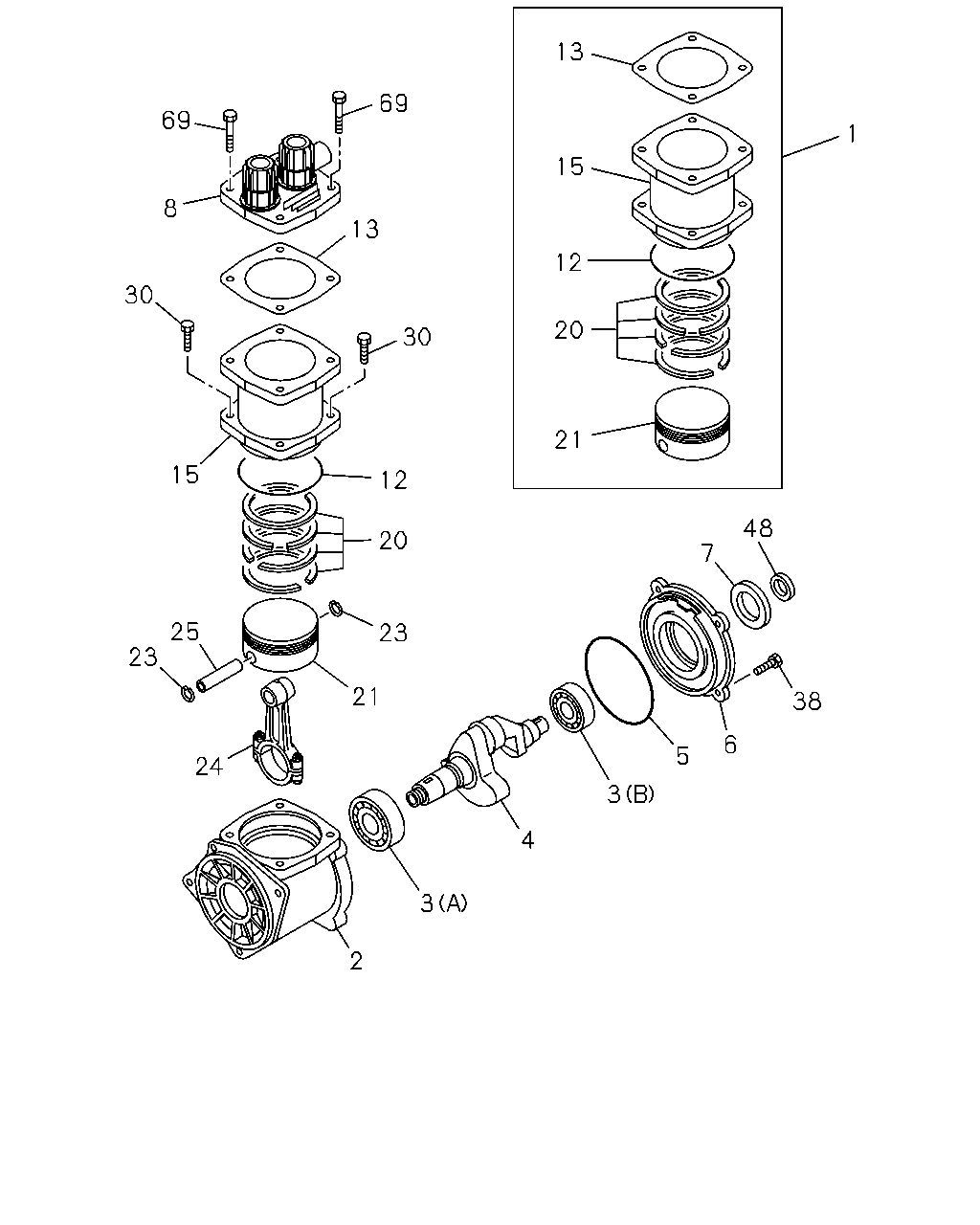

13 69 69 1 15 8 13 12 30 20 30 21 15 12 48 20 7 25 23 23 21 38 6 5 24 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR FTR(FT****)	1-19163-062-1	01	1	0302-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-063-0	01	1	9905-0301	●	●
1	LINER KIT; CYL,AIR CMPR FRR(FR**) FSR(FS**)	1-19163-063-0	01	1	0302-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-063-0	01	1	0302-		●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	9905-	●	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	9905-	●	●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	9905-	●	●
4	CRANKSHAFT; AIR CMPR FTR(FT****)	1-19171-074-1	01	1	0302-	●
4	CRANKSHAFT; AIR CMPR	1-19171-077-1	01	1	9905-0301	●	●
4	CRANKSHAFT; AIR CMPR FRR(FR**) FSR(FS**)	1-19171-077-1	01	1	0302-	●
4	CRANKSHAFT; AIR CMPR	1-19171-077-1	01	1	0302-		●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	9905-	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	9905-	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9905-	●	●
8	HEAD ASM; CYL,AIR CMPR FTR(FT****)	1-19110-055-0	01	1	0302-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9905-0301	●	●
8	HEAD ASM; CYL,AIR CMPR FRR(FR**) FSR(FS**)	1-19110-019-0	01	1	0302-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	0302-		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9905-	●	●
13	GASKET; AIR CMPR FTR(FT****)	8-98112-947-0	01	1	0302-	●
13	GASKET; AIR CMPR	1-19115-006-1	01	1	9905-9906	●	●
13	GASKET; AIR CMPR	8-98113-036-0	01	1	9907-0301	●	●
13	GASKET; AIR CMPR FRR(FR**) FSR(FS**)	8-98113-036-0	01	1	0302-	●
13	GASKET; AIR CMPR	8-98113-036-0	01	1	0302-		●
15	CYLINDER; AIR CMPR FTR(FT****)	1-19151-283-1	01	1	0302-	●
15	CYLINDER; AIR CMPR	1-19151-285-0	01	1	9905-0301	●	●
15	CYLINDER; AIR CMPR FRR(FR**) FSR(FS**)	1-19151-285-0	01	1	0302-	●
15	CYLINDER; AIR CMPR	1-19151-285-0	01	1	0302-		●
20	RING KIT; PISTON,AIR CMPR FTR(FT****)	1-19163-051-1	01	1	0302-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9905-0301	●	●
20	RING KIT; PISTON,AIR CMPR FRR(FR**) FSR(FS**)	1-19163-043-0	01	1	0302-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	0302-		●
21	PISTON; AIR CMPR FTR(FT****)	1-19161-016-0	01	1	0302-	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9905-0301	●	●
21	PISTON; AIR CMPR FRR(FR**) FSR(FS**)	1-19161-021-0	01	1	0302-	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	0302-		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9905-	●	●
24	ROD ASM; CONN,AIR CMPR FTR(FT****)	1-19173-007-0	01	1	0302-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-020-0	01	1	9905-0301	●	●
24	ROD ASM; CONN,AIR CMPR FRR(FR**) FSR(FS**)	1-19173-020-0	01	1	0302-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-020-0	01	1	0302-		●
25	PIN; PISTON,AIR CMPR FTR(FT****)	9-19167-003-0	01	1	0302-	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9905-0301	●	●
25	PIN; PISTON,AIR CMPR FRR(FR**) FSR(FS**)	9-19167-006-0	01	1	0302-	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	0302-		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9905-	●	●
38	BOLT; COVER FIX	1-09100-018-0	02	1	9905-	●	●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	9905-	●	●
69	BOLT ASM; AIR COMP	1-19119-031-0	04	1	9905-0301	●	●
69	BOLT ASM; AIR COMP FRR(FR**) FSR(FS**)	1-19119-031-0	04	1	0302-	●
69	BOLT ASM; AIR COMP	1-19119-031-0	04	1	0302-		●

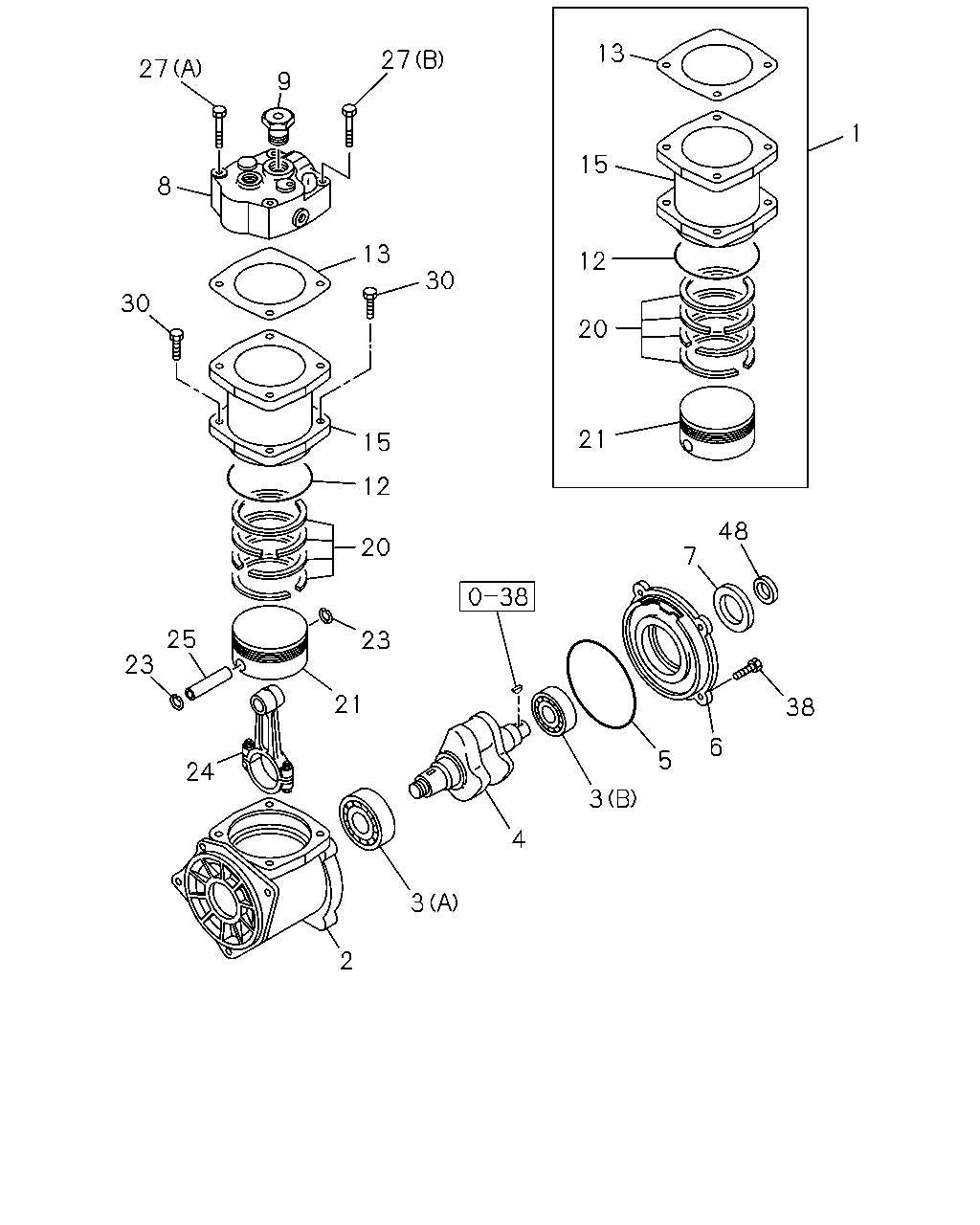

13 27 27 9 1 15 8 13 12 30 30 20 21 15 12 48 20 7 25 23 23 21 38 6 5 24 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR FTR(FT****)	1-19163-062-1	01	1	0302-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-063-0	01	1	9905-0301	●	●
1	LINER KIT; CYL,AIR CMPR FRR(FR**) FSR(FS**)	1-19163-063-0	01	1	0302-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-063-0	01	1	0302-		●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	9905-	●	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	9905-	●	●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	9905-	●	●
4	CRANKSHAFT; AIR CMPR FTR(FT****)	1-19171-074-1	01	1	0302-	●
4	CRANKSHAFT; AIR CMPR	1-19171-077-1	01	1	9905-0301	●	●
4	CRANKSHAFT; AIR CMPR FRR(FR**) FSR(FS**)	1-19171-077-1	01	1	0302-	●
4	CRANKSHAFT; AIR CMPR	1-19171-077-1	01	1	0302-		●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	9905-	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	9905-	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9905-	●	●
8	HEAD ASM; CYL,AIR CMPR FTR(FT****)	1-19110-055-0	01	1	0302-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9905-0301	●	●
8	HEAD ASM; CYL,AIR CMPR FRR(FR**) FSR(FS**)	1-19110-019-0	01	1	0302-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	0302-		●
9	VALVE ASM; UNLOADER,AIR CMPR FTR(FT****)	1-19120-017-1	01	1	0302-	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9905-	●	●
13	GASKET; AIR CMPR FTR(FT****)	8-98112-947-0	01	1	0302-	●
13	GASKET; AIR CMPR	1-19115-006-1	01	1	9905-9906	●	●
13	GASKET; AIR CMPR	8-98113-036-0	01	1	9907-0301	●	●
13	GASKET; AIR CMPR FRR(FR**) FSR(FS**)	8-98113-036-0	01	1	0302-	●
13	GASKET; AIR CMPR	8-98113-036-0	01	1	0302-		●
15	CYLINDER; AIR CMPR FTR(FT****)	1-19151-283-1	01	1	0302-	●
15	CYLINDER; AIR CMPR	1-19151-285-0	01	1	9905-0301	●	●
15	CYLINDER; AIR CMPR FRR(FR**) FSR(FS**)	1-19151-285-0	01	1	0302-	●
15	CYLINDER; AIR CMPR	1-19151-285-0	01	1	0302-		●
20	RING KIT; PISTON,AIR CMPR FTR(FT****)	1-19163-051-1	01	1	0302-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9905-0301	●	●
20	RING KIT; PISTON,AIR CMPR FRR(FR**) FSR(FS**)	1-19163-043-0	01	1	0302-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	0302-		●
21	PISTON; AIR CMPR FTR(FT****)	1-19161-016-0	01	1	0302-	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9905-0301	●	●
21	PISTON; AIR CMPR FRR(FR**) FSR(FS**)	1-19161-021-0	01	1	0302-	●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	0302-		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9905-	●	●
24	ROD ASM; CONN,AIR CMPR FTR(FT****)	1-19173-007-0	01	1	0302-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-020-0	01	1	9905-0301	●	●
24	ROD ASM; CONN,AIR CMPR FRR(FR**) FSR(FS**)	1-19173-020-0	01	1	0302-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-020-0	01	1	0302-		●
25	PIN; PISTON,AIR CMPR FTR(FT****)	9-19167-003-0	01	1	0302-	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9905-0301	●	●
25	PIN; PISTON,AIR CMPR FRR(FR**) FSR(FS**)	9-19167-006-0	01	1	0302-	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	0302-		●
27	BOLT; HD FTR(FT****) (B) M10X45	9-01066-045-0	02	1	0302-	●
27	BOLT; HD FTR(FT****) (A) M10X60	9-01066-060-0	02	1	0302-	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9905-	●	●
38	BOLT; COVER FIX	1-09100-018-0	02	1	9905-	●	●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	9905-	●	●
