Isuzu WW
▶
TRUCKS
▶
NPS
▶
51272 - NPS EURO5 AUST/NZ
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#78045) — 17 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

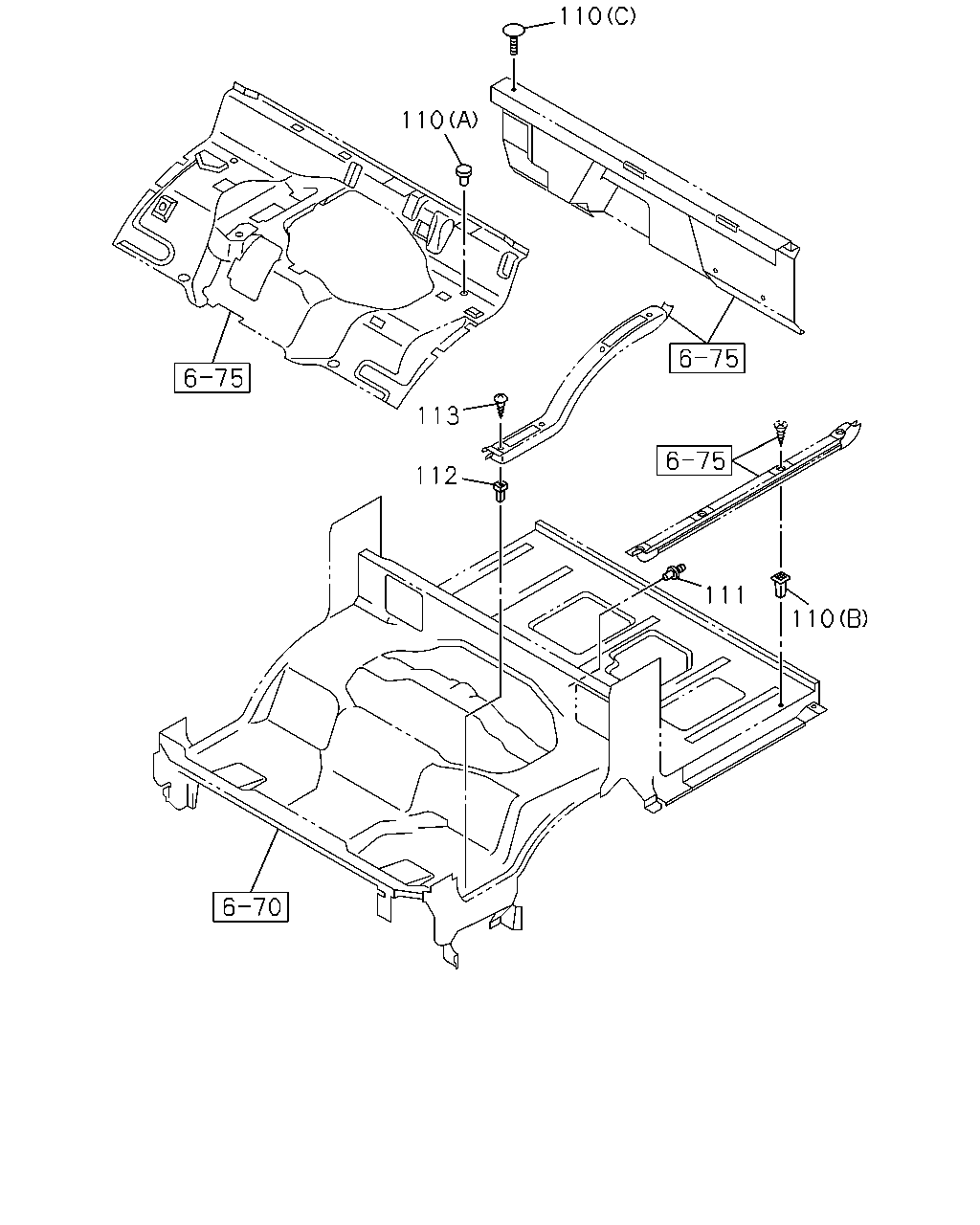

[678A] SGL CAB (8 parça)

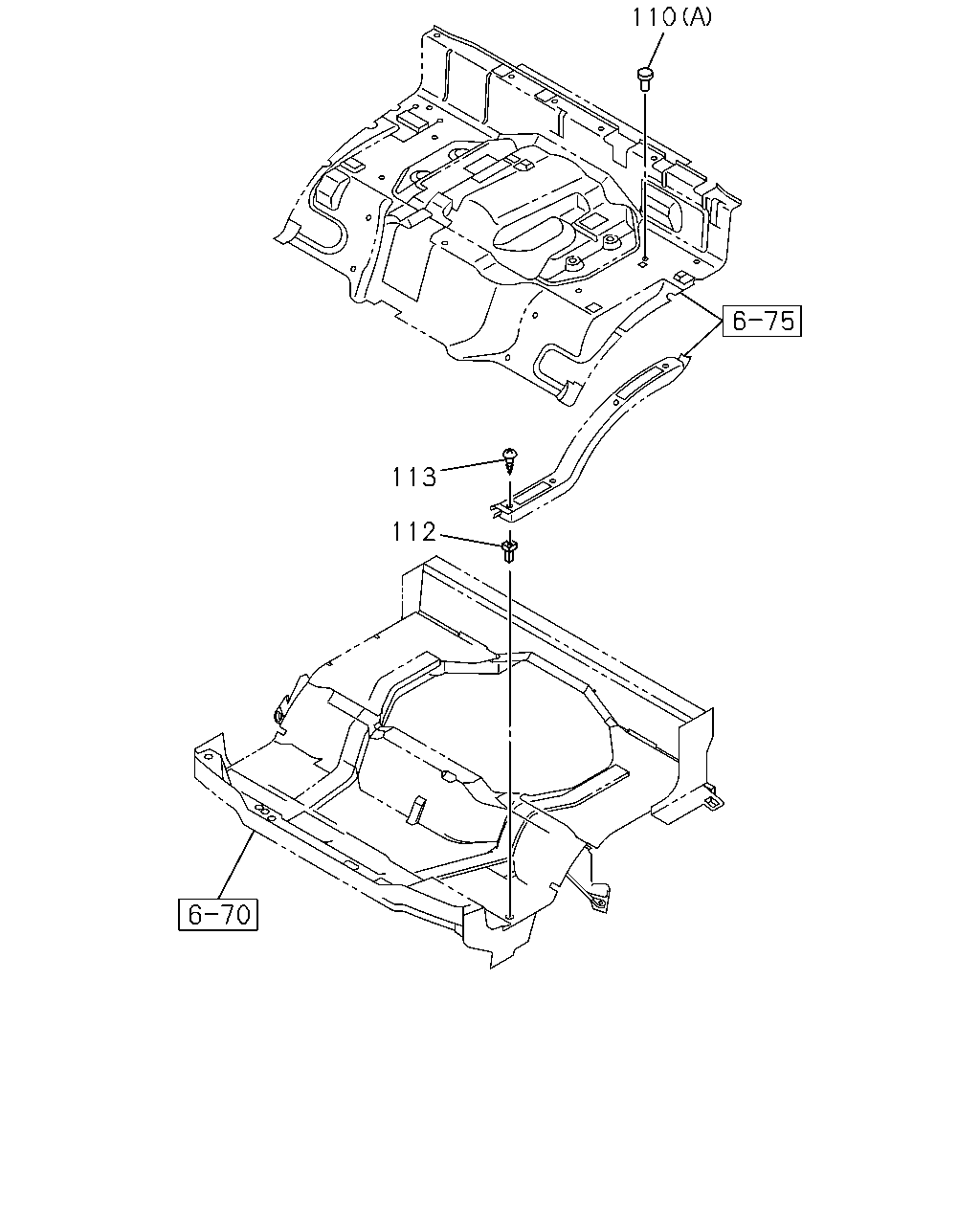

[678A] DBL CAB (9 parça)
▶
112
113
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
110
16.802 FASTENER; FLOOR MAT
INSPECTION ENGINE COVER<8GA> (A) BLACK
8-94279-089-0
10
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK
8-94279-089-0
11
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
02
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
09
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
04.931 (B) H=15
8-94463-268-1
08
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
16.742 (C) DARK GRAY
8-97098-326-0
04
1
1009-
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
08
1
1009-
●
●
113
16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
08
1
1009-
●
●
111
112
113
110
110
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
110
16.802 FASTENER; FLOOR MAT
INSPECTION ENGINE COVER<8GA> (A) BLACK
8-94279-089-0
10
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK
8-94279-089-0
11
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
02
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
09
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
04.931 (B) H=15
8-94463-268-1
08
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
16.742 (C) DARK GRAY
8-97098-326-0
04
1
1009-
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK
8-94279-089-0
11
1
1009-
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
08
1
1009-
●
●
113
16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
08
1
1009-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
