◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#78043) — 30 parça

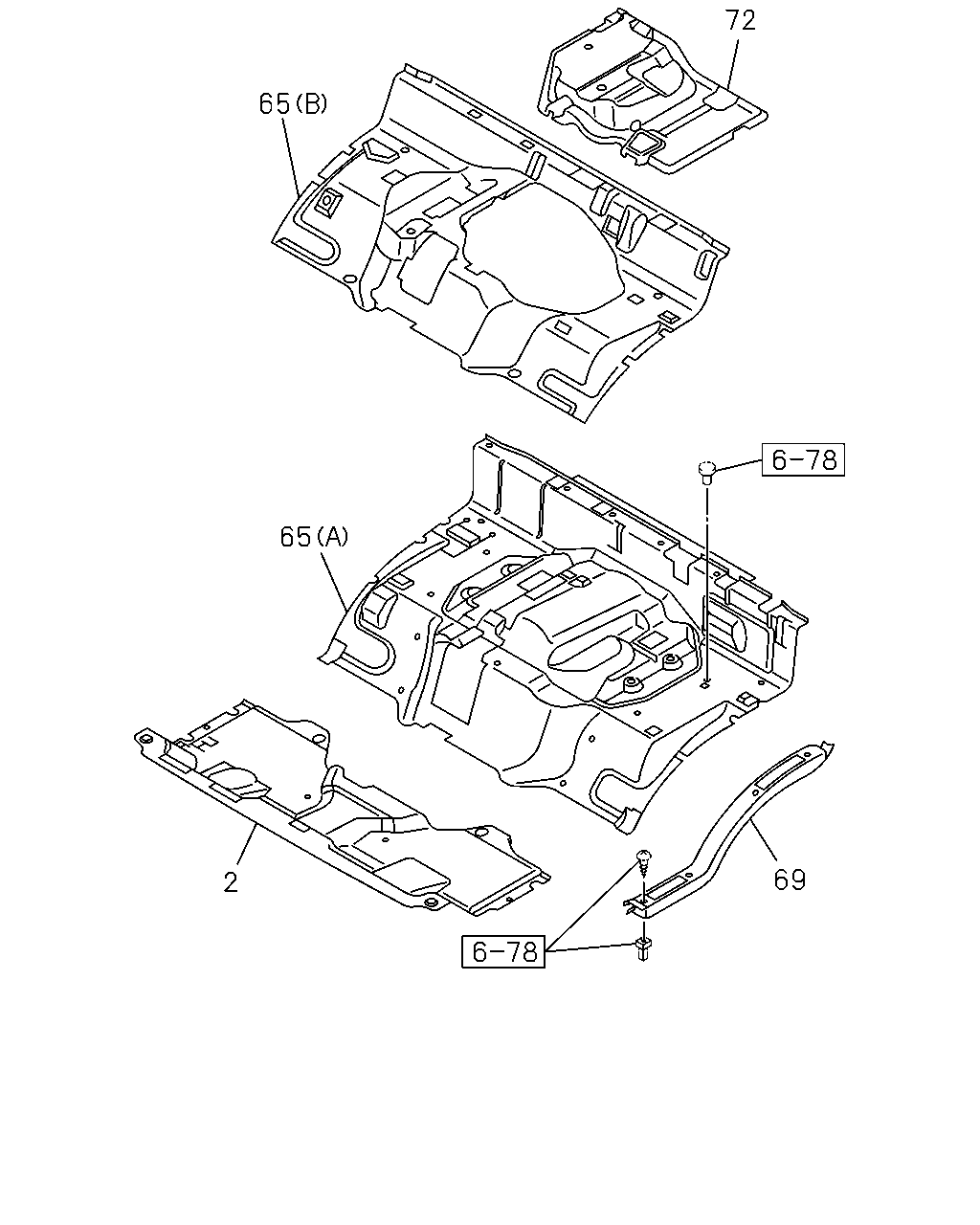

çizim 132220
65 72 69 2 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.800 MAT; FLOOR
GRAY 		8-97405-147-6 01 1 1009- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORAG E<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97405-198-6 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORAG E<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1304- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97415-681-1 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-122-1 01 1 1304- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97405-200-6 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97425-110-1 01 1 1304- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97405-201-5 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97425-111-1 01 1 1304- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1009- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1009- ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 1009- ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1009- ●

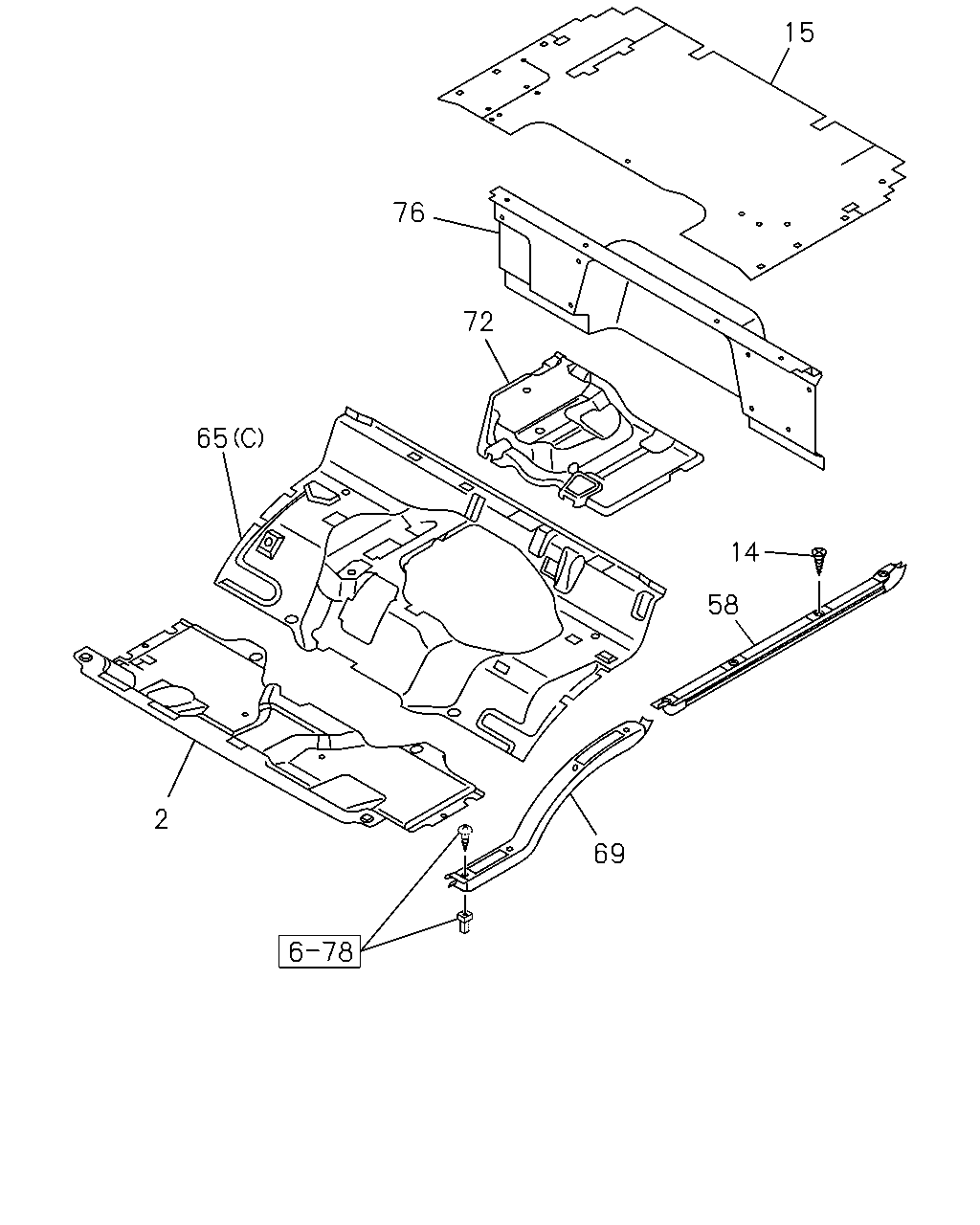

çizim 132558
15 76 72 14 58 69 2 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.800 MAT; FLOOR
GRAY 		8-97405-147-6 01 1 1009- ● ●
14 16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 08 1 1009- ●
15 16.800 MAT; FLOOR REAR
GRAY 		8-97412-602-1 01 1 1009- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT
GRAY 		8-97405-981-1 02 1 1009- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORAG E<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97405-198-6 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORAG E<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1304- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97415-681-1 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-122-1 01 1 1304- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97405-200-6 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97425-110-1 01 1 1304- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97405-201-5 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97425-111-1 01 1 1304- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1009- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1009- ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 1009- ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1009- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
GRAY 		8-97412-600-1 01 1 1009- ●
