6-70 — FLOOR PANEL (#78042) — 132 parça

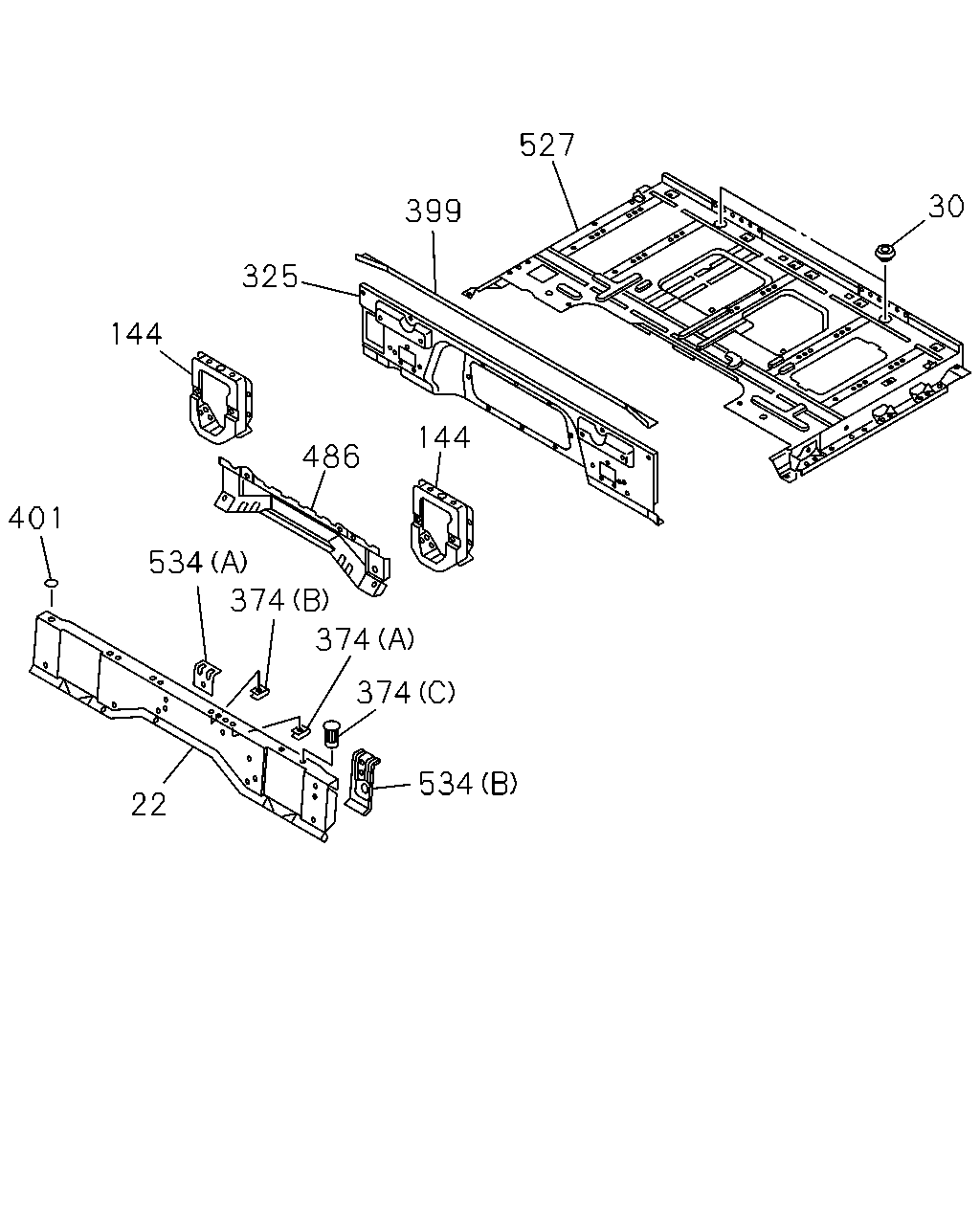

30 527 399 325 486 144 144 401 534 374 374 374 534 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1009-	●
22	16.545 FRAME; FLOOR REAR	8-97587-394-4	01	1	1009-		●
30	16.547 GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	1009-		●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	1009-	●
144	16.545 BRACKET; MTG,RR	8-98112-244-2	02	1	1009-		●
325	16.545 REINFORCEMENT ASM; RR MTG	8-98006-699-3	01	1	1009-		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1009-	●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1009-	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1009-		●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	1009-		●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	1009-		●
399	16.545 PANEL; EXTENSION,RR MTG RAIL	8-97587-702-1	01	1	1009-		●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1009-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1009-	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-614-2	01	1	1009-		●
527	16.545 FLOOR; RR	8-98081-184-3	01	1	1009-		●
534	16.545 REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-97583-851-3	01	1	1009-	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1009-		●
534	16.545 REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98019-181-2	01	1	1009-	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1009-		●

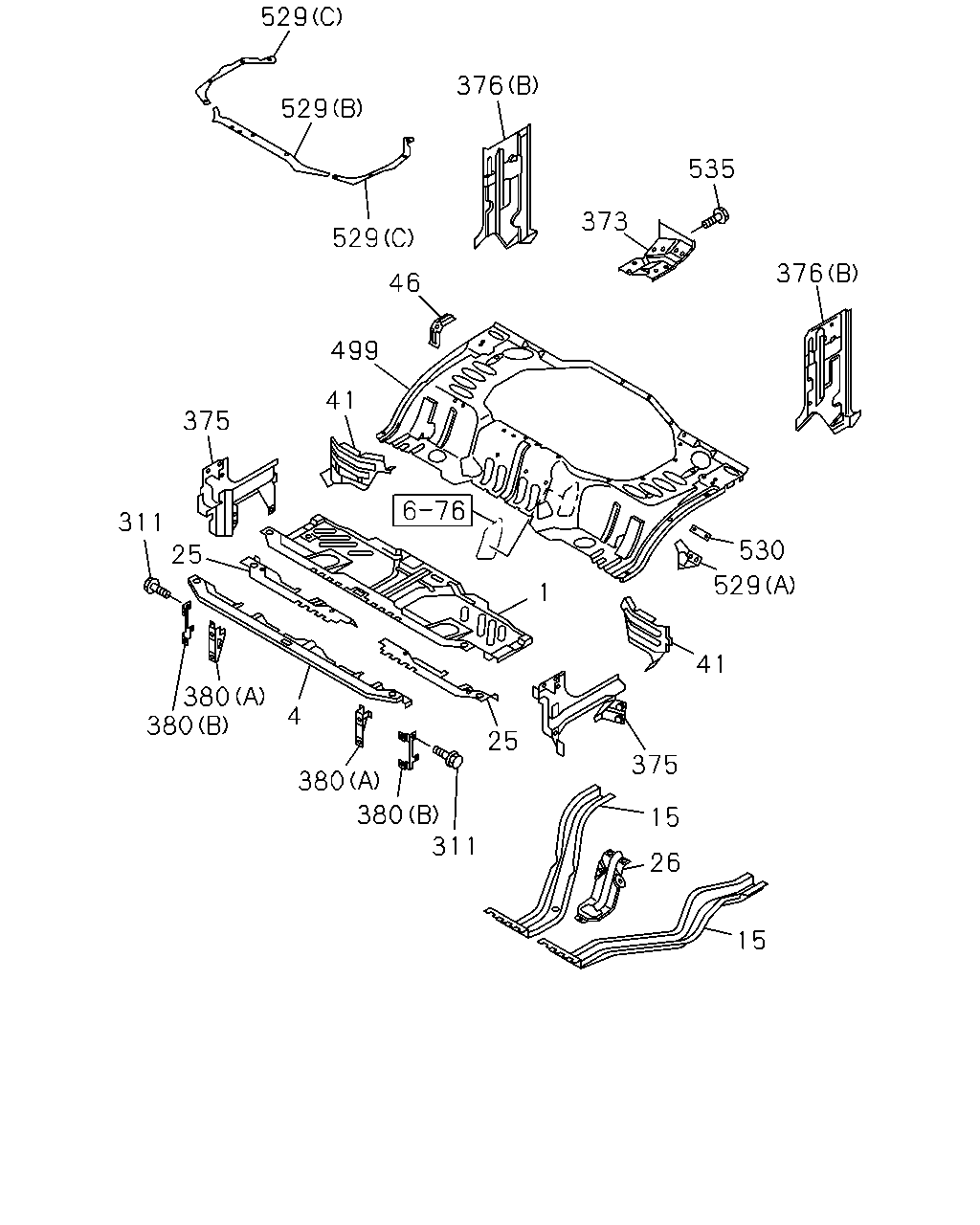

376 535 376 530 529 41 375 15 26 15 311 25 1 380 380 4 380 380 25 311 375 41 499 46 529 529 529 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.545 PANEL; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-870-0	01	1	1009-	●
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	1009-		●
4	16.545 FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98107-595-0	01	1	1009-	●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	1009-		●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98059-498-1	01	1	1009-	●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	1009-		●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98088-004-0	01	1	1009-	●
15	16.545 FRAME; UNDER	8-98088-004-0	01	1	1009-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-823-0	01	1	1009-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1009-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98107-587-0	01	1	1009-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1009-		●
26	16.545 PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-382-1	01	1	1009-	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1009-		●
41	16.545 SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-880-1	01	1	1009-	●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	1009-		●
41	16.545 SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-881-1	01	1	1009-	●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	1009-		●
46	16.545 BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-834-0	01	1	1009-	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1009-		●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1009-	●	●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1009-	●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1009-	●
373	16.545 REINFORCEMENT; SEAT BELT	8-98015-216-2	01	1	1009-		●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98080-727-2	01	1	1009-	●
375	16.545 CLOSING; PILLAR	8-98080-727-2	01	1	1009-		●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98080-728-1	01	1	1009-	●
375	16.545 CLOSING; PILLAR	8-98080-728-1	01	1	1009-		●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97583-888-2	01	1	1009-	●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97584-618-2	01	1	1009-	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98016-953-7	01	1	1009-		●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98016-954-6	01	1	1009-		●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1009-	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1009-	●	●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-384-4	01	1	1009-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1009-		●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-385-3	01	1	1009-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1009-		●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-828-6	01	1	1009-1207	●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1208-	●
499	16.545 PANEL; FLOOR,RR	8-97587-390-4	01	1	1009-1207		●
499	16.545 PANEL; FLOOR,RR	8-98205-116-0	01	1	1208-		●
529	16.545 RETAINER; FLOOR PANEL (B)	8-97589-249-0	01	1	1009-		●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-467-1	01	1	1009-		●
529	16.545 RETAINER; FLOOR PANEL (C)	8-97589-468-1	01	1	1009-		●
529	16.545 RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	1009-		●
530	16.565 BRACKET; COVER	8-97589-255-0	01	1	1009-		●
535	16.549 BOLT; REINFORCEMENT 01.531 M8X20 FLANGE	0-28650-820-0	05	1	1009-		●

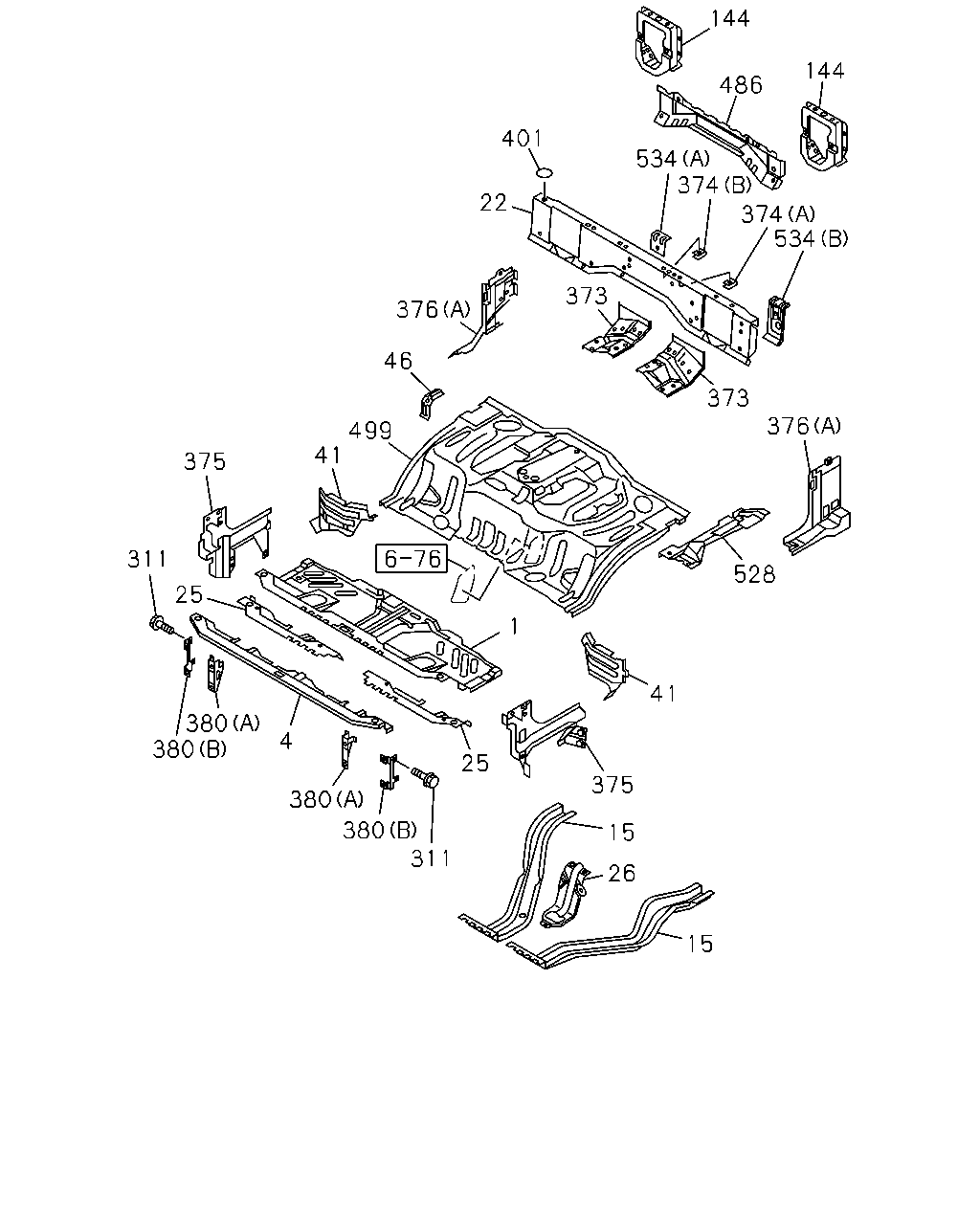

144 486 144 374 534 374 534 401 22 376 46 499 41 375 311 25 380 380 380 4 25 1 380 311 15 26 375 15 41 528 376 373 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.545 PANEL; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-870-0	01	1	1009-	●
1	16.545 PANEL; FLOOR	8-98112-870-0	01	1	1009-		●
4	16.545 FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98107-595-0	01	1	1009-	●
4	16.545 FRAME; FLOOR,FRT	8-98107-595-0	01	1	1009-		●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98059-498-1	01	1	1009-	●
15	16.545 FRAME; UNDER	8-98059-498-1	01	1	1009-		●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98088-004-0	01	1	1009-	●
15	16.545 FRAME; UNDER	8-98088-004-0	01	1	1009-		●
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1009-	●
22	16.545 FRAME; FLOOR REAR	8-97587-394-4	01	1	1009-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-823-0	01	1	1009-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1009-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98107-587-0	01	1	1009-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1009-		●
26	16.545 PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-382-1	01	1	1009-	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1009-		●
41	16.545 SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-880-1	01	1	1009-	●
41	16.545 SUPPORT; STEP,RR	8-97583-880-1	01	1	1009-		●
41	16.545 SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-881-1	01	1	1009-	●
41	16.545 SUPPORT; STEP,RR	8-97583-881-1	01	1	1009-		●
46	16.545 BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-834-0	01	1	1009-	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1009-		●
144	16.545 BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	1009-	●
144	16.545 BRACKET; MTG,RR	8-98112-244-2	02	1	1009-		●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1009-	●	●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1009-	●
373	16.545 REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1009-	●
373	16.545 REINFORCEMENT; SEAT BELT	8-98015-216-2	01	1	1009-		●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1009-	●
374	16.545 NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1009-	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	1009-		●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	1009-		●
374	16.545 NUT; FLOOR 09.786 (C) M6 POP NUT	8-98013-752-0	01	1	1009-		●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98080-727-2	01	1	1009-	●
375	16.545 CLOSING; PILLAR	8-98080-727-2	01	1	1009-		●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98080-728-1	01	1	1009-	●
375	16.545 CLOSING; PILLAR	8-98080-728-1	01	1	1009-		●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97583-888-2	01	1	1009-	●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97584-618-2	01	1	1009-	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98016-953-7	01	1	1009-		●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98016-954-6	01	1	1009-		●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1009-	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1009-	●	●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-384-4	01	1	1009-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	1009-		●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-385-3	01	1	1009-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	1009-		●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1009-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1009-	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-614-2	01	1	1009-		●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-828-6	01	1	1009-1207	●
499	16.545 PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1208-	●
499	16.545 PANEL; FLOOR,RR	8-97587-390-4	01	1	1009-1207		●
499	16.545 PANEL; FLOOR,RR	8-98205-116-0	01	1	1208-		●
528	16.545 REINFORCEMENT; PARKING BRAKE MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97584-619-4	01	1	1009-	●
534	16.545 REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-97583-851-3	01	1	1009-	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1009-		●
534	16.545 REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98019-181-2	01	1	1009-	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1009-		●

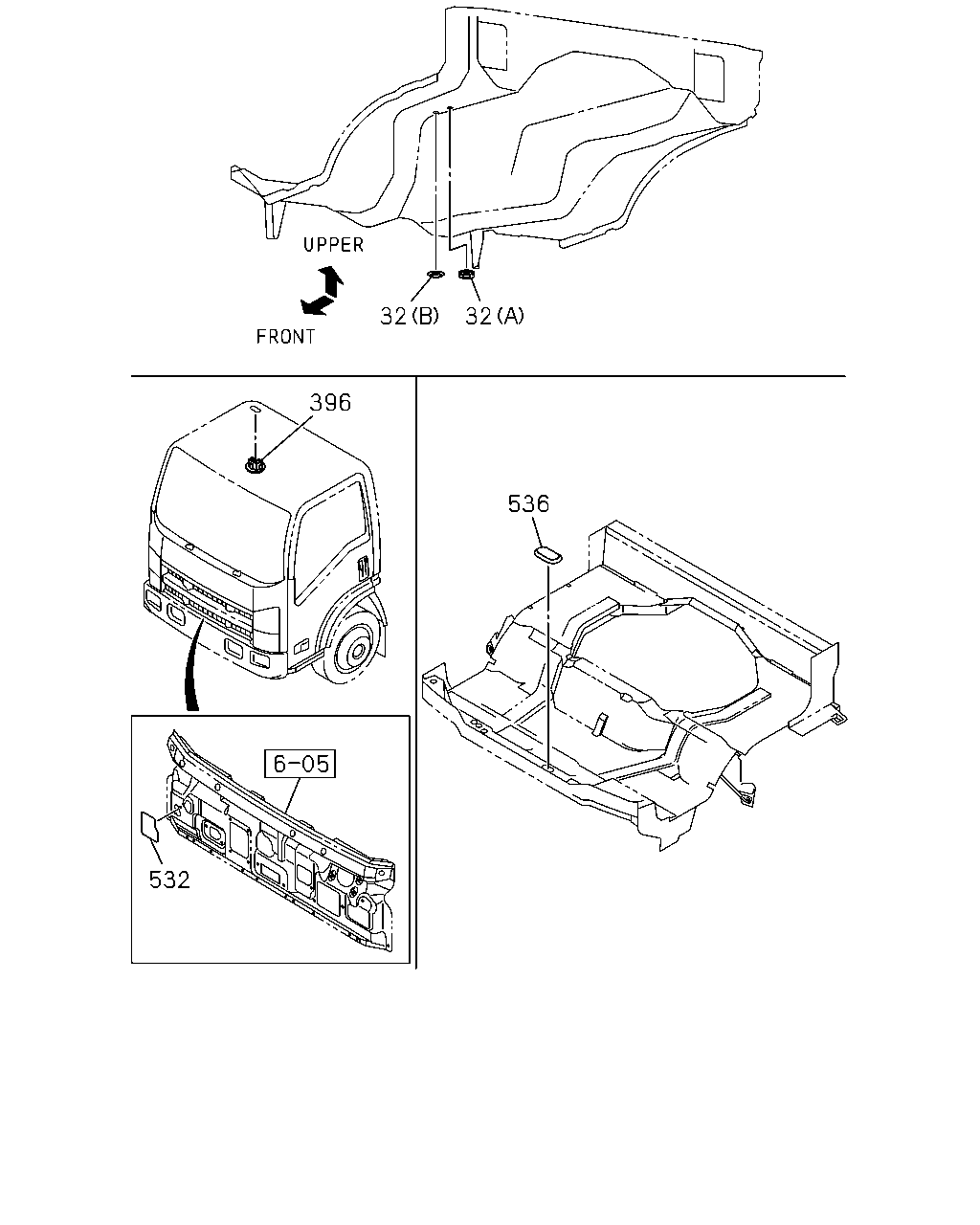

32 32 536 532 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (A) OD=15.0	8-94279-040-0	02	1	1009-	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (B) OD=12.1	8-97898-423-0	02	1	1009-	●	●
396	16.547 GROMMET; LOCATION HOLE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98054-990-0	02	1	1009-	●
532	16.520 SEAL; CABLE	8-98042-432-1	01	1	1009-	●	●
536	16.549 PLUG; CABLE,PTO 04.008	8-98029-219-1	01	1	1009-	●	●
