◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#78041) — 94 parça

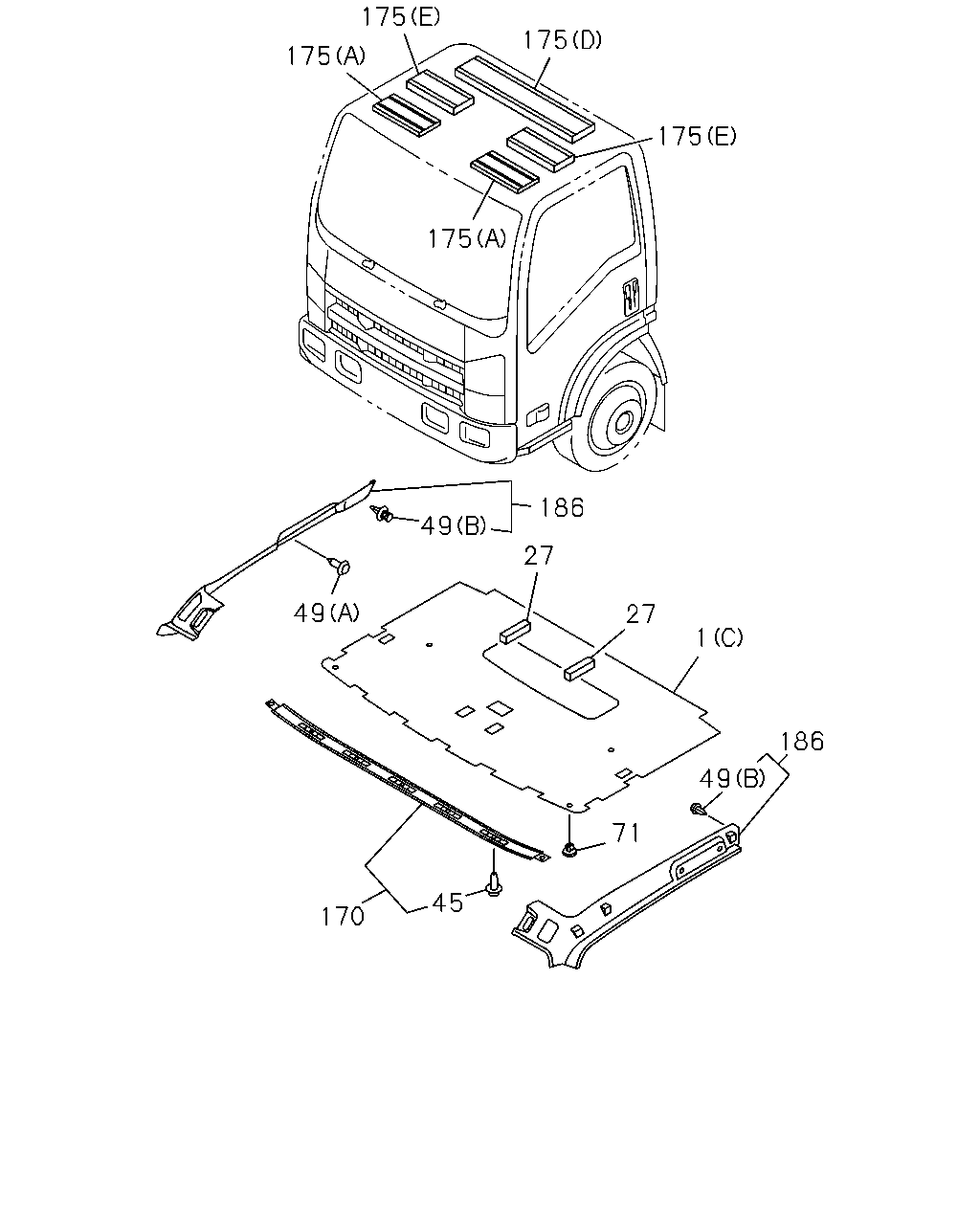

çizim 131310
175 175 175 175 175 186 27 27 1 186 49 71 45 170 49 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-275-3 01 1 1009-1211 ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97425-054-0 01 1 1212- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) DARK GRAY 		8-97405-271-8 01 1 1009- ●
1 16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97405-269-7 01 1 1009- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-279-3 01 1 1009- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-278-2 01 1 1009- ●
27 16.165 INSULATION; ROOF 8-98046-638-2 03 1 1009- ●
45 16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 1009- ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 1009- ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1009-1410 ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1009-1410 ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 1009-1410 ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1411- ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1411- ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1411- ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 02 1 1009- ●
49 16.742 CLIP; TRIM COVER
(A) DARK GRAY 		8-97407-768-0 02 1 1009- ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 04 1 1009- ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 1009- ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 1009- ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 20 1 1009- ●
170 16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-281-5 01 1 1009- ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97405-281-5 01 1 1009- ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-298-3 01 1 1009- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1009- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (E) 		8-98037-299-3 02 1 1009- ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98037-300-3 01 1 1009- ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-298-3 03 1 1009- ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98054-171-3 02 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-250-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-252-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1009- ●

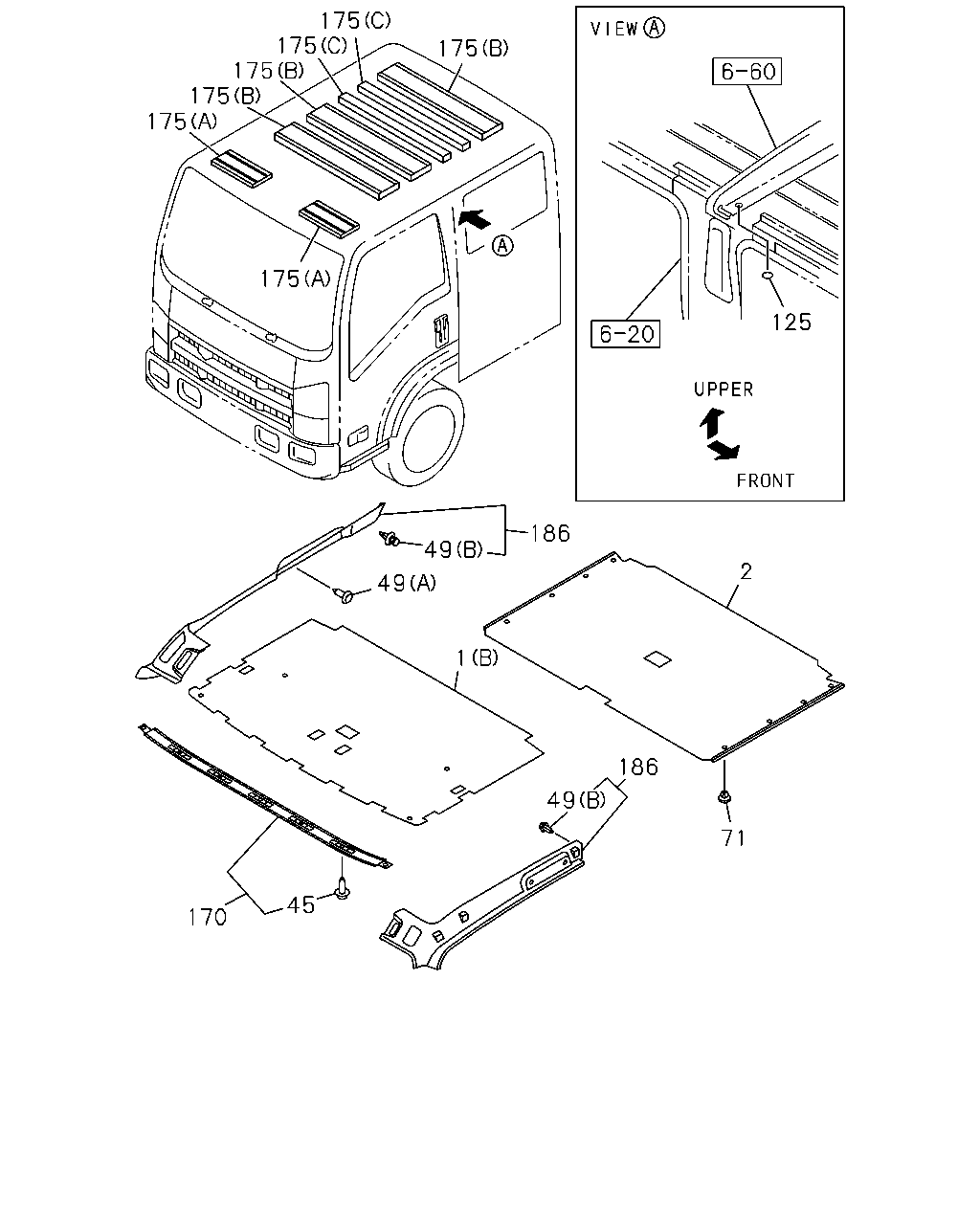

çizim 132312
175 175 175 175 175 175 175 125 186 49 49 1 186 49 71 170 45 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-275-3 01 1 1009-1211 ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97425-054-0 01 1 1212- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) DARK GRAY 		8-97405-271-8 01 1 1009- ●
1 16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97405-269-7 01 1 1009- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-279-3 01 1 1009- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-278-2 01 1 1009- ●
2 16.742 LINING; HD,ROOF RR
DARK GRAY 		8-97405-280-3 01 1 1009- ●
45 16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 1009- ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 1009- ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1009-1410 ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 03 1 1009-1410 ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 1009-1410 ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1411- ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B) 		8-98059-610-0 02 1 1411- ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1411- ●
49 16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-768-0 02 1 1009- ●
49 16.742 CLIP; TRIM COVER
(A) DARK GRAY 		8-97407-768-0 02 1 1009- ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 04 1 1009- ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 1009- ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 1009- ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 20 1 1009- ●
125 16.570 SEAL; HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLO R HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1009-1203 ●
125 16.570 SEAL; HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORAN GE(944),BODY COLOR SUNBELT GREEN(989), BODY COLOR TRANS BLUE(999) 02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1204- ●
125 16.570 SEAL; HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.592 OD=36 WHITE 		1-76778-007-0 02 1 1009- ●
170 16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-281-5 01 1 1009- ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97405-281-5 01 1 1009- ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-298-3 01 1 1009- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1009- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (E) 		8-98037-299-3 02 1 1009- ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98037-300-3 01 1 1009- ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-298-3 03 1 1009- ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98054-171-3 02 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-250-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-252-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1009- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 1009- ●

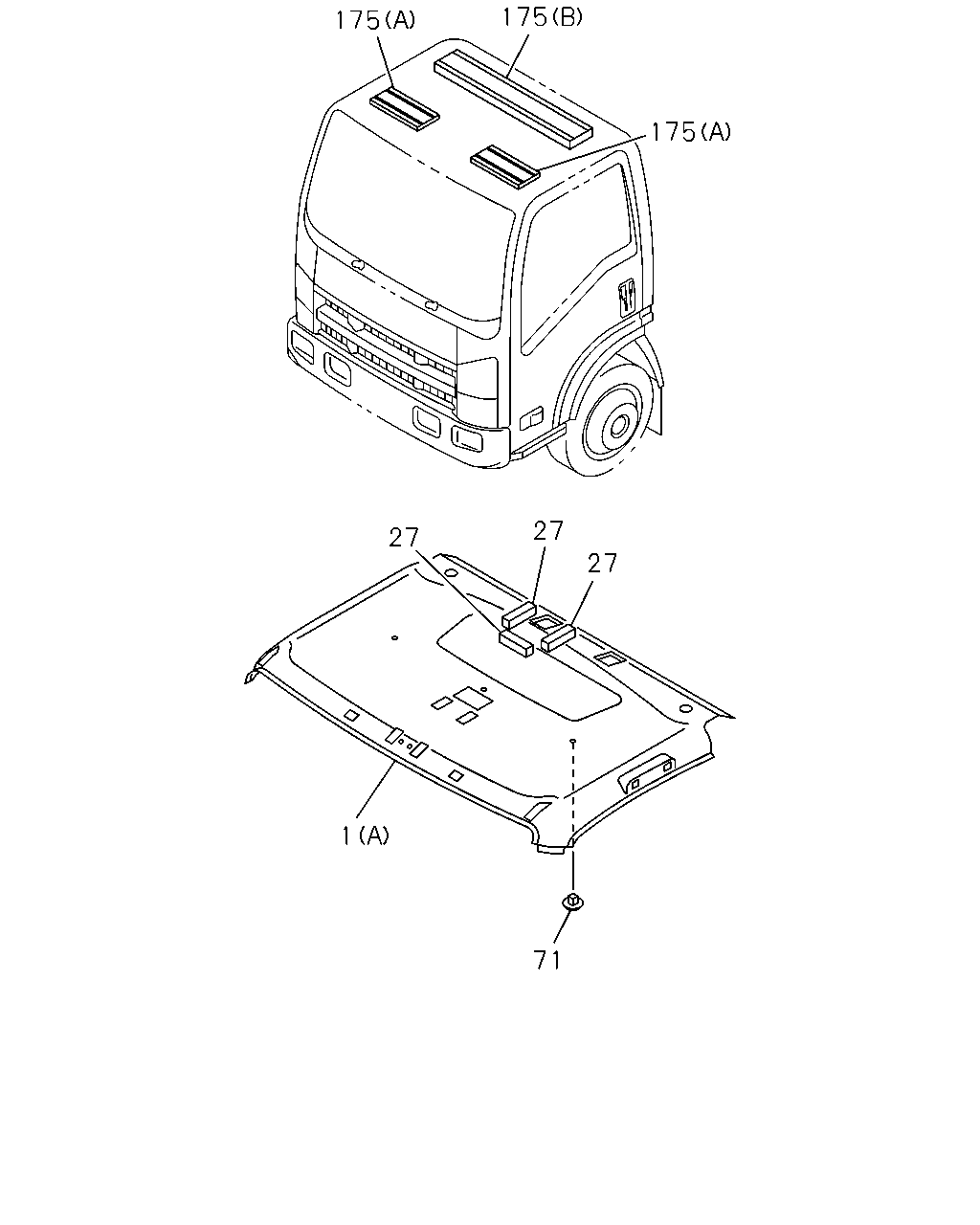

çizim 186998
175 175 175 27 27 27 71 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-275-3 01 1 1009-1211 ●
1 16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97425-054-0 01 1 1212- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) DARK GRAY 		8-97405-271-8 01 1 1009- ●
1 16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY 		8-97405-269-7 01 1 1009- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-279-3 01 1 1009- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-278-2 01 1 1009- ●
27 16.165 INSULATION; ROOF 8-98046-638-2 03 1 1009- ●
71 16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 04 1 1009- ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 1009- ●
71 16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 1009- ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 20 1 1009- ●
175 16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-298-3 01 1 1009- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 1009- ● ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (E) 		8-98037-299-3 02 1 1009- ●
175 16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98037-300-3 01 1 1009- ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-298-3 03 1 1009- ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98054-171-3 02 1 1009- ●
