Isuzu WW
▶
TRUCKS
▶
NPS
▶
51272 - NPS EURO5 AUST/NZ
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

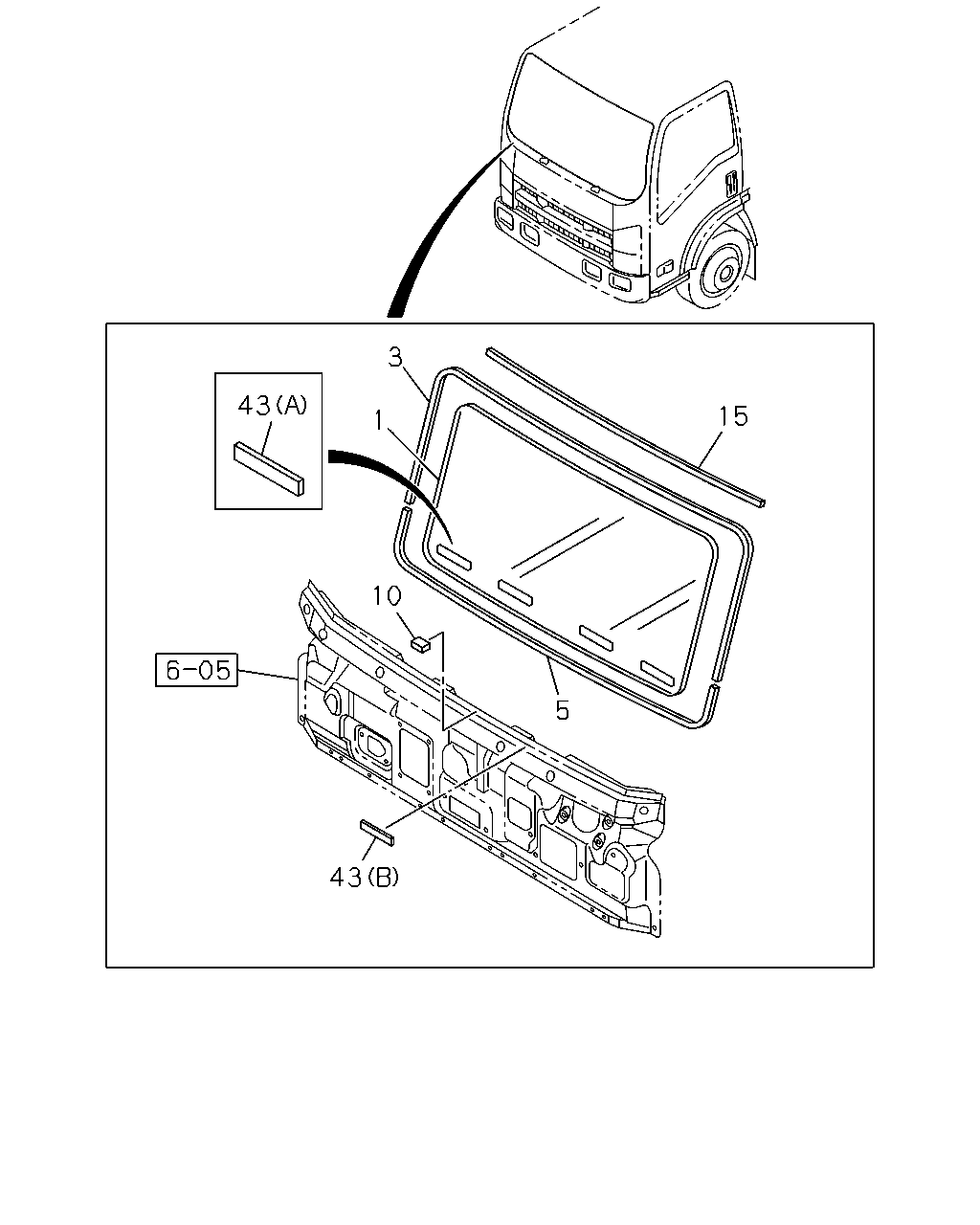

6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#78028) — 16 parça
Tümü
A - NPS5SN
B - NPS5WN
15
3
1
43
10
5
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.005 GLASS; WINDSHIELD
NEW ZEALAND COUNTRY(CX6)
8-98029-063-1
01
1
1009-1204
●
●
1
16.005 GLASS; WINDSHIELD
EXC. NEW ZEALAND COUNTRY(CX6)
8-98029-064-1
01
1
1009-1204
●
●
1
16.005 GLASS; WINDSHIELD
8-98029-064-1
01
1
1205-1206
●
●
1
16.005 GLASS; WINDSHIELD
EXC. NEW ZEALAND COUNTRY(CX6)
8-98029-064-1
01
1
1207-
●
●
1
16.005 GLASS; WINDSHIELD
NEW ZEALAND COUNTRY(CX6)
8-98029-063-1
01
1
1207-
●
●
3
16.470 MOLDING; WINDSHIELD
8-98029-079-1
01
1
1009-
●
●
5
16.041 MOLDING; WINDSHIELD,LWR
8-98083-542-1
01
1
1009-
●
●
10
08.160 SPACER; WINDSHIELD GLASS
L=100 B=1.5
8-98095-044-0
02
1
1009-
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY
8-97412-958-0
01
1
1009-
●
15
16.041 FINISHER; WINDSHIELD
DARK GRAY
8-97412-958-0
01
1
1009-
●
43
16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8
8-98029-086-1
09
1
1009-
●
43
16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10
8-98083-198-1
09
1
1009-
●
43
16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8
8-98029-086-1
04
1
1009-
●
43
16.041 TAPE; WINDSHIELD
(A) L=100 B=8
8-98029-086-1
04
1
1009-
●
43
16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10
8-98083-198-1
04
1
1009-
●
43
16.041 TAPE; WINDSHIELD
(B) L=100 B=10
8-98083-198-1
04
1
1009-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
