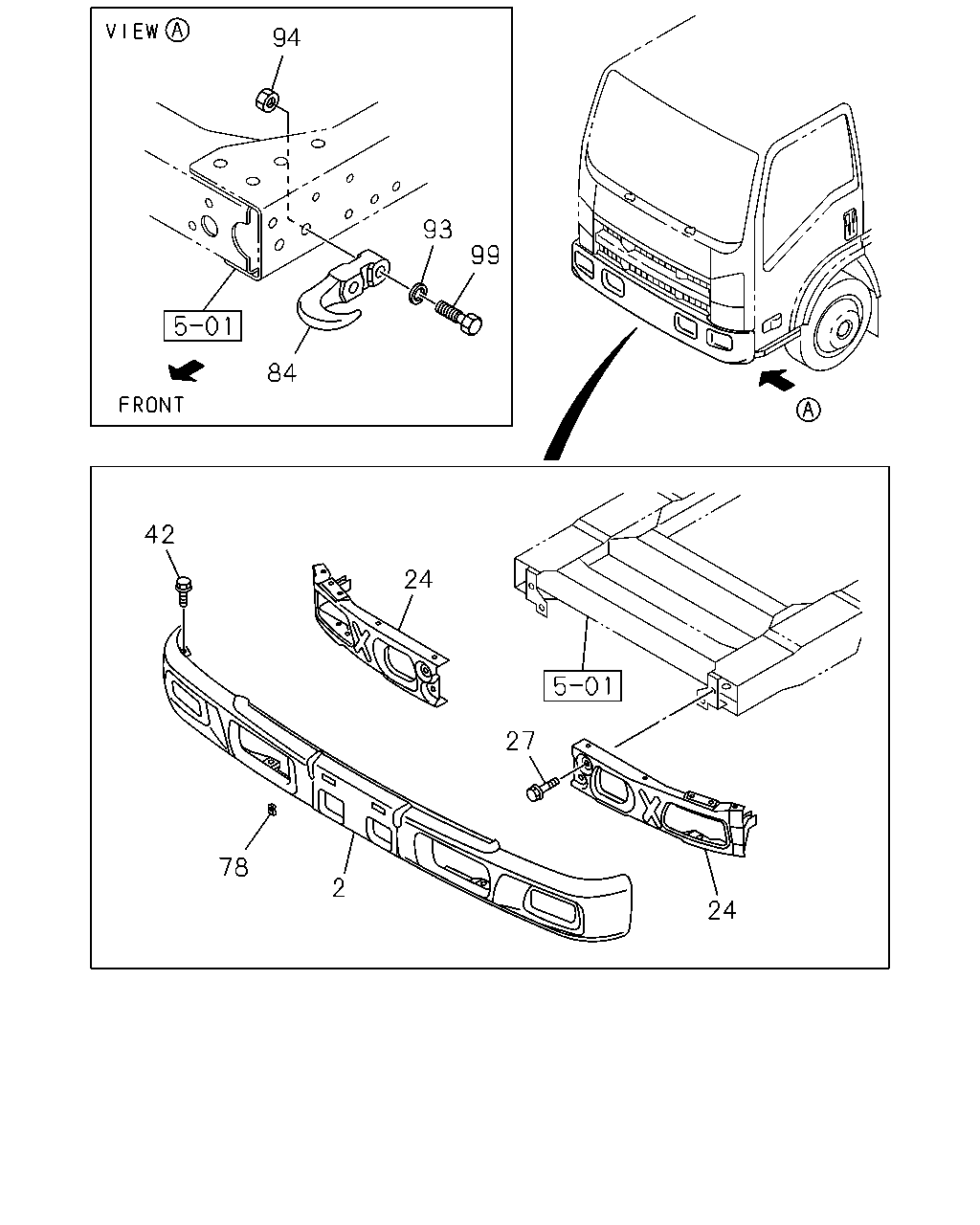

6-01 — FRONT BUMPER (#78024) — 26 parça

24 27 24 2 78 42 84 99 93 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.831 BUMPER; FRT,CENTER FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER	8-98055-079-2	01	1	1009-1212	●	●
2	07.831 BUMPER; FRT,CENTER FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER	8-98055-079-2	01	1	1301-	●	●
2	07.831 BUMPER; FRT,CENTER FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY	8-97405-627-5	01	1	1009-1212	●	●
2	07.831 BUMPER; FRT,CENTER FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY	8-97405-627-5	01	1	1301-	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE	8-97405-628-5	01	1	1009-1212	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE	8-97405-628-5	01	1	1301-	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE	8-97405-629-5	01	1	1009-1212	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE	8-97405-629-5	01	1	1301-	●	●
2	07.831 BUMPER; FRT,CENTER FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER	8-98055-080-2	01	1	1009-1212	●	●
2	07.831 BUMPER; FRT,CENTER FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> PRIMER	8-98055-080-2	01	1	1301-	●	●
2	07.831 BUMPER; FRT,CENTER FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY	8-97405-634-5	01	1	1009-1212	●	●
2	07.831 BUMPER; FRT,CENTER FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> DARK GRAY	8-97405-634-5	01	1	1301-	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE	8-97405-635-5	01	1	1009-1212	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96>,FRONT BUMPER P AINTED<VB5> WHITE	8-97405-635-5	01	1	1301-	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE	8-97405-636-5	01	1	1009-1212	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96>,FRONT BUMPER P AINTED<VB5> BLUE	8-97405-636-5	01	1	1301-	●	●
24	07.869 BAR; FRT BUMPER	8-98025-184-5	01	1	1009-	●	●
24	07.869 BAR; FRT BUMPER	8-98025-185-5	01	1	1009-	●	●
27	07.833 BOLT; BUMPER TO BACK BAR M10X30 W/TORQUES	8-98092-250-0	04	1	1009-	●	●
42	07.874 BOLT; BUMPER 08.143 M6X16 W/LK&PL WASHER	0-52010-616-0	10	1	1009-	●	●
78	07.874 NUT; SPIRE M6	8-98029-416-0	02	1	1009-	●	●
84	07.068 HOOK	8-97387-665-0	01	1	1009-	●	●
93	07.068 WASHER; LK,HOOK 06.174 ID=14.2	0-91510-814-0	02	1	1009-	●	●
94	07.068 NUT; HOOK 07.833 M14	0-91110-514-0	01	1	1009-	●	●
99	07.039 BOLT; HOOK M14X55	0-10956-455-0	02	1	1009-1103	●	●
99	07.039 BOLT; HOOK M14X55	8-97301-262-0	02	1	1104-	●	●
