5-15 — CAB MOUNTING; CAB SIDE (#78021) — 102 parça

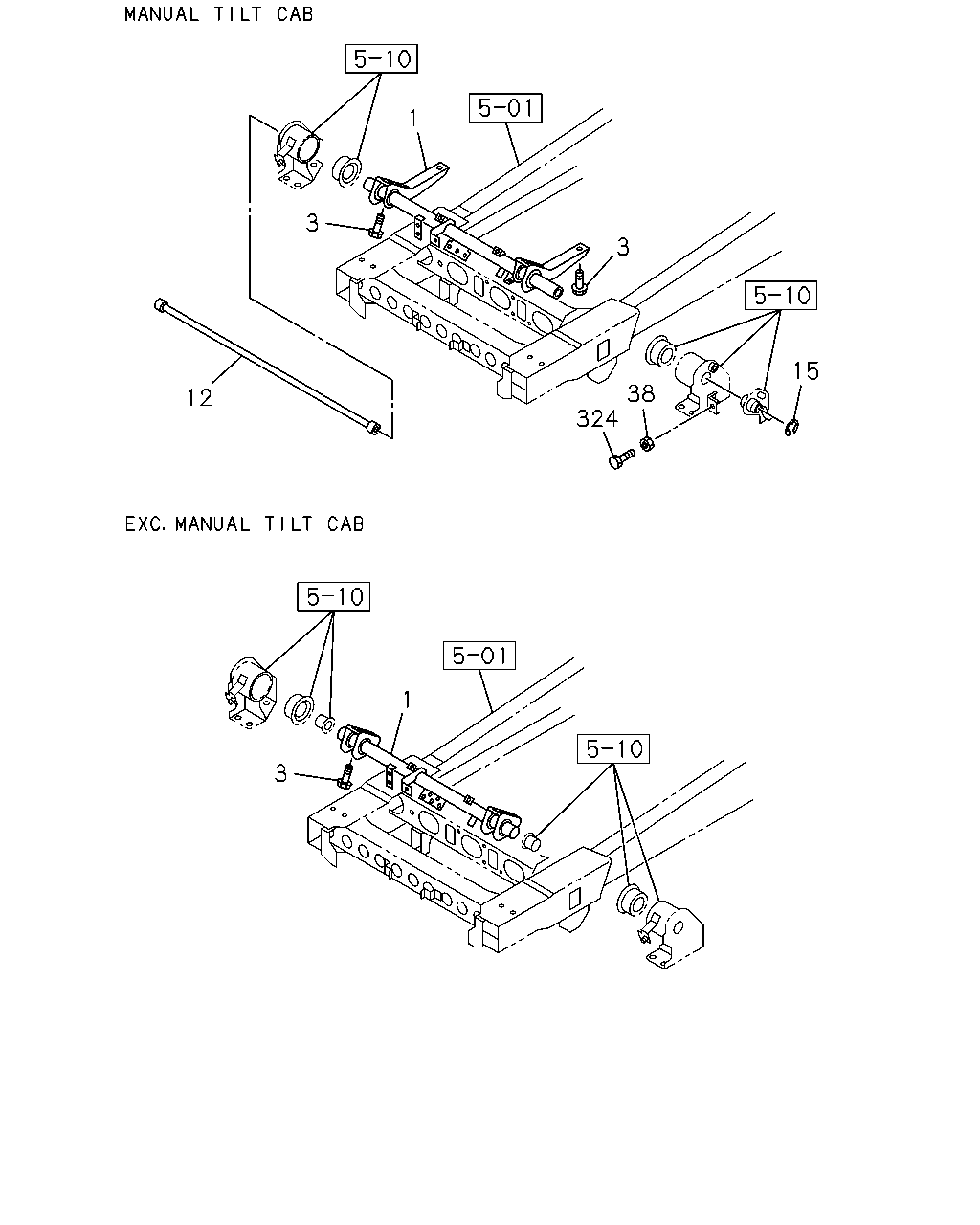

3 1 12 3 38 324 15 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98074-174-1	01	1	1009-	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98077-693-0	01	1	1009-	●
1	09.003 LEVER; TORSION BAR	8-98077-693-0	01	1	1009-		●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	1009-	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	1009-	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	1009-		●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98246-118-0	01	1	1411-1411	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ> SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98246-118-0	01	1	1412-	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98166-027-0	01	1	1009-1410	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>	8-98166-027-0	01	1	1411-1411	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORAG E<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98166-027-0	01	1	1412-	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	1009-	●
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	1009-	●
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1009-	●

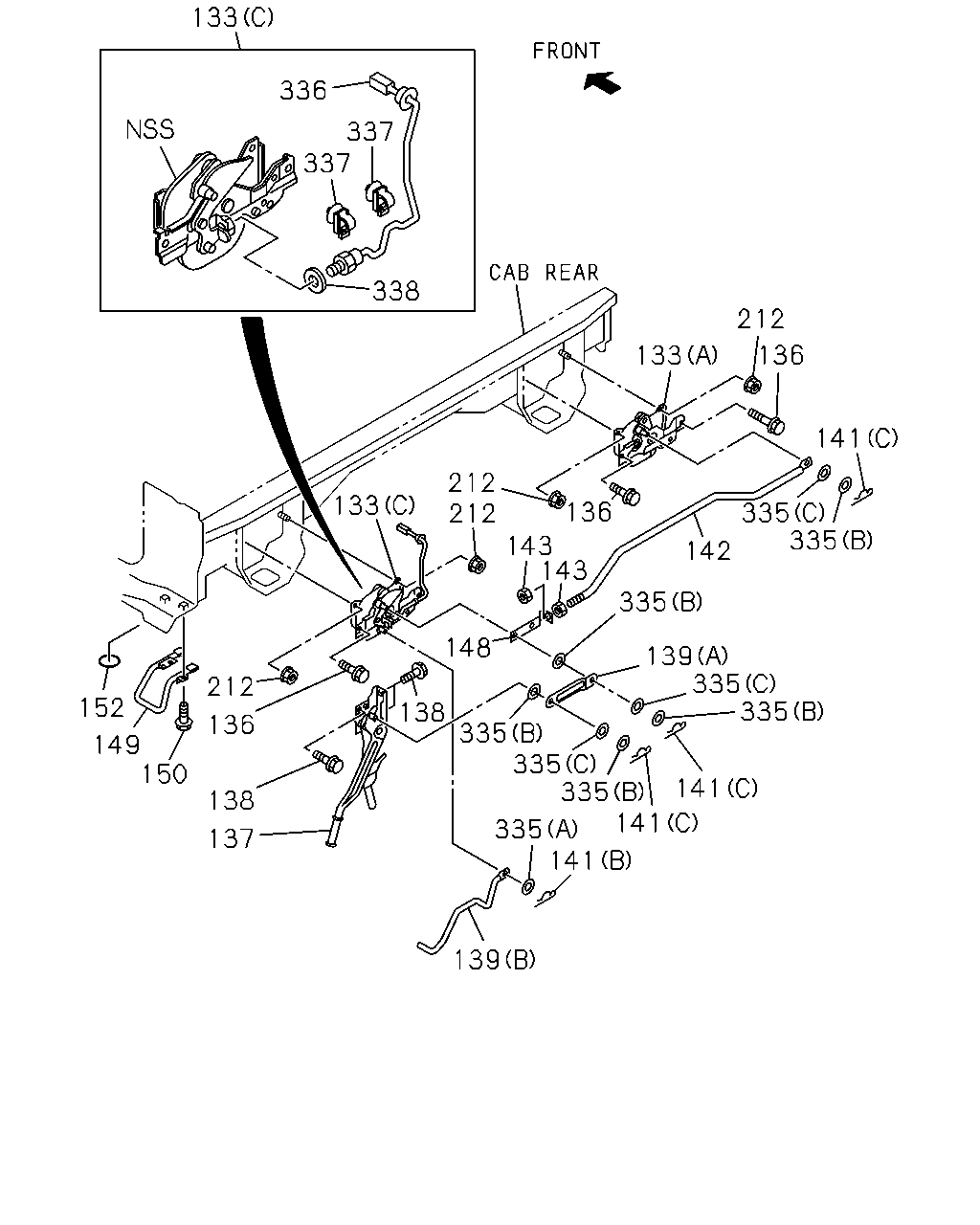

139 335 141 141 141 335 335 335 139 335 335 335 137 150 138 149 152 212 136 138 148 143 143 212 212 133 136 142 335 335 141 136 212 133 338 337 337 336 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) (C)	8-98182-354-0	01	1	1505-	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1009-1504	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> EXC. VIN MODEL YEAR 2013(VZD) (B)	8-97410-270-2	01	1	1505-	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-97584-486-4	01	1	1009-1105	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1106-	●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1009-	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97584-469-3	01	1	1009-	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1009-	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1009-	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-202-0	01	1	1009-	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1009-	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1009-	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1009-	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-633-0	01	1	1009-	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	1009-	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1009-	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1009-	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1009-1103	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1104-	●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	02	1	1009-	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1009-	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1009-	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1009-	●
336	03.001 SWITCH; CAB LOCK MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD)	8-98032-665-2	01	1	1505-	●
337	09.001 CLIP; CAB LOCK MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) 02.559 L=155	8-97173-307-0	02	1	1505-	●
338	09.005 WASHER; CAB LOCK MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) 04.429 ID=17 OD=30	0-91610-516-0	01	1	1505-	●

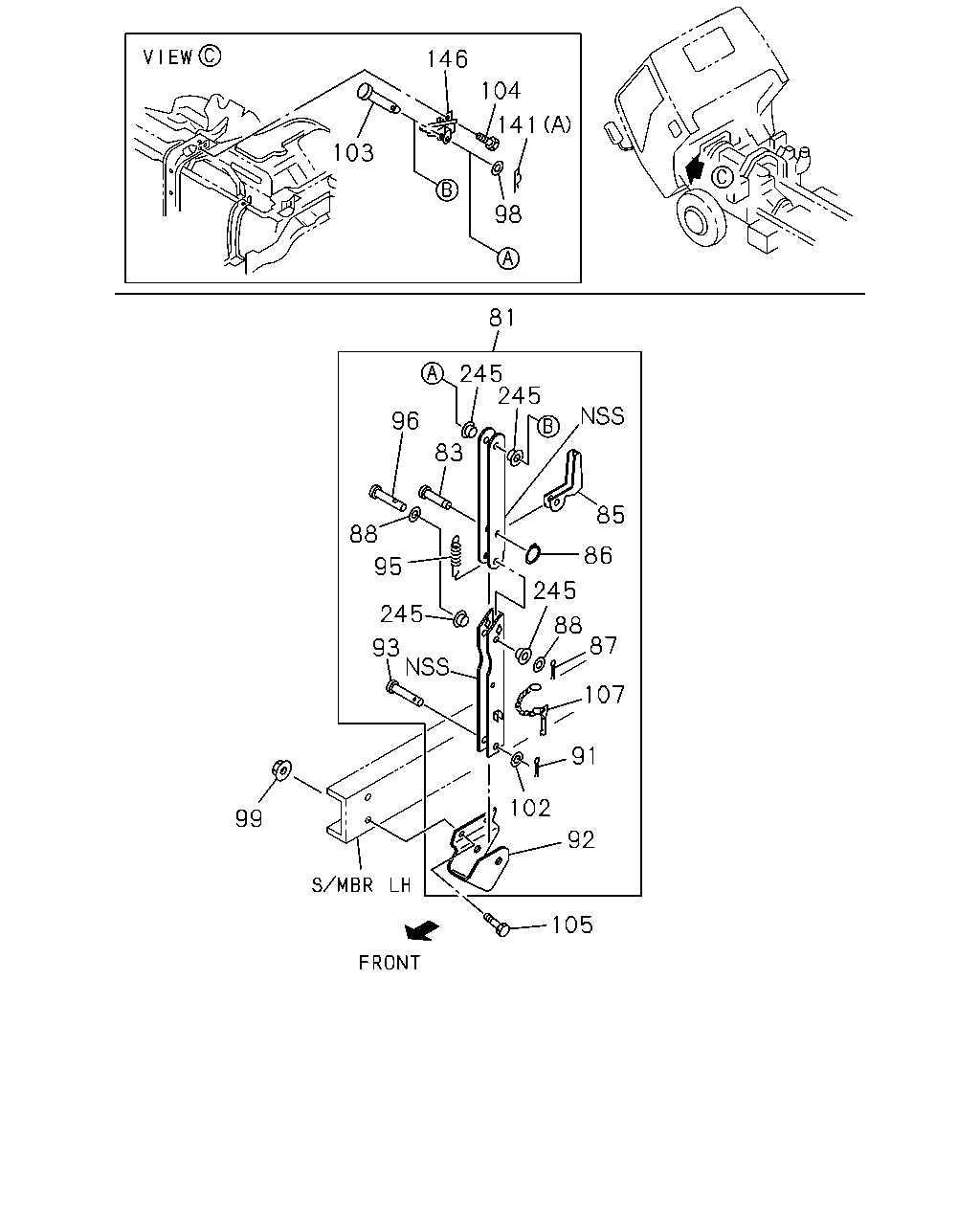

146 141 104 103 98 81 245 245 85 86 245 88 87 107 91 92 102 93 95 88 96 83 245 105 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ>	8-98123-310-0	01	1	1009-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1009-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1009-	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1009-	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1009-	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1009-	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1009-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98011-317-0	01	1	1009-	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1009-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1009-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1009-	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1009-	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-1510	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1009-	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1009-	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1009-	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-	●
107	09.005 PIN; LK LEVER MANUAL TILT CAB<RWZ>	8-94331-482-0	01	1	1009-	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1009-	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1009-	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1009-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1009-	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1009-	●

145 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1009-	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1009-		●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1009-	●
145	09.008 BOLT; CAB RR MTG BRKT 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1009-		●

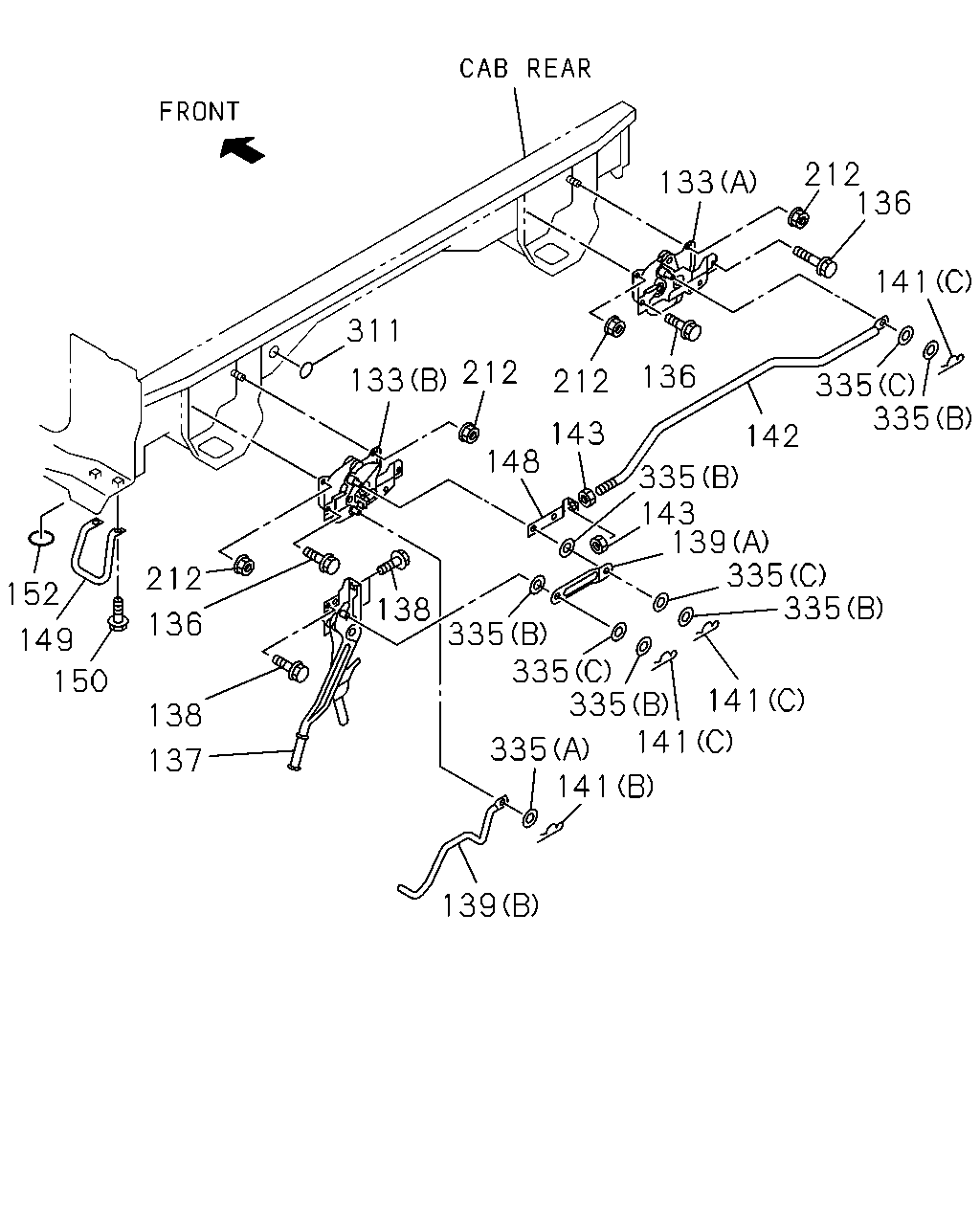

152 149 150 138 137 139 335 141 335 335 141 141 335 335 139 143 335 148 335 138 136 212 133 311 212 212 143 136 133 212 141 335 335 136 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) (C)	8-98182-354-0	01	1	1505-	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1009-1504	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> EXC. VIN MODEL YEAR 2013(VZD) (B)	8-97410-270-2	01	1	1505-	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-97584-486-4	01	1	1009-1105	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1106-	●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1009-	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97584-469-3	01	1	1009-	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1009-	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1009-	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-202-0	01	1	1009-	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1009-	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1009-	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1009-	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-633-0	01	1	1009-	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	1009-	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1009-	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1009-	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1009-1103	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1104-	●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	02	1	1009-	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-	●
311	09.005 SEAL; CAB LOCK 16.545 OD=32 BLACK	8-98031-126-0	01	1	1009-1504	●
311	09.005 SEAL; CAB LOCK VIN MODEL YEAR 2013(VZD) EXC. MANUAL TILT CAB<RWZ> 16.545 OD=32 BLACK	8-98031-126-0	01	1	1505-	●
311	09.005 SEAL; CAB LOCK EXC. VIN MODEL YEAR 2013(VZD) 16.545 OD=32 BLACK	8-98031-126-0	01	1	1505-	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1009-	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1009-	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1009-	●

308 14 14 308 14 14 144 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	09.009 COVER; MTG,CAB (A) BLACK L=125	8-94273-738-3	02	1	1009-		●
14	09.009 COVER; MTG,CAB (B) BLACK L=124	8-98132-457-0	02	1	1009-		●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1009-	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1009-		●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1009-	●
145	09.008 BOLT; CAB RR MTG BRKT 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1009-		●
308	09.003 RIVET; COVER 03.602 D6X12.5	8-94146-425-0	06	1	1009-		●
