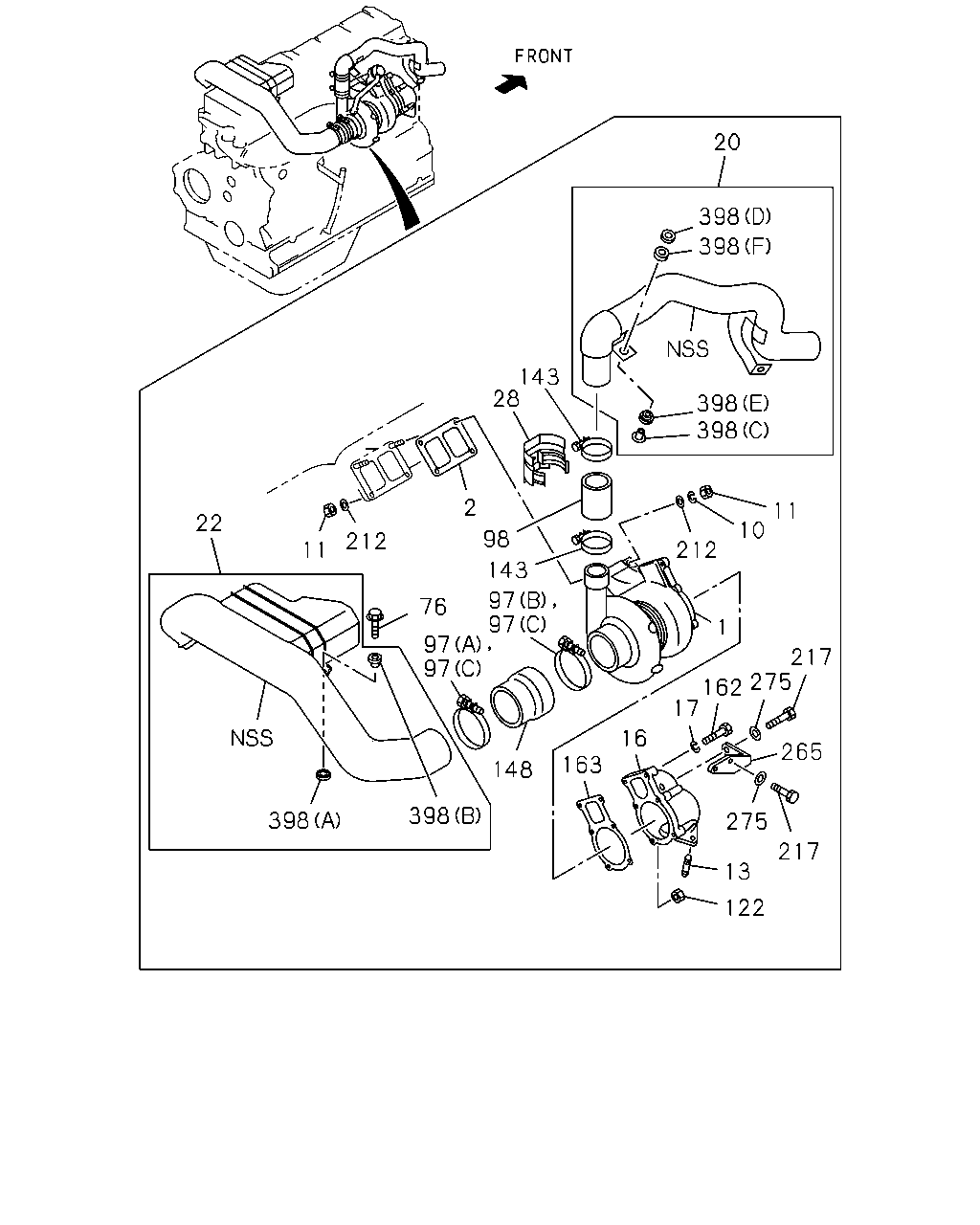

0-36 — TURBOCHARGER SYSTEM
(#7802) — 38 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
20
398
398
143
28
398
398
2
11
22
10
98
212
212
11
143
97
97
97
97
76
1
217
275
162
17
16
265
163
148
398
398
275
217
13
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-94390-639-2
01
1
9905-0302
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97602-809-0
01
1
0303-
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-94390-640-1
01
1
9905-
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
9905-
●
●
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
9905-
●
●
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
9905-
●
●
13
STUD; EXH PIPE
M12X140 L=160
1-09302-163-0
02
1
9905-9909
●
●
13
STUD; EXH PIPE
M12X123 L=141
1-09302-012-0
02
1
9910-
●
●
16
ADAPTER; EXH PIPE
8-94392-852-1
01
1
9905-9909
●
●
16
ADAPTER; EXH PIPE
8-97600-283-0
01
1
9910-
●
●
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
9905-
●
●
20
PIPE; INL,TURBOCHARGER OUT
8-97600-383-1
01
1
9905-
●
●
22
DUCT; INL,ACL TO TURBOCHARGER
8-97600-071-1
01
1
9905-
●
●
28
PROTECTOR; HEAT,HOSE,AIR DUCT
8-94393-182-0
01
1
9905-
●
●
76
BOLT; AIR DUCT
M8X35 FLANGE
0-28680-835-0
02
1
9905-0512
●
●
76
BOLT; AIR DUCT
M8X35 FLANGE
0-28650-835-0
02
1
0601-
●
●
97
CLIP; HOSE,TURBOCHARGER,INL
(A) ID=100
9-09915-599-0
01
1
9905-0211
●
●
97
CLIP; HOSE,TURBOCHARGER,INL
(C) ID=87-116
1-09707-144-0
02
1
0212-0306
●
●
97
CLIP; HOSE,TURBOCHARGER,INL
(C) ID=87-113
1-09707-199-0
04
1
0307-
●
●
97
CLIP; HOSE,TURBOCHARGER,INL
(B) ID=112
9-09915-605-0
01
1
9905-0211
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-94392-854-0
01
1
9905-
●
●
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
9905-
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
8-94126-771-0
02
1
9905-0306
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76
1-09707-203-0
02
1
0307-
●
●
148
HOSE; TURBOCHARGER,INL
8-94392-853-0
01
1
9905-
●
●
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
9905-
●
●
163
GASKET; ADAPTER TO EXH PIPE
1-14145-162-2
01
1
9905-
●
●
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
9905-
●
●
217
BOLT; BRKT
M12X30
8-94394-324-0
03
1
9905-
●
●
265
BRACKET; EXH PIPE
8-94395-764-2
01
1
9905-
●
●
275
WASHER; PL
ID=12.2
9-09851-933-0
03
1
9905-9906
●
●
275
WASHER; PL
ID=12.2
1-09503-008-0
03
1
9907-
●
●
398
MOUNTING
(F)
8-94160-177-0
01
1
9905-
●
●
398
MOUNTING
(A) ID=19.5
8-94202-456-3
02
1
9905-
●
●
398
MOUNTING
(C)
8-94390-551-1
01
1
9905-
●
●
398
MOUNTING
(D)
8-94394-504-0
01
1
9905-
●
●
398
MOUNTING
(E)
8-94394-529-0
01
1
9905-
●
●
398
MOUNTING
(B)
8-97600-053-0
02
1
9905-
●
●
