◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#78013) — 25 parça

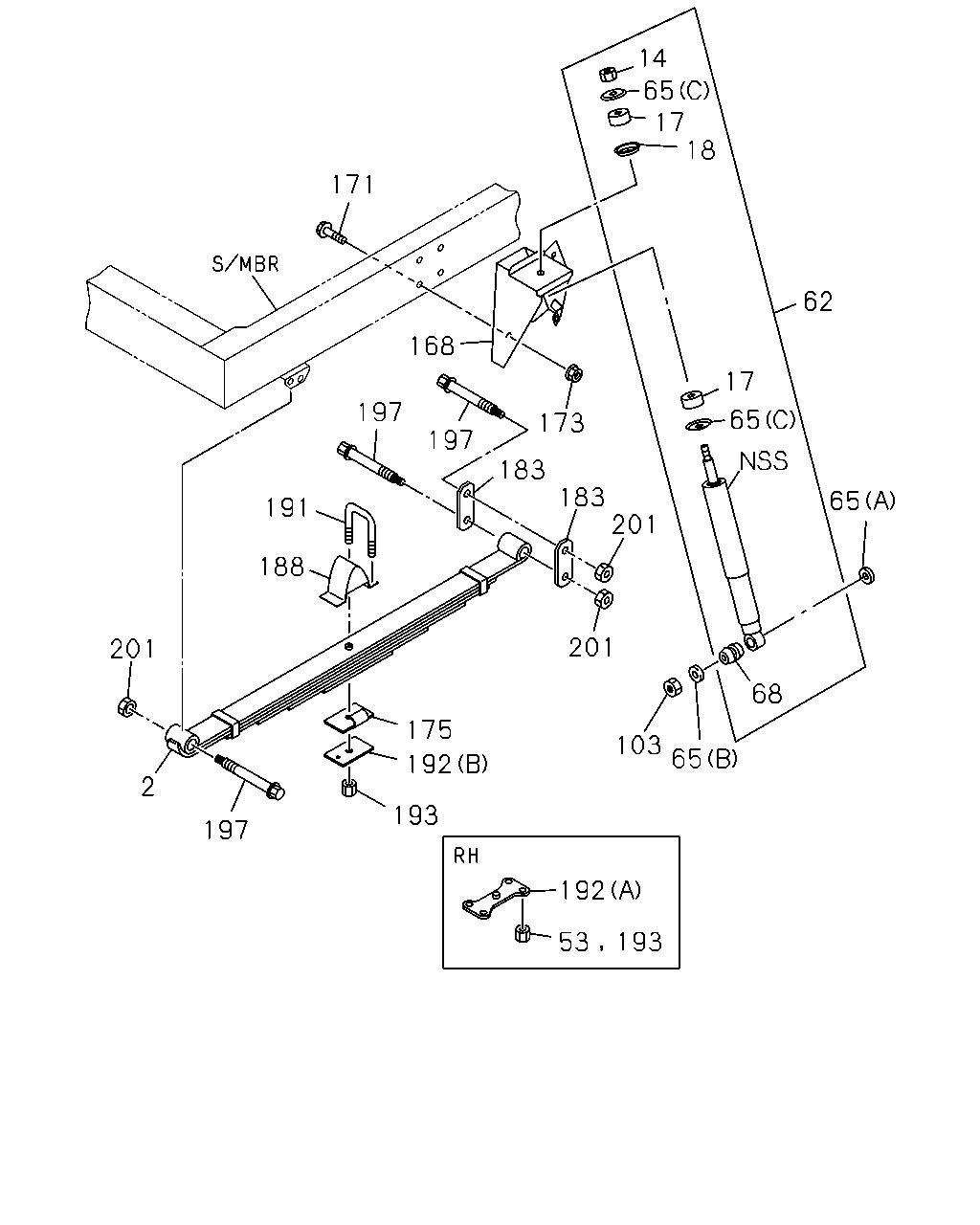

çizim 124003
193 53 192 65 103 68 65 65 17 62 18 17 65 14 171 168 173 201 183 183 197 197 201 191 188 175 192 193 197 2 201
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-401-0 01 1 1009- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-402-0 01 1 1009- ● ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1009- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1009- ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1009- ● ●
53 06.174 NUT; LWR LINK
M14 FLANGE 		8-97360-124-0 02 1 1009- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97367-351-1 02 1 1009- ● ●
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1009- ● ●
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1009- ● ●
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1009- ● ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1009- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1009- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98049-995-4 01 1 1009- ● ●
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 04 1 1009- ● ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 03 1 1009- ● ●
175 06.170 SPACER; BRKT,S/ABS
07.518 		8-94311-841-2 02 1 1009- ● ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1009- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98090-443-0 02 1 1009- ● ●
191 07.417 U-BOLT; FRT SPR
L=185 		8-94461-227-4 02 1 1009- ● ●
191 07.417 U-BOLT; FRT SPR
L=275 		8-94461-228-2 02 1 1009- ● ●
192 07.436 PIECE; DIST
(A) 		8-94462-218-2 01 1 1009- ● ●
192 07.436 PIECE; DIST
(B) 		8-98049-991-0 02 1 1009- ● ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1009- ● ●
197 07.427 PIN; FRT SPR,FRT
M16X122 FLANGE 		8-97360-110-0 06 1 1009- ● ●
201 07.427 NUT; PIN LK
M16 FLANGE 		8-97360-125-0 06 1 1009- ● ●
