◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#7801) — 36 parça

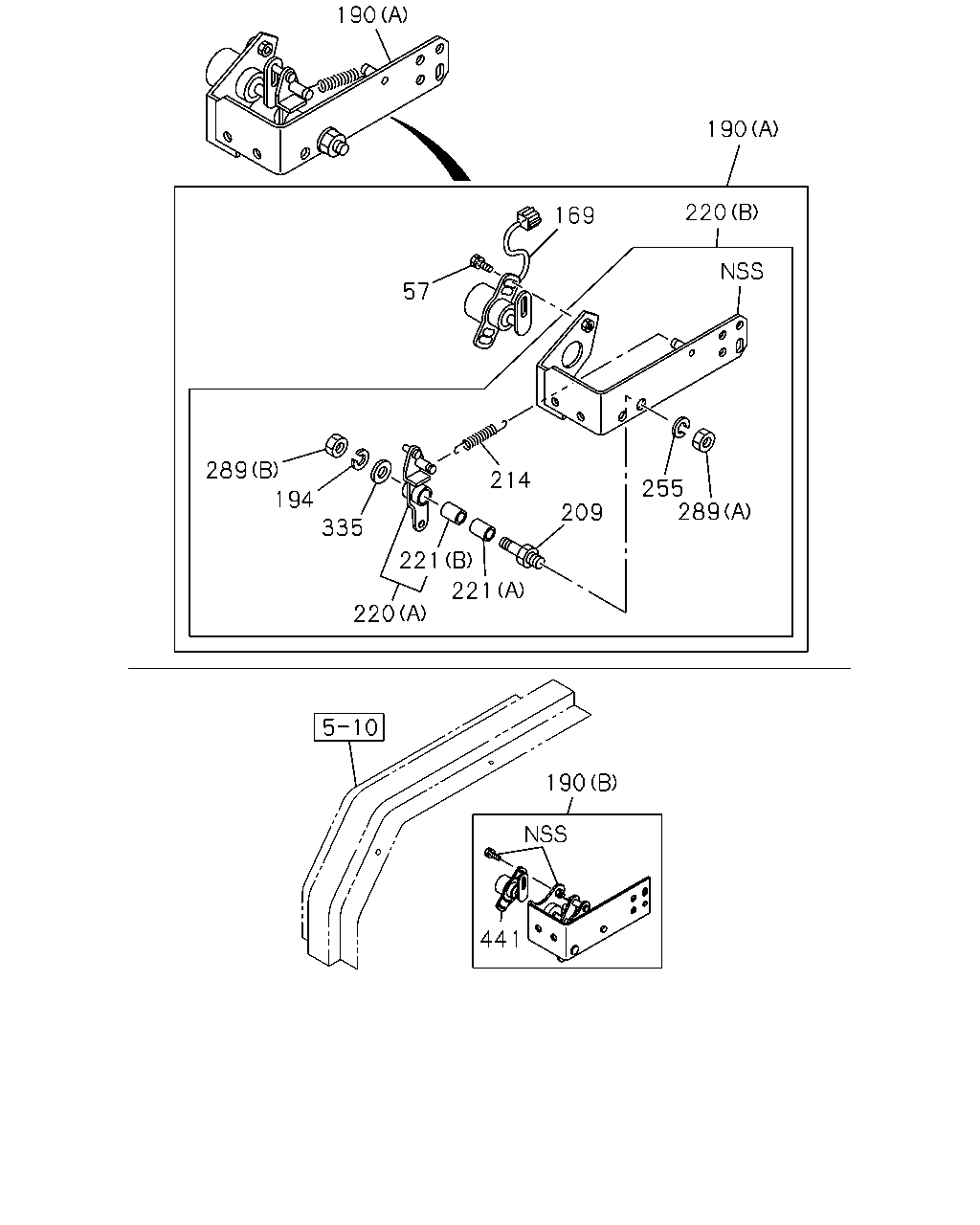

çizim 26700
190 190 220 169 57 289 214 255 289 194 335 209 221 221 220 190 441
BalonParca AdiParca NoAdetTipApplied Date A B
57 BOLT; BRKT
TRANS SIDE PTO WO/LVR(SH5) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9906-0112 ● ●
57 BOLT; BRKT
TRANS FRT PTO(RC2) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9906-0112 ●
169 SENSOR
TRANS SIDE PTO WO/LVR(SH5) 		1-81534-010-0 01 1 9906-0112 ● ●
169 SENSOR
TRANS FRT PTO(RC2) 		1-81534-010-0 01 1 9906-0112 ●
190 LEVER; ENG CONT
TRANS SIDE PTO WO/LVR(SH5) (A) 		1-23335-504-0 01 1 9906-0112 ● ●
190 LEVER; ENG CONT
TRANS FRT PTO(RC2) (A) 		1-23335-504-0 01 1 9906-0112 ●
190 LEVER; ENG CONT
TRANS SIDE PTO WO/LVR(SH5) (B) 		8-97219-466-3 01 1 0201-0301 ● ●
190 LEVER; ENG CONT
TRANS FRT PTO(RC2) (B) 		8-97219-466-3 01 1 0201-0301 ●
190 LEVER; ENG CONT
TRANS SIDE PTO WO/LVR(SH5) (B) 		8-97219-466-4 01 1 0302- ●
190 LEVER; ENG CONT
TRANS FRT PTO(RC2) (B) 		8-97219-466-4 01 1 0302- ●
194 WASHER; LK,LEVER
TRANS SIDE PTO WO/LVR(SH5) ID=8.2 		9-09150-508-0 01 1 9906-0112 ● ●
194 WASHER; LK,LEVER
TRANS FRT PTO(RC2) ID=8.2 		9-09150-508-0 01 1 9906-0112 ●
209 SHAFT; ENG CONT
TRANS SIDE PTO WO/LVR(SH5) 		1-14336-002-1 01 1 9906-0112 ● ●
209 SHAFT; ENG CONT
TRANS FRT PTO(RC2) 		1-14336-002-1 01 1 9906-0112 ●
214 SPRING; ENG CONT RETURN
TRANS SIDE PTO WO/LVR(SH5) 		8-94481-840-1 01 1 9906-0112 ● ●
214 SPRING; ENG CONT RETURN
TRANS FRT PTO(RC2) 		8-94481-840-1 01 1 9906-0112 ●
220 LEVER ASM
TRANS SIDE PTO WO/LVR(SH5) (A) 		1-23311-357-0 01 1 9906-0112 ● ●
220 LEVER ASM
TRANS FRT PTO(RC2) (A) 		1-23311-357-0 01 1 9906-0112 ●
220 LEVER ASM
TRANS SIDE PTO WO/LVR(SH5) (B) 		1-23335-505-0 01 1 9906-0112 ● ●
220 LEVER ASM
TRANS FRT PTO(RC2) (B) 		1-23335-505-0 01 1 9906-0112 ●
221 BUSHING; LEVER
TRANS SIDE PTO WO/LVR(SH5) (A) 		1-09330-057-0 01 1 9906-0112 ● ●
221 BUSHING; LEVER
TRANS FRT PTO(RC2) (A) 		1-09330-057-0 01 1 9906-0112 ●
221 BUSHING; LEVER
TRANS SIDE PTO WO/LVR(SH5) (B) 		1-09330-058-0 01 1 9906-0112 ● ●
221 BUSHING; LEVER
TRANS FRT PTO(RC2) (B) 		1-09330-058-0 01 1 9906-0112 ●
255 WASHER; LK,LEVER
TRANS SIDE PTO WO/LVR(SH5) ID=10.2 		9-09150-510-0 01 1 9906-0112 ● ●
255 WASHER; LK,LEVER
TRANS FRT PTO(RC2) ID=10.2 		9-09150-510-0 01 1 9906-0112 ●
289 NUT; LEVER
TRANS SIDE PTO WO/LVR(SH5) (A) M10 		9-09110-410-0 01 1 9906-0112 ● ●
289 NUT; LEVER
TRANS FRT PTO(RC2) (A) M10 		9-09110-410-0 01 1 9906-0112 ●
289 NUT; LEVER
TRANS SIDE PTO WO/LVR(SH5) (B) M8 		9-09111-408-0 01 1 9906-0112 ● ●
289 NUT; LEVER
TRANS FRT PTO(RC2) (B) M8 		9-09111-408-0 01 1 9906-0112 ●
335 WASHER; PL LEVER
TRANS SIDE PTO WO/LVR(SH5) 		5-09503-135-0 01 1 9906-0112 ● ●
335 WASHER; PL LEVER
TRANS FRT PTO(RC2) 		5-09503-135-0 01 1 9906-0112 ●
441 SENSOR; THROTTLE POSITION
TRANS SIDE PTO WO/LVR(SH5) 		8-97200-308-0 01 1 0302- ●
441 SENSOR; THROTTLE POSITION
TRANS FRT PTO(RC2) 		8-97200-308-0 01 1 0302- ●
441 SENSOR; THROTTLE POSITION
TRANS SIDE PTO WO/LVR(SH5) 		8-97200-308-0 01 1 0201-0301 ● ●
441 SENSOR; THROTTLE POSITION
TRANS FRT PTO(RC2) 		8-97200-308-0 01 1 0201-0301 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
