4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#78009) — 80 parça

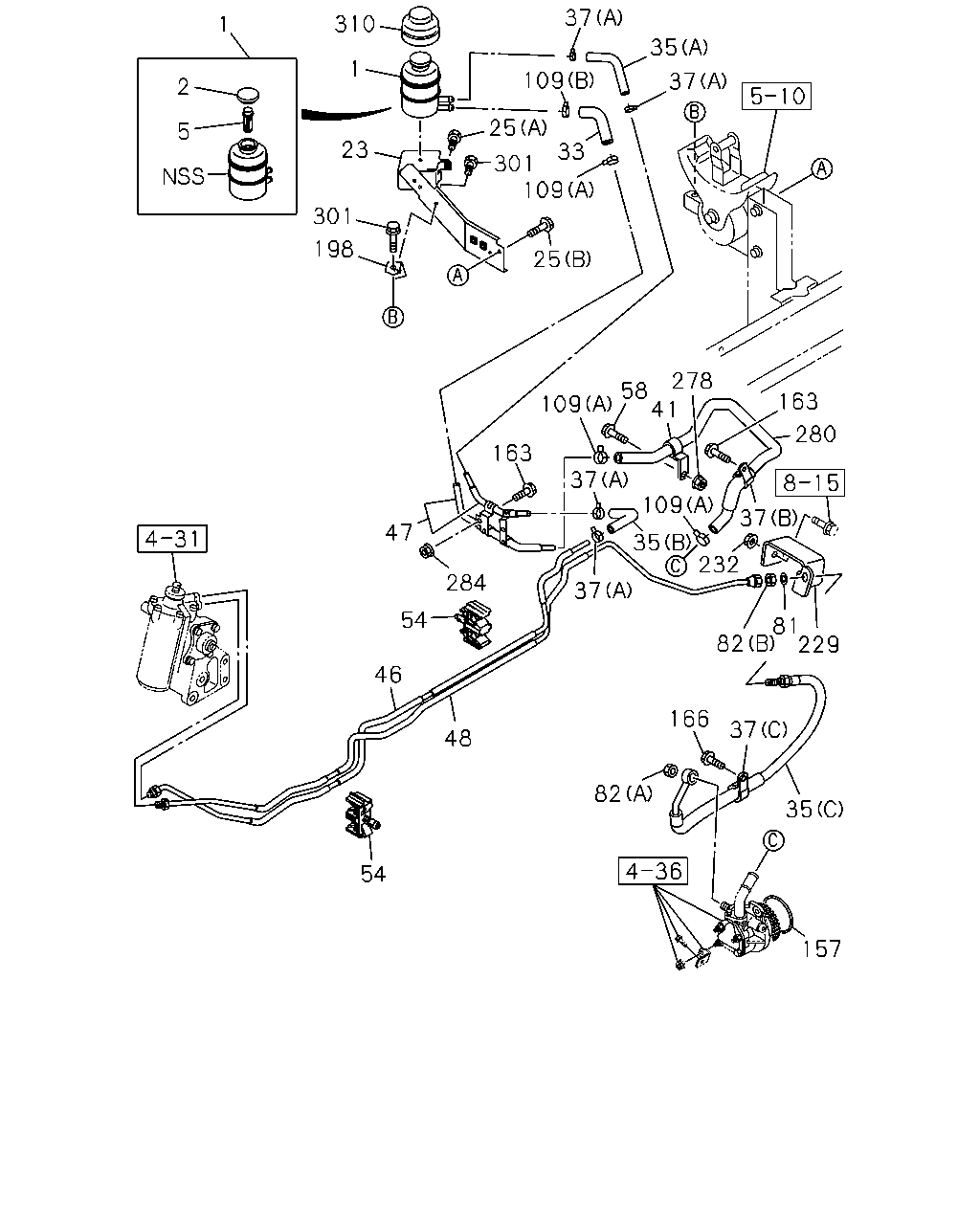

157 82 166 35 37 82 229 81 232 37 35 109 37 48 54 46 54 284 47 163 109 58 41 278 163 280 37 35 33 109 25 301 25 109 37 310 1 23 301 198 5 2 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1009-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1009-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1009-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1009-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1009-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1009-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1009-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1009-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1009-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98043-490-3	01	1	1009-		●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1009-	●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1009-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1009-	●	●
41	06.672 CLIP; HOSE,P/S	8-98074-004-0	01	1	1009-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	1009-	●	●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	1009-	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	1009-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	1009-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1009-		●
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	1009-	●	●
58	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1009-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1009-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1009-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1009-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1009-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	1009-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1009-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1009-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1009-	●
229	06.606 BRACKET; HOSE,POWER STRG 06.672	8-98043-418-2	01	1	1009-		●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-248-1	01	1	1009-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98043-489-0	01	1	1009-		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1009-	●

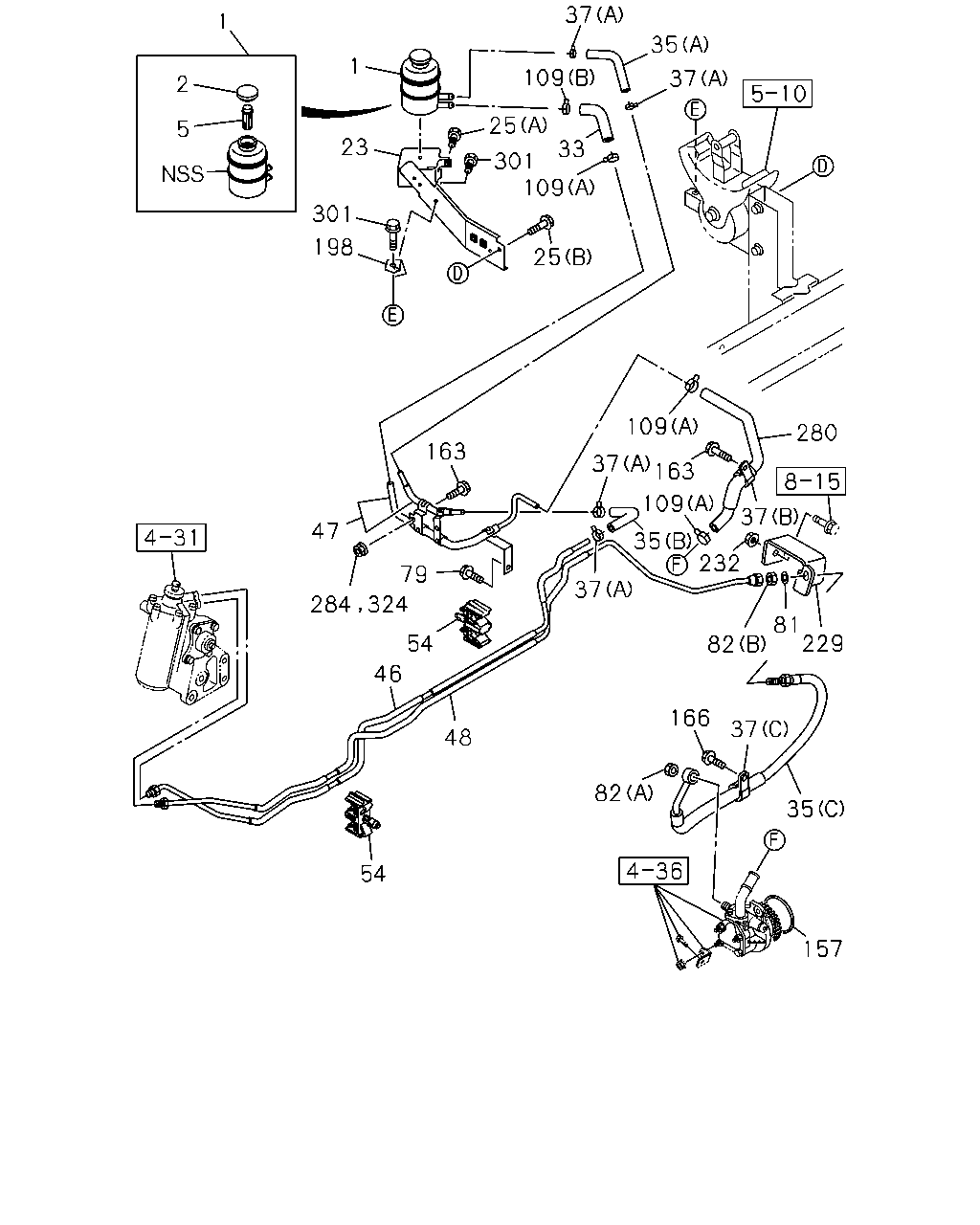

157 35 82 166 37 229 81 82 37 232 35 37 109 37 163 109 280 37 35 37 109 25 33 109 25 301 198 301 23 1 1 2 5 47 163 79 324 284 54 46 48 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1009-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1009-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1009-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1009-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1009-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1009-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1009-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1009-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1009-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98043-490-3	01	1	1009-		●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1009-	●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1009-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1009-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	1009-	●	●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	1009-	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	1009-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	1009-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1009-		●
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	1009-	●	●
79	06.672 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1009-		●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1009-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1009-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1009-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1009-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1009-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	1009-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1009-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1009-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1009-	●
229	06.606 BRACKET; HOSE,POWER STRG 06.672	8-98043-418-2	01	1	1009-		●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-248-1	01	1	1009-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98043-489-0	01	1	1009-		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-		●
