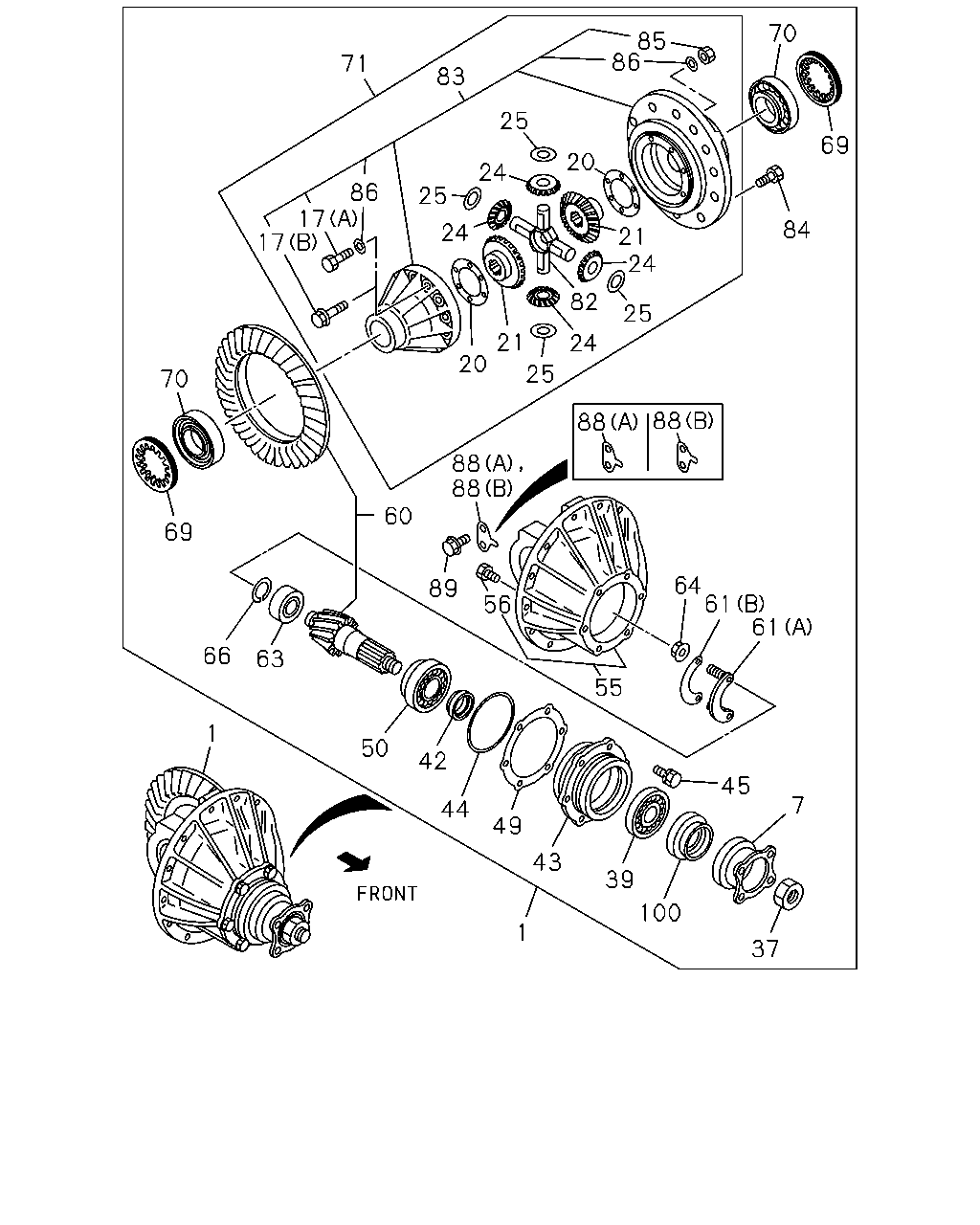

4-25 — REAR FINAL DRIVE (#78005) — 119 parça

84 20 78 78 78 78 78 76 76 76 25 21 24 82 25 24 396 25 24 25 24 20 86 17 79 79 79 79 79 79 88 88 88 88 69 70 89 56 55 64 61 61 37 7 45 39 49 44 50 100 43 42 63 66 60 1 1 69 70 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	1009-	●	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	1009-	●	●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	1009-	●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	1009-	●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	1009-1208	●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1009-	●	●
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1009-	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1009-	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1009-	●	●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	1009-	●	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1009-	●	●
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1009-	●	●
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1009-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1009-	●	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	1009-	●	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	1009-	●	●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	1009-1209	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1009-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1009-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1009-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1009-	●	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1009-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	1009-	●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1009-	●	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	1009-	●	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1009-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	1009-1505	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-98092-137-0	01	1	1506-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1009-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1009-	●	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1009-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1009-	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1009-	●	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1009-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1009-	●	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1009-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1009-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	1009-	●	●
76	05.511 DISC; BEVEL LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	1009-	●	●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	1009-	●	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	1009-	●	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1009-1309	●	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1009-	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	1009-	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	1009-1208	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-	●	●
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1009-	●	●
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1009-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1009-	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1009-	●	●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-98169-195-0	01	1	1009-	●	●

37 100 39 43 1 49 44 42 50 1 66 63 69 70 60 88 88 89 56 55 45 7 61 61 64 84 69 70 85 86 25 20 21 24 25 24 82 21 25 20 17 17 86 71 83 25 24 24 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	1009-	●	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	1009-	●	●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	1009-	●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	1009-	●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	1009-1208	●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1009-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1009-	●	●
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1009-	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1009-	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1009-	●	●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	1009-	●	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1009-	●	●
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1009-	●	●
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1009-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1009-	●	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	1009-	●	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	1009-	●	●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	1009-1209	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1009-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1009-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1009-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1009-	●	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1009-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	1009-	●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1009-	●	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	1009-	●	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1009-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	1009-1505	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-98092-137-0	01	1	1506-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1009-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1009-	●	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1009-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1009-	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1009-	●	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1009-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1009-	●	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1009-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1009-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	1009-	●	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1009-1309	●	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-	●	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-2	01	1	1009-1208	●	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-98219-707-0	01	1	1209-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1009-	●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	1009-	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	1009-	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	1009-1208	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-	●	●
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1009-	●	●
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1009-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1009-	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1009-	●	●
