5-30 — SPARE TIRE CARRIER AND COVER (#780) — 13 parça

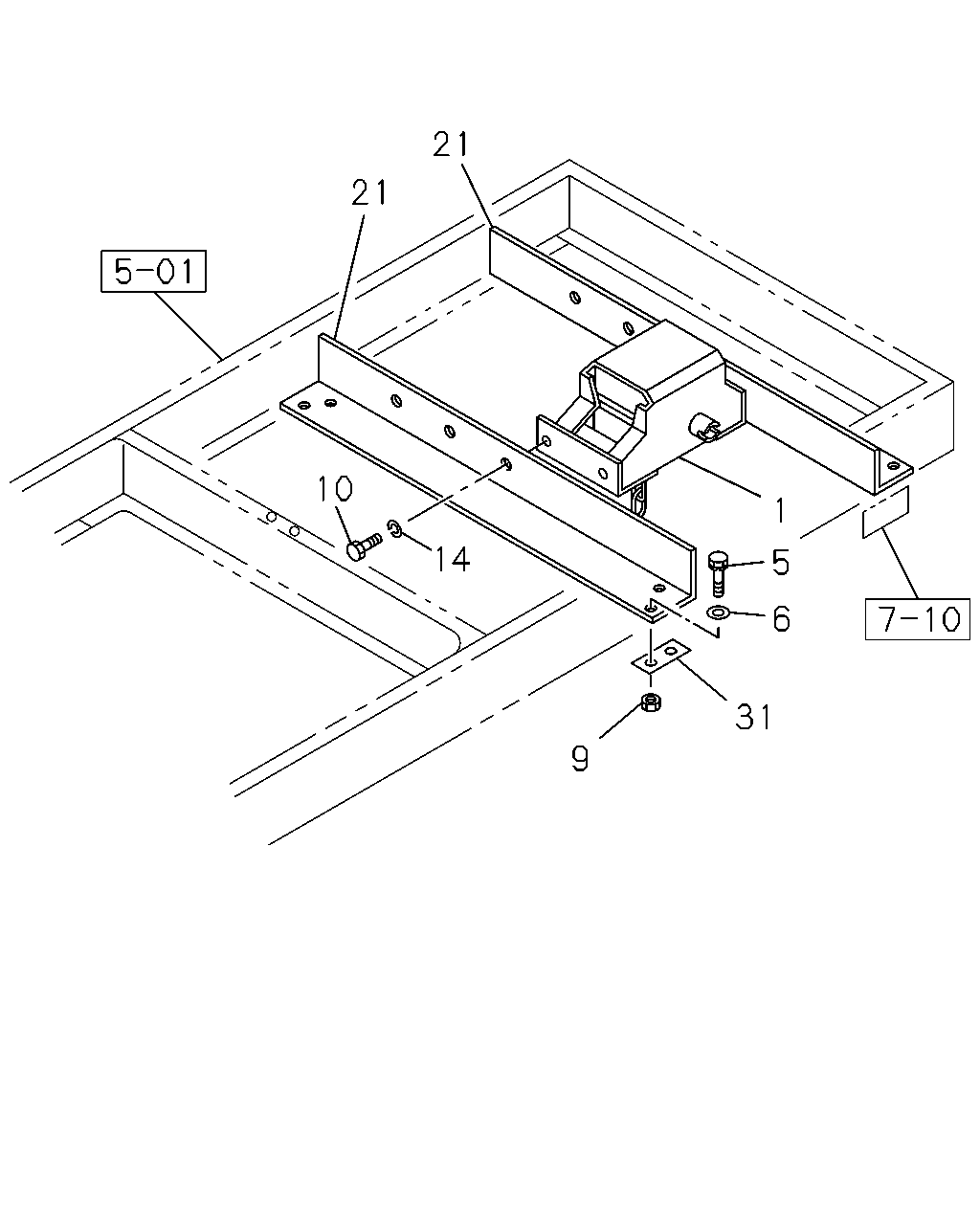

çizim 95709
21 21 10 14 9 31 6 5 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-53630-147-2 01 1 9505-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) 		1-53630-147-2 01 1 9505-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-146-1 01 1 9204-9504
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) 		1-53630-146-1 01 1 9505-
5 BOLT; BRKT TO FRAME
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) SPARE WHEEL CARRIER FRAME REAR<P10> M10X50 W/LK WASHER 		0-50041-050-0 08 1 9204-
5 BOLT; BRKT TO FRAME
WHEEL BASE 6300MM(63W) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 W/LK WASHER 		0-50041-035-0 08 1 9204-
6 WASHER; PL,BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> ID=10.5 		9-09164-510-0 08 1 9204-
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-410-0 08 1 9204-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M16X30 		0-20801-630-0 04 1 9204-
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> ID=16.2 		9-09150-516-0 04 1 9204-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-241-0 02 1 9204-
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 6300MM(63W) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-209-2 02 1 9204-
31 SPACER; HANGER BRKT
WHEEL BASE 6300MM(63W) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53168-227-0 02 1 9204-
